| Rated current In, A | 30 |
| Rated voltage, V | 1000 |
| Colour | Grey |
| Length, mm | 100.8 |
| Width/grid dimension, mm | 8.2 |
| Height at lowest possible mounting height, mm | 49.7 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Type of slitting | Sliding |
| Type of cross disconnection | Sliding |
| With integrated test socket | No |
| Connectable conductor cross section solid-core, mm² | 0.5...10 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...6 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.5...6 |
| Connectable conductor cross section multi-wired, mm² | 0.5...6 |
| Type of electrical connection 1 | Spring clamp connection |
| Type of electrical connection 2 | Spring clamp connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Internally connected stages | No |
| Closing plate required | Yes |
| Connection position | Above |

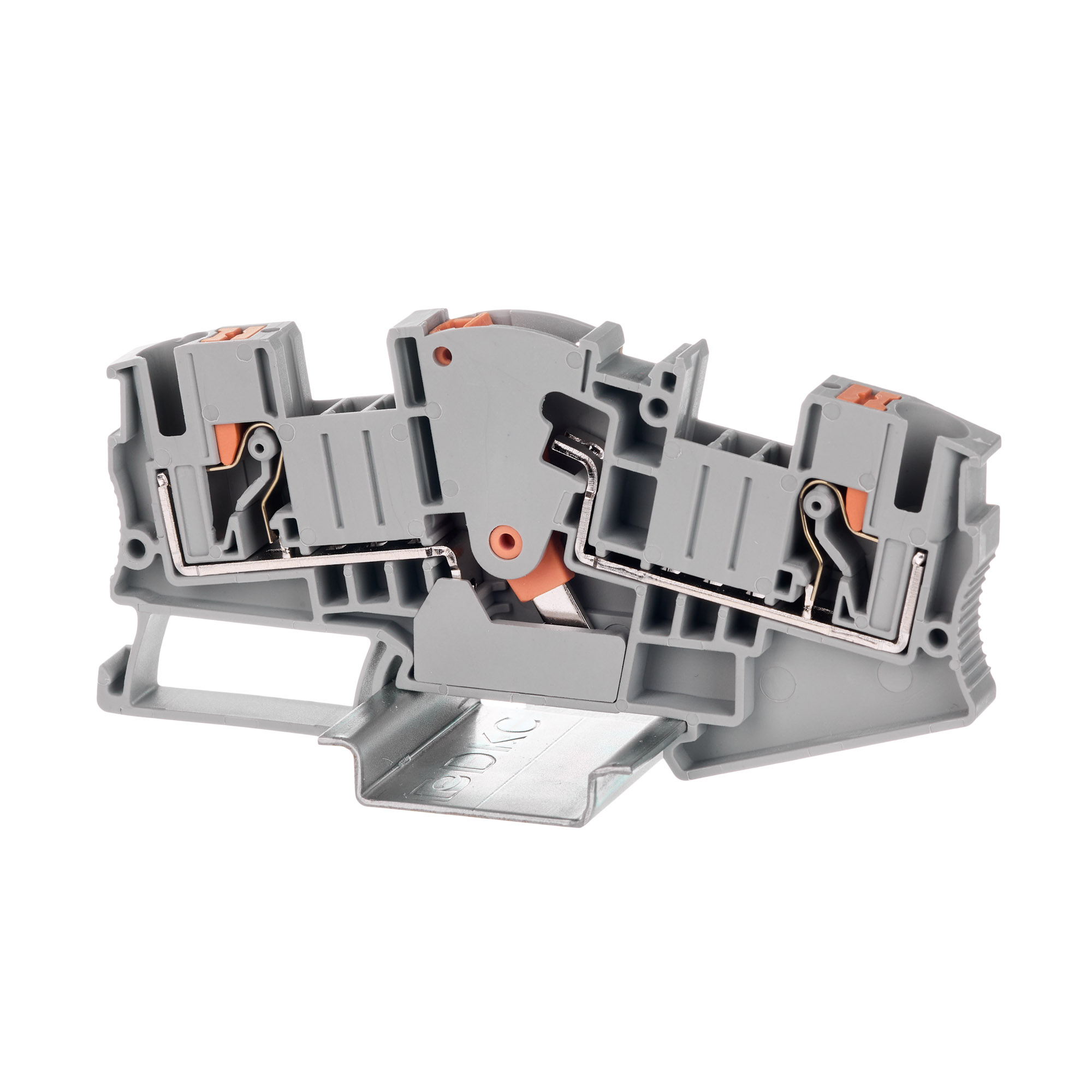

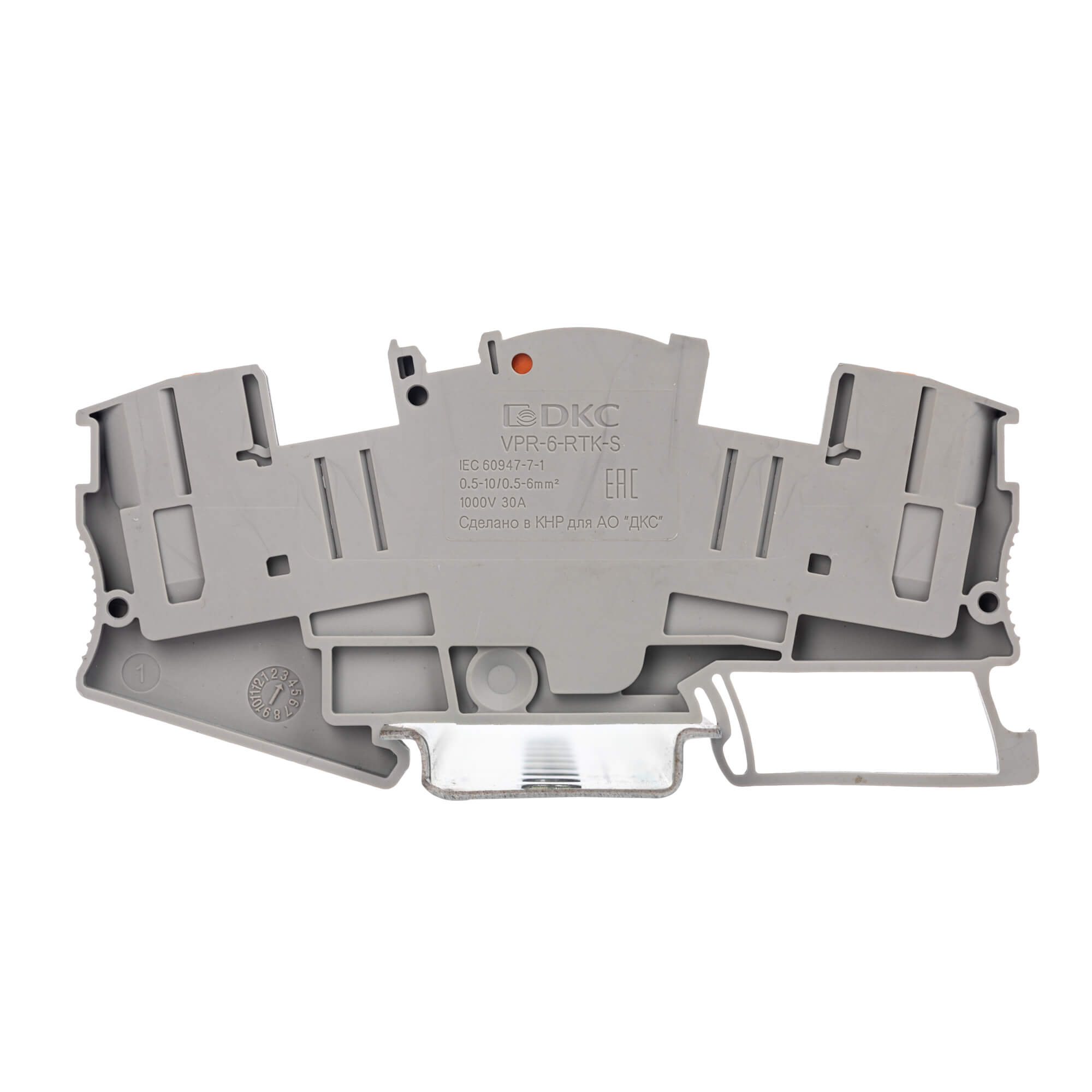

| Product type | Terminal block |

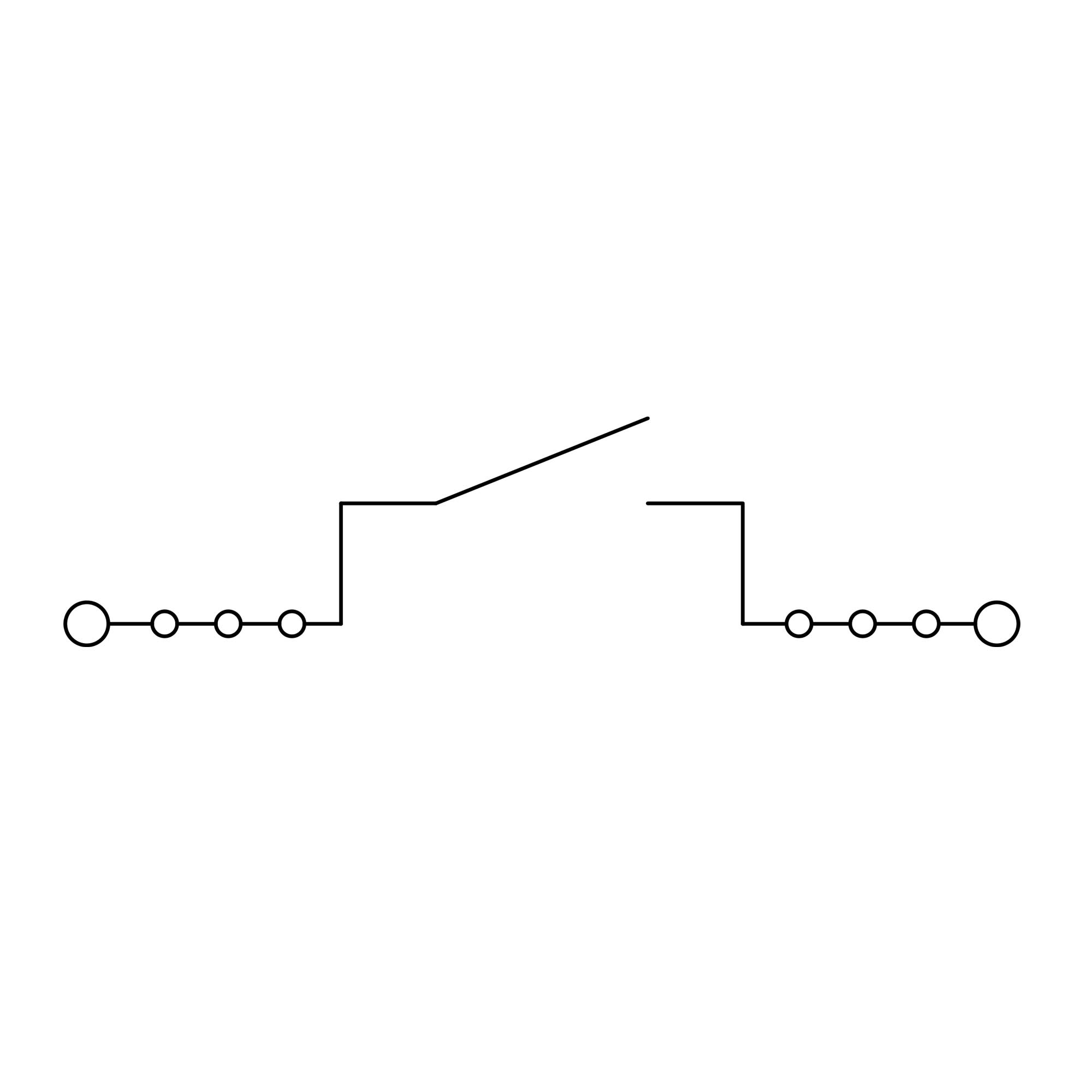

| Function | Disconnector |
| Clamp type | Push-in |
| Width | 8,2 mm |
| Number of levels | 1 |
| Number of connection points | 2 |
| Rated cross-section | 6 mm² |
| Max. cross-section | 10 mm² |
| Two wires same cross-section | 0,5−2,5 mm² |
| Stripping length | 10−12 mm |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Max.current | 30 A |
| Blade size | 1,0 × 4,0 |
| Material of case | PA |
