Ladder tray 80х400, L 3000

Code: LL8040
Ladder tray 80х400, L 3000
Ladder tray 80х400, L 3000

Ladder tray 80х400, L 3000

Code: LL8040
Colour Light grey
Width, mm 400
Height, mm 80
Surface protection Sendzimir galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 24800
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Product type Metal ladder trays
Type Metal ladder trays - "L5 Combitech"
Height 80 mm
Side rail thickness 1.2 mm
Length 3000 mm
Material Pre-galvanized
Width 400 mm
Accessories
Analogs

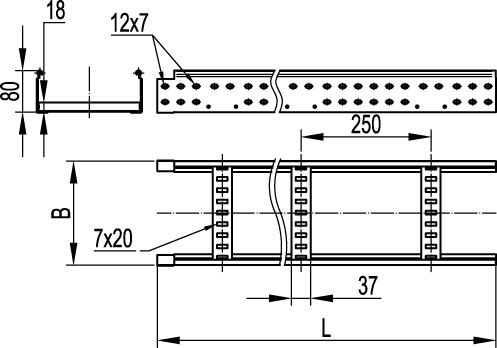

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
726.23 Kb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
5.28 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
16.42 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
17.38 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
27.26 Mb
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
11.67 Mb
