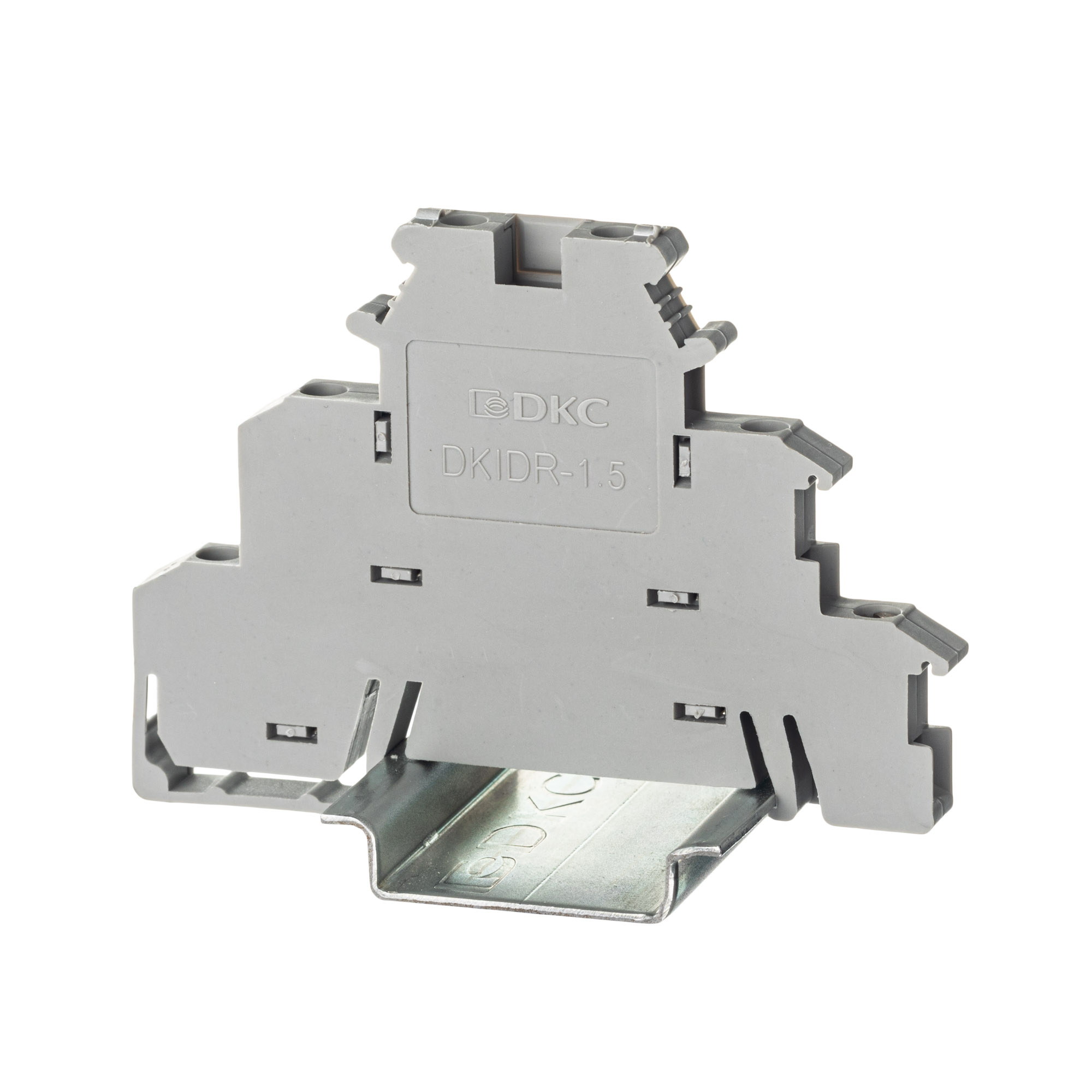

DKIDR-1.5
Code: DKIDR-1.5
DKIDR-1.5
Code: DKIDR-1.5
| Rated current In, A | 24 |
| Rated voltage, V | 250 |
| Colour | Grey |
| Length, mm | 72.5 |
| Width/grid dimension, mm | 6.2 |
| Height at lowest possible mounting height, mm | 54.5 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section solid-core, mm² | 0.2...4 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.25...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...2.5 |
| Connectable conductor cross section multi-wired, mm² | 0.2...2.5 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 3 |
| Number of clamp positions per level | 2 |
| Closing plate required | No |
| Internally connected stages | No |
| Connection position | Sideways |
| Explosion-tested version 'Ex e' | No |
| Product type | Terminal block |
| Function | entrance |
| Clamp type | Screws |
| Width | 6,2 mm |
| Number of levels | 3 |
| Number of connection points | 6 |
| Rated cross-section | 2,5 mm² |
| Max. cross-section | 4 mm² |
| Two wires same cross-section | 0,2−1,0 mm² |
| Stripping length | 8 mm |
| Rated impulse withstand voltage | 4 kV |
| Pollution severity | 3 |
| Max.current | 30 A |
| Screw size | M3 |
| Tightening torque | 0,6−0,8 N∙m |
| Blade size | 0,6 × 3,5 |
| Material of case | PA |
| Weight | 21,4 g |
