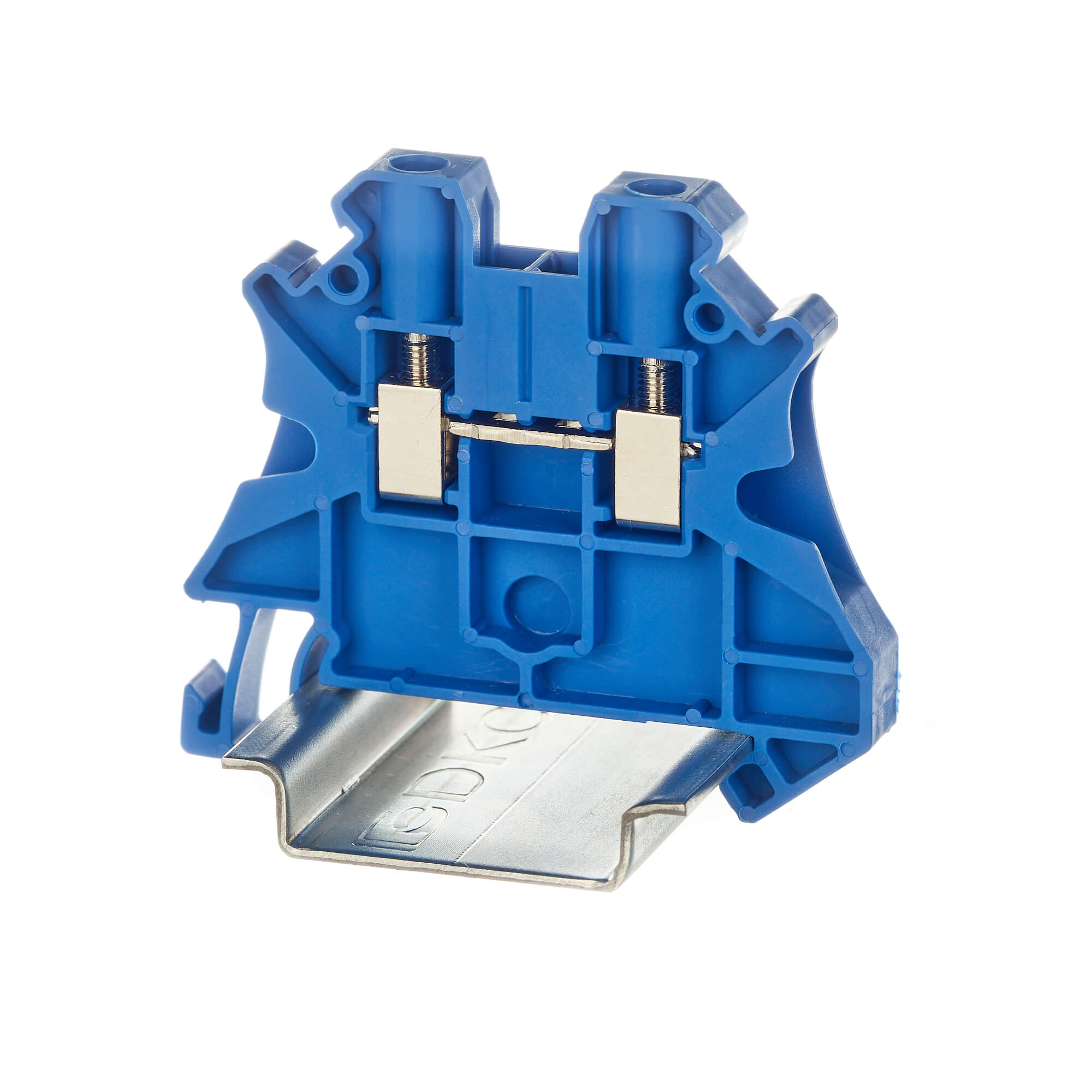

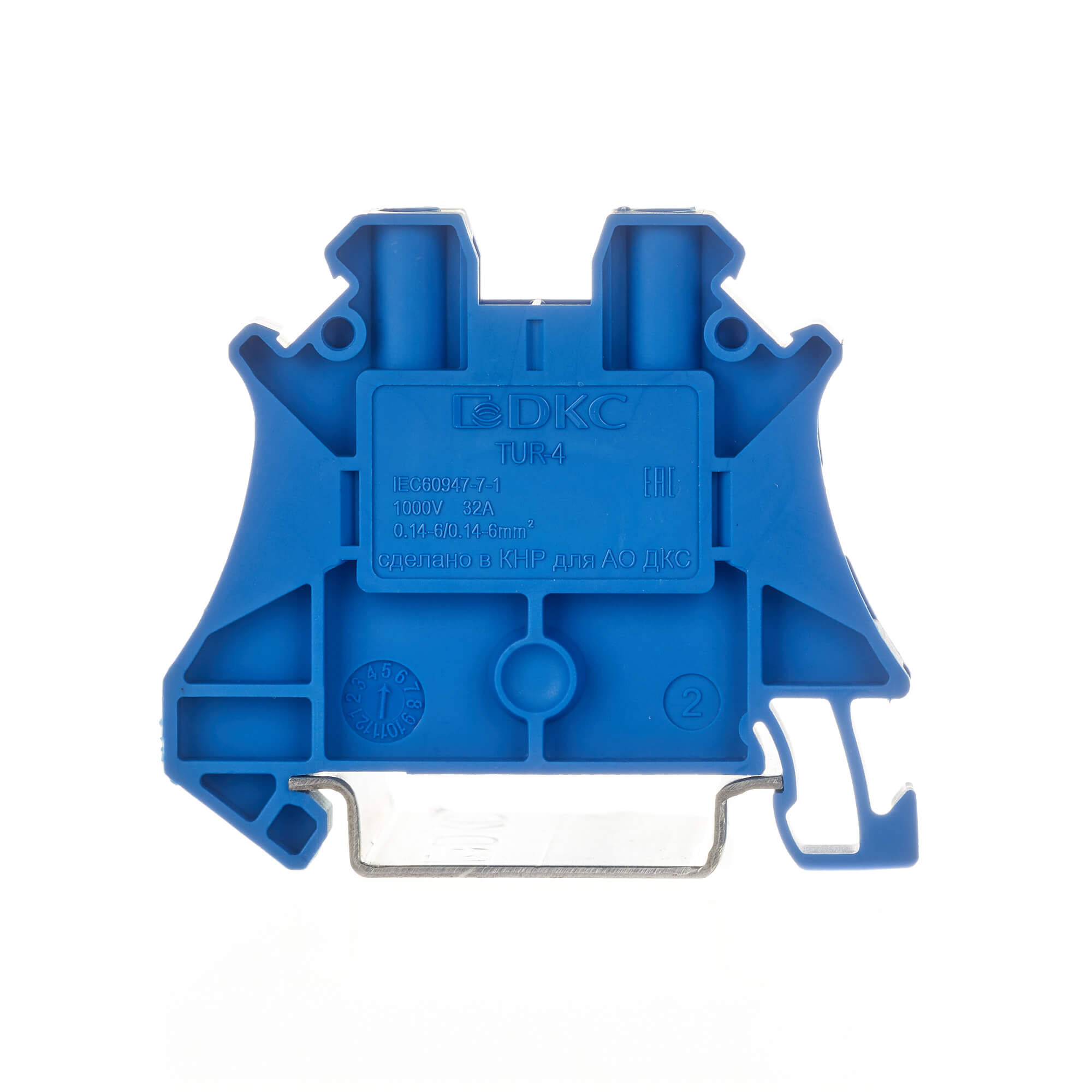

TUR-4-BU

Code: TUR-4-BU

TUR-4-BU

Code: TUR-4-BU
Rated current In, A 32
Rated voltage, V 1000
Colour Blue
Length, mm 53
Width/grid dimension, mm 6.2
Height at lowest possible mounting height, mm 47.5
Material insulation body Thermoplastic
Operating temperature, °C -40...105
Inflammability class of insulation material according to with UL94 V0
Mounting method DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core, mm² 0.14...6
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.14...4
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.14...6
Connectable conductor cross section multi-wired, mm² 0.14...6
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Number of levels 1
Number of clamp positions per level 2
Closing plate required Yes
Internally connected stages No
Connection position Sideways
Explosion-tested version 'Ex e' No
Number of poles 2
Product type Terminal block
Function entrance
Clamp type Screws
Width 6,2 mm
Number of levels 1
Number of connection points 2
Rated cross-section 4 mm²
Max. cross-section 6 mm²
Two wires same cross-section 0,14−1,5 mm²
Stripping length 9 mm
Rated impulse withstand voltage 8 kV
Pollution severity 3
Max.current 41 A
Screw size M3
Tightening torque 0,6−0,8 N∙m
Blade size 0,6 × 3,5
Material of case PA
