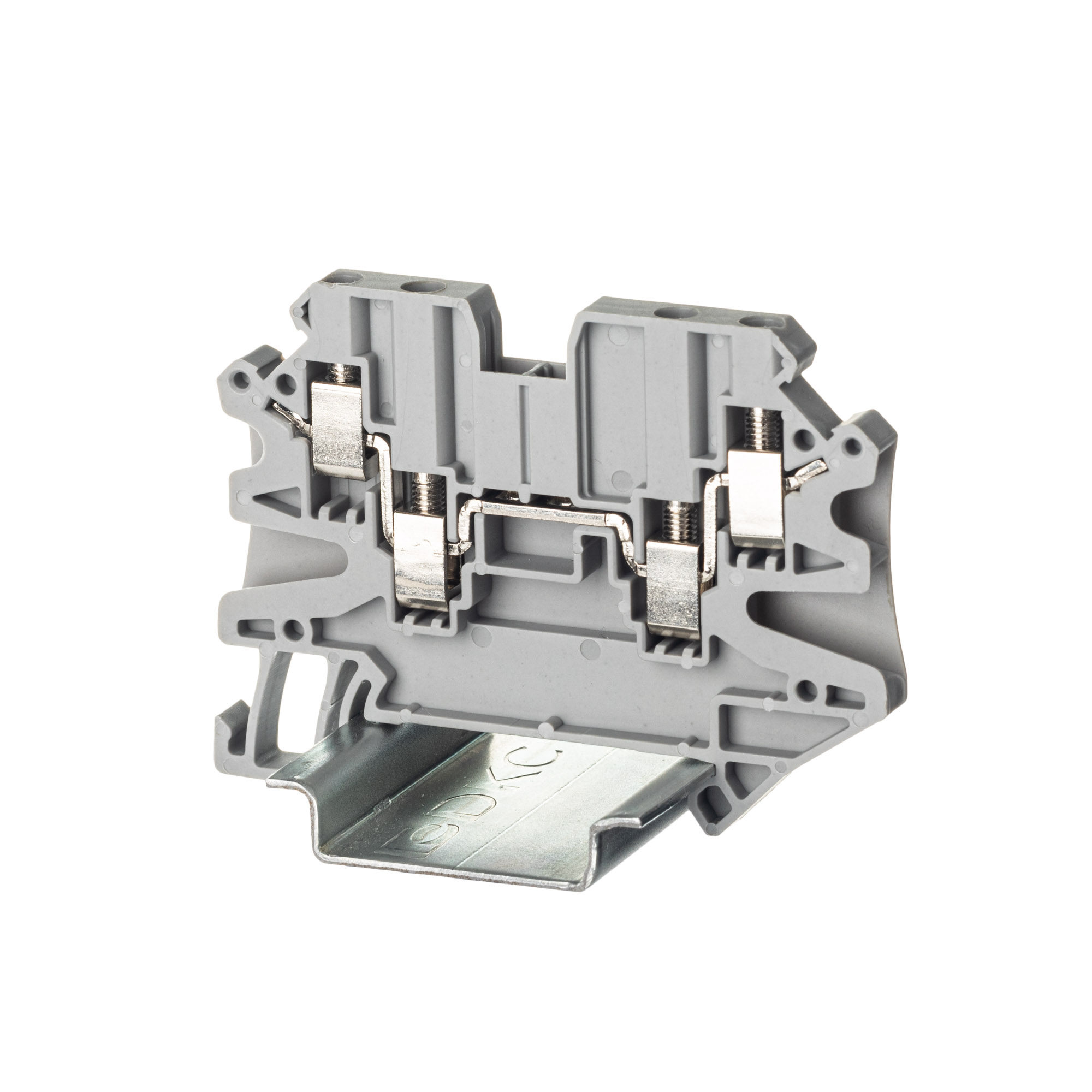

TUR-2.5-QUATTRO

Code: TUR-2.5-QUATTRO

TUR-2.5-QUATTRO

Code: TUR-2.5-QUATTRO
Rated current In, A 24
Rated voltage, V 1000
Colour Grey
Length, mm 65.4
Width/grid dimension, mm 5.2
Height at lowest possible mounting height, mm 47.5
Material insulation body Thermoplastic
Operating temperature, °C -40...105
Inflammability class of insulation material according to with UL94 V0
Mounting method DIN rail (top hat rail) 35 mm
Connectable conductor cross section solid-core, mm² 0.14...4
Connectable conductor cross section fine-strand with cable end sleeve, mm² 0.14...2.5
Connectable conductor cross section fine-strand without cable end sleeve, mm² 0.14...4
Connectable conductor cross section multi-wired, mm² 0.14...4
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Number of levels 1
Number of clamp positions per level 4
Closing plate required Yes
Internally connected stages No
Connection position Sideways
Explosion-tested version 'Ex e' No
Number of poles 4
Product type Terminal block
Function entrance
Clamp type Screws
Width 5,2 mm
Number of levels 1
Number of connection points 4
Rated cross-section 2,5 mm²
Max. cross-section 4 mm²
Two wires same cross-section 0,14−1,5 mm²
Stripping length 9 mm
Rated impulse withstand voltage 8 kV
Pollution severity 3
Max.current 30 A
Screw size M3
Tightening torque 0,5−0,6 N∙m
Blade size 0,6 × 3,5
Material of case PA
