TUR-10
Code:
TUR-10
TUR-10
Code:
TUR-10
| Rated current In, A | 57 |
| Rated voltage, V | 1000 |
| Colour | Grey |
| Length, mm | 53 |
| Width/grid dimension, mm | 10.2 |
| Height at lowest possible mounting height, mm | 47.5 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section solid-core, mm² | 0.5...16 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...10 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.5...16 |
| Connectable conductor cross section multi-wired, mm² | 0.5...16 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Connection position | Sideways |
| Explosion-tested version 'Ex e' | No |
| Number of poles | 2 |

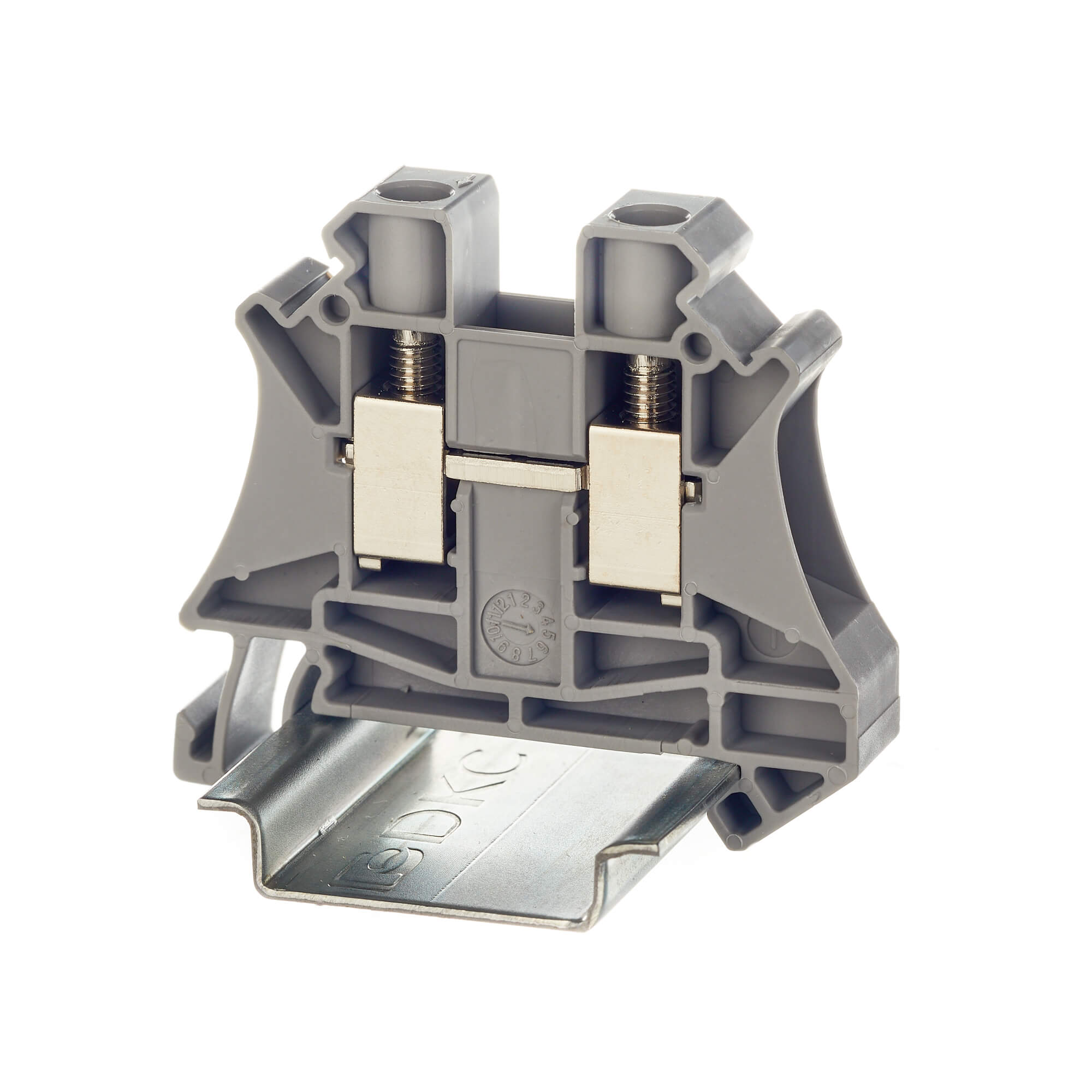

| Product type | Terminal block |
| Function | entrance |
| Clamp type | Screws |
| Width | 10,2 mm |
| Number of levels | 1 |
| Number of connection points | 2 |
| Rated cross-section | 10 mm² |
| Max. cross-section | 16 mm² |
| Two wires same cross-section | 0,5−4 mm² |
| Stripping length | 10 mm |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Max.current | 76 A |
| Screw size | M4 |
| Tightening torque | 1,5−1,8 N∙m |
| Blade size | 1,0 × 4,0 |
| Material of case | PA |
