| Colour | Green/yellow |
| Length, mm | 67 |
| Width/grid dimension, mm | 6.2 |
| Height at lowest possible mounting height, mm | 62 |
| Material insulation body | Thermoplastic |
| Operating temperature, °C | -40...105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| PEN function possible | No |
| Connectable conductor cross section solid-core, mm² | 0.2...4 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.25...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...4 |
| Connectable conductor cross section multi-wired, mm² | 0.2...4 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 2 |
| Number of clamp positions per level | 2 |
| Connection position | Sideways |
| Closing plate required | No |

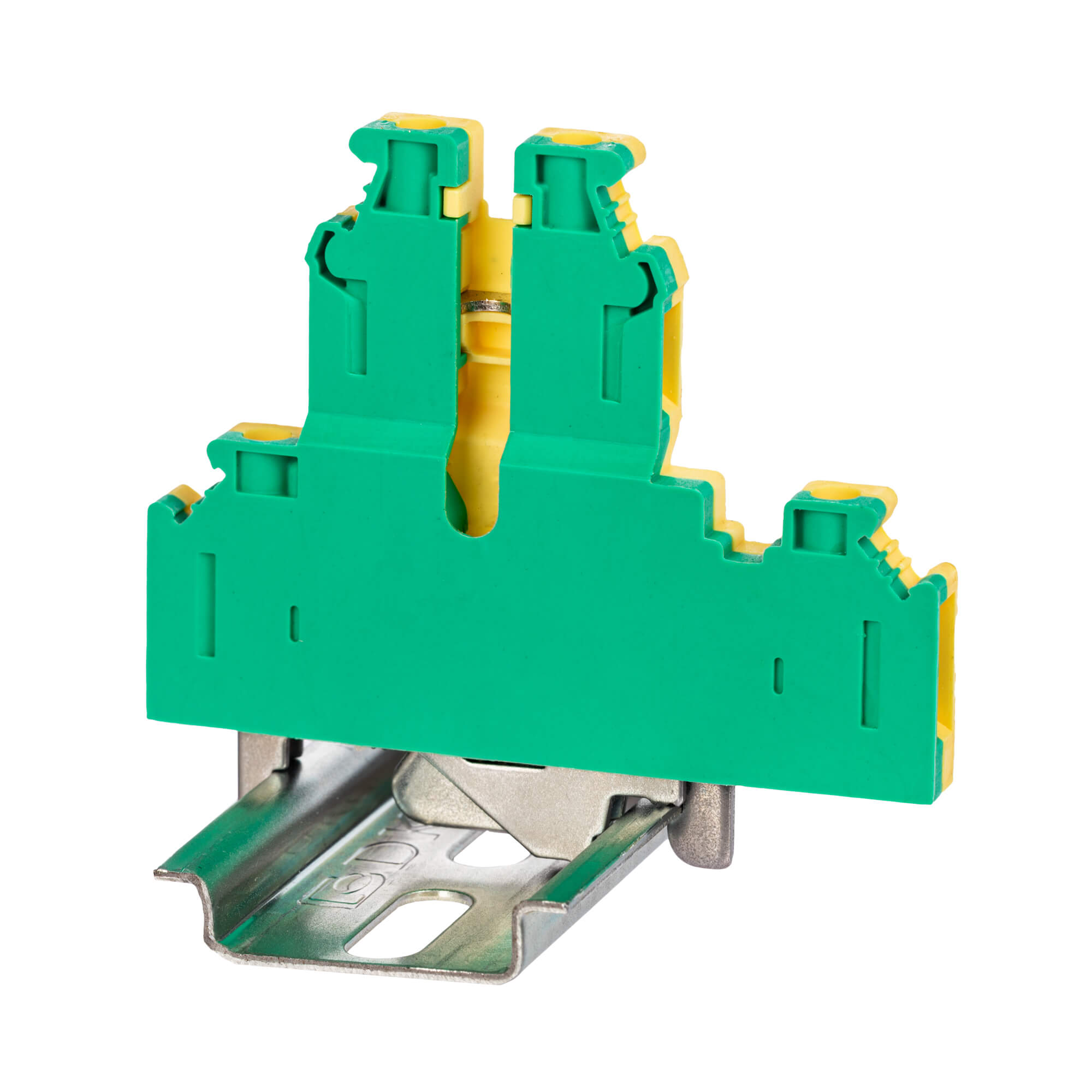

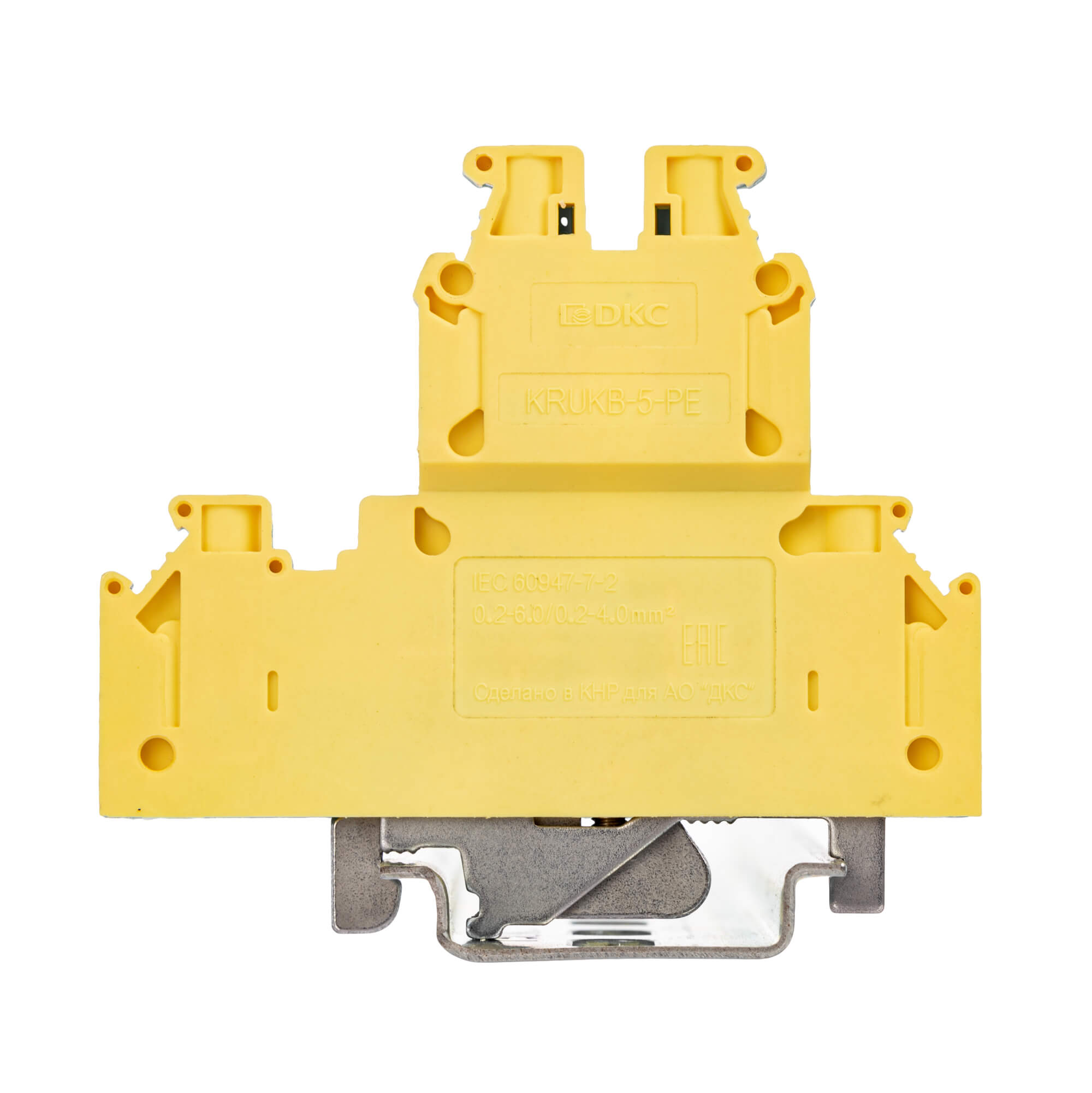

| Product type | Terminal block |
| Function | Earthing |
| Clamp type | Screws |
| Width | 6,2 mm |
| Number of levels | 2 |
| Number of connection points | 4 |
| Rated cross-section | 4 mm² |
| Max. cross-section | 4 mm² |
| Two wires same cross-section | 0,25−1,5 mm² |
| Stripping length | 8 mm |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Screw size | M3 |
| Tightening torque | 0,6−0,8 N∙m |
| Blade size | 0,6 × 3,5 |
| Material of case | PA |
