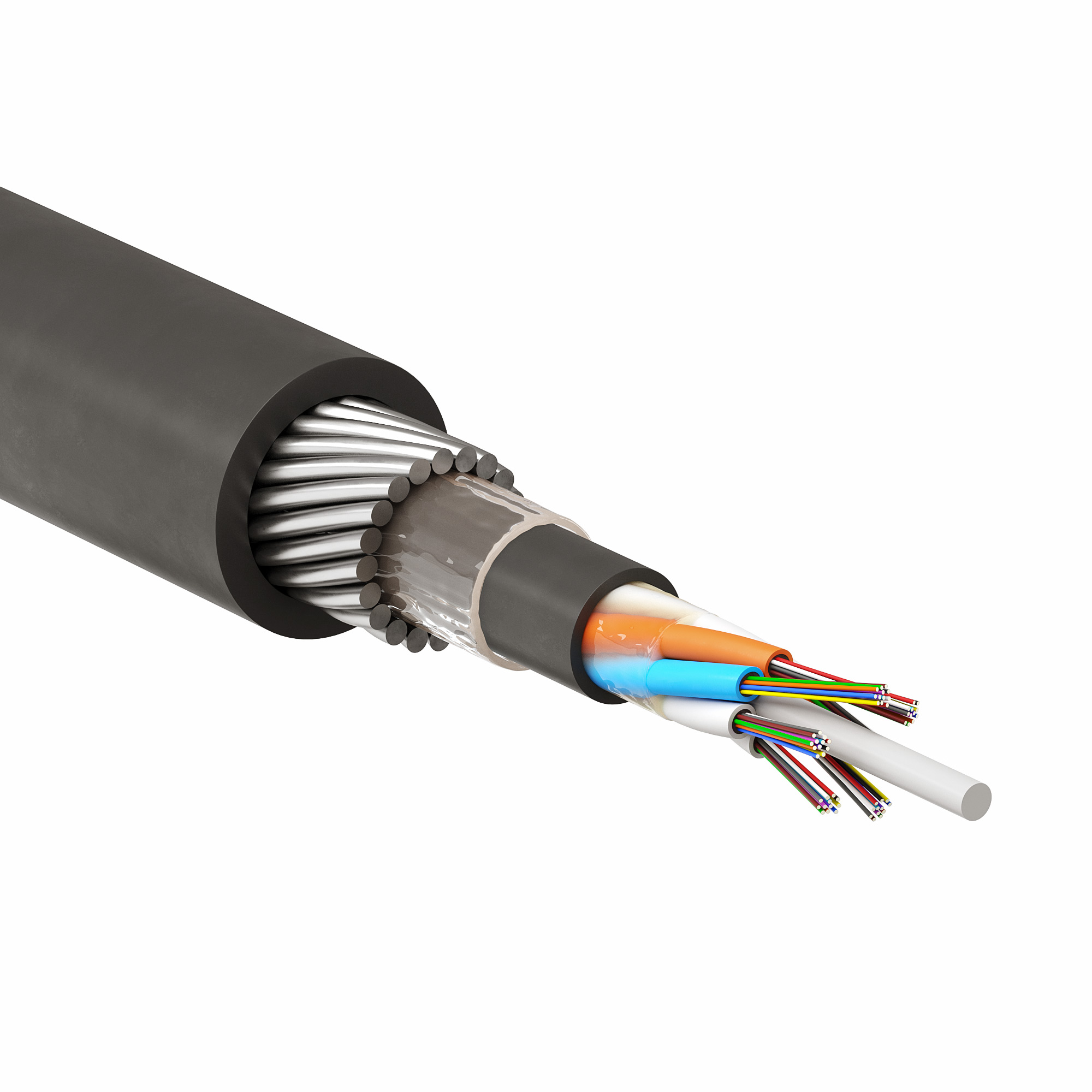

Fiber optic cable, armored with steel wires, outside, PE, 32 OF, category OS2 (G.652.D) loose tube, 80kN, reel 2000m
Code:
RNSW8XMT9C32PE
Code:
RNSW8XMT9C32PE
| Fibre type | Single mode 9/125 |
| Flame retardant | No |
| Number of fibres | 32 |
| Circuit integrity | No |
| Colour outer sheath | Black |
| Category | OS2 |
| Material outer sheath | Polyethylene (PE) |
| Type of tube | Loose tube |
| Number of fibres per tube | 8 |
| Outer diameter approx., mm | 20.9 |
| Reaction-to-fire class according to EN 13501-6 | None |
| Smoke development class according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Euro class acidity according to EN 13501-6 | None |
| Min. permitted bending radius, stationary application/permanent installation, mm | 314 |
| With rodent protection | Yes |
| Product type | Fiber optic cable |
| Fiber count | 32 |
| Fibre optic sort | Single mode |
| Fiber catgory | OS2 |
| Application | Outdoor |
| For group installtion | No |
| Halogen free | No |
| Cable version according to GOST 31565-2012 | О2.8.2.5.4 |
| Low toxic | No |
| Low smoke | No |
| With metal | Yes |
| Dielectrical | No |
| Armored with | Steel wires |
| Tensile stregnth | 80kN |
| UV stabilized jacket | Yes |
| Outer jacked color | Black |
| Package length | 2000m |
