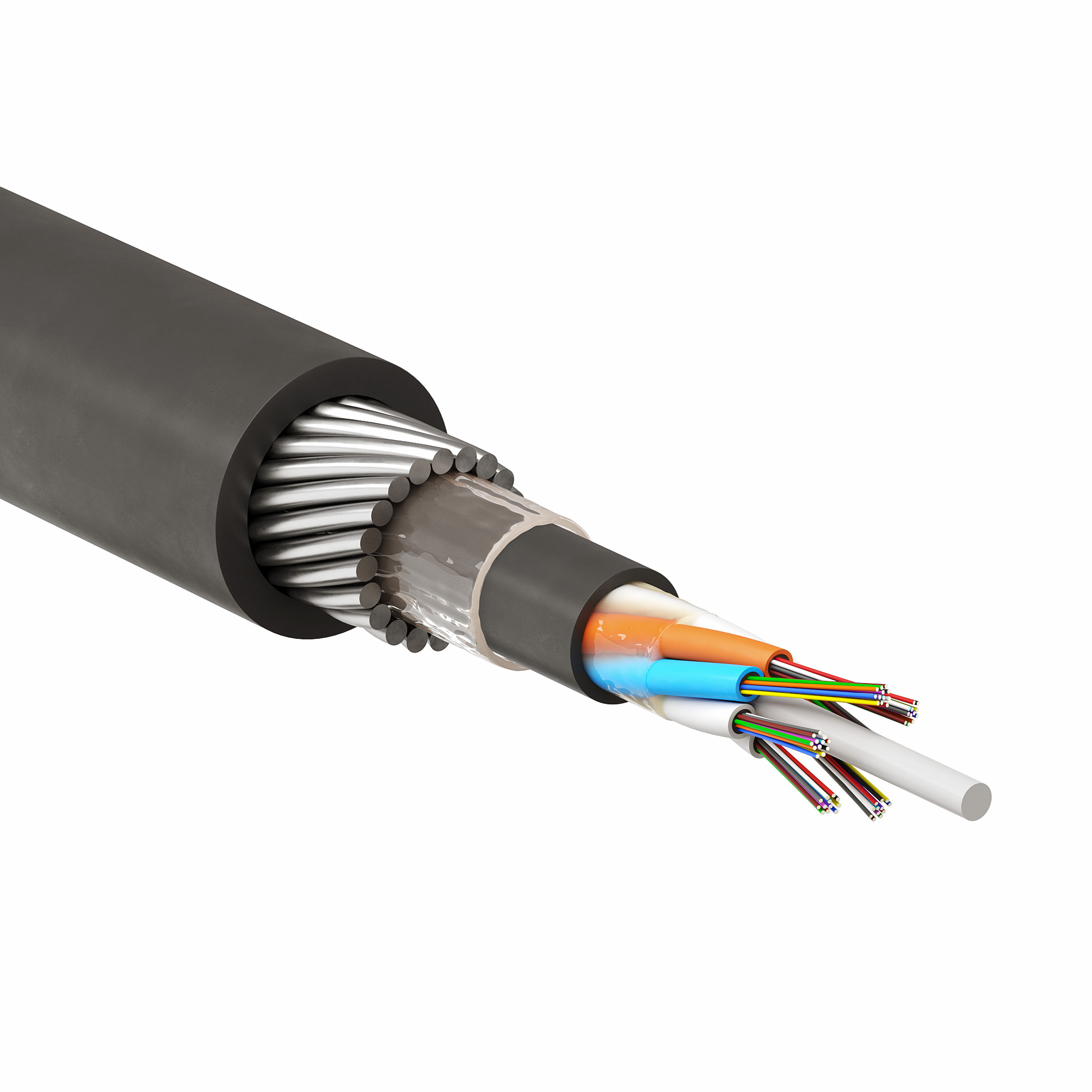

Fiber optic cable, armored with steel wires, outside, PE, 96 OF, category OS2 (G.652.D) loose tube, 40kN, reel 2000m
Code:
RNSW4XMT9C96PE
Code:
RNSW4XMT9C96PE
| UV resistant | Yes |
| Fibre type | Single mode 9/125 |
| Flame retardant | No |
| Number of fibres | 96 |
| With strain relief | Yes |
| Armouring | Yes |
| Resistant to chemicals | No |
| Circuit integrity | No |
| Colour outer sheath | Black |
| Category | OS2 |
| Material outer sheath | Polyethylene (PE) |
| Type of tube | Loose tube |
| Number of fibres per tube | 24 |
| Cable metal free | No |
| Suitable for underground installation | Yes |
| Blow in | No |
| Outer diameter approx., mm | 19 |
| With rodent protection | Yes |
| Low smoke (according to BS EN 61034-2) | No |
| Halogen free (according to EN 60754-1/2) | No |
| Oil resistant (according to EN 60811-404) | No |
| Longitudinal water blocking cable | Yes |
| Radial water blocking cable | Yes |
| Reaction-to-fire class according to EN 13501-6 | None |
| Smoke development class according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Euro class acidity according to EN 13501-6 | None |
| Min. permitted bending radius, stationary application/permanent installation, mm | 285 |
| Product type | Fiber optic cable |
| Fiber count | 96 |
| Fibre optic sort | Single mode |
| Fiber catgory | OS2 |
| Application | Outdoor |
| For group installtion | No |
| Halogen free | No |
| Cable version according to GOST 31565-2012 | О2.8.2.5.4 |
| Low toxic | No |
| Low smoke | No |
| With metal | Yes |
| Dielectrical | No |
| Armored with | Steel wires |
| Tensile stregnth | 40kN |
| UV stabilized jacket | Yes |
| Outer jacked color | Black |
| Package length | 2000m |
