| Mounting method | Surface mounted (plaster) |
| RAL-number | 7035 |
| Built-in depth, mm | 200 |
| Extension possible | No |
| Material housing | Stainless steel |
| Cover model | None |
| Width, mm | 400 |
| Height, mm | 500 |
| Depth, mm | 200 |

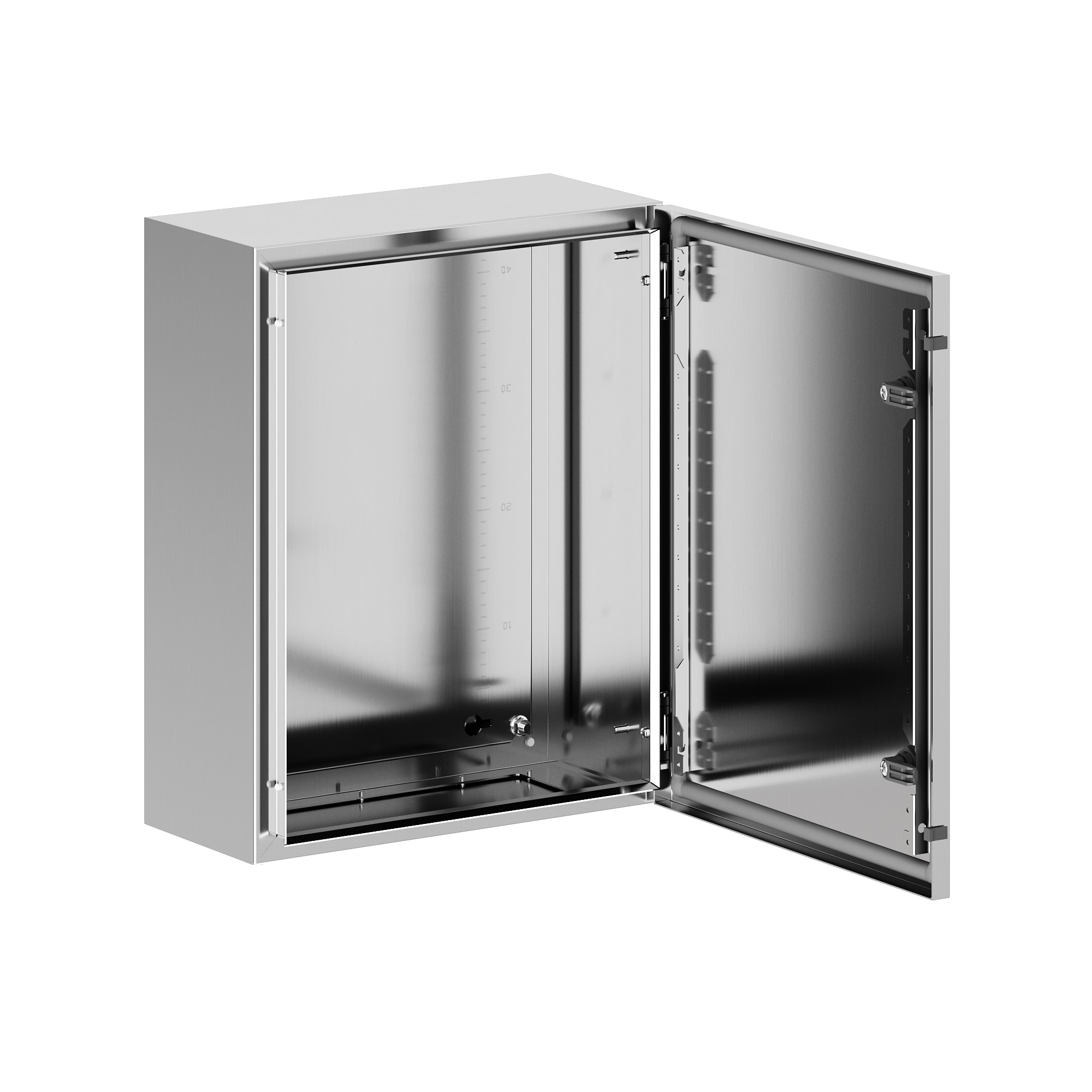

| With mounting plate | Yes |
| Degree of protection (IP) | IP66 |

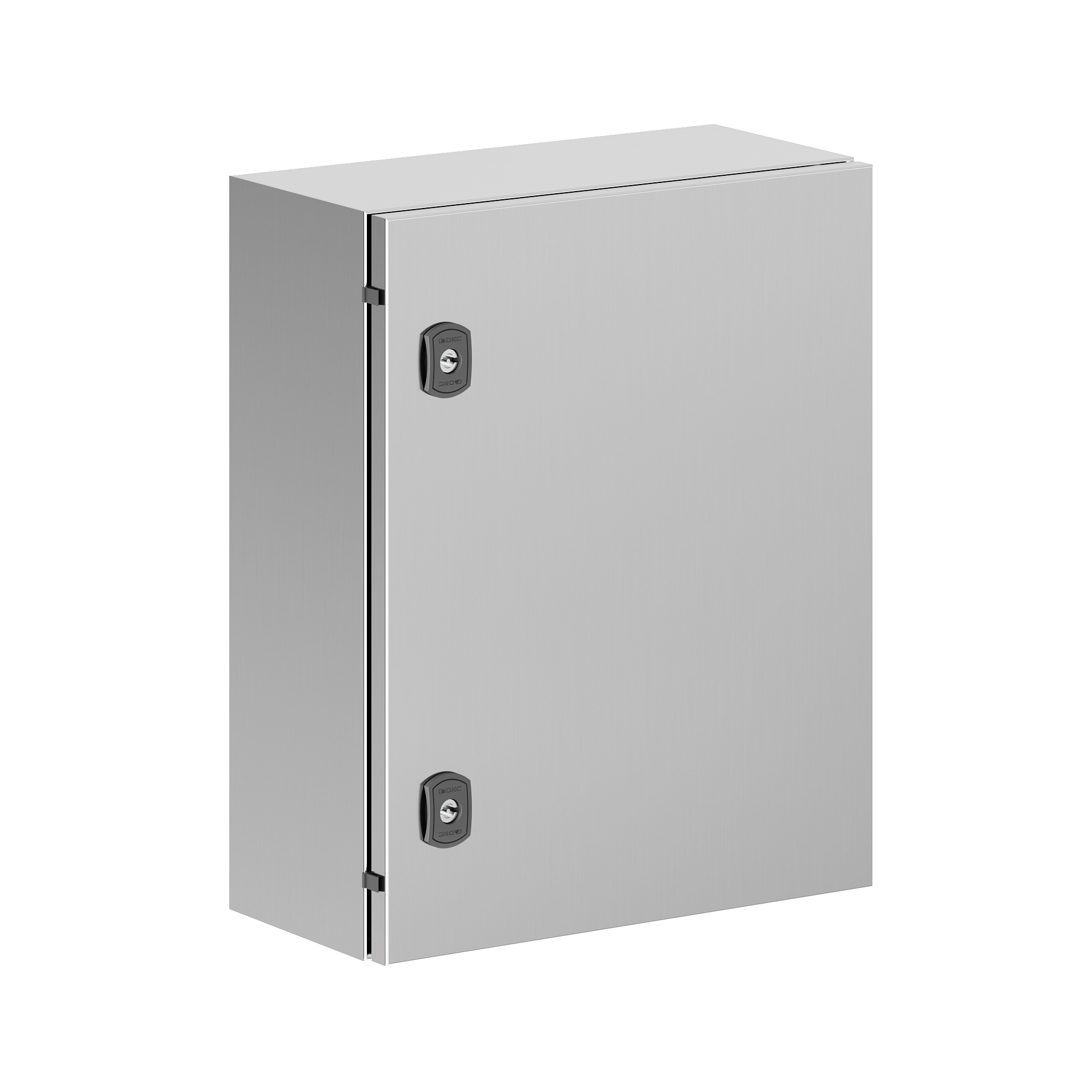

| Product type | Wall mounted enclosure |
| Series | STH |
| Material | Stainless steel AISI304 |
| Height | 500 mm |
| Width | 400 mm |
| Depth | 200 mm |
| Enclosure design | Reversible plain door |
| Mounting plate | Included |
| Door slats | Included |
| Cable flanges | Included |
| Number of cable flanges | 1 pc. |
| Enclosure thickness | 1,5 mm |
| Door/lid thickness | 1,5 mm |
| Mounting plate thickness | 1,8 mm |
| Cablr flange thickness | 1,5 mm |
| Gasket | Silicon |
| Degree of protection | IP66 |
| IK | IK10 |
| Seismic resistance | Degree 9 of MSK-64 |
| Mechanical strength | M39 |
| Temperature range | -60...+90°С |
| Climate version | UHL1, OM2, OM3, U3 |
| Flammability | NG |
| Russian Maritime Register of Shipping | Yes |
| Russian Classification Society | Yes |
