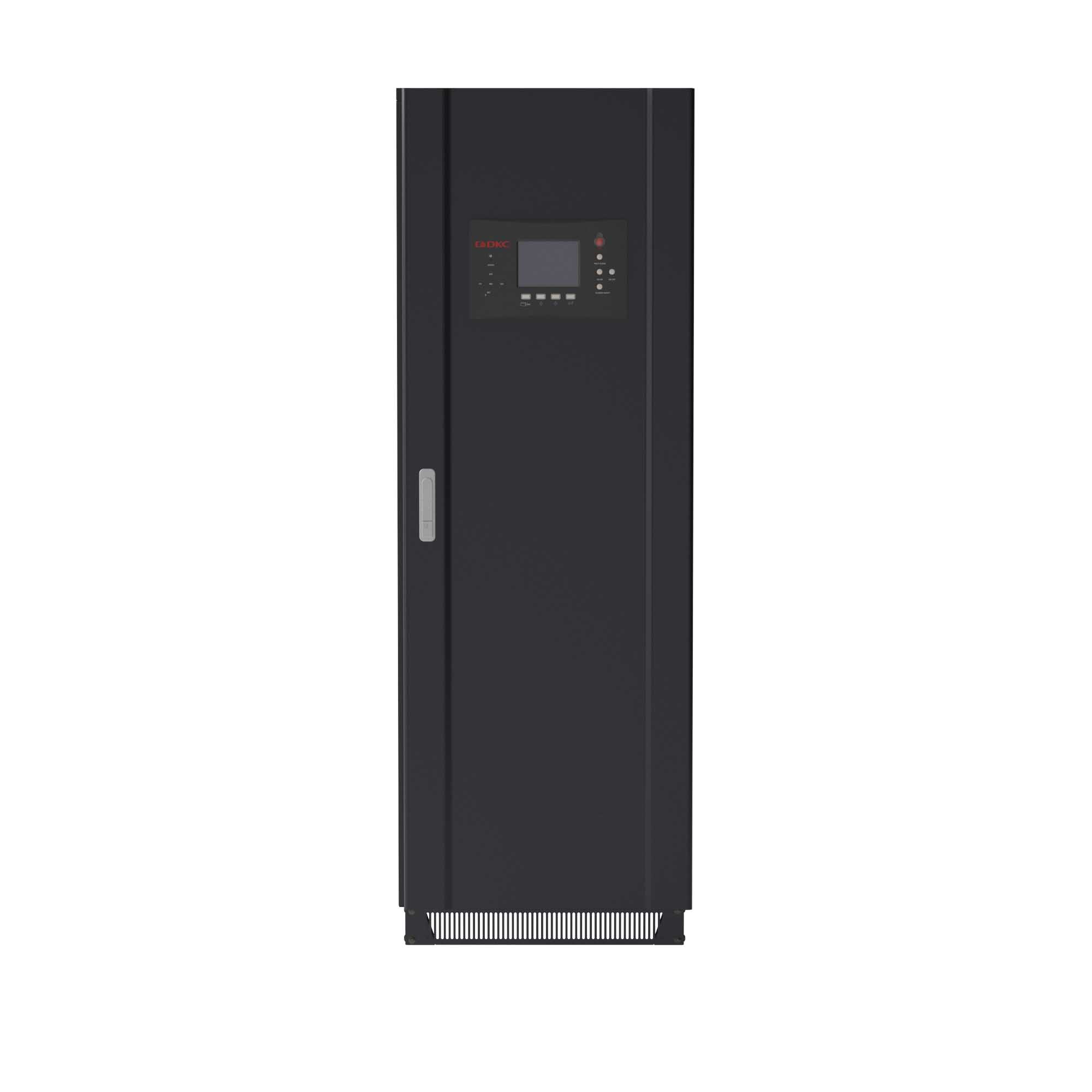

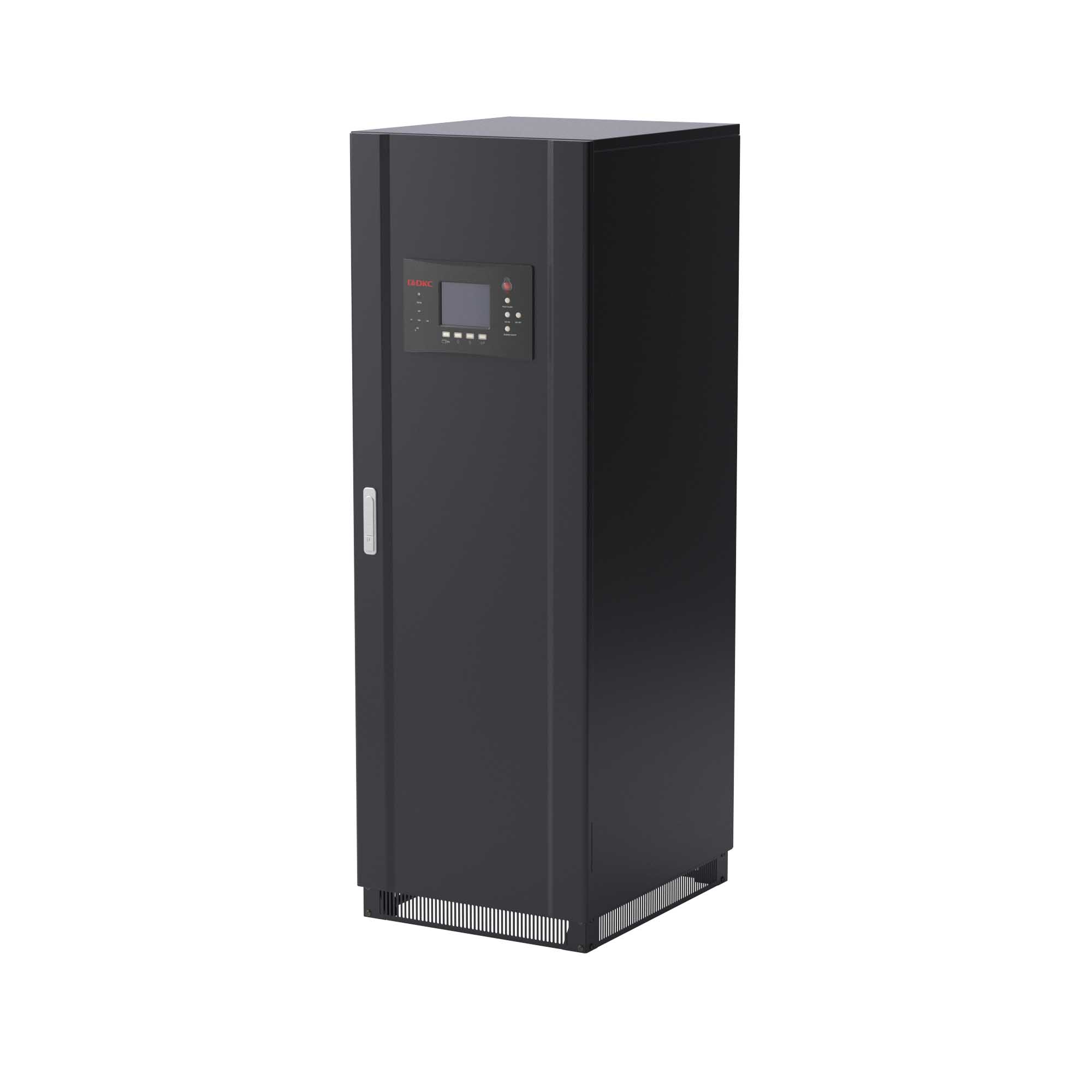

Three-phase solar inverter EOS Power Off-grid 27 kW/2MPPT
Code: EPA050D027A
Three-phase solar inverter EOS Power Off-grid 27 kW/2MPPT
Code: EPA050D027A
| Width, mm | 600 |
| Height, mm | 1750 |
| Depth, mm | 700 |
| Weight, kg | 360 |
| With transformer | Yes |
| Display | Standard |
| Ethernet | No |
| Input voltage, V | 310...450 |
| 3-phase power supply | Yes |
| AC-nominal output power, W | 27000 |
| Number of DC-screw connections | 6 |
| Suitable for outdoor mounting | No |
| Max. DC- input capacity, W | 50000 |
| Max. input current, A | 120 |
| MPP-voltage, V | 450...550 |
| Net monitoring | 3-phase |
| Degree of protection (IP) | IP20 |
| Built-in battery | No |
| Number MPP tracker | 2 |
| Emergency power compatible | Yes |
| With data logging | Yes |
| Phase | Three-Phase |
| Battery voltage | 358…384 VDC |
| Max. voltage PV | 750 VDC |
| Bypass | Separated, stable + service |
| Communication interfaces | RS232/RS485/USB/Relay (base); SNMP/Wi-Fi/GPRS (option) |
| Power connection | Screw terminals |
