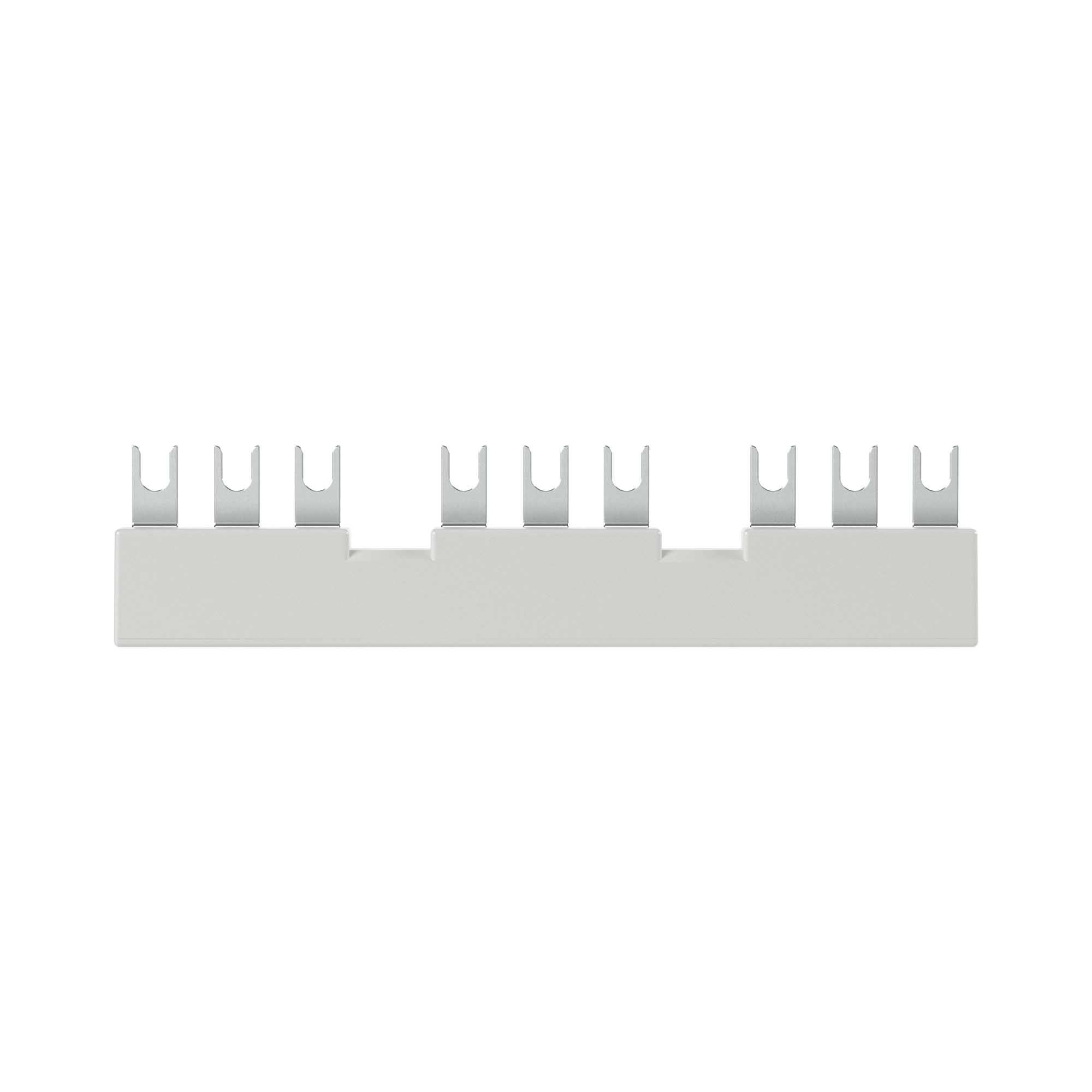

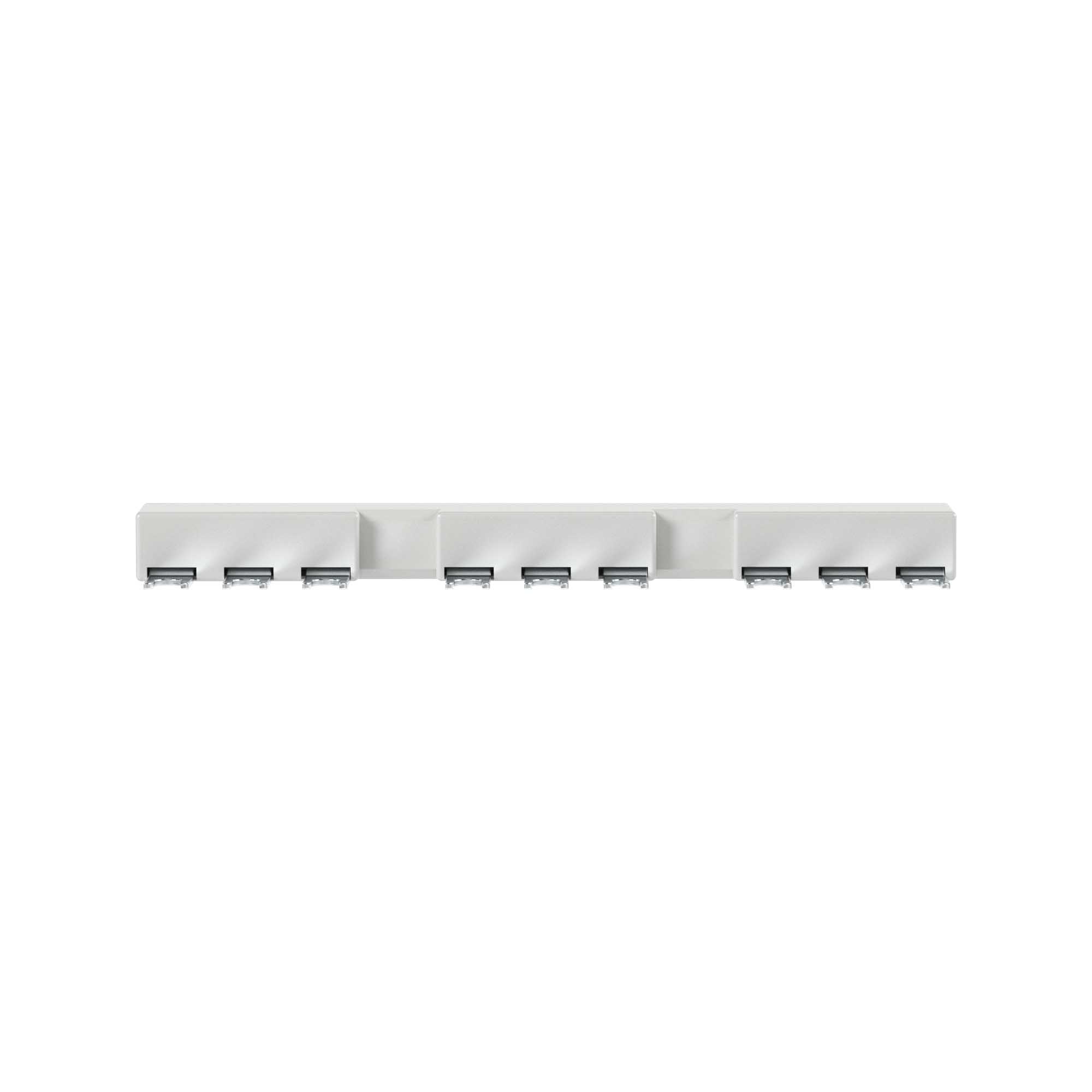

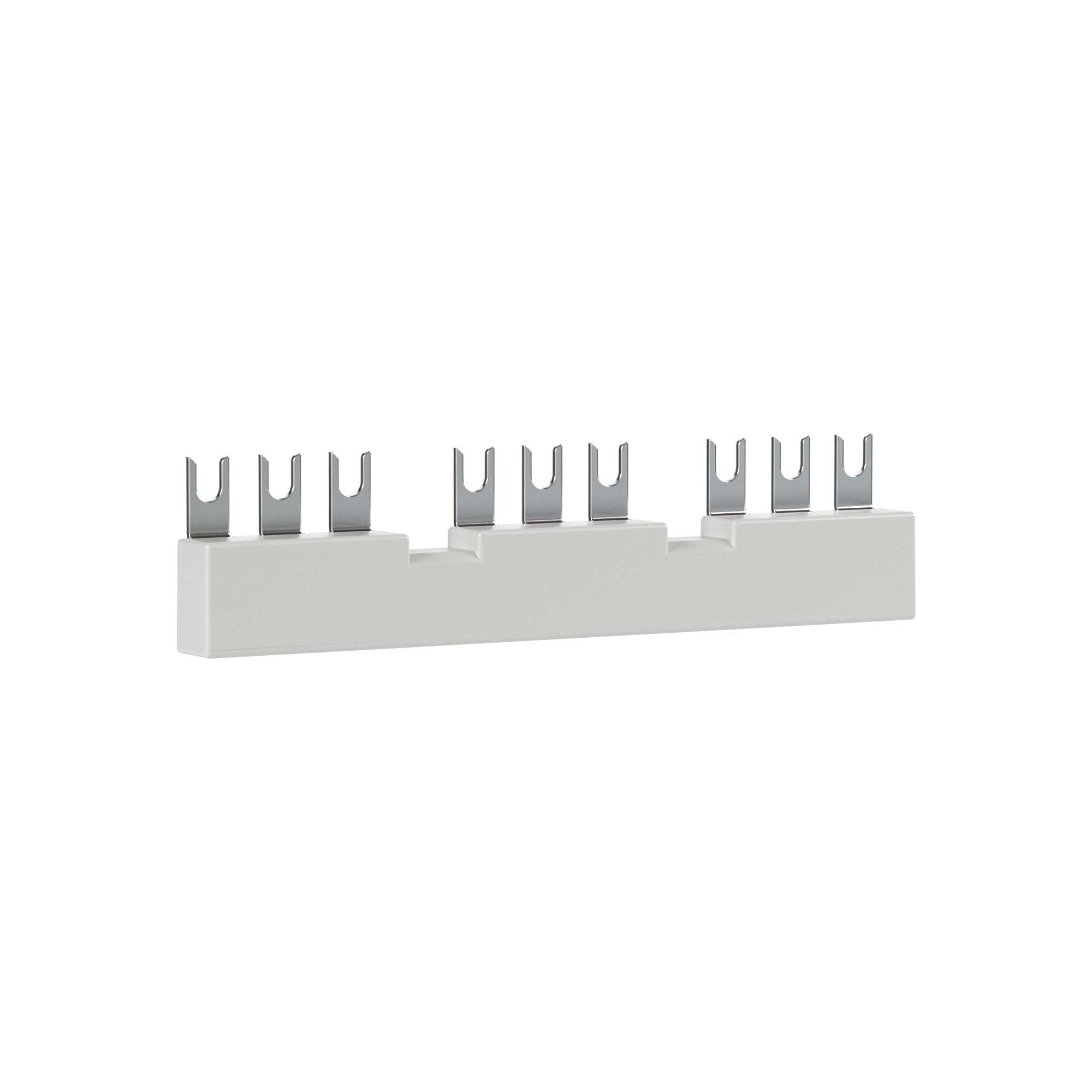

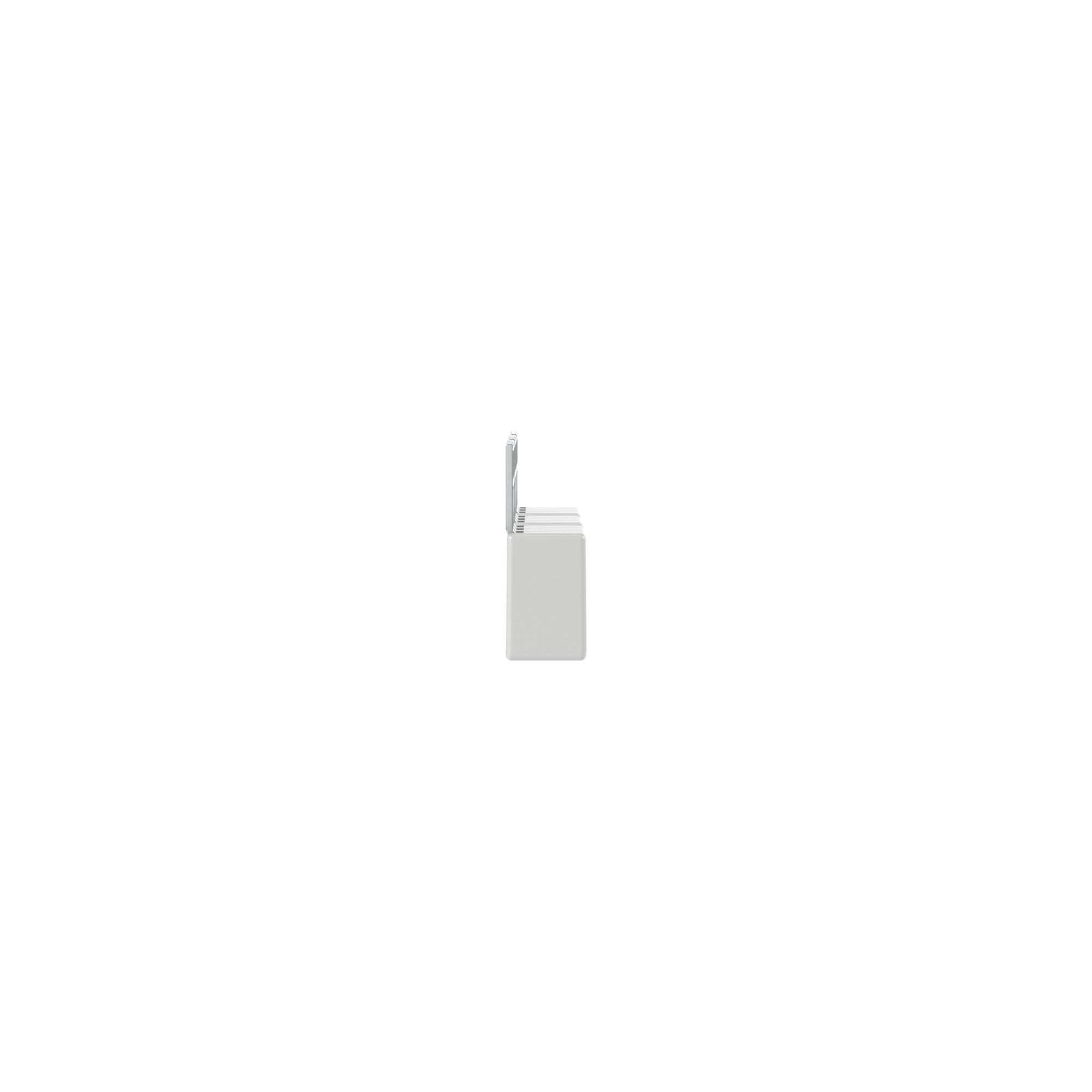

MP132CL543 Commoning Link
Code: DMP32CL54-3
MP132CL543 Commoning Link
Code: DMP32CL54-3
| Insulated | Yes |
| Number of phases | 3 |
| Rated permanent current Iu, A | 32 |
| Number of poles | 9 |
| Length, mm | 162 |
| Conditioned rated short-circuit current Iq, kA | 100 |
| Rated surge voltage, kV | 6 |
| Type of electric connection | Fork |
| Rated short-time withstand current lcw, kA | 5 |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 3 |
| Max. rated operation voltage Ue, V | 690 |
| Type of accessories | Commonning link |
| For MPCB | DMP32 |
| MPCB numbers | 3 |
| Notes | for MPCB with aux contact |
