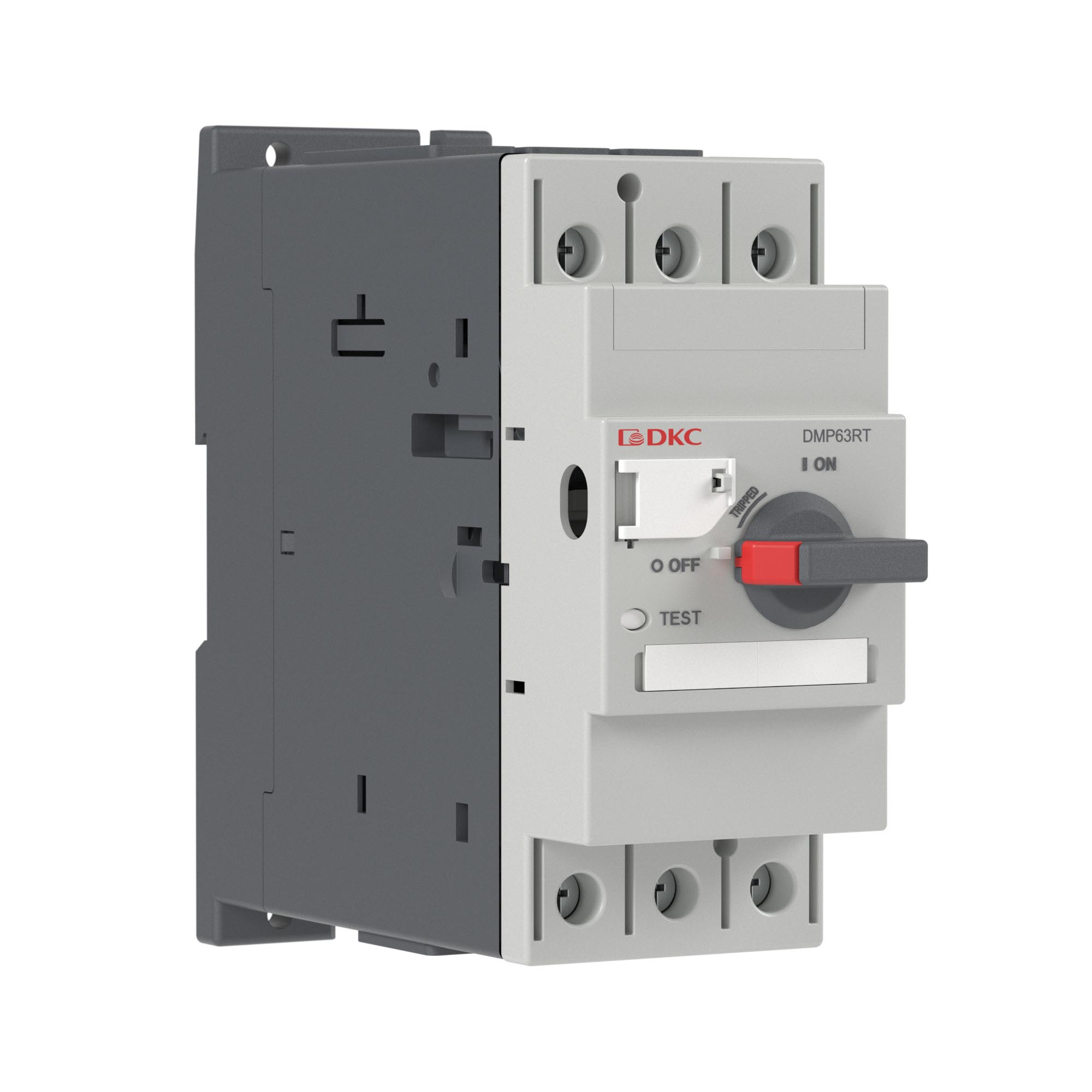

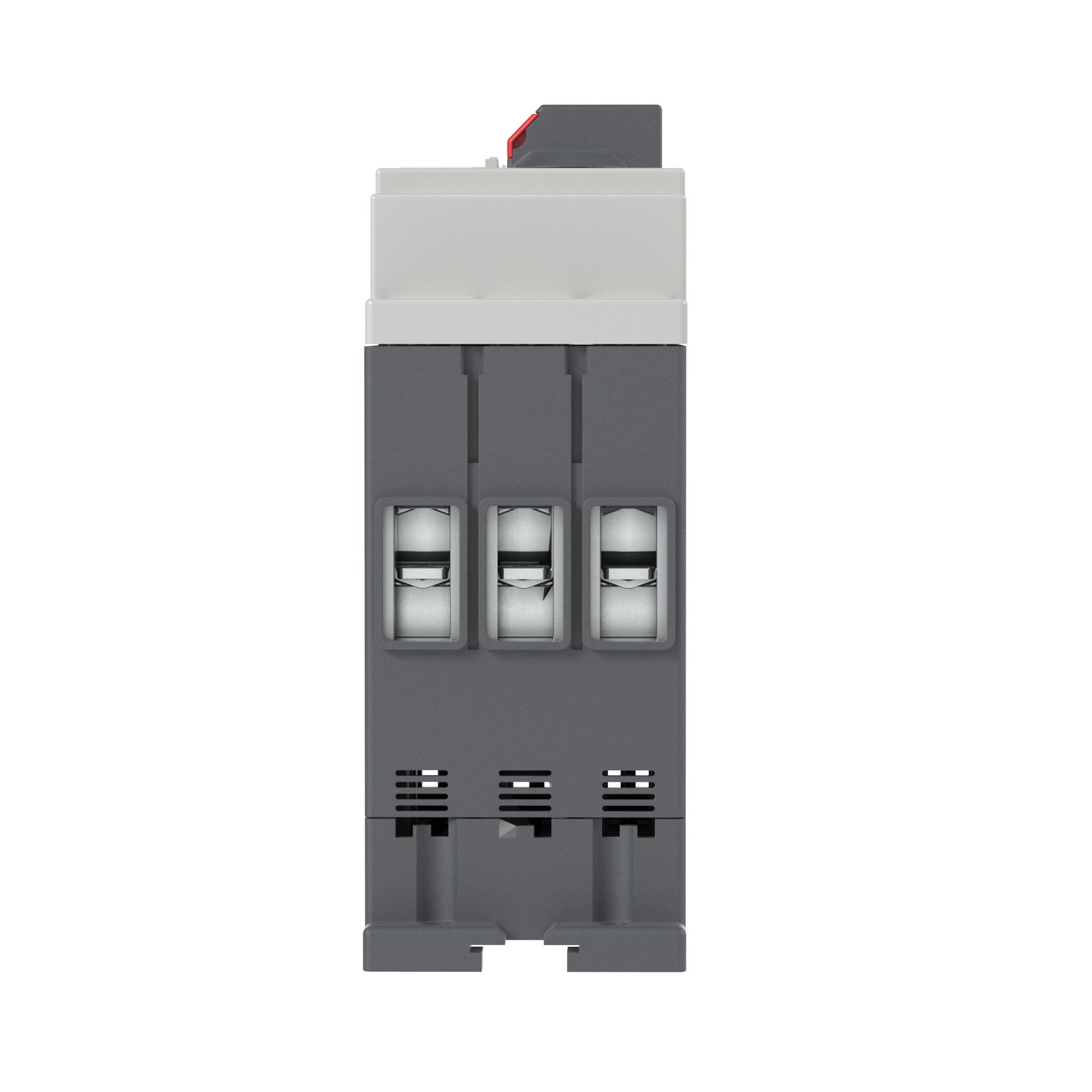

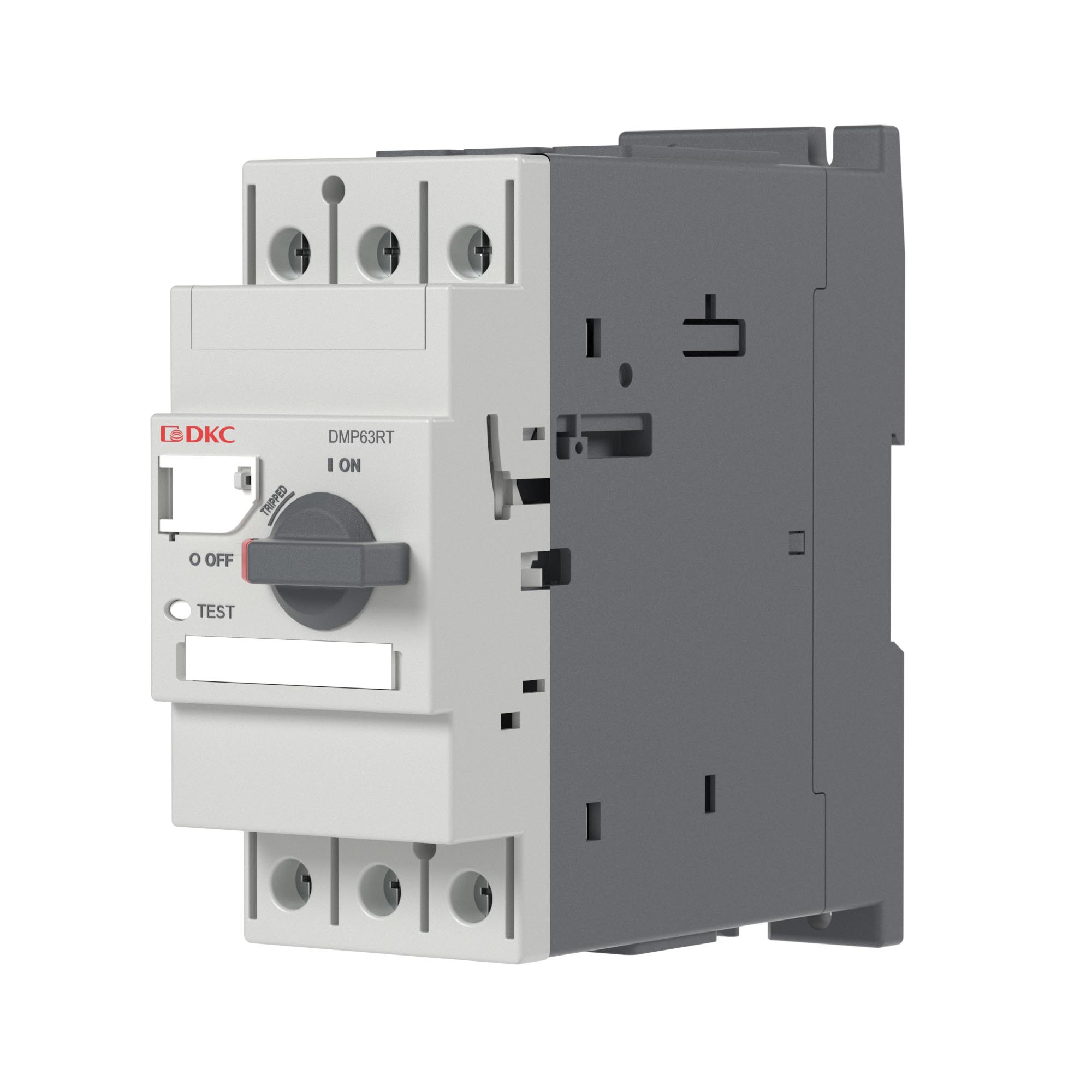

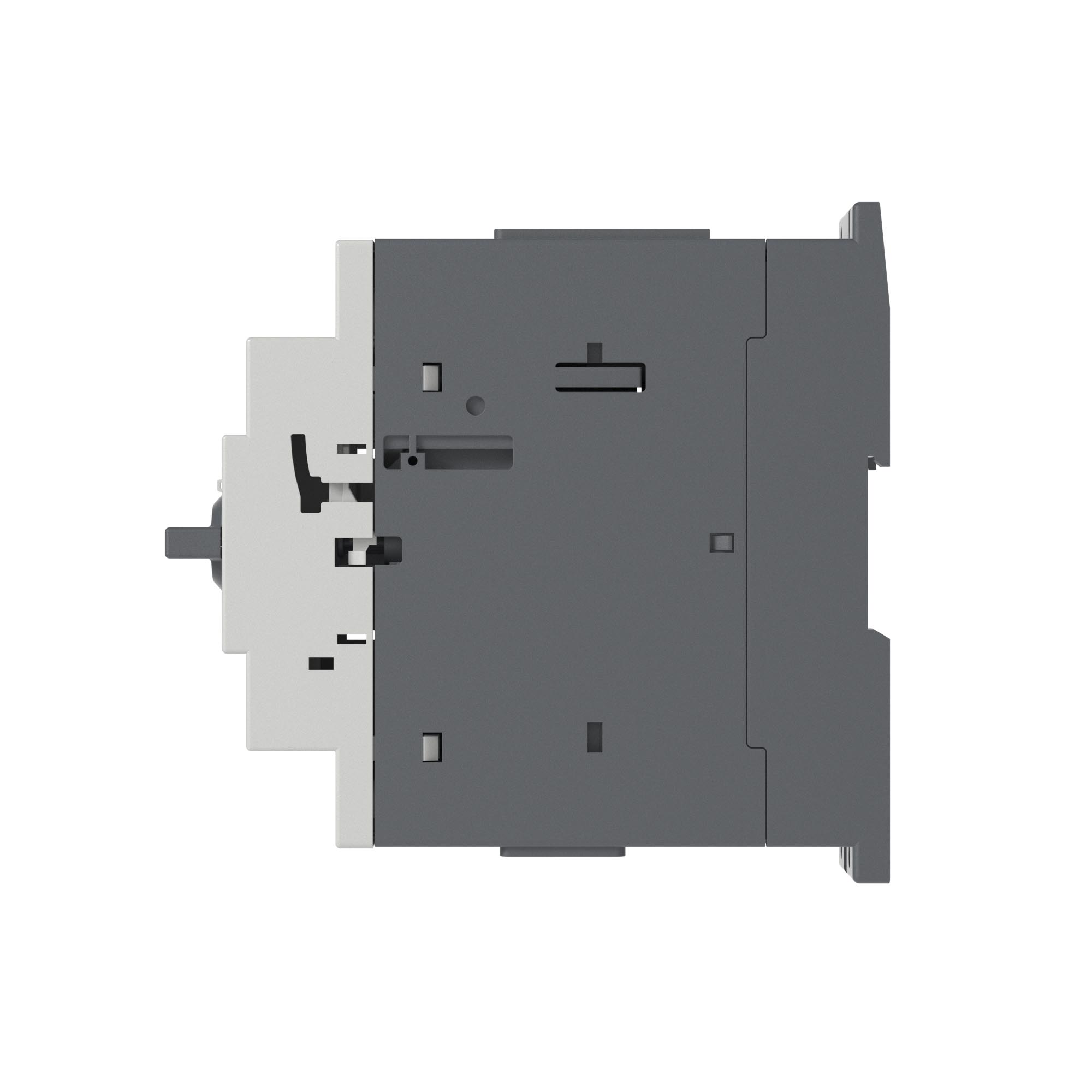

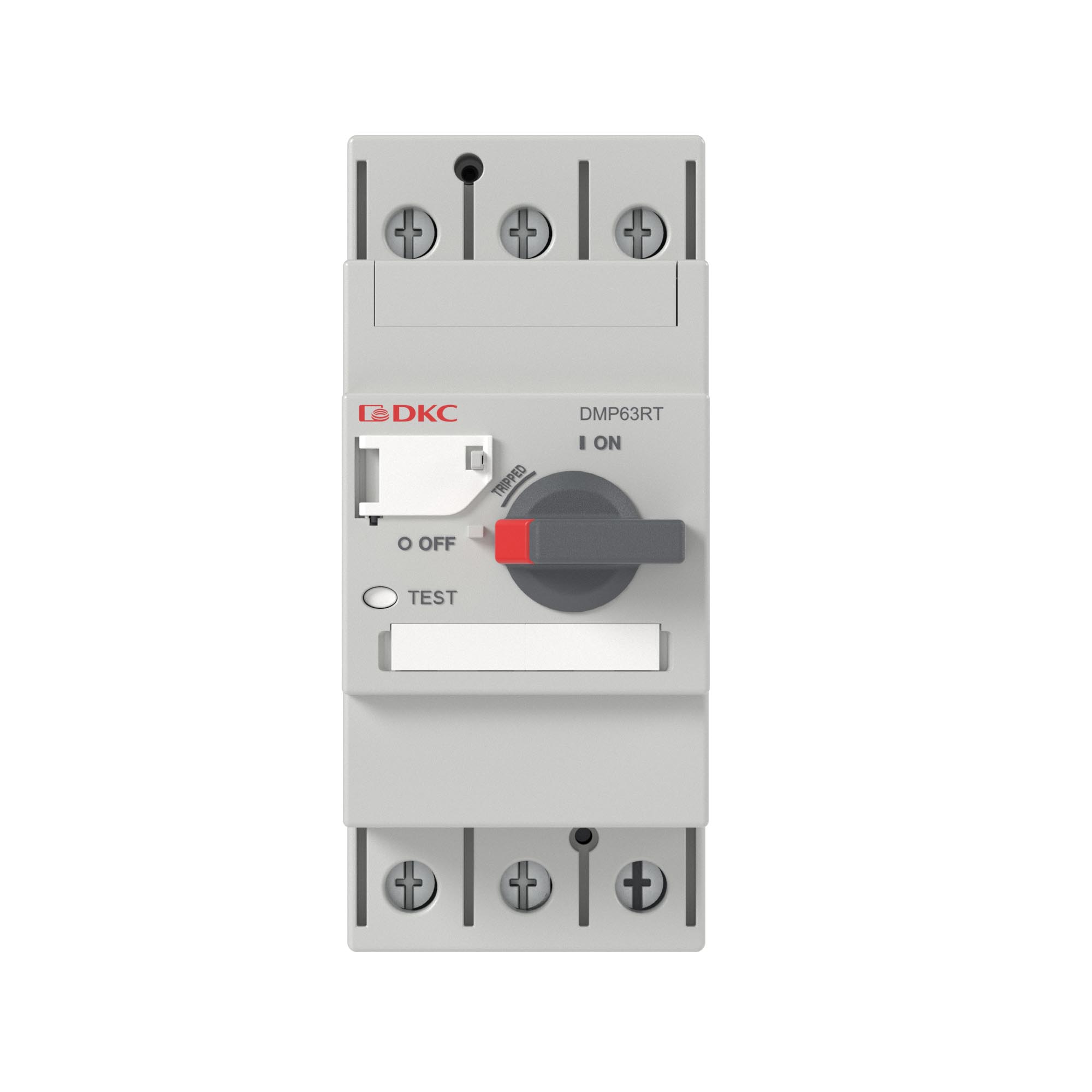

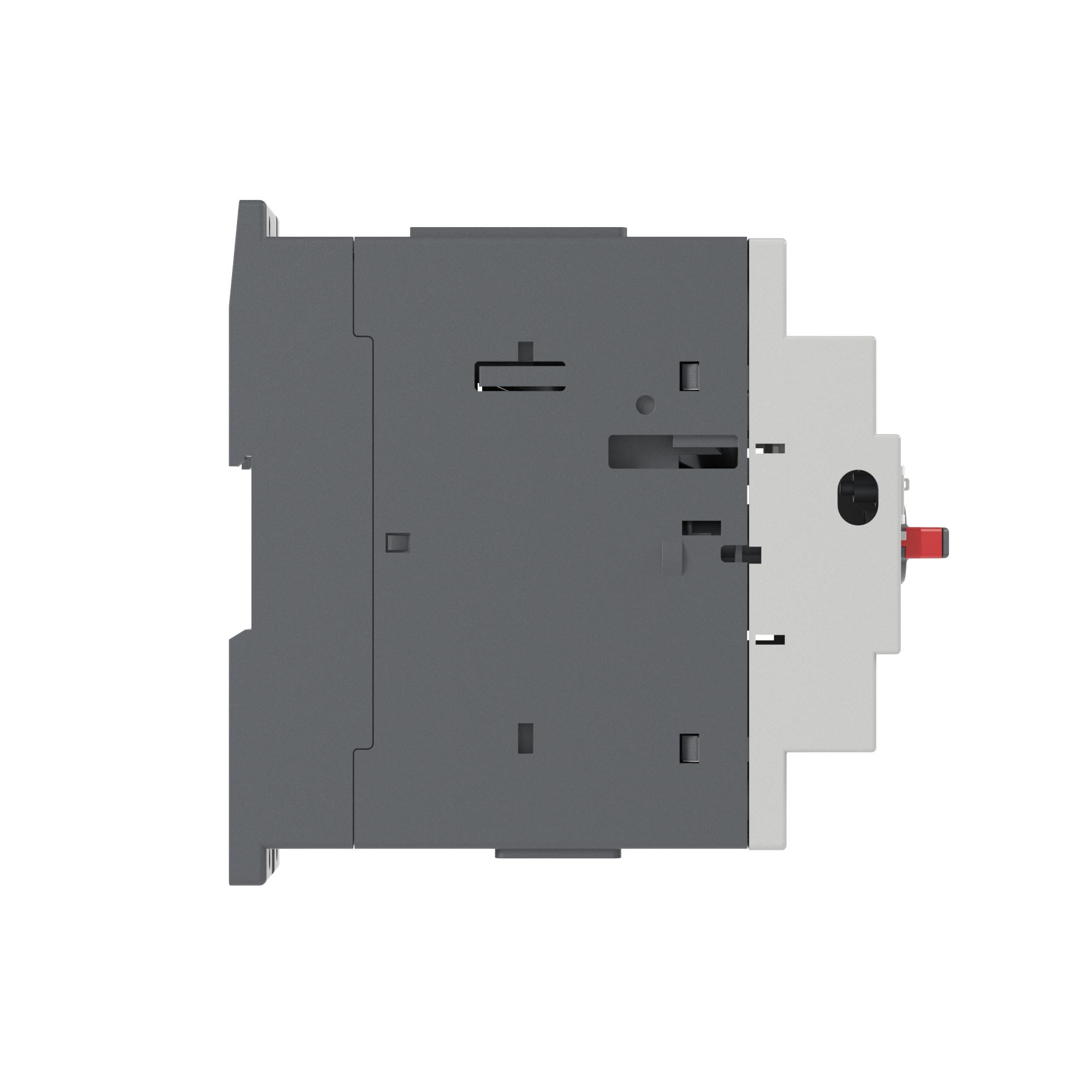

MP263TS2M16 63A MPCB RELAY RANGE 16A
Code: DMP63MT-0016
MP263TS2M16 63A MPCB RELAY RANGE 16A
Code: DMP63MT-0016
| Width, mm | 55 |
| Height, mm | 140 |
| Depth, mm | 149 |
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operating voltage, V | 400...400 |
| Degree of protection (IP) | IP20 |
| With thermal protection | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Turn button |
| Switch off technique | Magnetic |
| Device construction | Complete device in housing |
| Type of contactors | DMP63 |
| Operating voltage | 400V |
| Operating current | 16A |
| Tripping type | Magnetic |
| Overload protection | No |
| Short Circuit Breaking Capacity | 50 kA |
