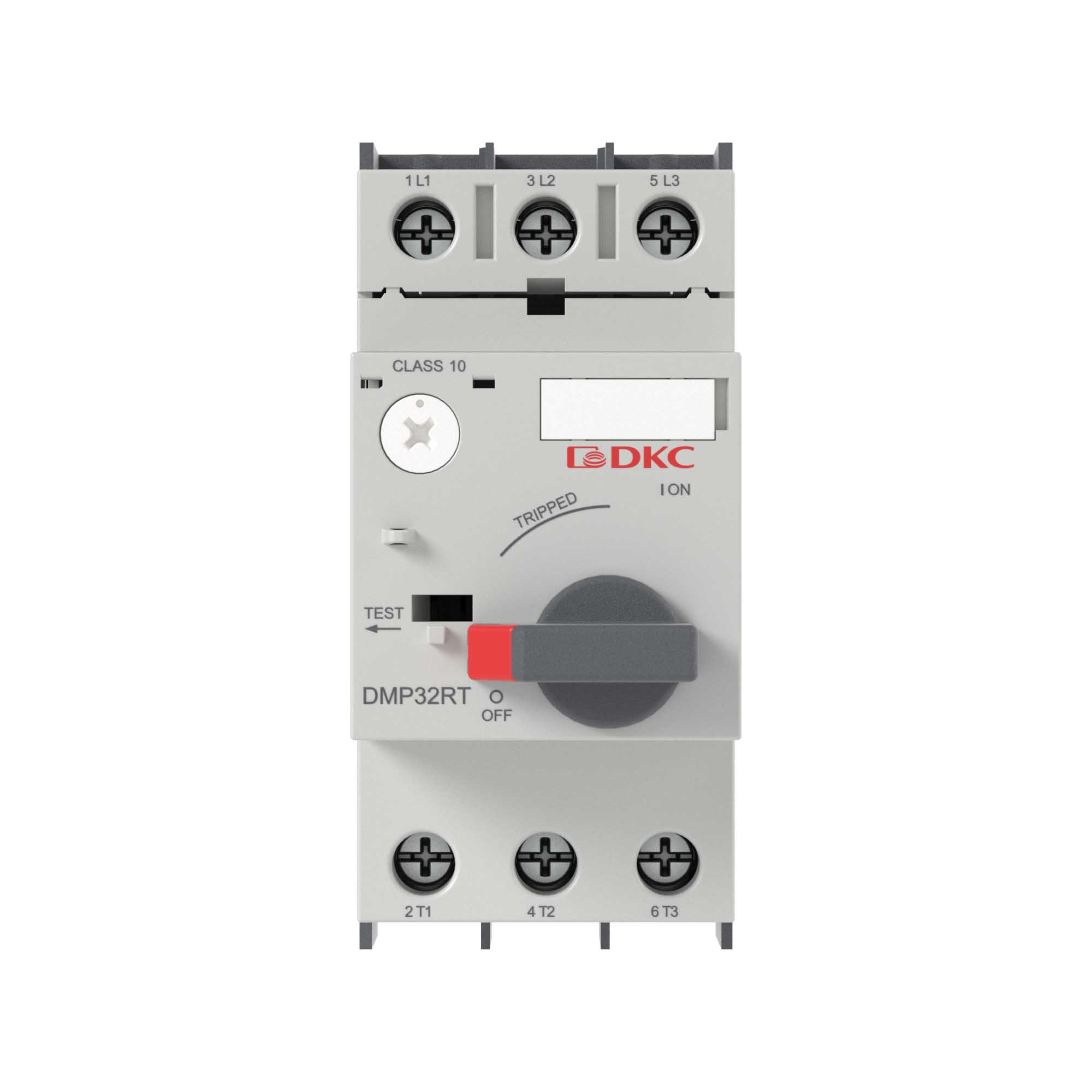

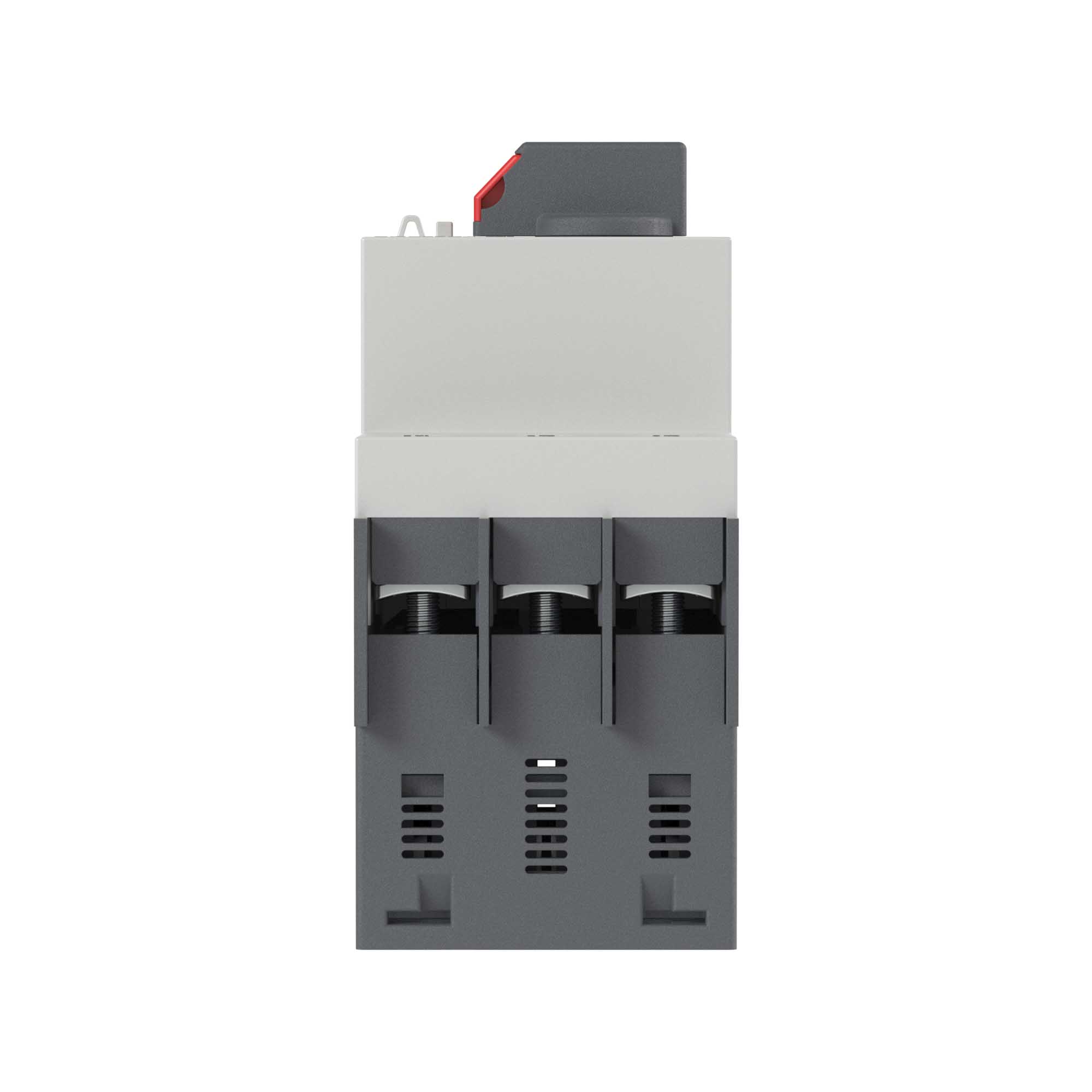

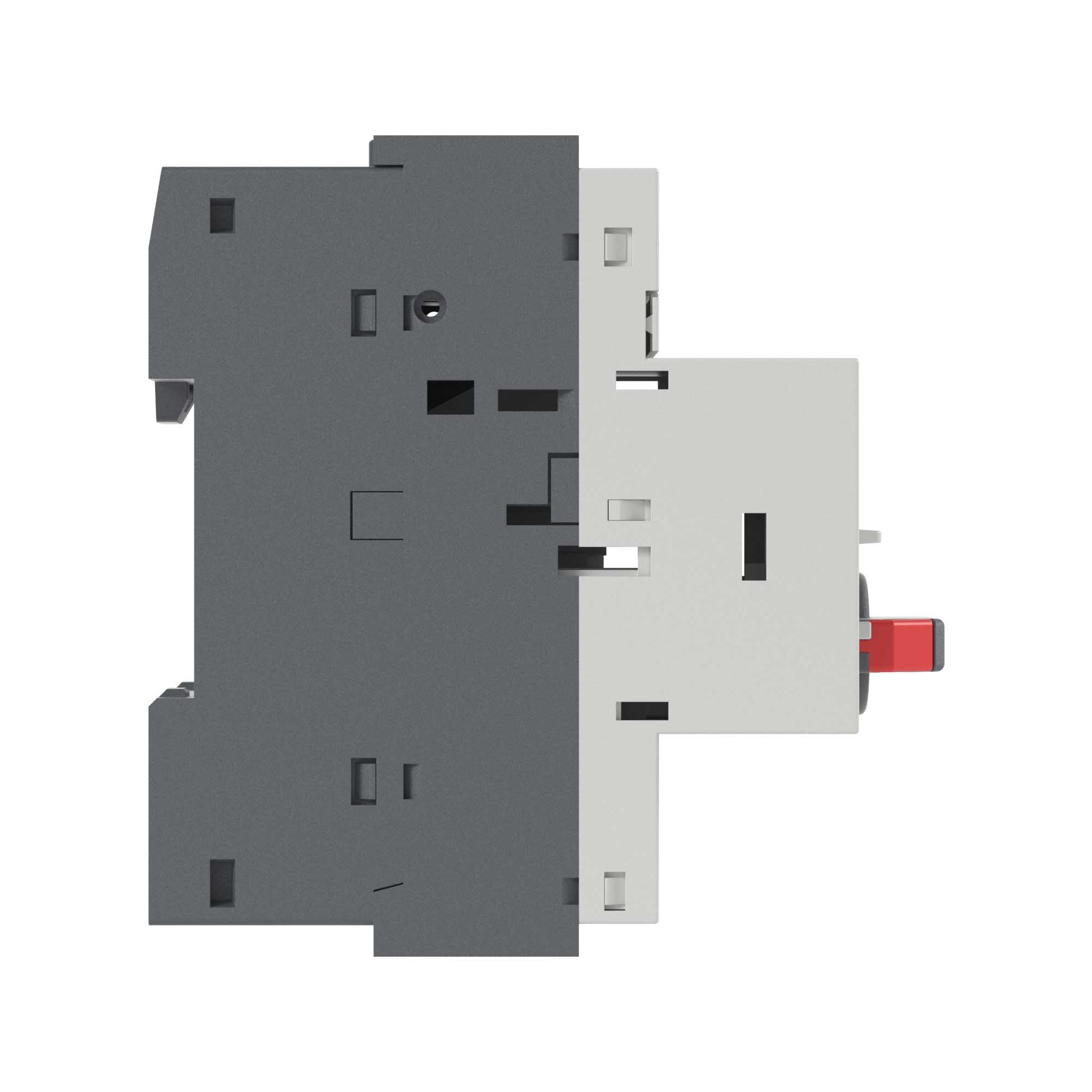

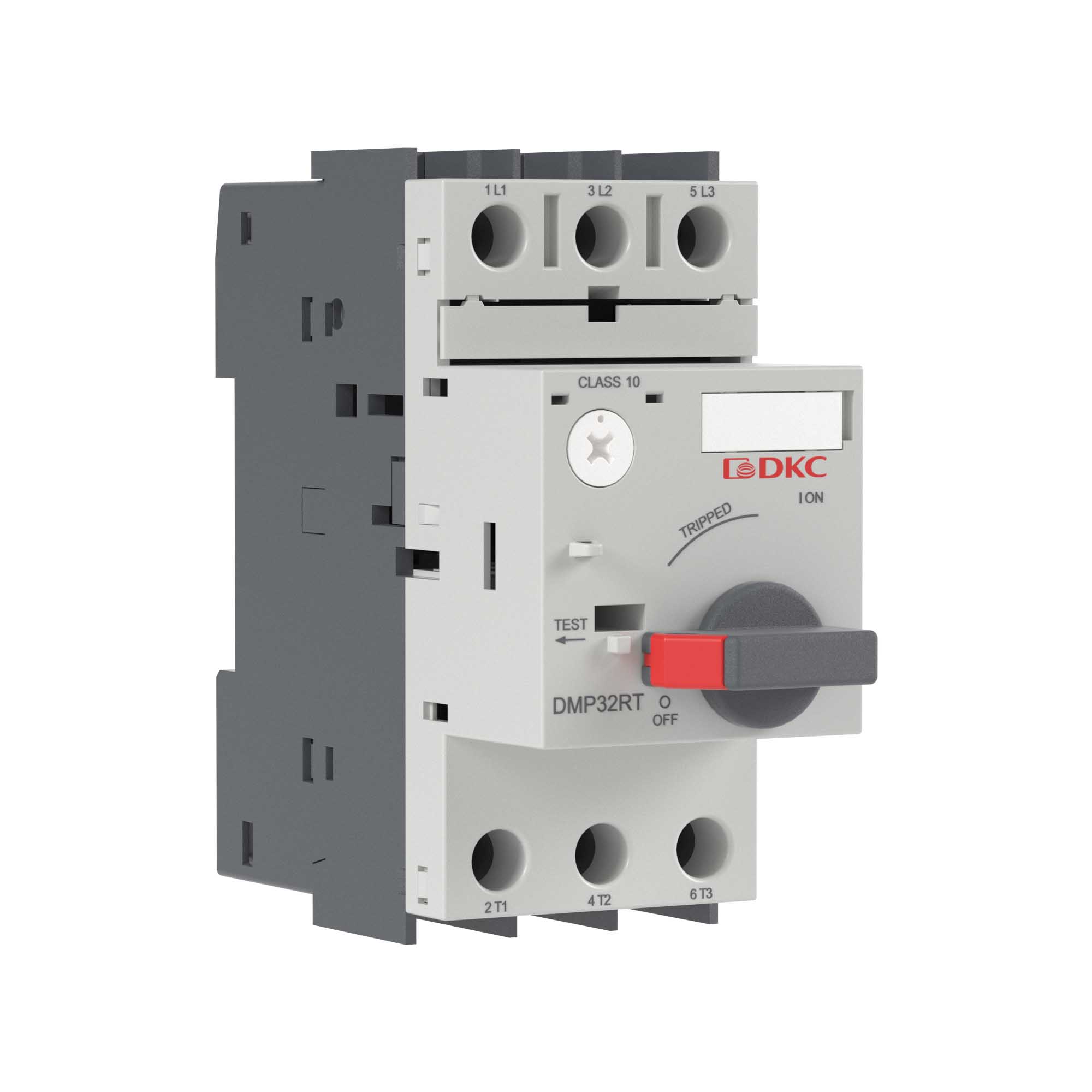

MP132TS2M25 MPCB 32A with Thermal and Magnetic Trip 1.6 ~ 2.5 A
Code:
DMP32RT-2P50
Code:
DMP32RT-2P50
| Width, mm | 45 |
| Height, mm | 97.3 |
| Depth, mm | 96 |
| Rated operation power at AC-3, 400 V, kW | 0.75 |
| With integrated auxiliary switch | No |
| Rated permanent current Iu, A | 1.9 |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operating voltage, V | 400...400 |
| Overload release current setting, A | 1.6...2.5 |
| Degree of protection (IP) | IP20 |
| With thermal protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Turn button |
| Switch off technique | Thermomagnetic |
| Rated operation power at AC-3, 230 V, kW | 0.37 |
| Rated short-circuit breaking capacity lcu at 400 V, AC, kA | 100 |
| Phase failure sensitive | Yes |
| Device construction | Complete device in housing |
| Type of contactors | DMP32 |
| Operating voltage | 400V |
| Operating current | 2.5 A |
| Tripping type | Thermal + Magnetic |
| Overload protection | Yes |
| Current Adjustment Range | 1.6 - 2.5 A |
| Short Circuit Breaking Capacity | 100 kA |
