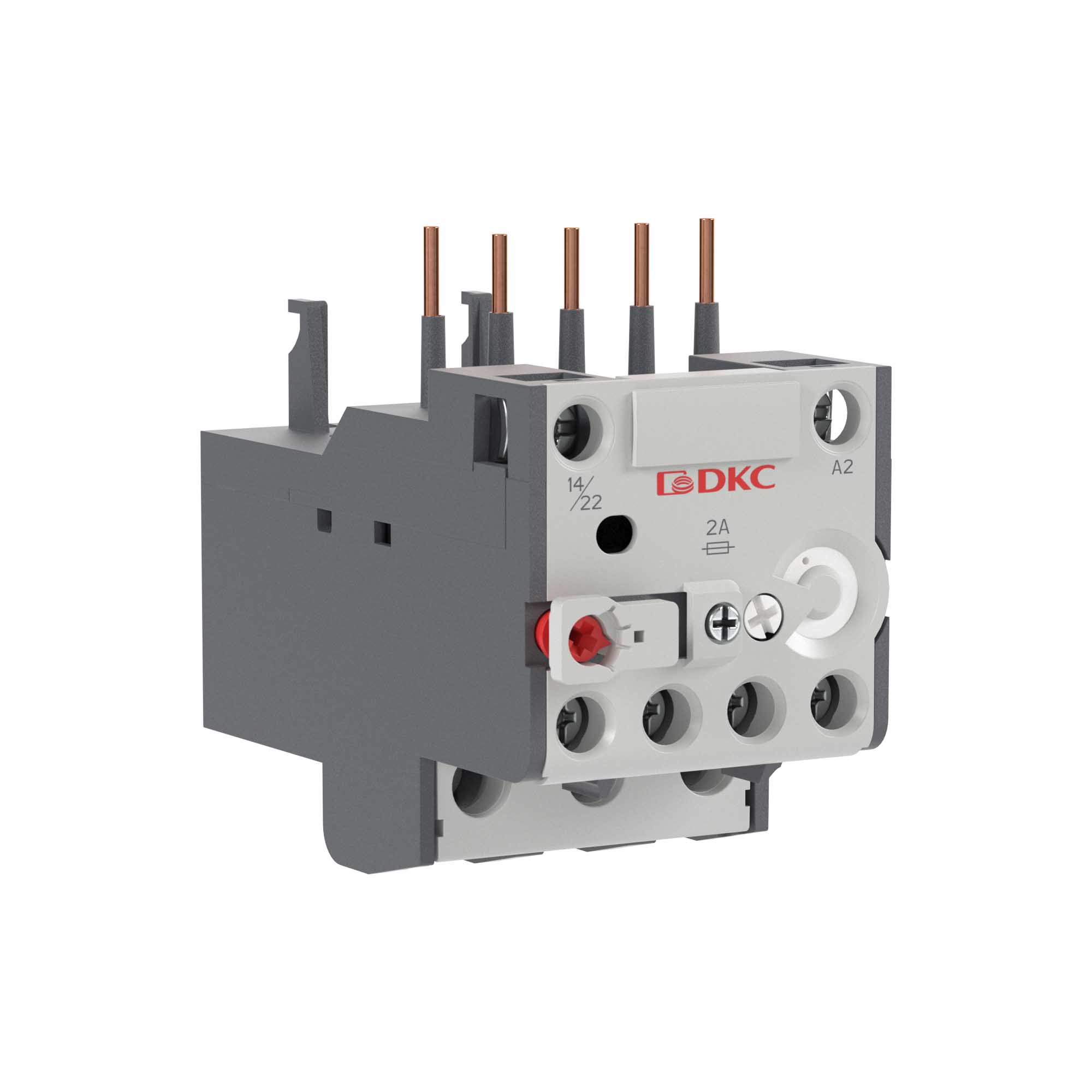

BR1M28L BR Series Bimetal Thermal Overload Relays Mini Contactor BR1 frame1.8 ~ 2.8A
Code:
MTR1-16-2P80
Code:
MTR1-16-2P80
| Mounting method | Direct attachment/single positioning |
| Release class | CLASS 10 |
| Type of electrical connection of main circuit | Other |
| Max. rated operation voltage Ue, V | 690 |
| Adjustable current range, A | 1.8...2.8 |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of accessories | Overload relay |
| For contactors | DMC007-DMC016 |
| Current Adjustment Range | 1.8 - 2.8 A |
