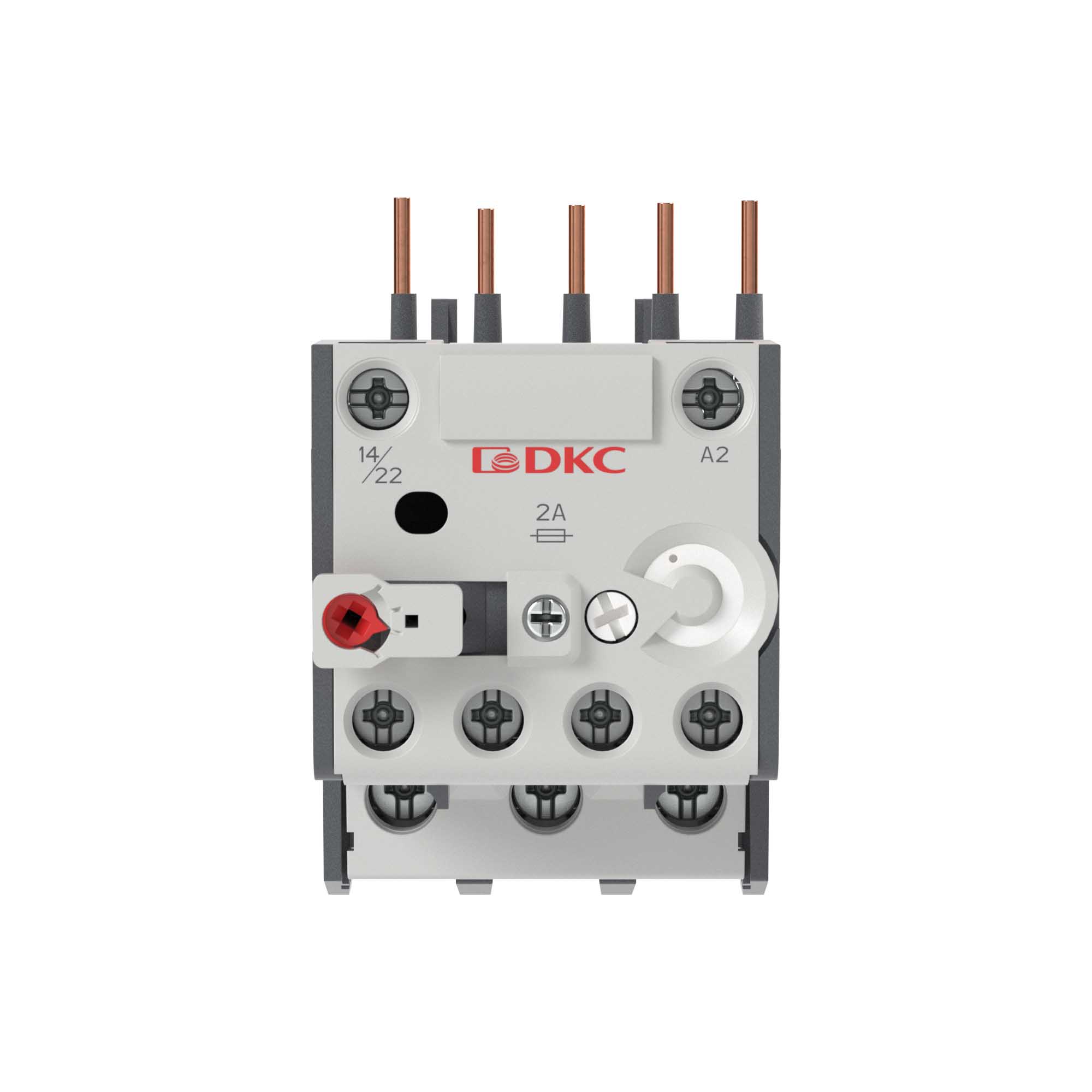

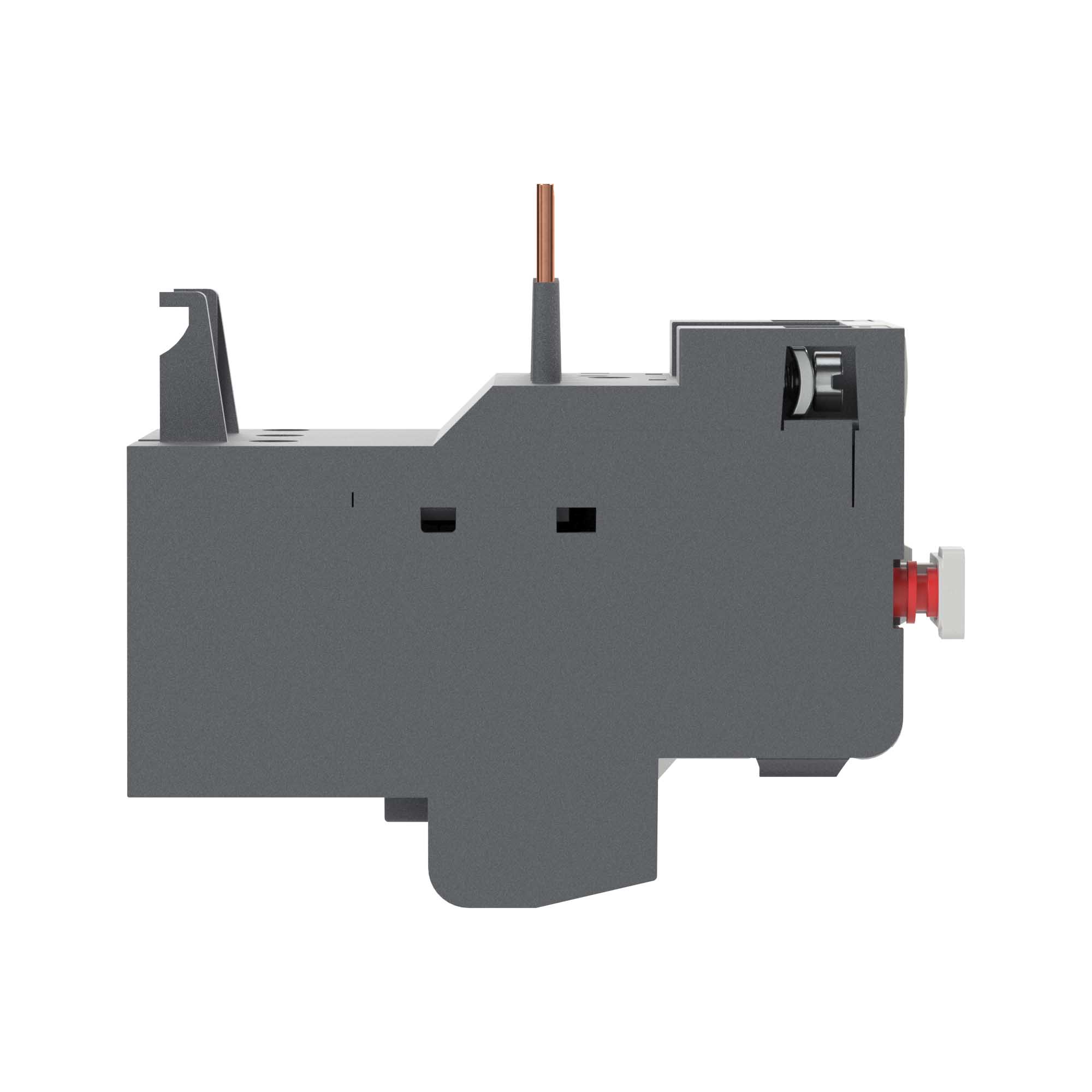

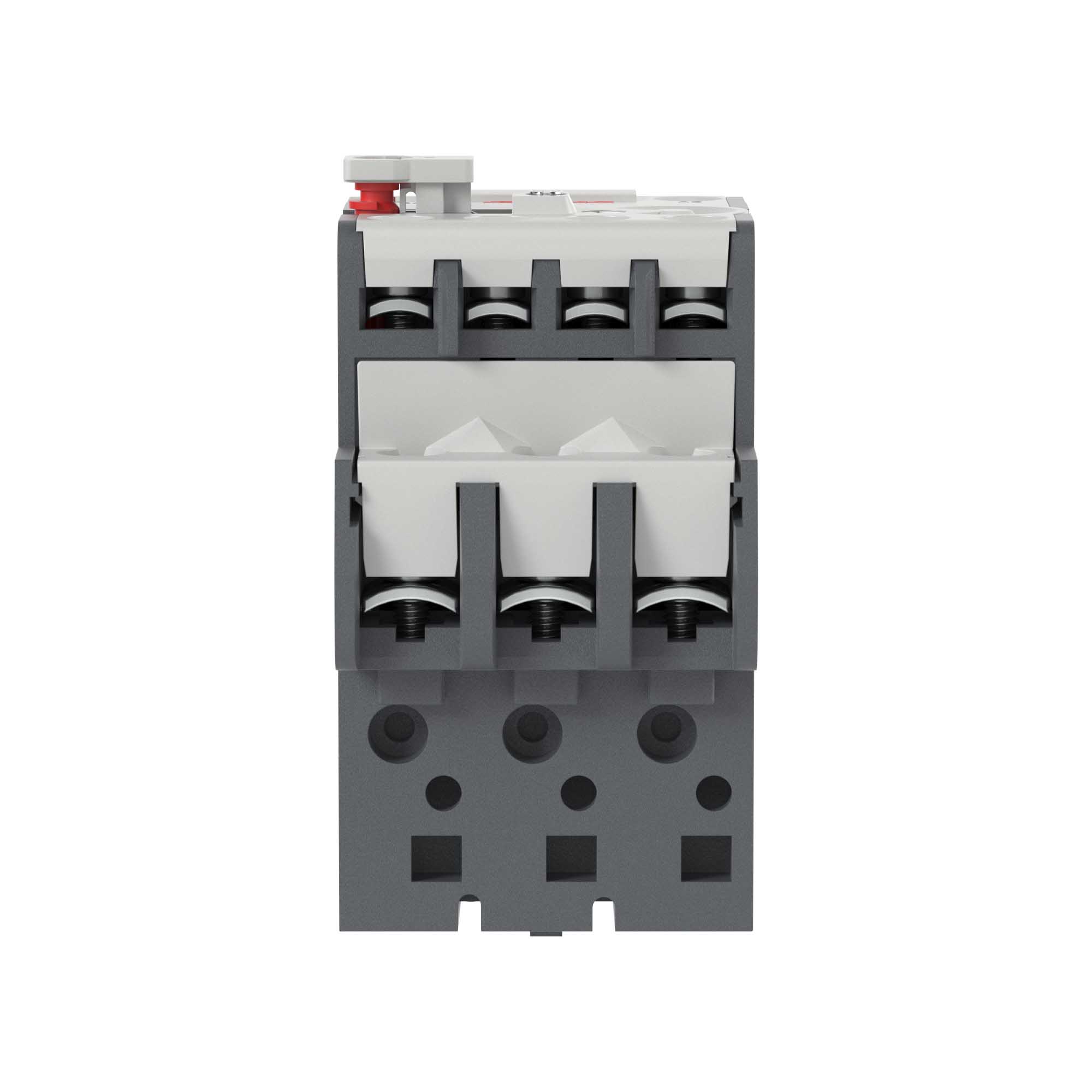

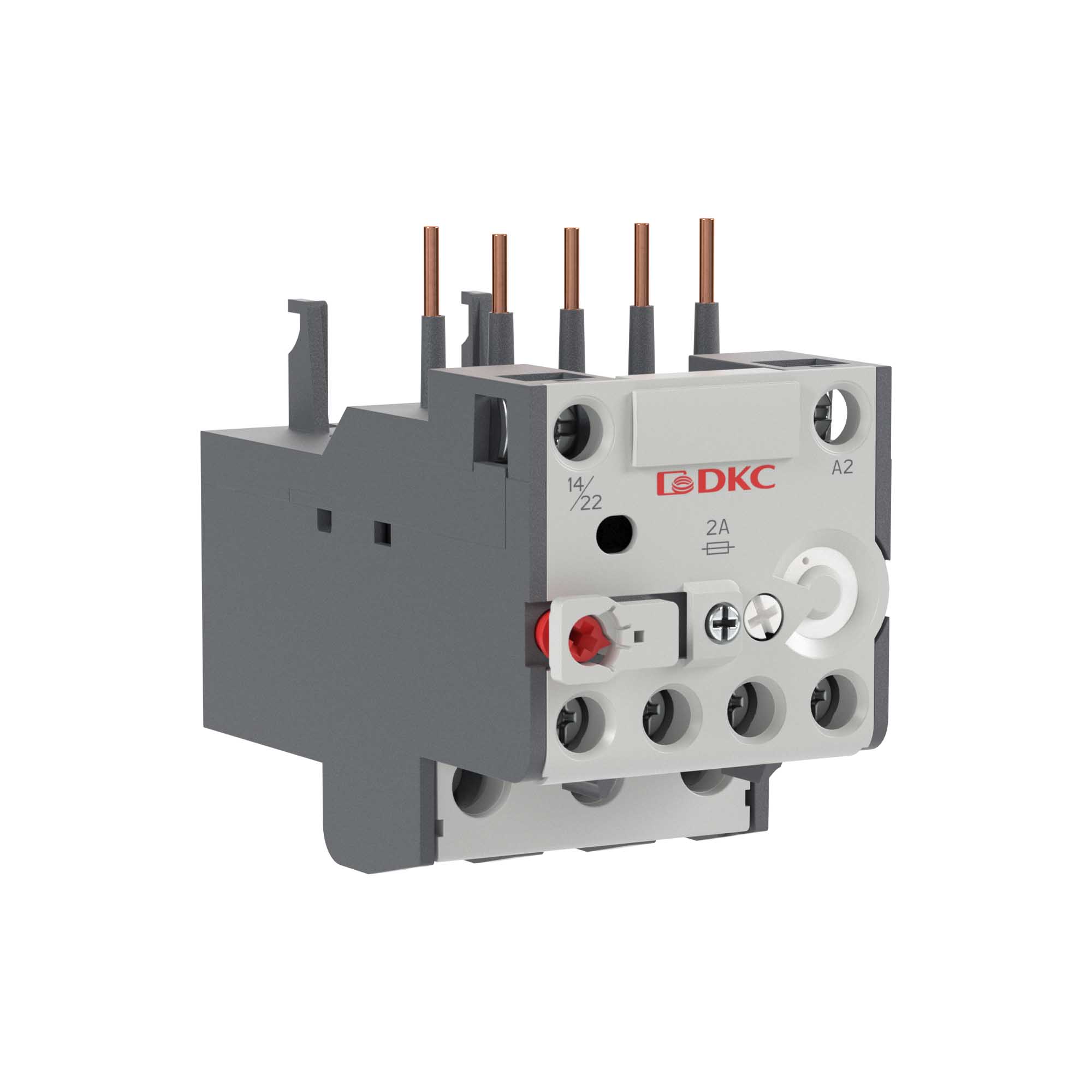

BR1H15L BR Series Bimetal Thermal Overload Relays Mini Contactor BR1 frame8 ~ 12.5A
Code:
MTR1-16-12P5
Code:
MTR1-16-12P5
| Mounting method | Direct attachment/single positioning |
| Release class | CLASS 10 |
| Type of electrical connection of main circuit | Other |
| Max. rated operation voltage Ue, V | 690 |
| Adjustable current range, A | 8...12.5 |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of accessories | Overload relay |
| For contactors | DMC007-DMC016 |
| Current Adjustment Range | 8 - 12.5 A |
