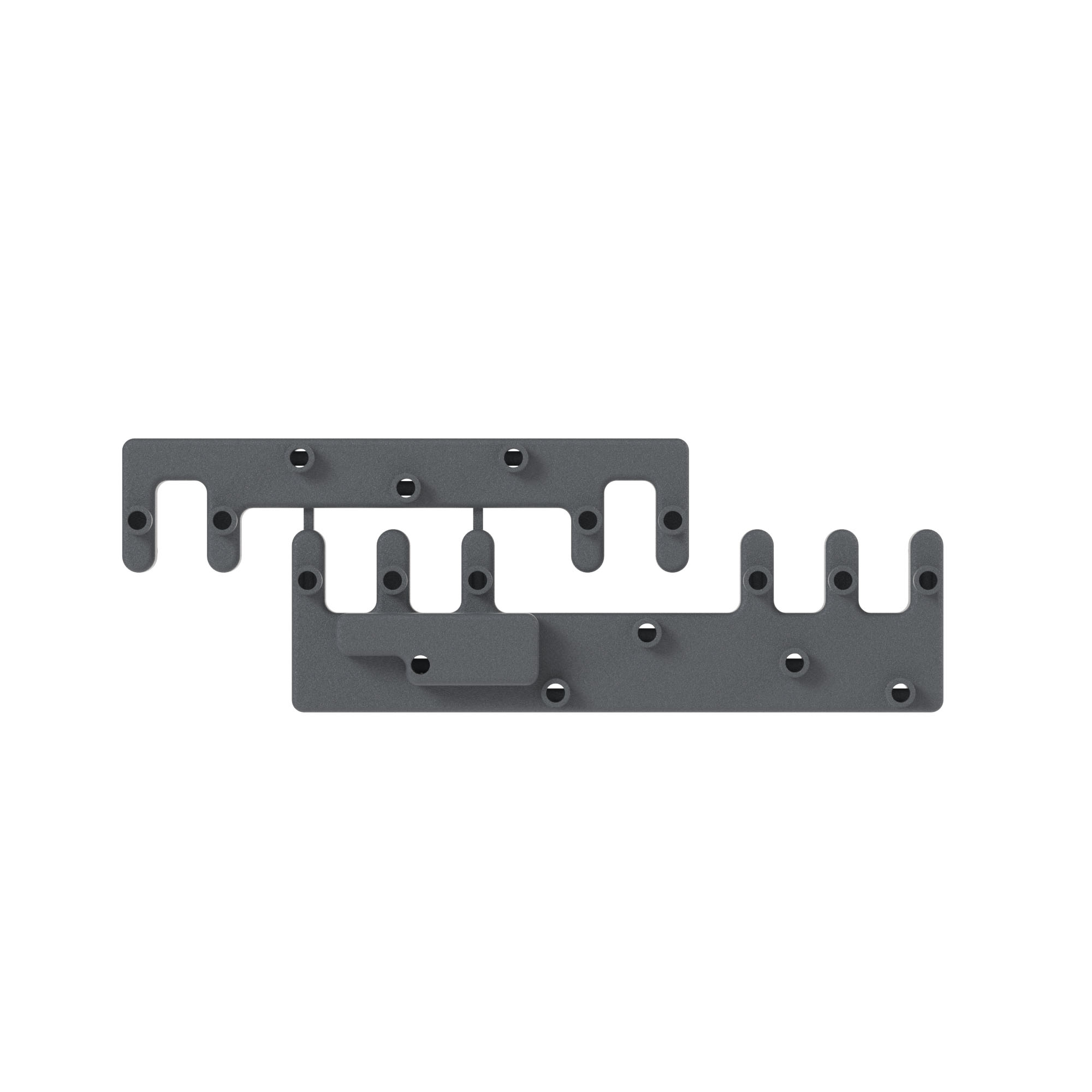

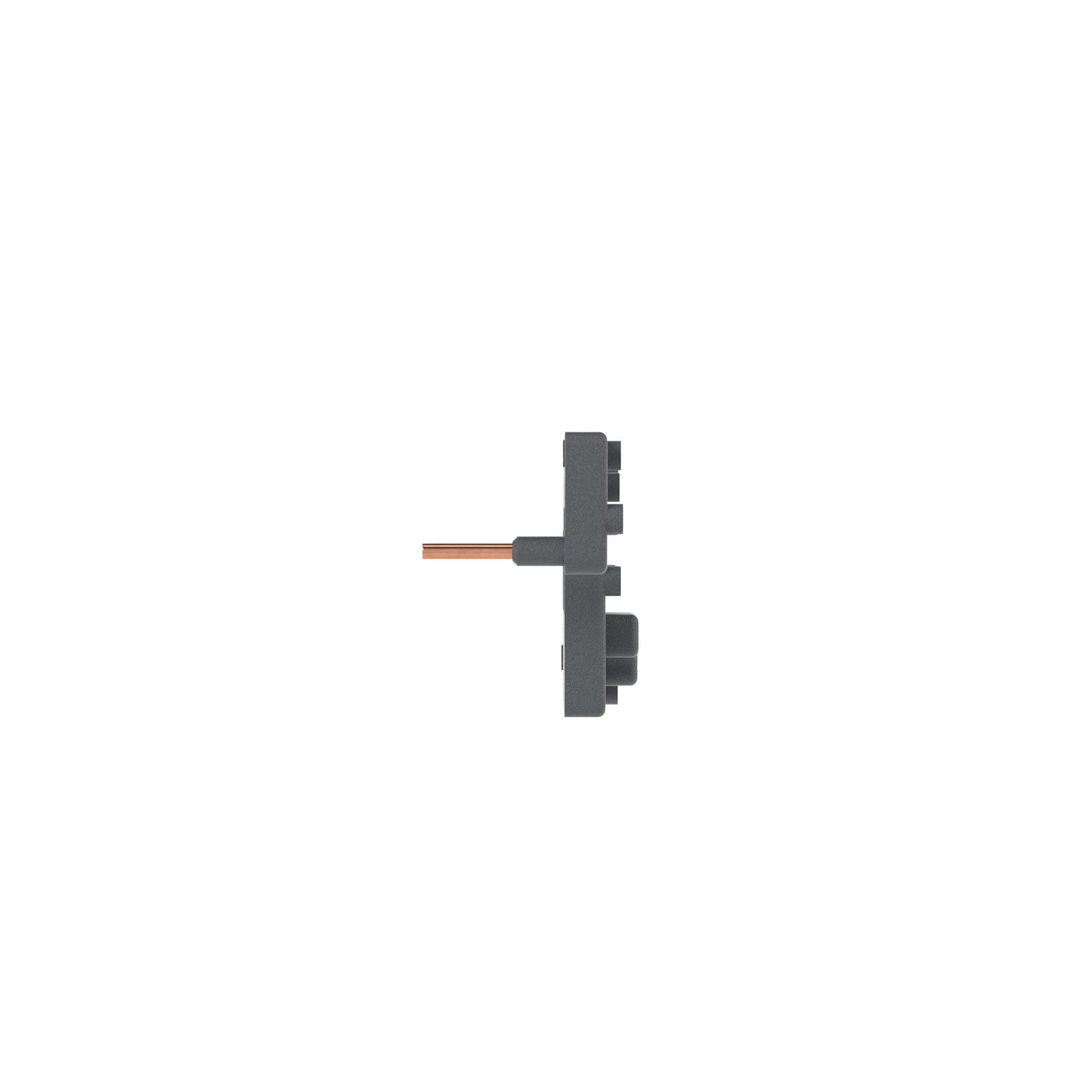

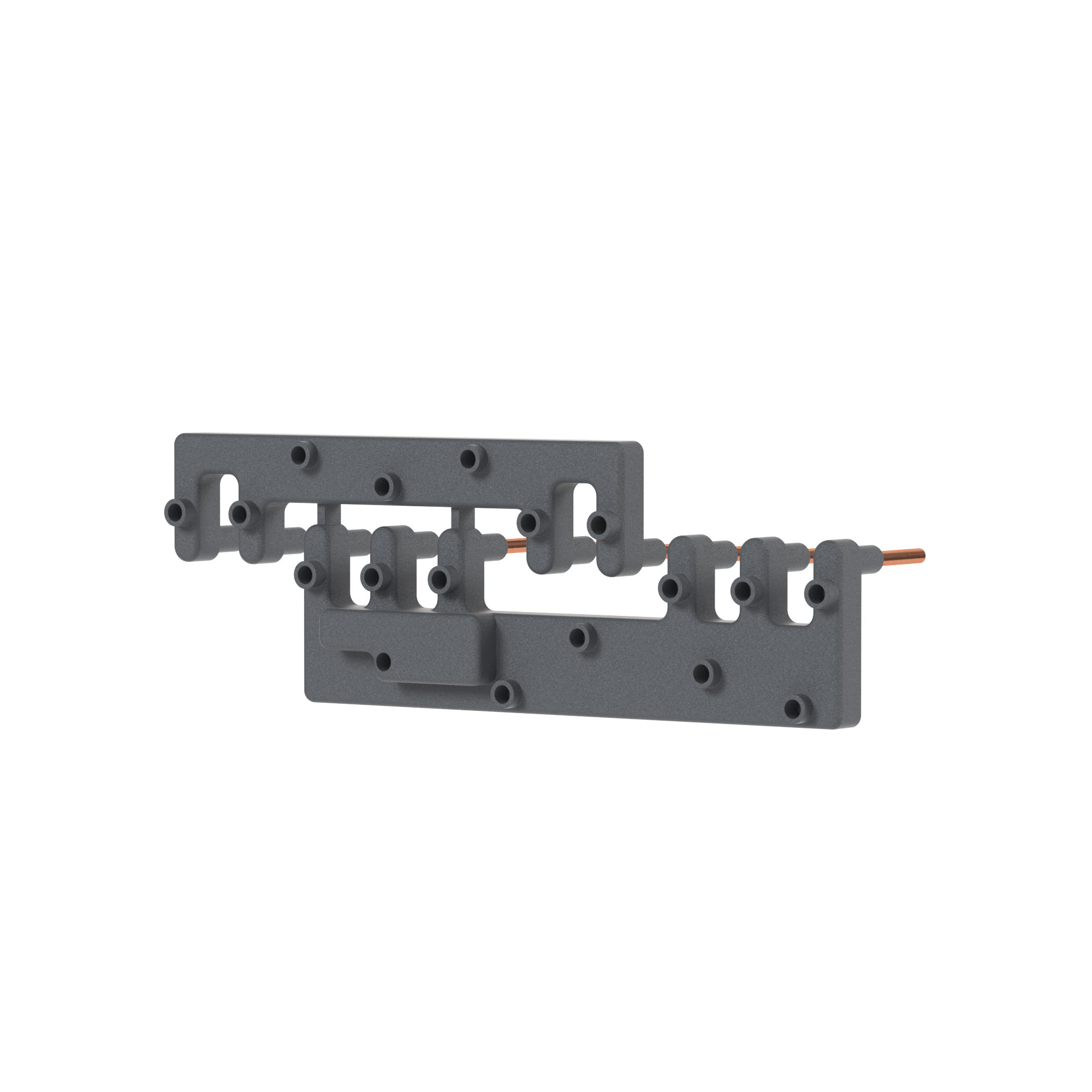

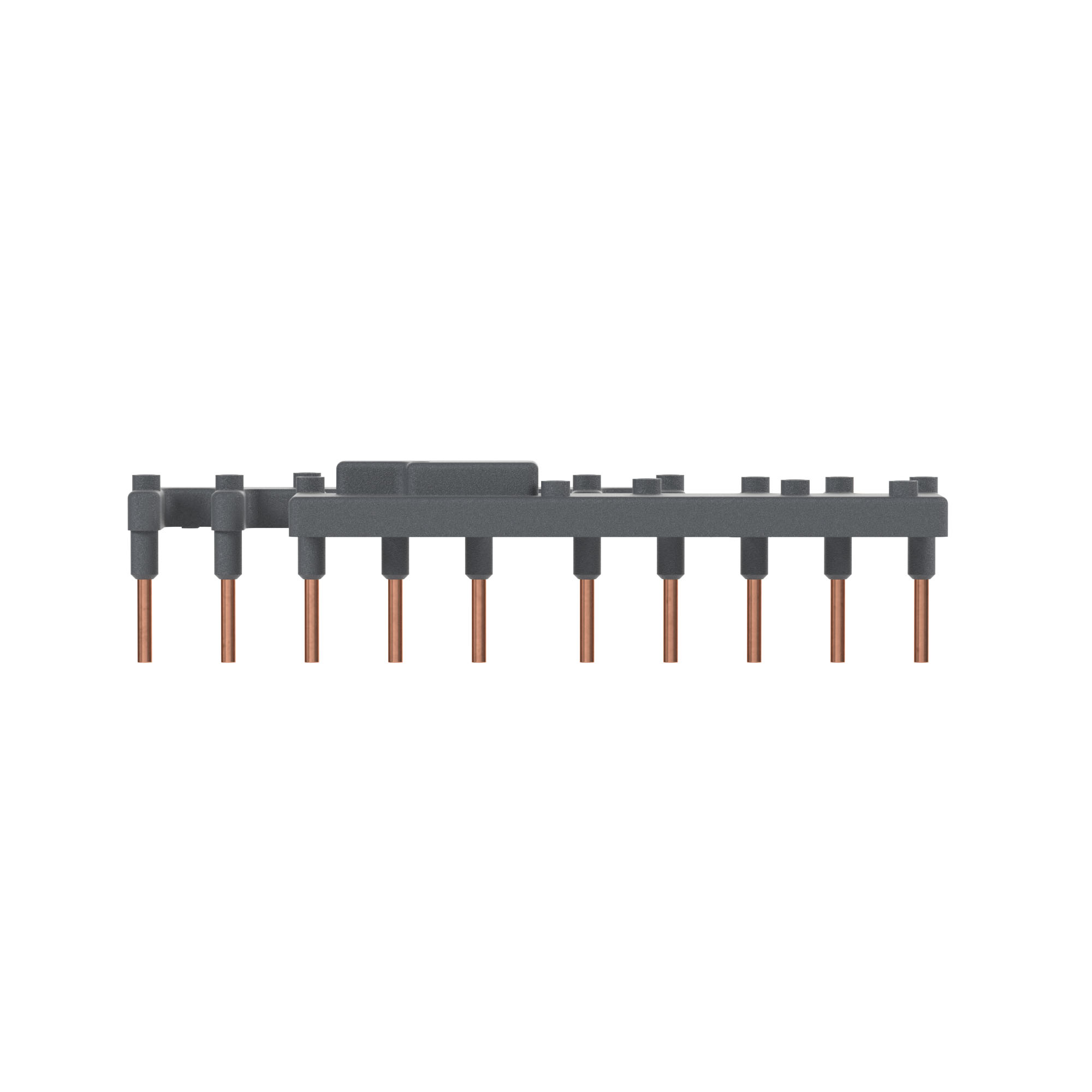

MCRWM16L Reversing Wiring Module for Mini ContactorsReversing Power Wiring Module
Code:
DMCRWM16
Code:
DMCRWM16
| Insulated | Yes |
| Number of phases | 3 |
| Rated permanent current Iu, A | 16 |
| Number of poles | 6 |
| Length, mm | 90 |
| Conditioned rated short-circuit current Iq, kA | 100 |
| Rated surge voltage, kV | 4 |
| Type of electric connection | Pin |
| Rated short-time withstand current lcw, kA | 5 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 2 |
| Max. rated operation voltage Ue, V | 690 |
| Mounting method | Above |
| Cross section, mm² | 3.14 |
| Module width, mm | 11 |
