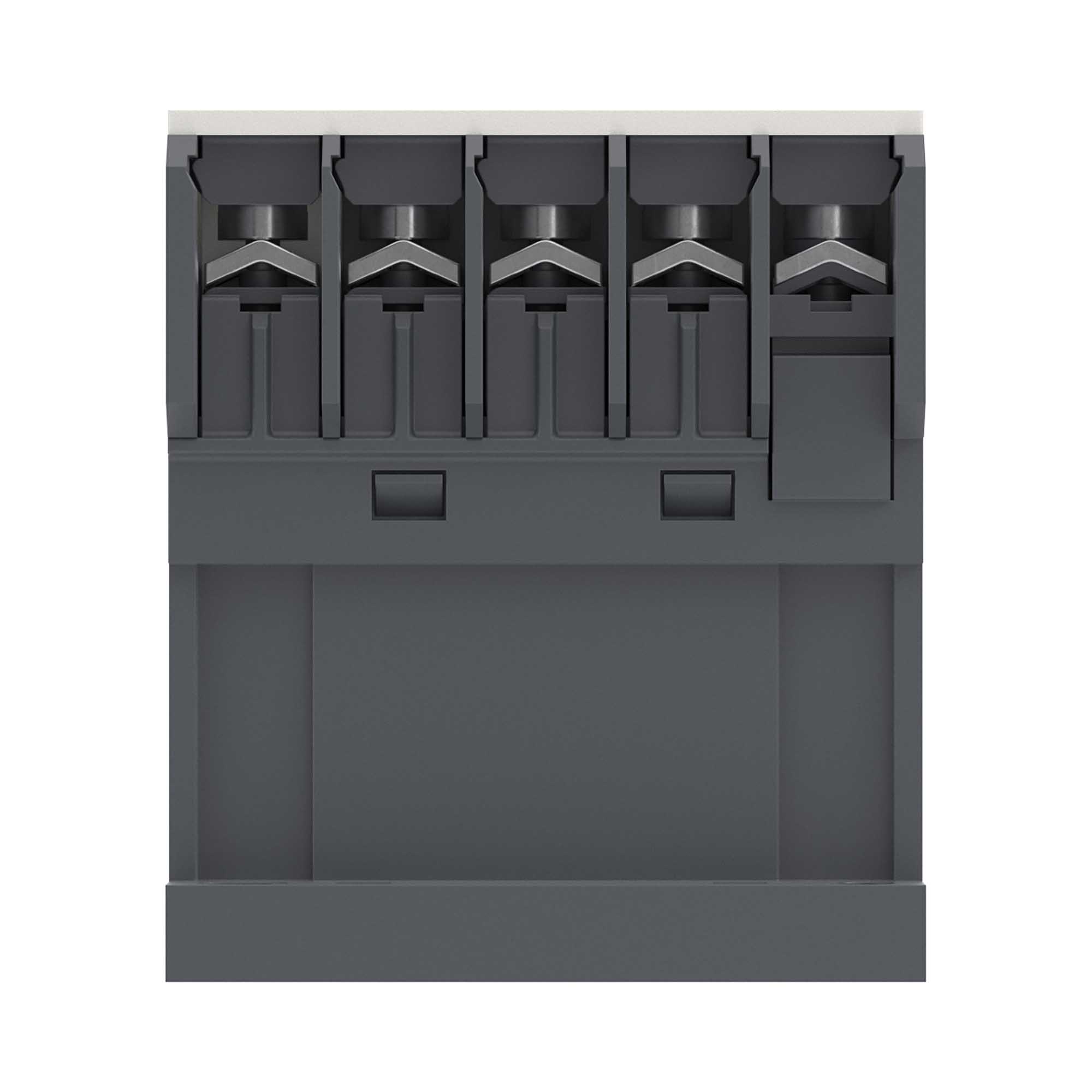

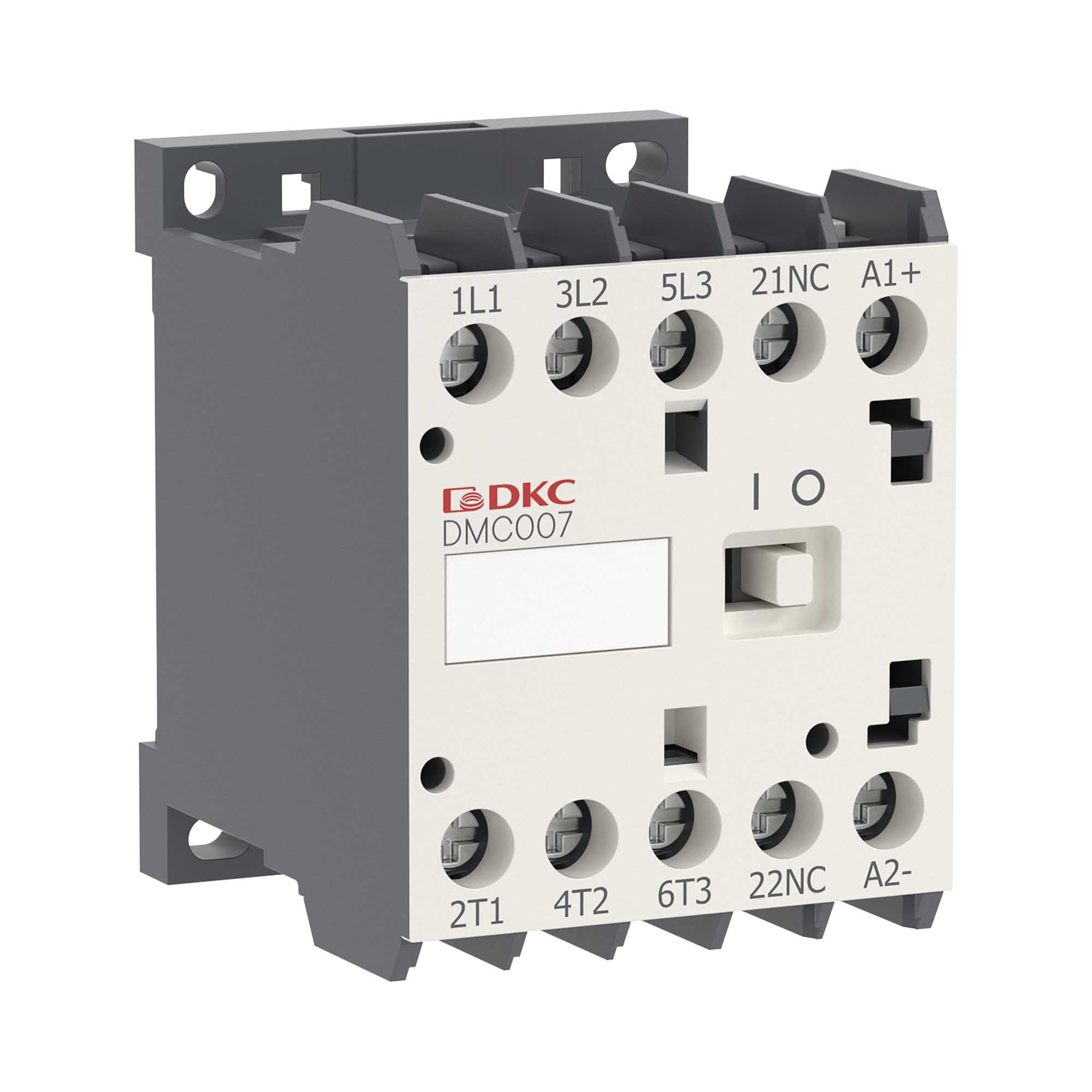

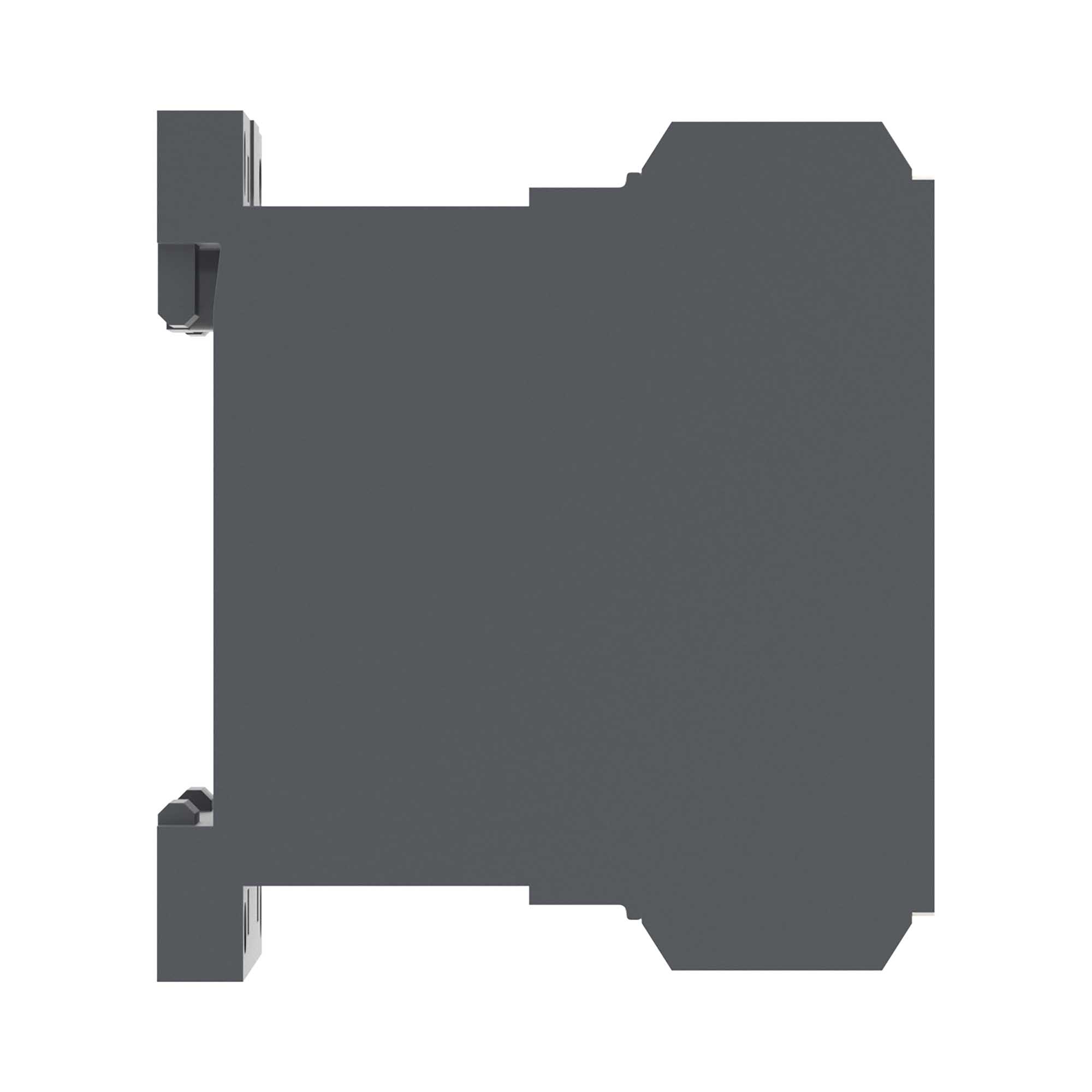

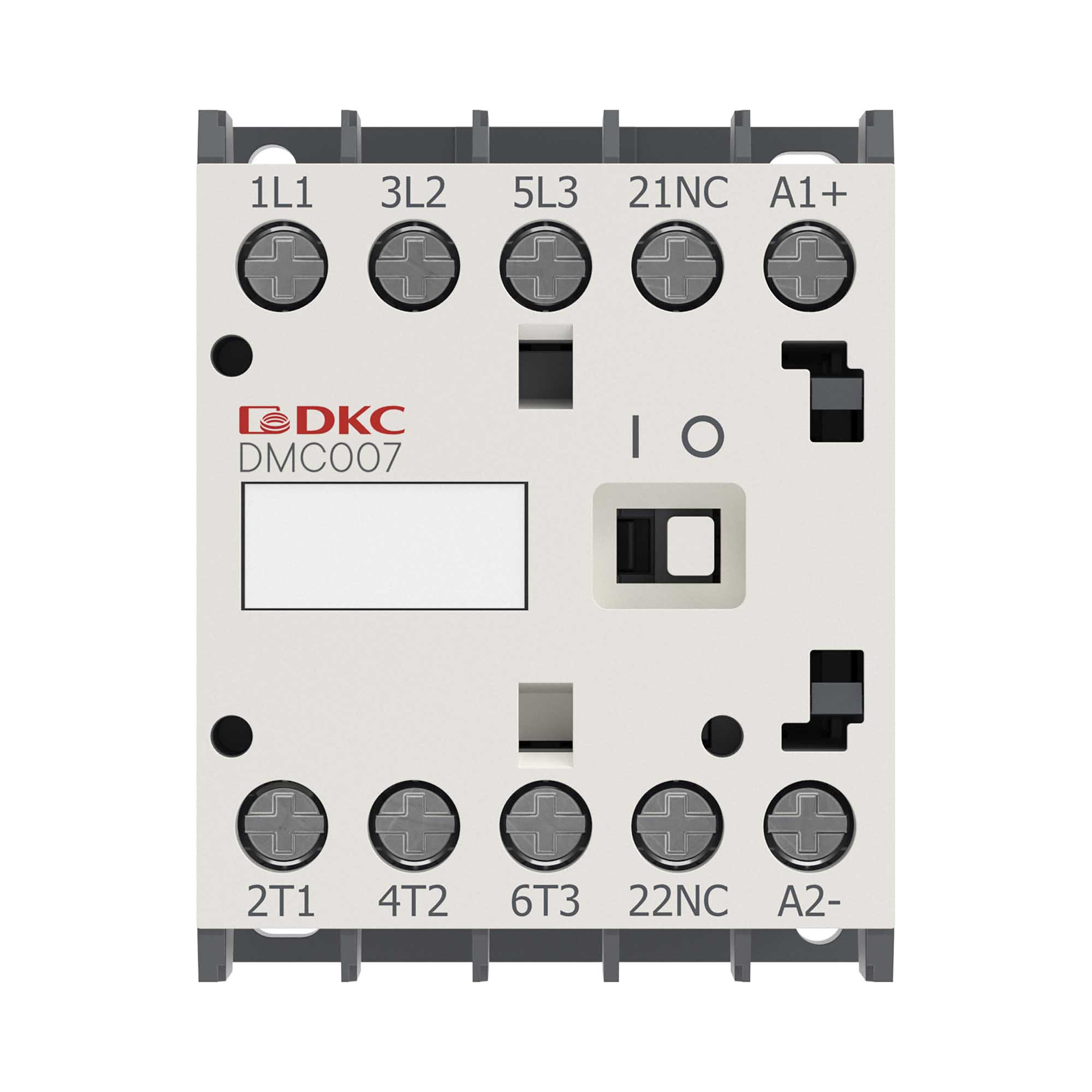

MC007P3010A220B MC Range Mini Contactors AC Coil7A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code:
DMC007-3C10A230
Code:
DMC007-3C10A230
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 3 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 7 |
| Rated operation current Ie at AC-1, 400 V, A | 18 |
| Rated control supply voltage Us at AC 50HZ, V | 230...230 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V, A | 5.8 |
| Rated operation power at AC-4, 400 V, kW | 2.2 |
| Type of product | Contactor |
| Poles | 3 |
| Contacts | 1NO |
| Type of voltage | AC |
| Supply voltage of the control circuit | 230 V |
| Type of product | Mini contactor |
| Mechanical life | 10 million oper |
| Electrical endurance, AC-3 | 1,4 million cycles |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.33.13.140 |
| Commodity Nomenclature of Foreign Economic Activity | 8536490000 |
