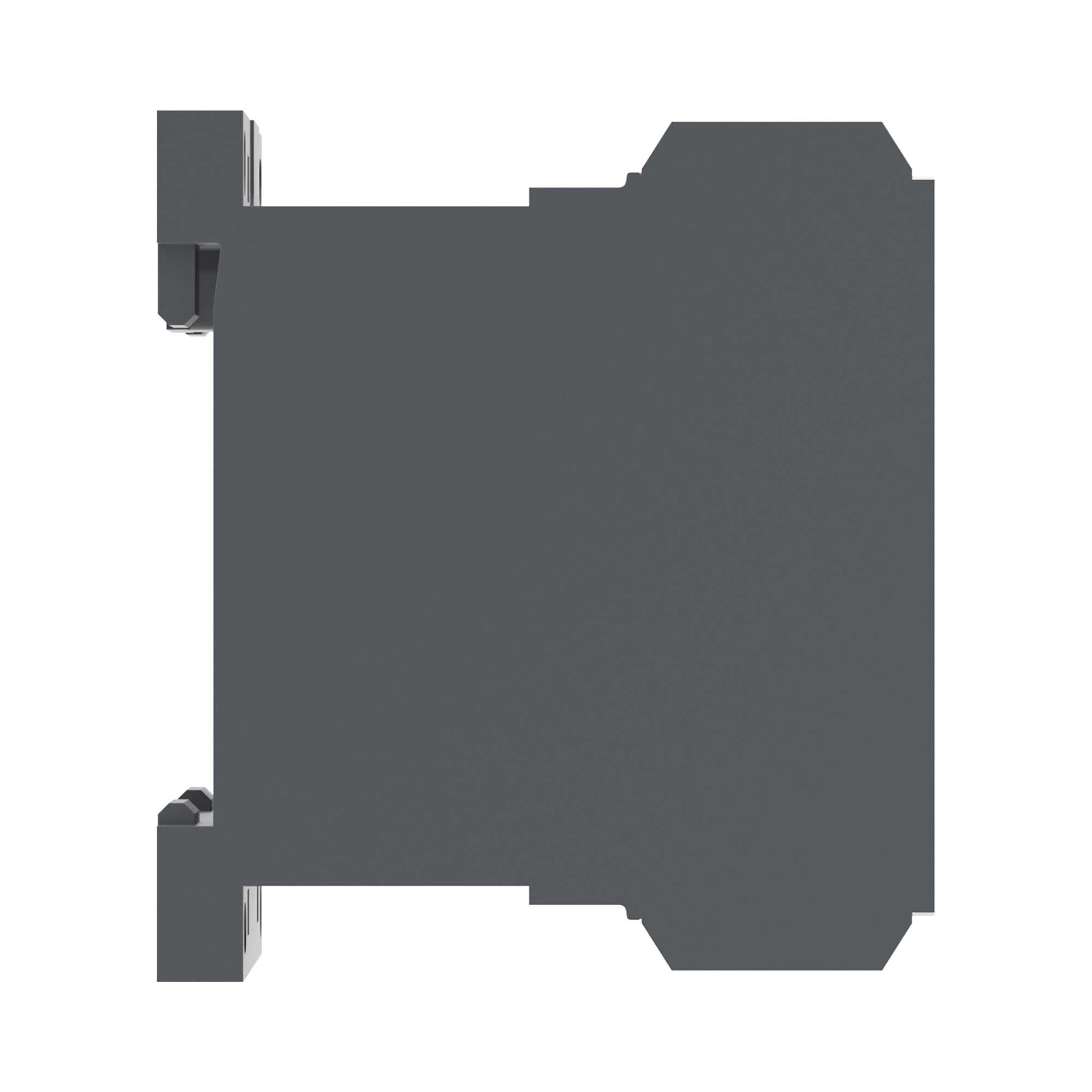

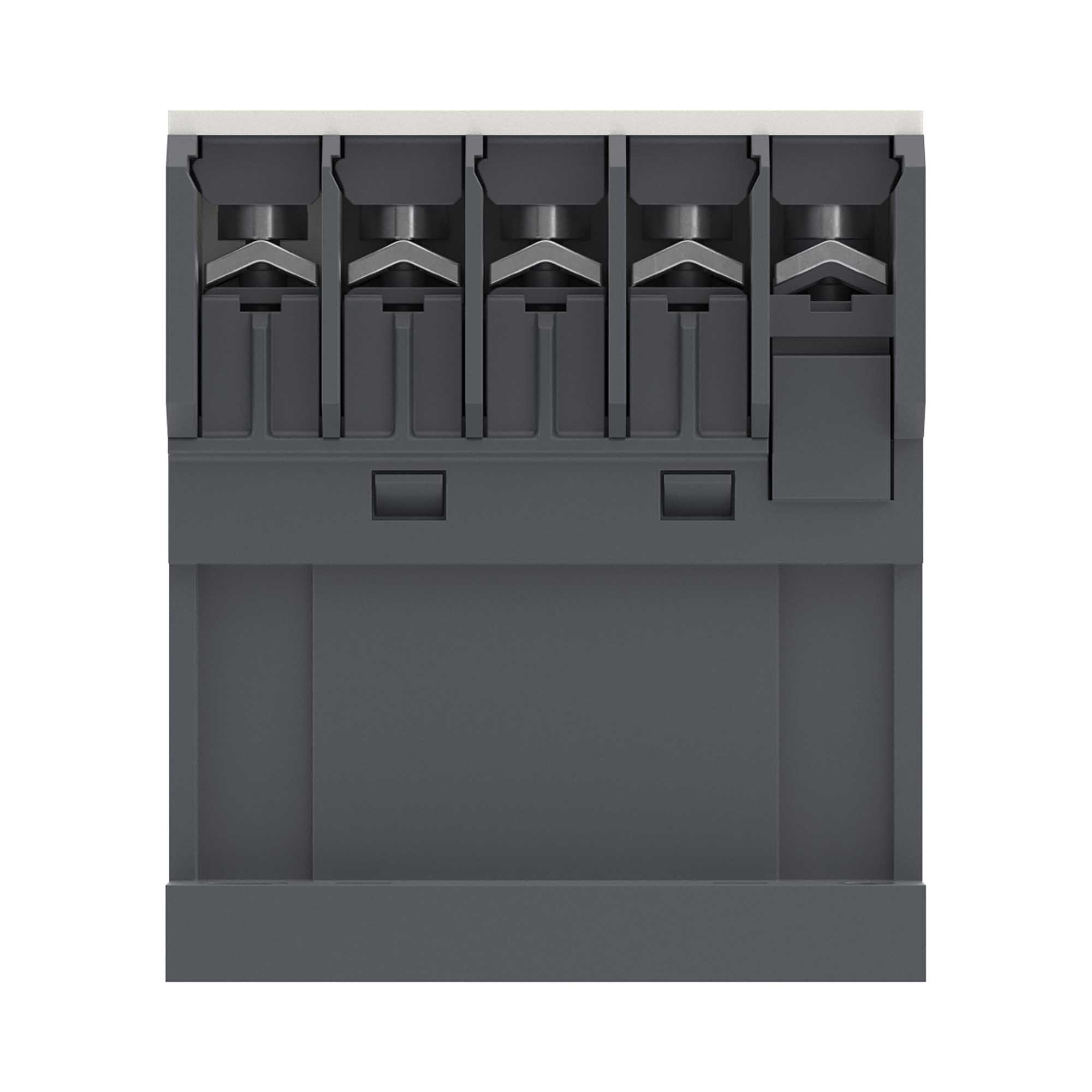

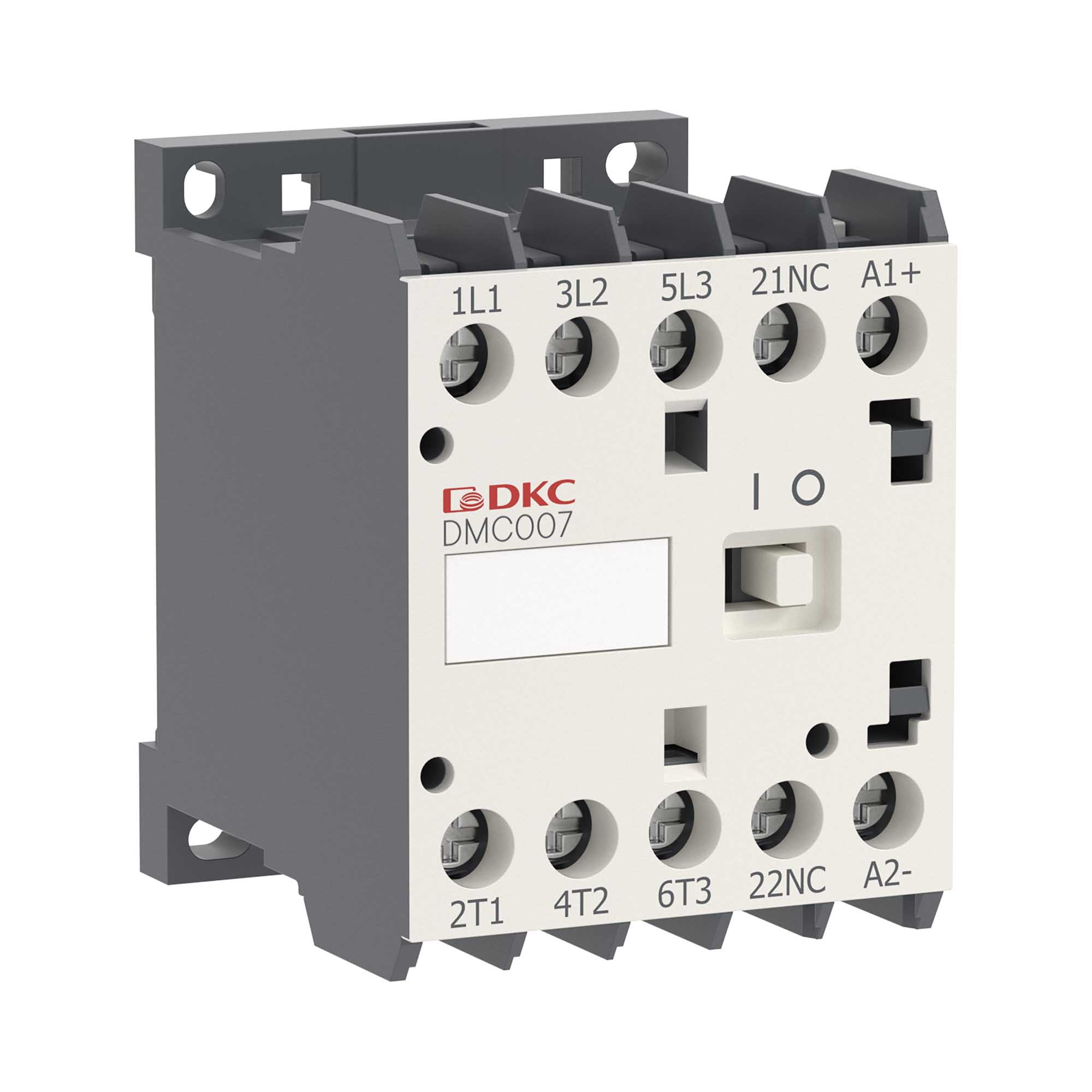

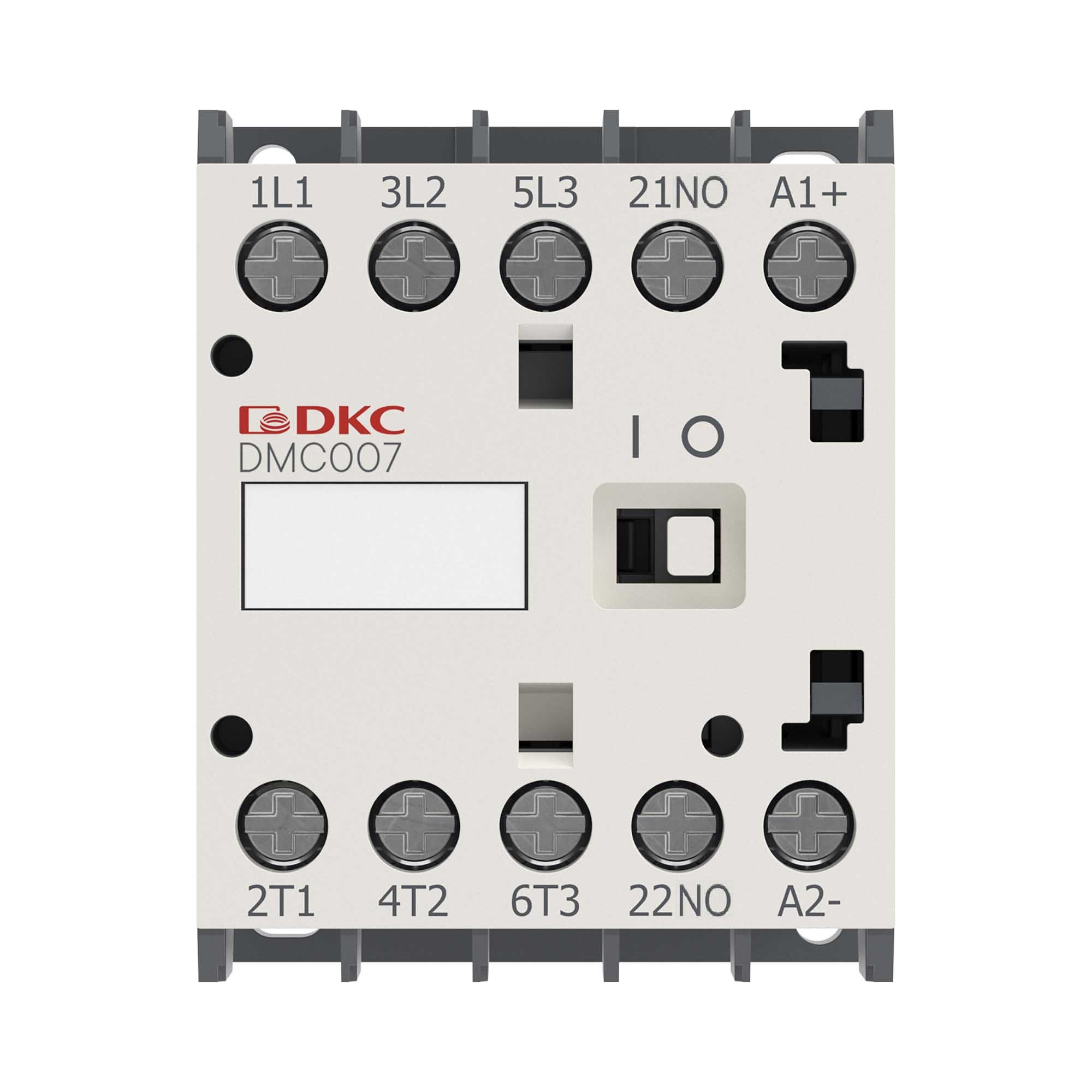

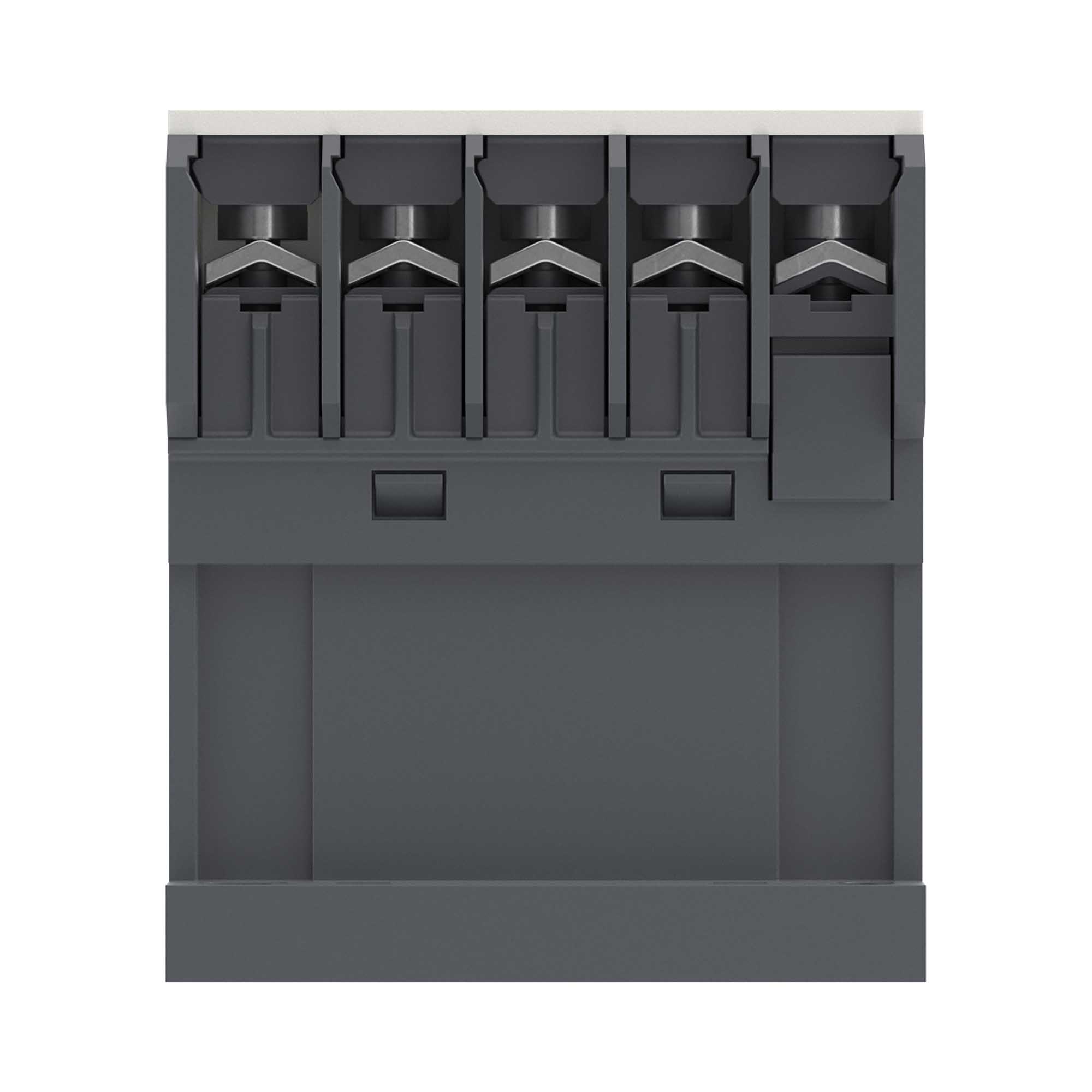

MC007P3010D110 MC Range Mini Contactors DC Coil7A AC 3Pole3 Power Pole & 4 th Pole (Aux) Either NO Or NC
Code:
DMC007-3C10D110
Code:
DMC007-3C10D110
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 3 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 7 |
| Rated operation current Ie at AC-1, 400 V, A | 18 |
| Rated control supply voltage Us at DC, V | 110...110 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V, A | 5.8 |
| Rated operation power at AC-4, 400 V, kW | 2.2 |
| Type of product | Contactor |
| Type of contactors | DMC007 |
| Poles | 3 |
| Contacts | 1NO |
| Type of voltage | DC |
| Supply voltage | 110 V |
