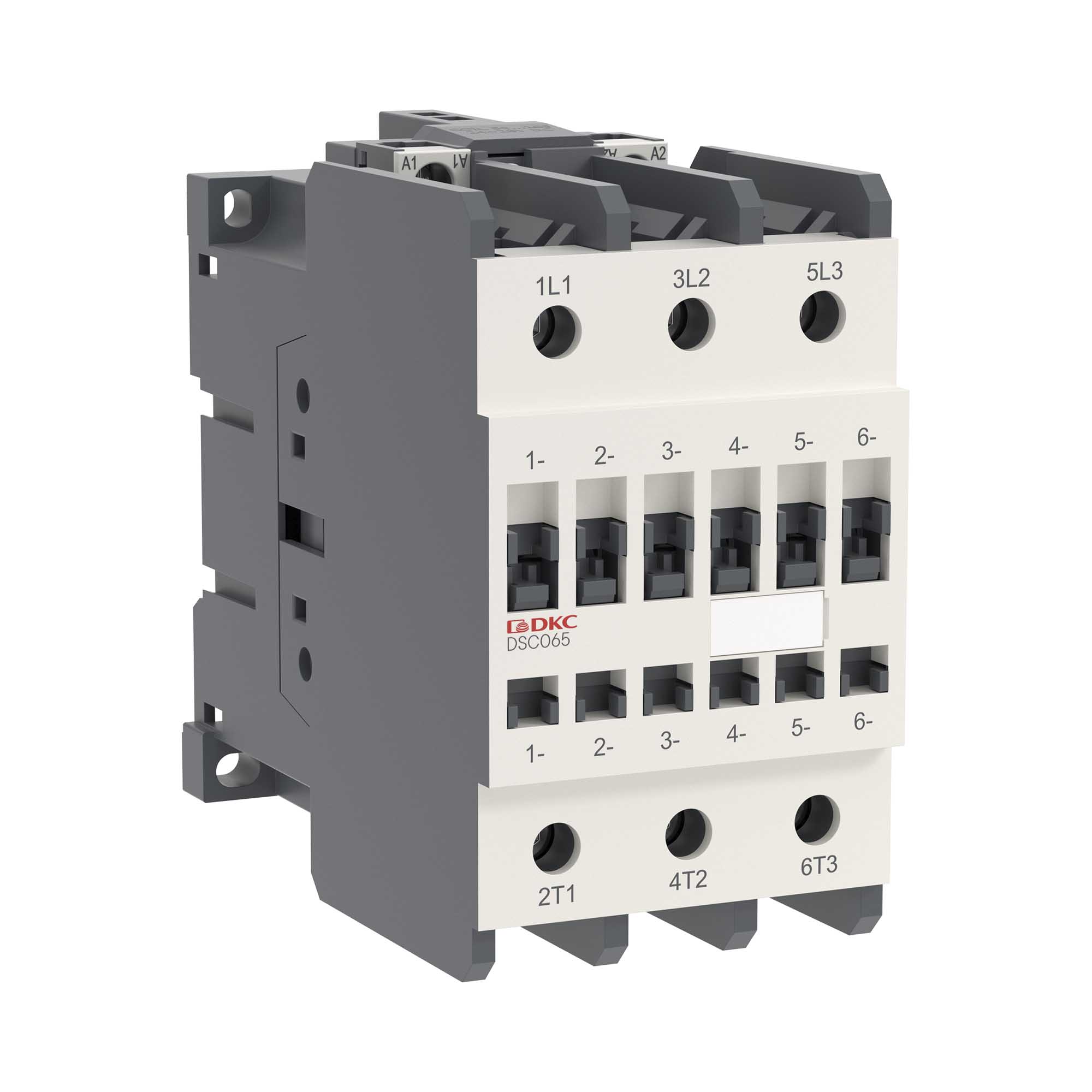

Standard Contactors YON DSC065 65A 30kW AC3 3P coil 110В DC
Code:
DSC065-3C00D110
Code:
DSC065-3C00D110
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 30 |
| Number of main contacts as normally open contact | 3 |
| Rated operation current Ie at AC-3, 400 V, A | 65 |
| Rated operation current Ie at AC-1, 400 V, A | 110 |
| Rated control supply voltage Us at DC, V | 110...110 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V, A | 54.2 |
| Rated operation power at AC-4, 400 V, kW | 22 |
| Type of product | Contactor |
