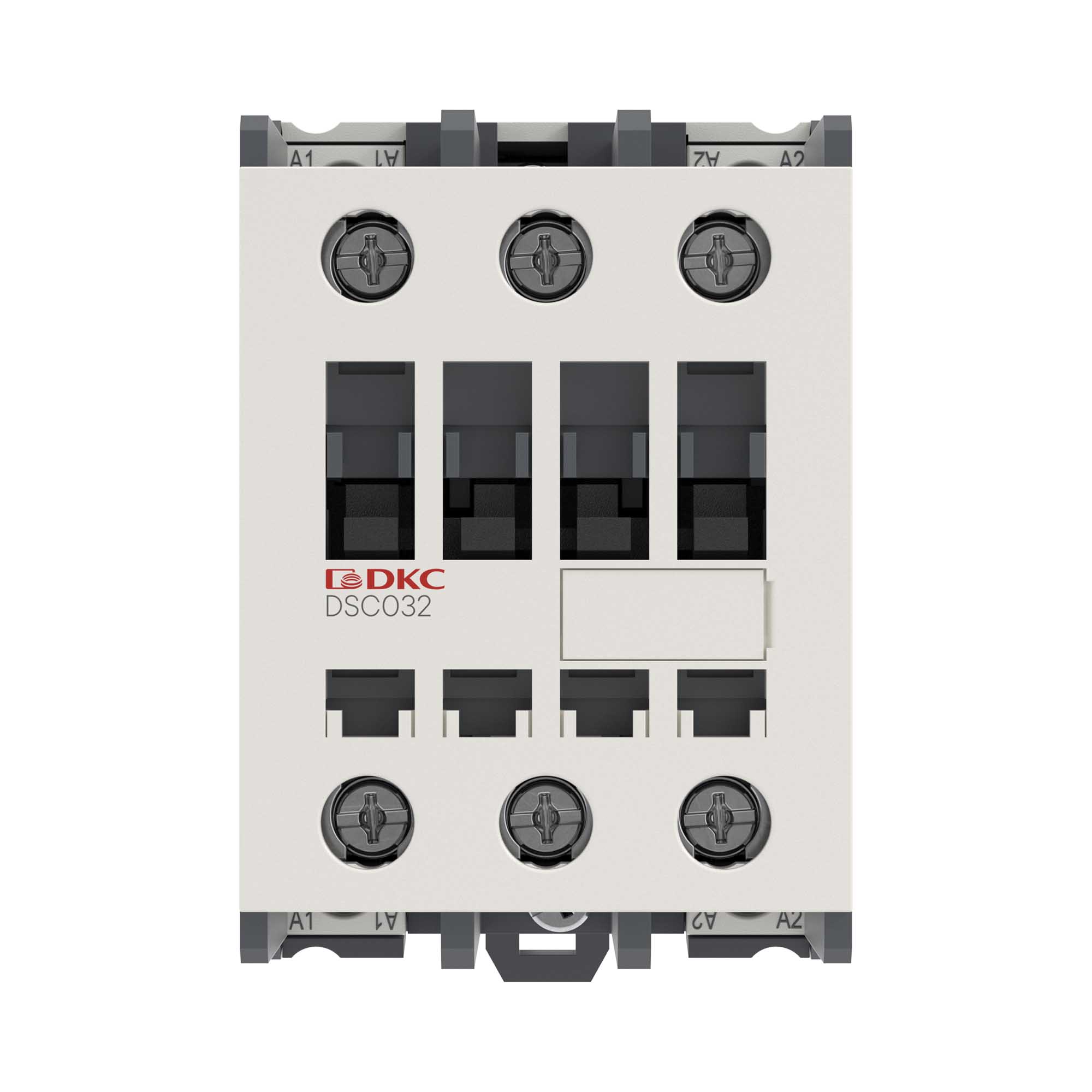

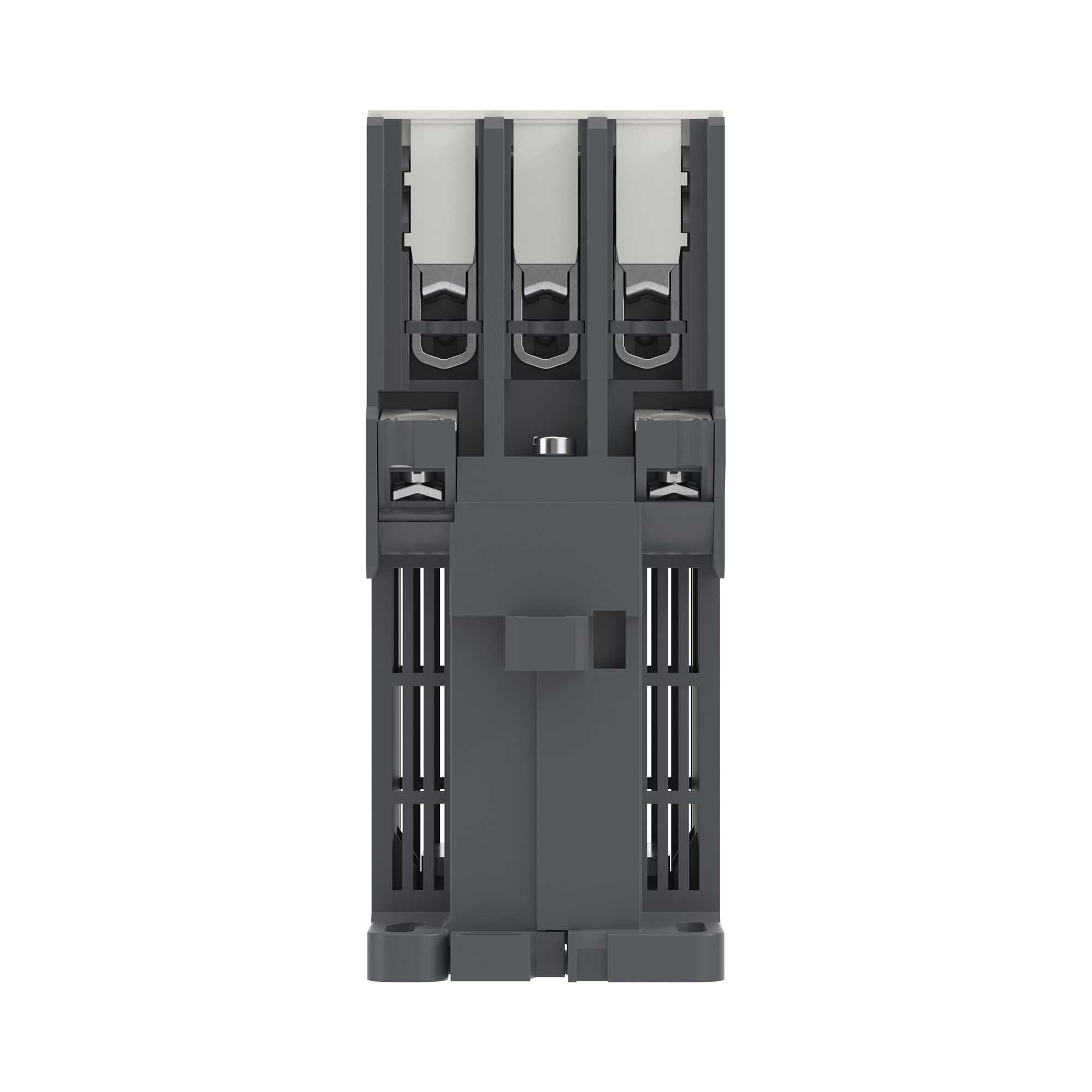

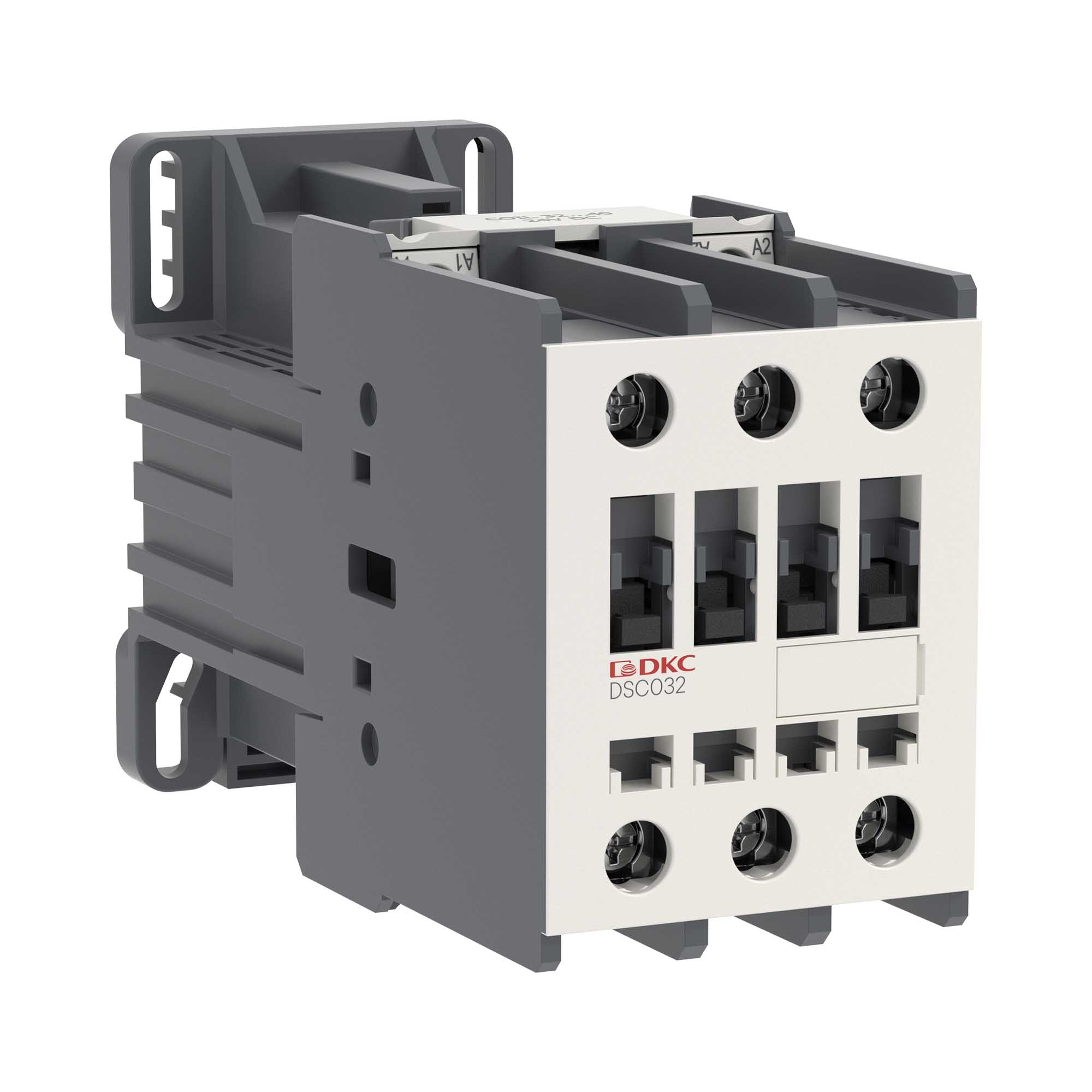

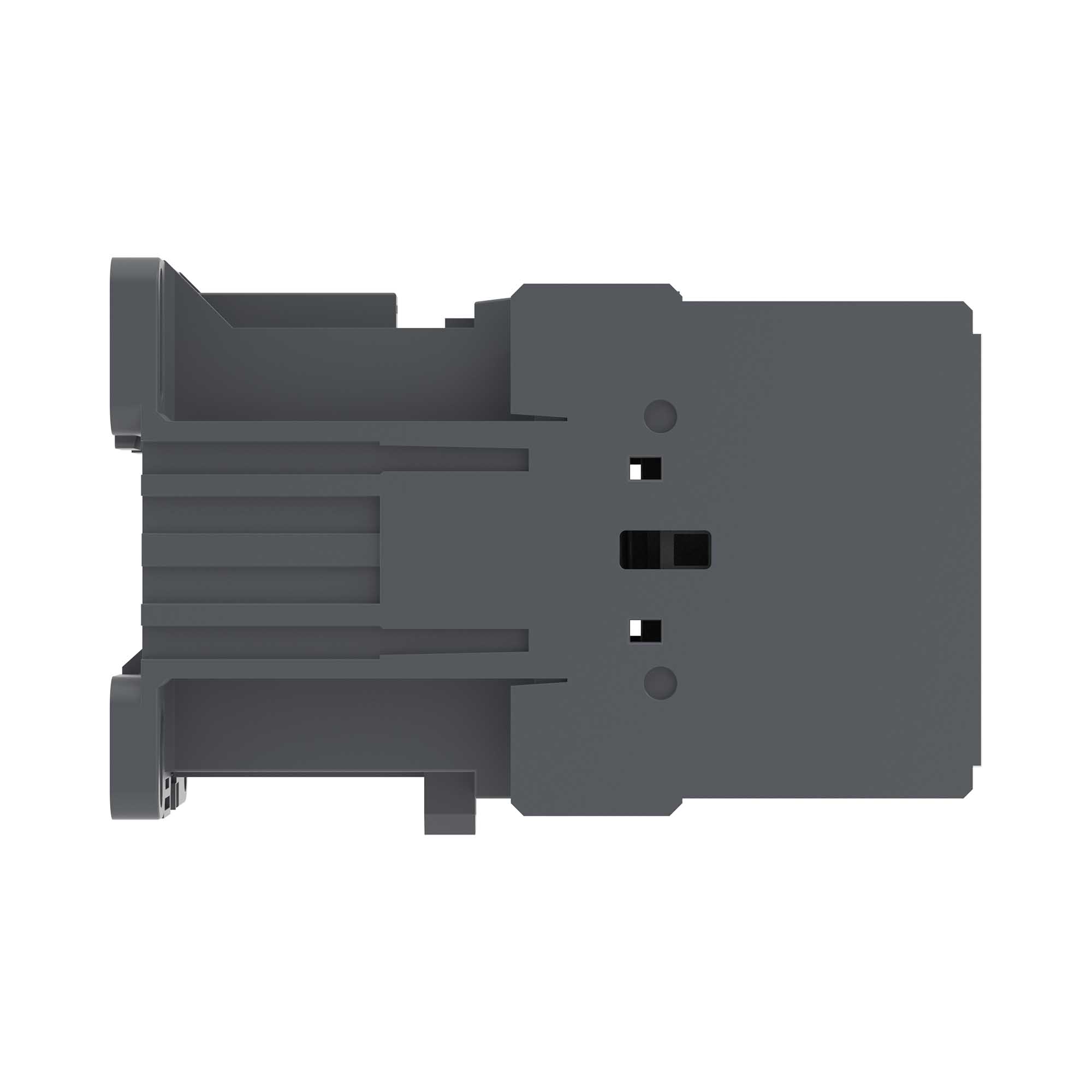

Standard Contactors YON DSC032 32A 15kW AC3 3P coil 48В DC
Code:
DSC032-3C00D048
Code:
DSC032-3C00D048
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 15 |
| Number of main contacts as normally open contact | 3 |
| Rated operation current Ie at AC-3, 400 V, A | 32 |
| Rated operation current Ie at AC-1, 400 V, A | 60 |
| Rated control supply voltage Us at DC, V | 48...48 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V, A | 26.7 |
| Rated operation power at AC-4, 400 V, kW | 11 |
| Type of product | Contactor |
| Mechanical life | 10 million oper |
| Electrical endurance, AC-3 | 1,3 million cycles |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.22.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8536419000 |
