Code: DSC009-3C10D110
Code: DSC009-3C10D110
  • To ask a question
Modular version No
Rated operation power at AC-3, 400 V, kW 4
Number of main contacts as normally open contact 3
Number of auxiliary contacts as normally open contact 1
Rated operation current Ie at AC-3, 400 V, A 9
Rated operation current Ie at AC-1, 400 V, A 25
Rated control supply voltage Us at DC, V 110...110
Type of electrical connection of main circuit Cable clamp
Voltage type for actuating DC
Rated operation current Ie at AC-4, 400 V, A 7.5
Rated operation power at AC-4, 400 V, kW 3

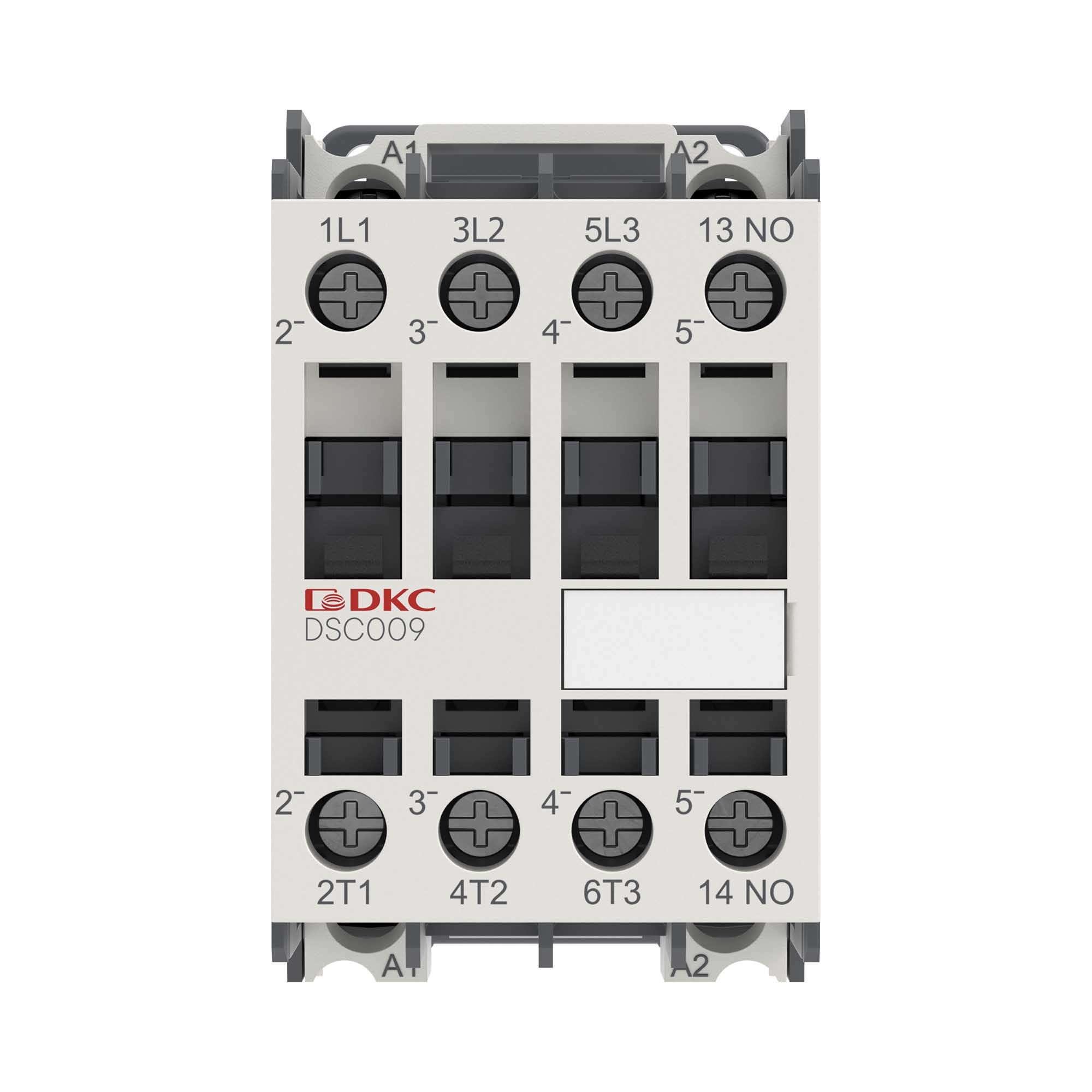

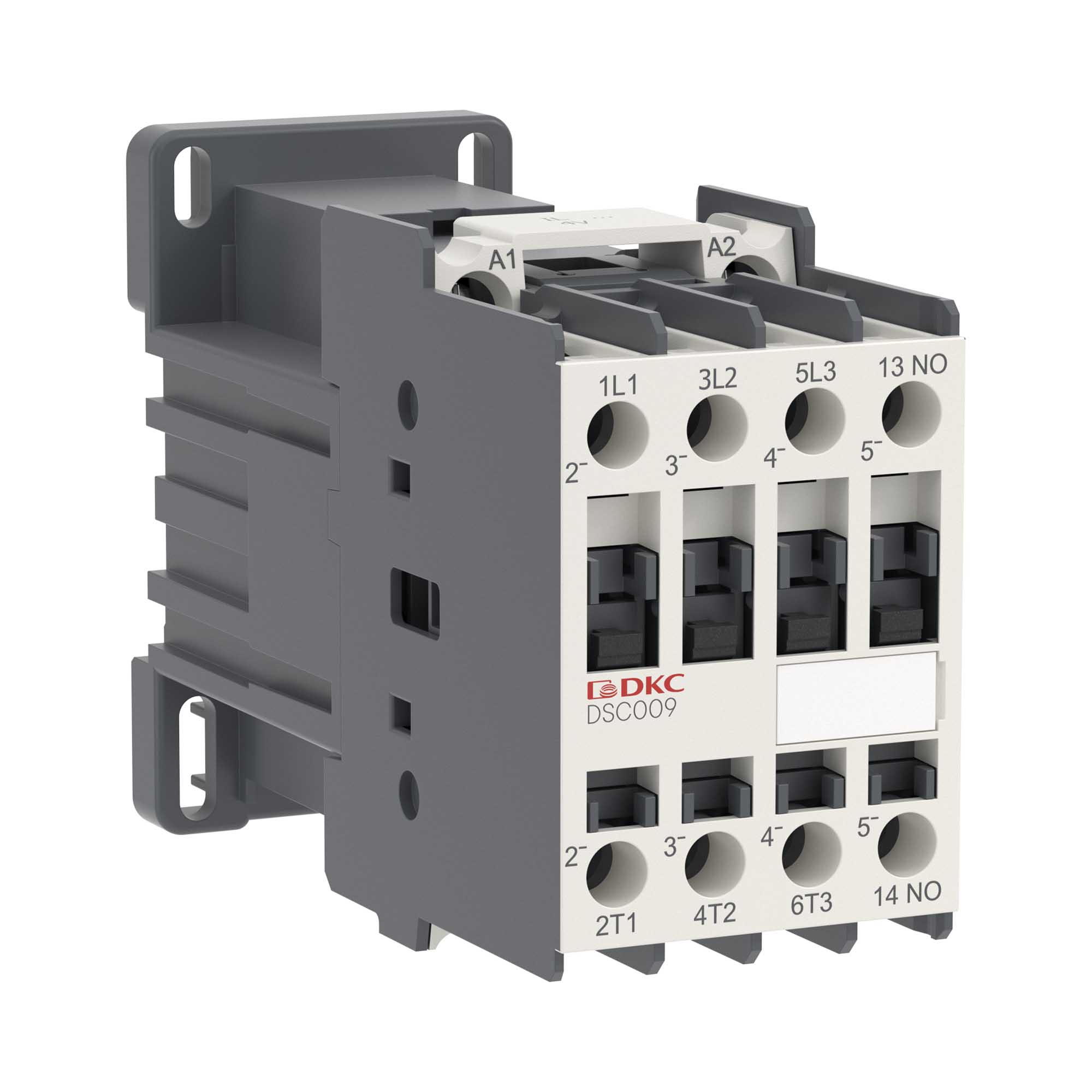

Type of product Contactor
