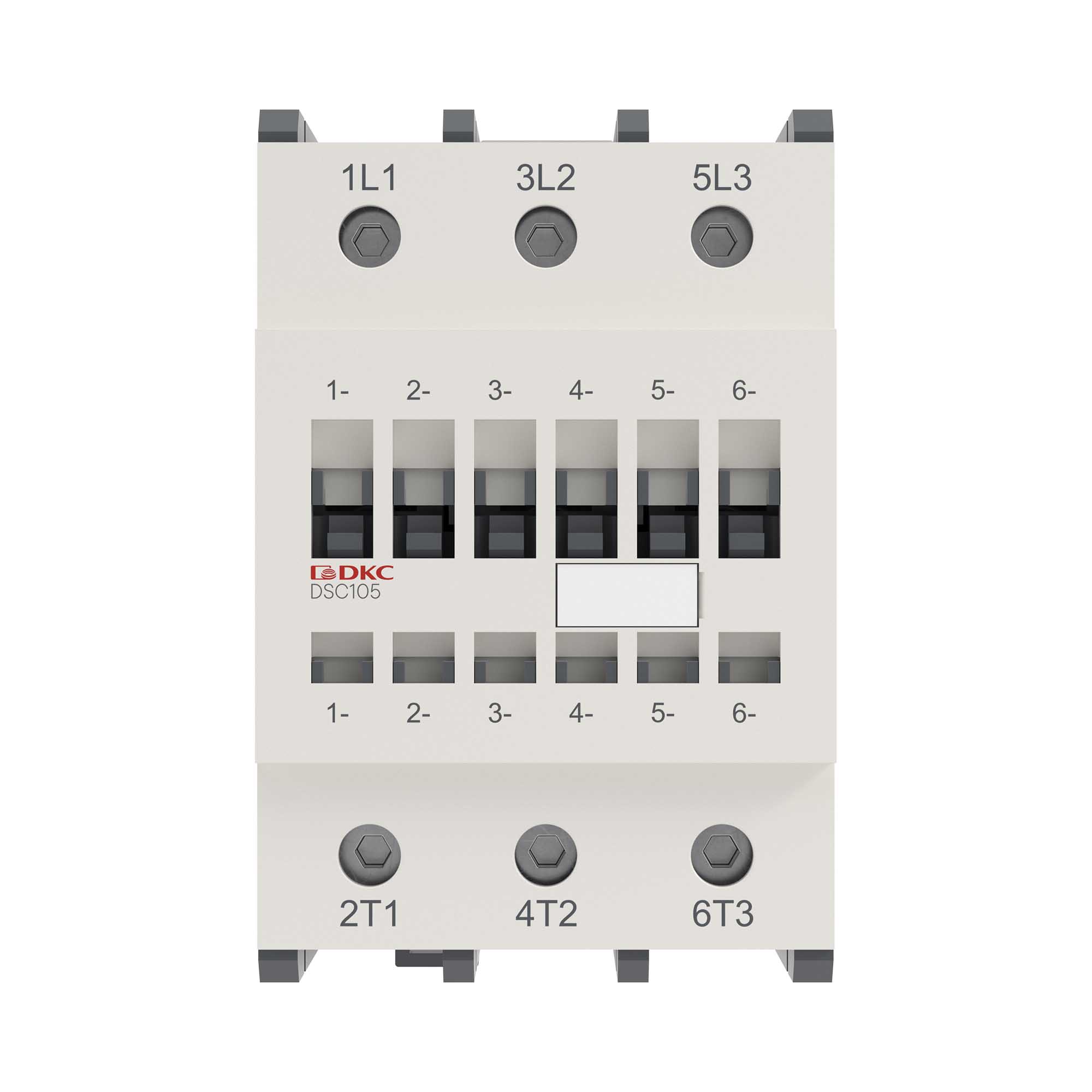

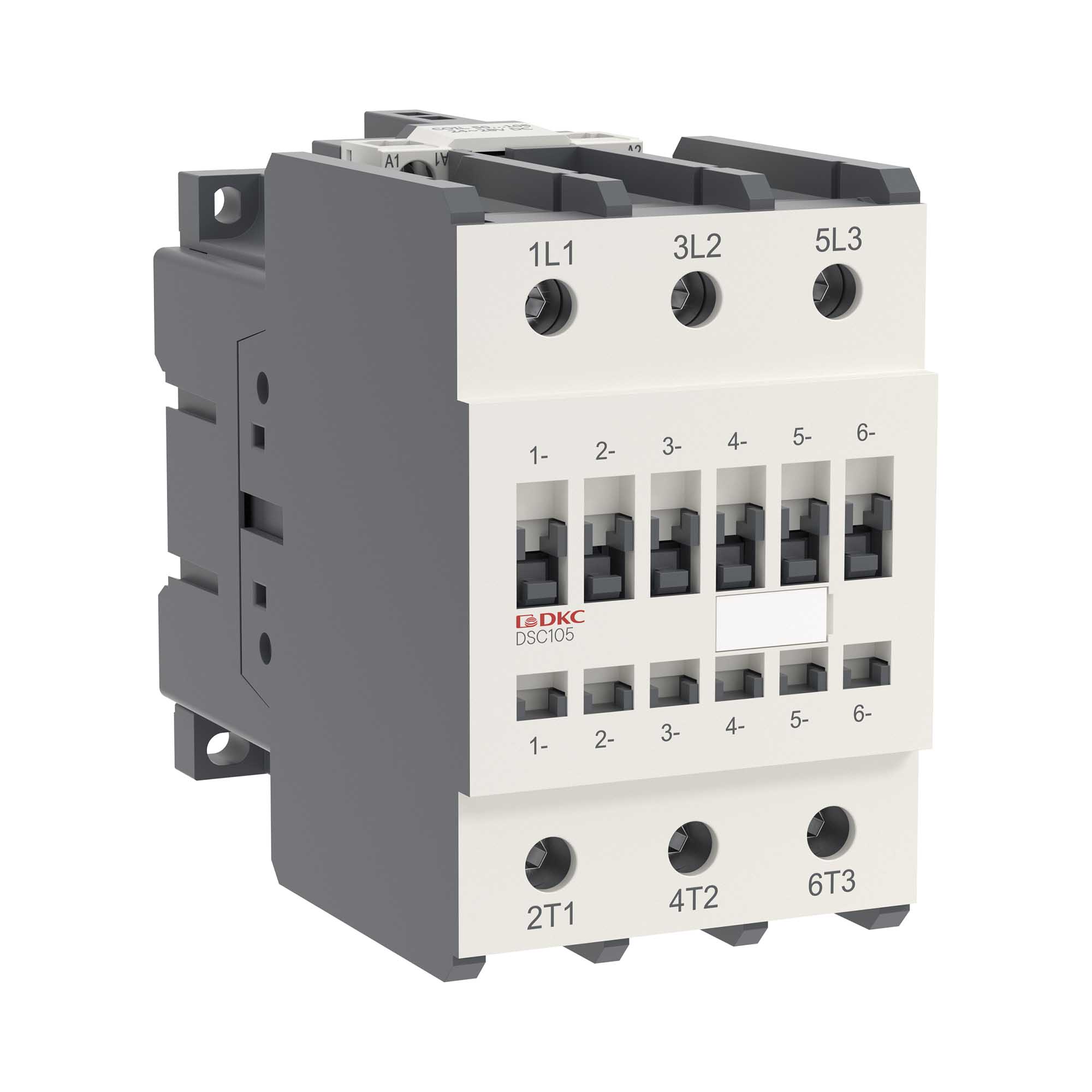

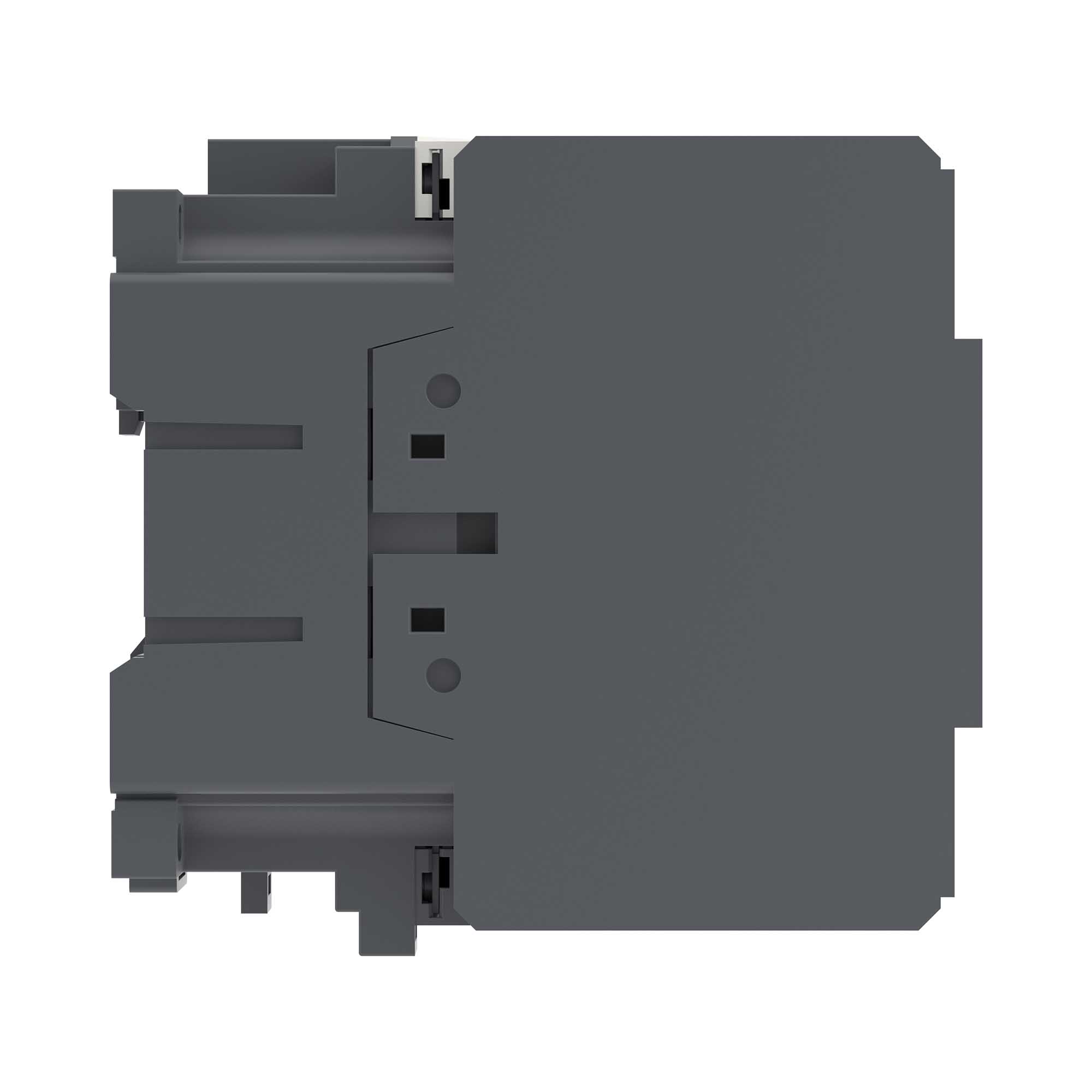

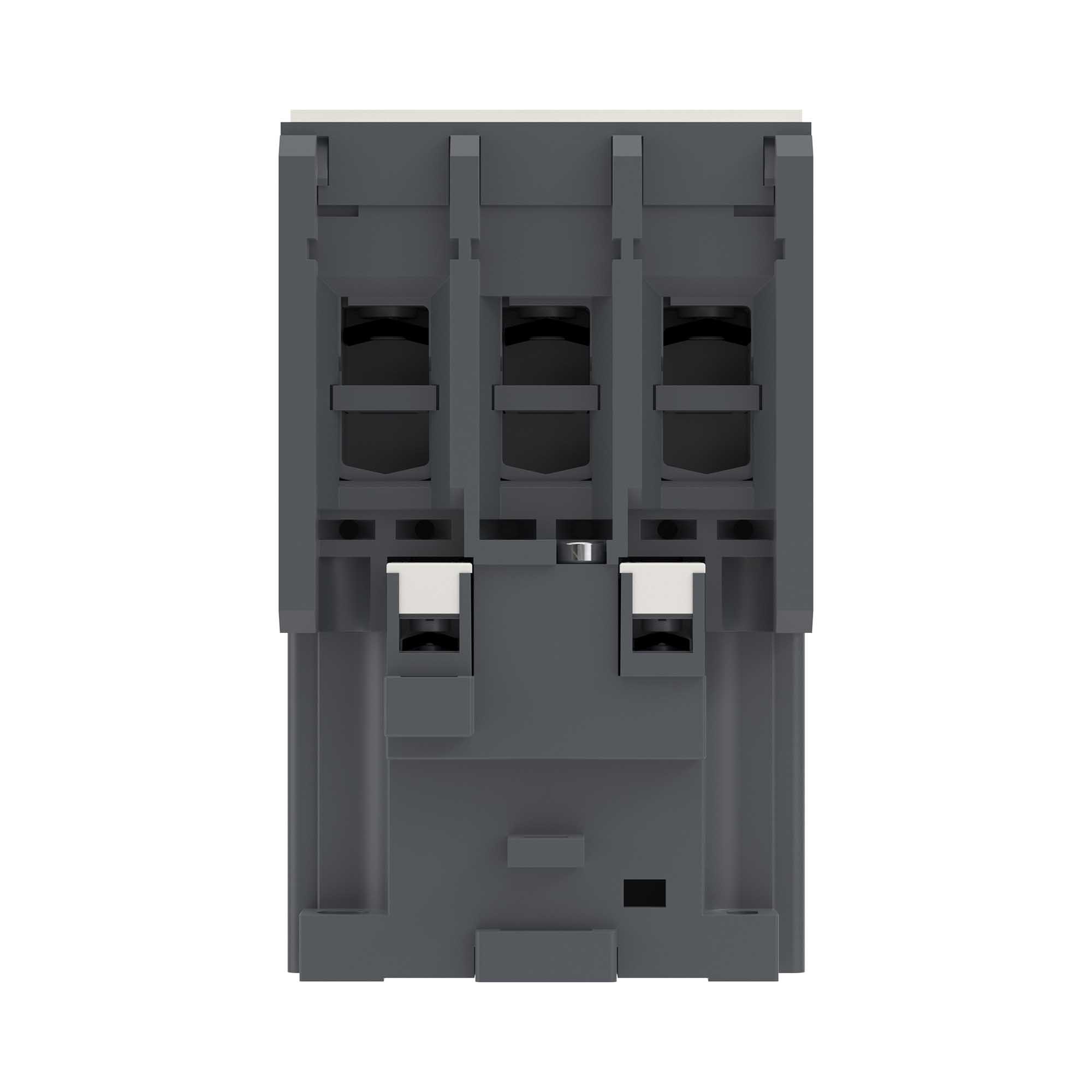

Standard Contactors YON DSC105 105A 55kW AC3 3P coil 380В AC

Code: DSC105-3C00A380
Standard Contactors YON DSC105 105A 55kW AC3 3P coil 380В AC
Standard Contactors YON DSC105 105A 55kW AC3 3P coil 380В AC
Code: DSC105-3C00A380
  • To ask a question
  • Characteristics
  • Accessories
  • Promo
  • Viewed items
  • News
Modular version No
Rated operation power at AC-3, 400 V, kW 55
Number of main contacts as normally open contact 3
Rated operation current Ie at AC-3, 400 V, A 105
Rated operation current Ie at AC-1, 400 V, A 140
Rated control supply voltage Us at AC 50HZ, V 380...380
Type of electrical connection of main circuit Cable clamp
Voltage type for actuating AC
Rated operation current Ie at AC-4, 400 V, A 87.5
Rated operation power at AC-4, 400 V, kW 45
Type of product Contactor
