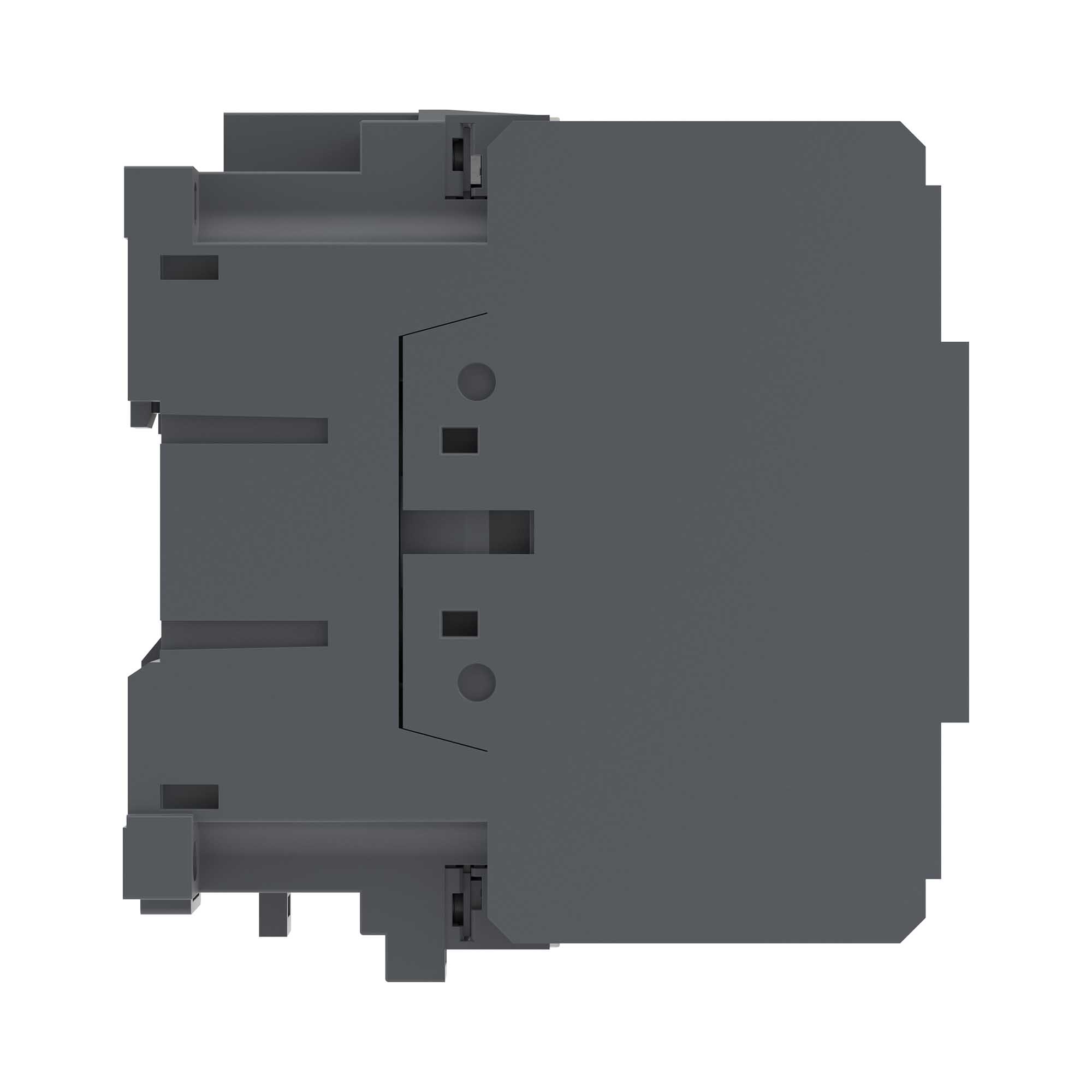

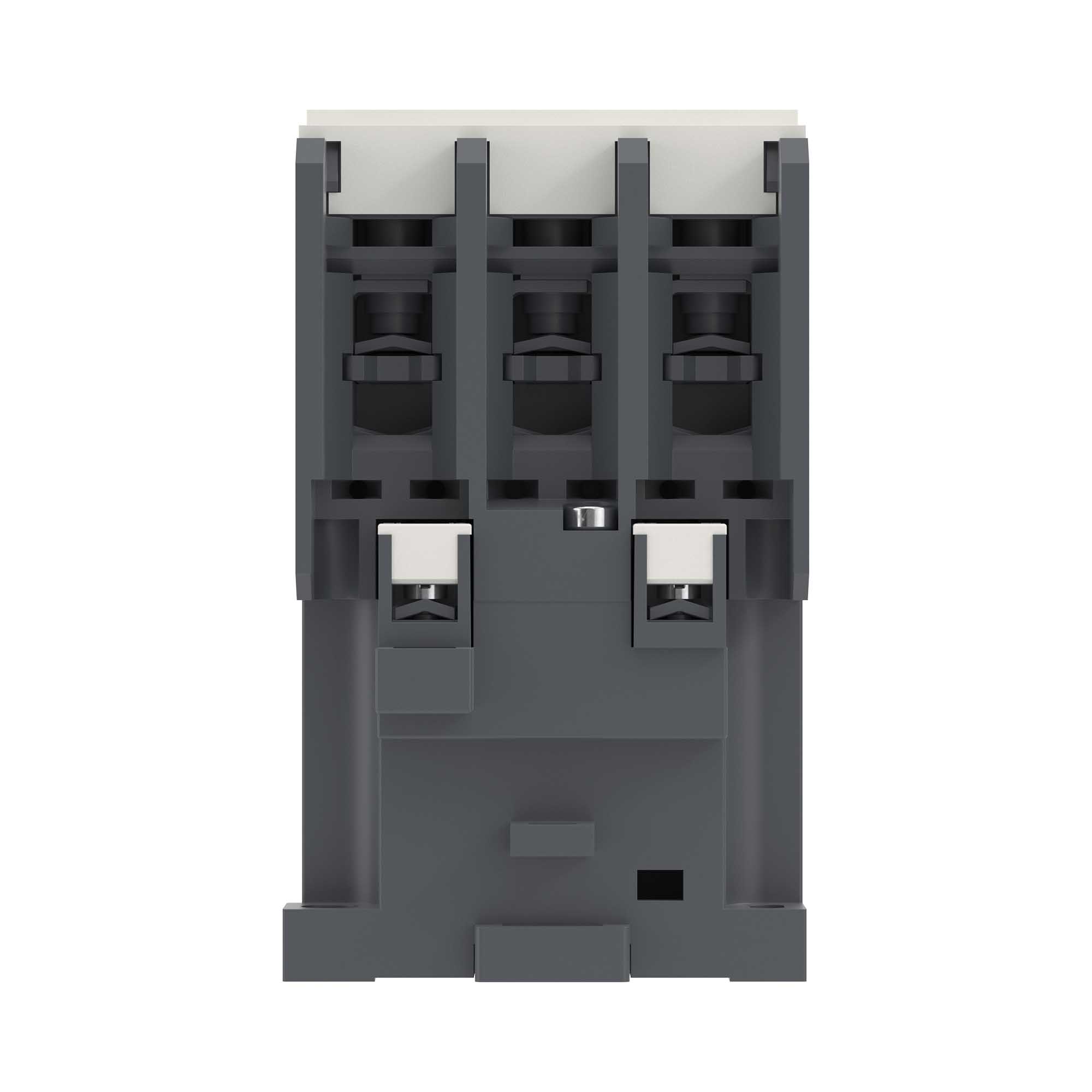

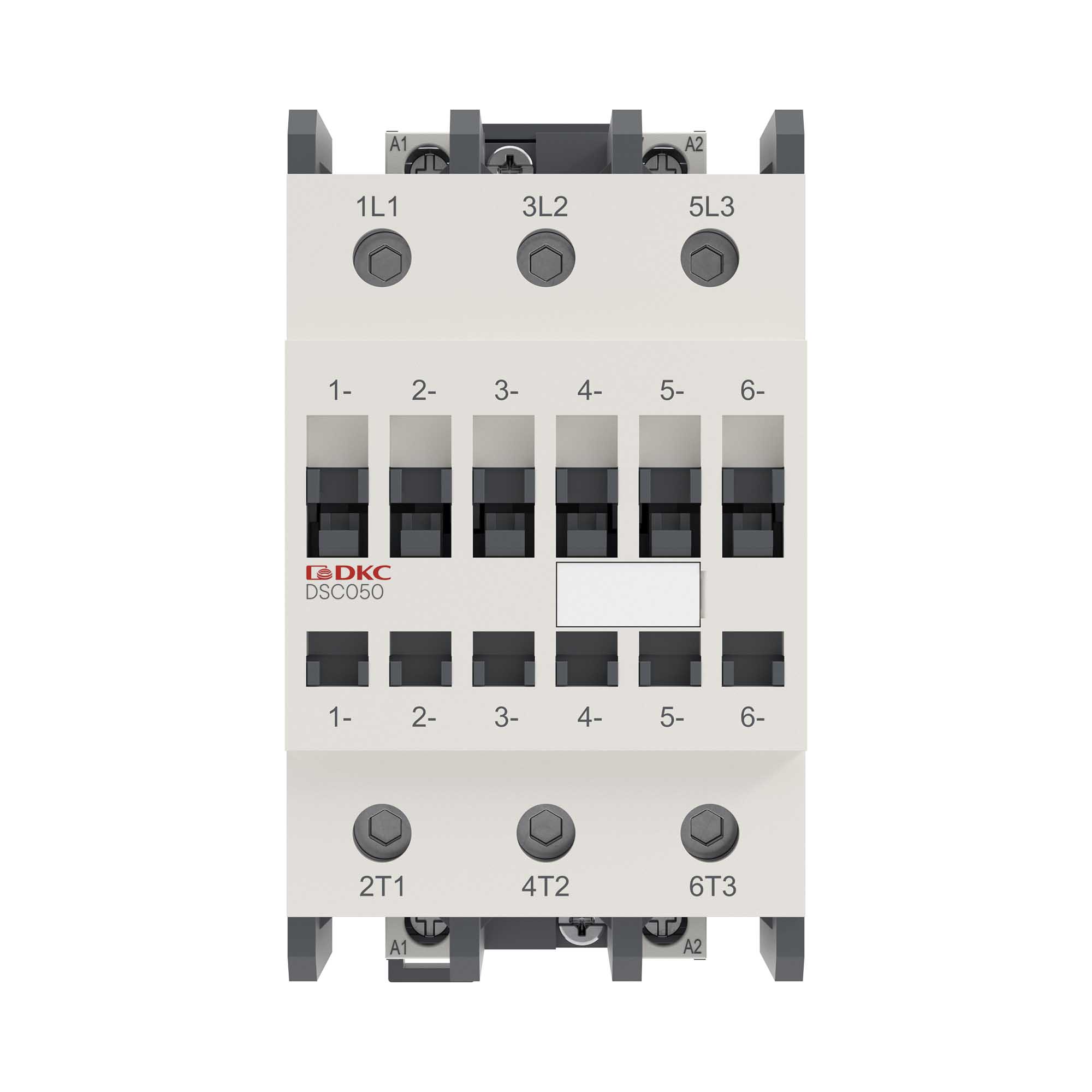

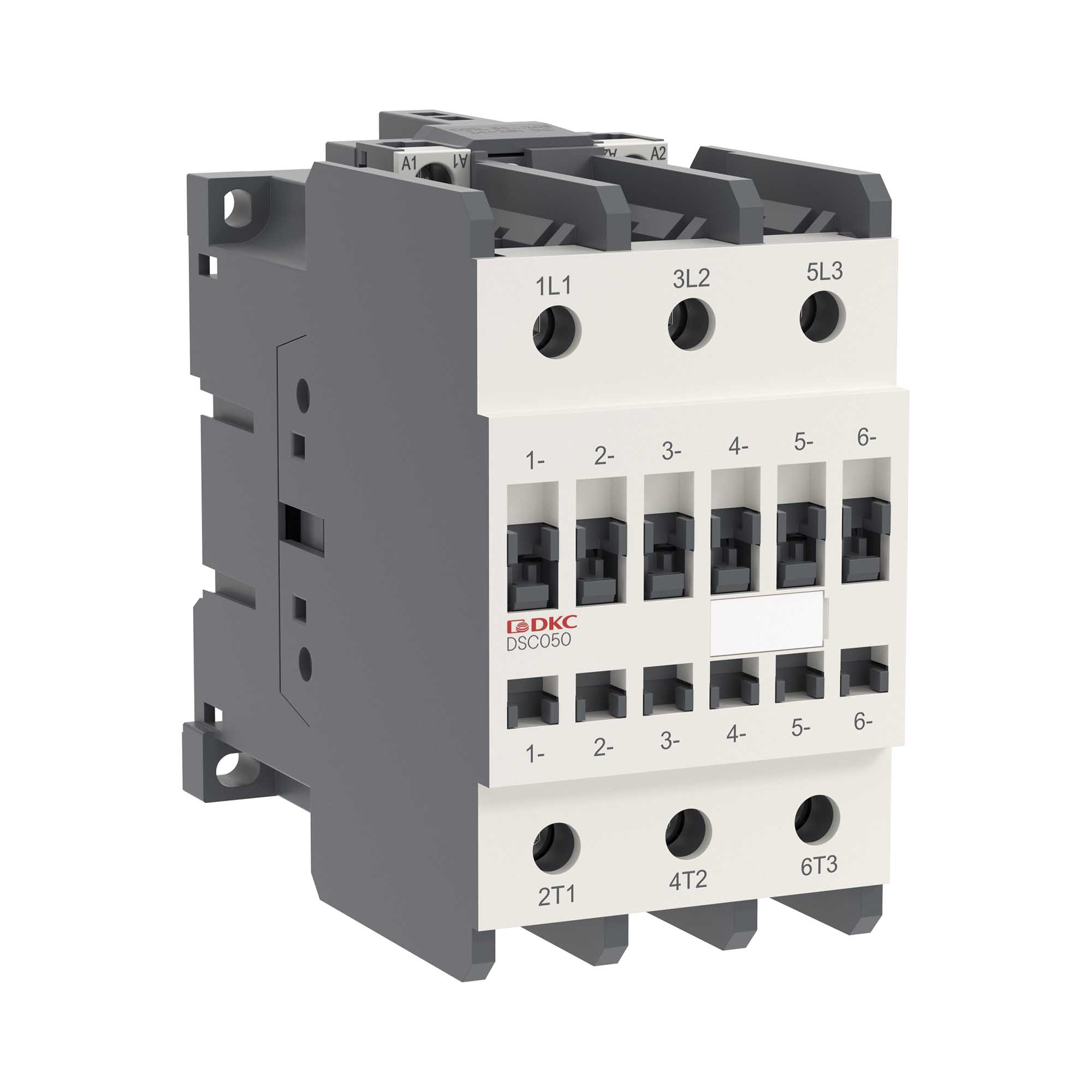

Standard Contactors YON DSC050 50A 22kW AC3 3P coil 24В DC
Code: DSC050-3C00D024
Standard Contactors YON DSC050 50A 22kW AC3 3P coil 24В DC
Code: DSC050-3C00D024
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 22 |
| Number of main contacts as normally open contact | 3 |
| Rated operation current Ie at AC-3, 400 V, A | 50 |
| Rated operation current Ie at AC-1, 400 V, A | 90 |
| Rated control supply voltage Us at DC, V | 24...24 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V, A | 41.7 |
| Rated operation power at AC-4, 400 V, kW | 22 |
