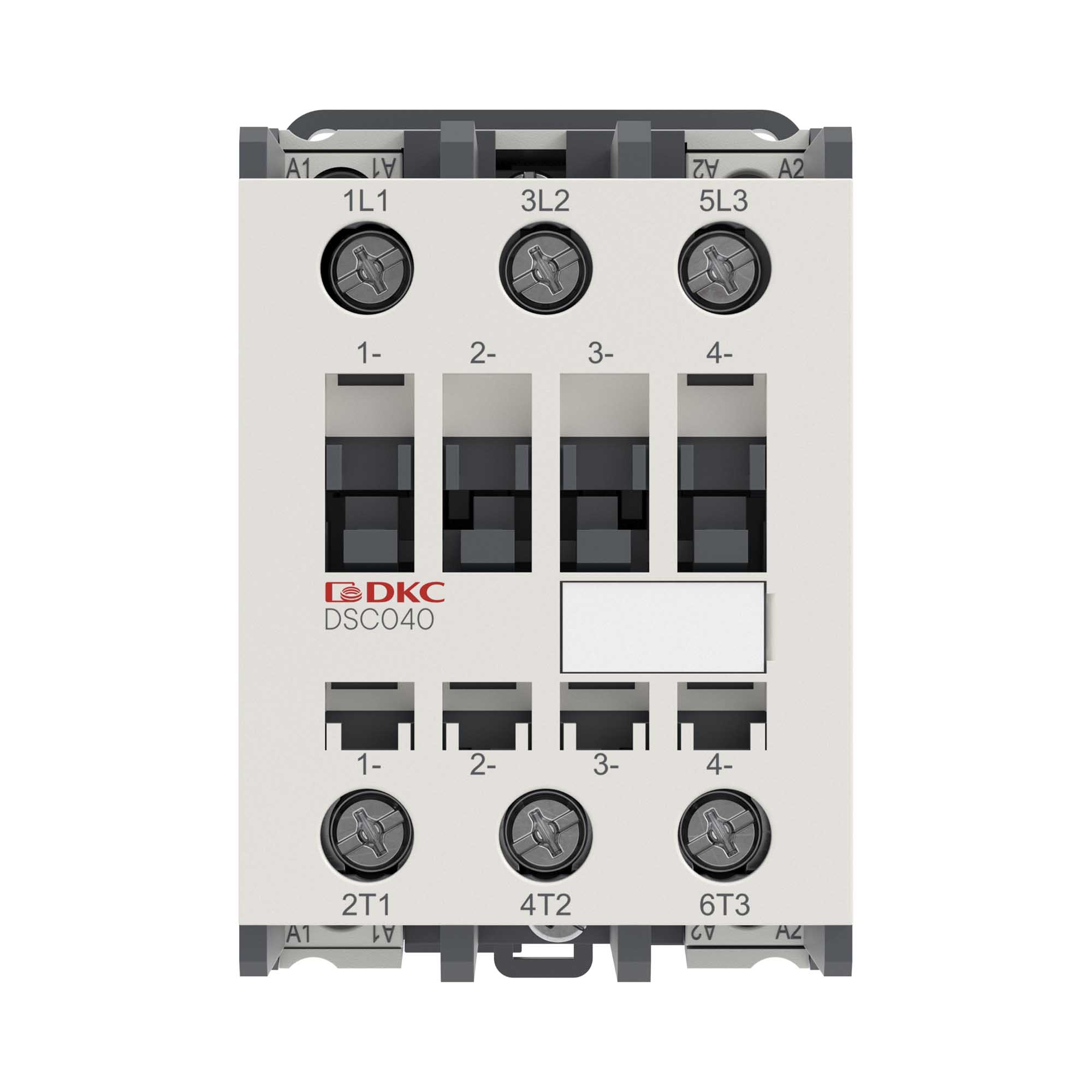

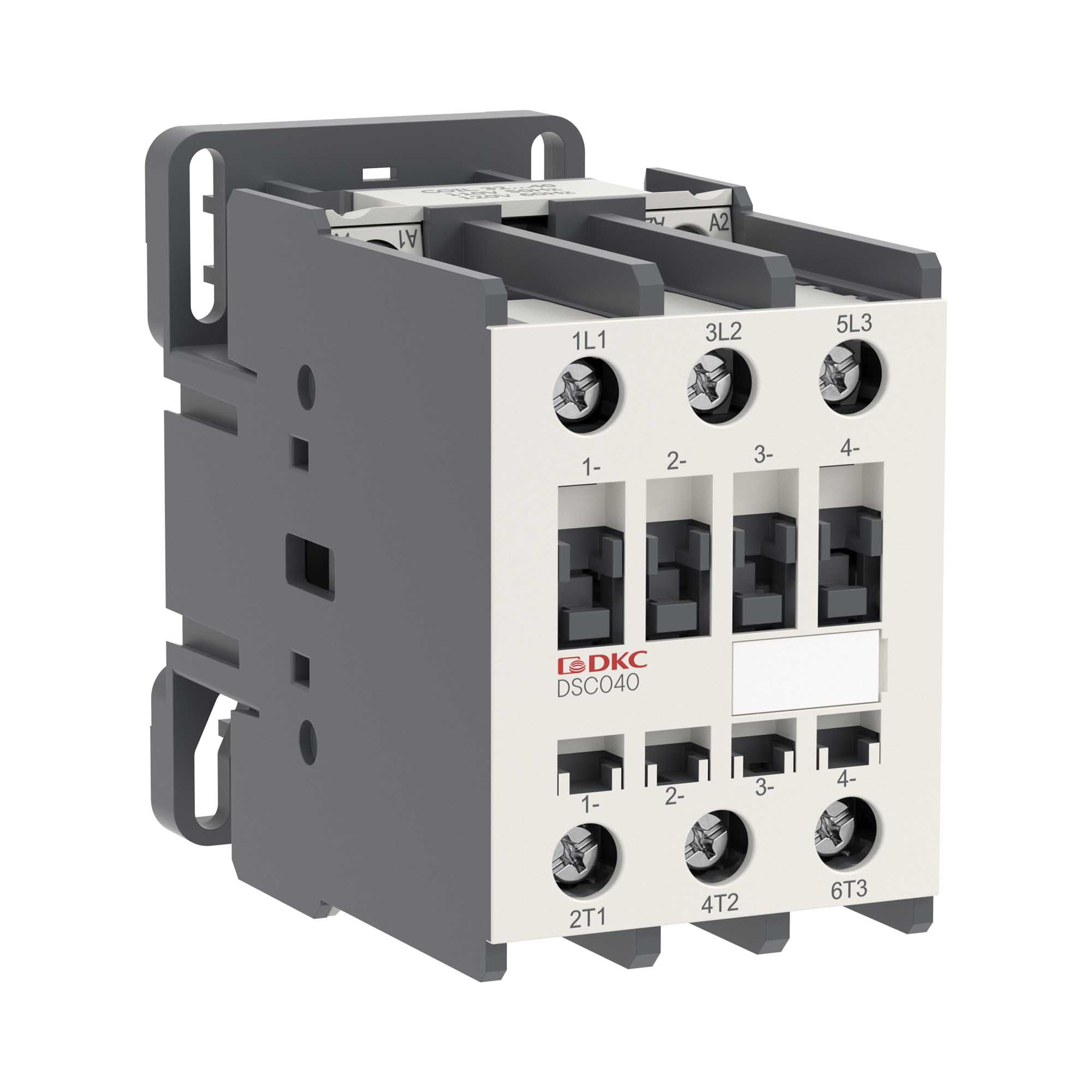

Standard Contactors YON DSC040 40A 18,5kW AC3 3P coil 24В AC

Code: DSC040-3C00A024
Standard Contactors YON DSC040 40A 18,5kW AC3 3P coil 24В AC
Standard Contactors YON DSC040 40A 18,5kW AC3 3P coil 24В AC
Code: DSC040-3C00A024
  • To ask a question
  • Characteristics
  • Accessories
  • Promo
  • Viewed items
  • News
Modular version No
Rated operation power at AC-3, 400 V, kW 18.5
Number of main contacts as normally open contact 3
Rated operation current Ie at AC-3, 400 V, A 40
Rated operation current Ie at AC-1, 400 V, A 60
Rated control supply voltage Us at AC 50HZ, V 24...24
Type of electrical connection of main circuit Cable clamp
Voltage type for actuating AC
Rated operation current Ie at AC-4, 400 V, A 33.3
Rated operation power at AC-4, 400 V, kW 15
Type of product Contactor
