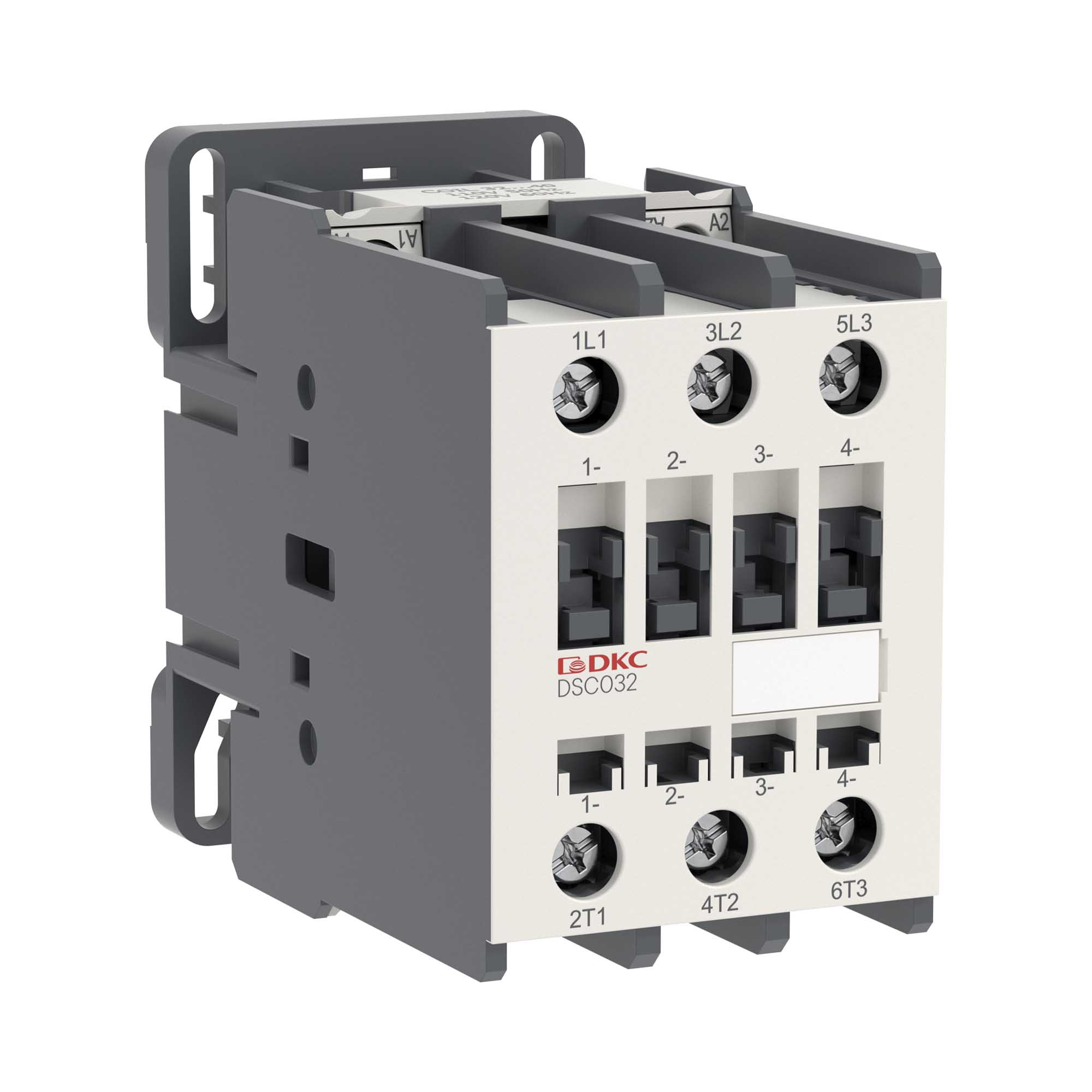

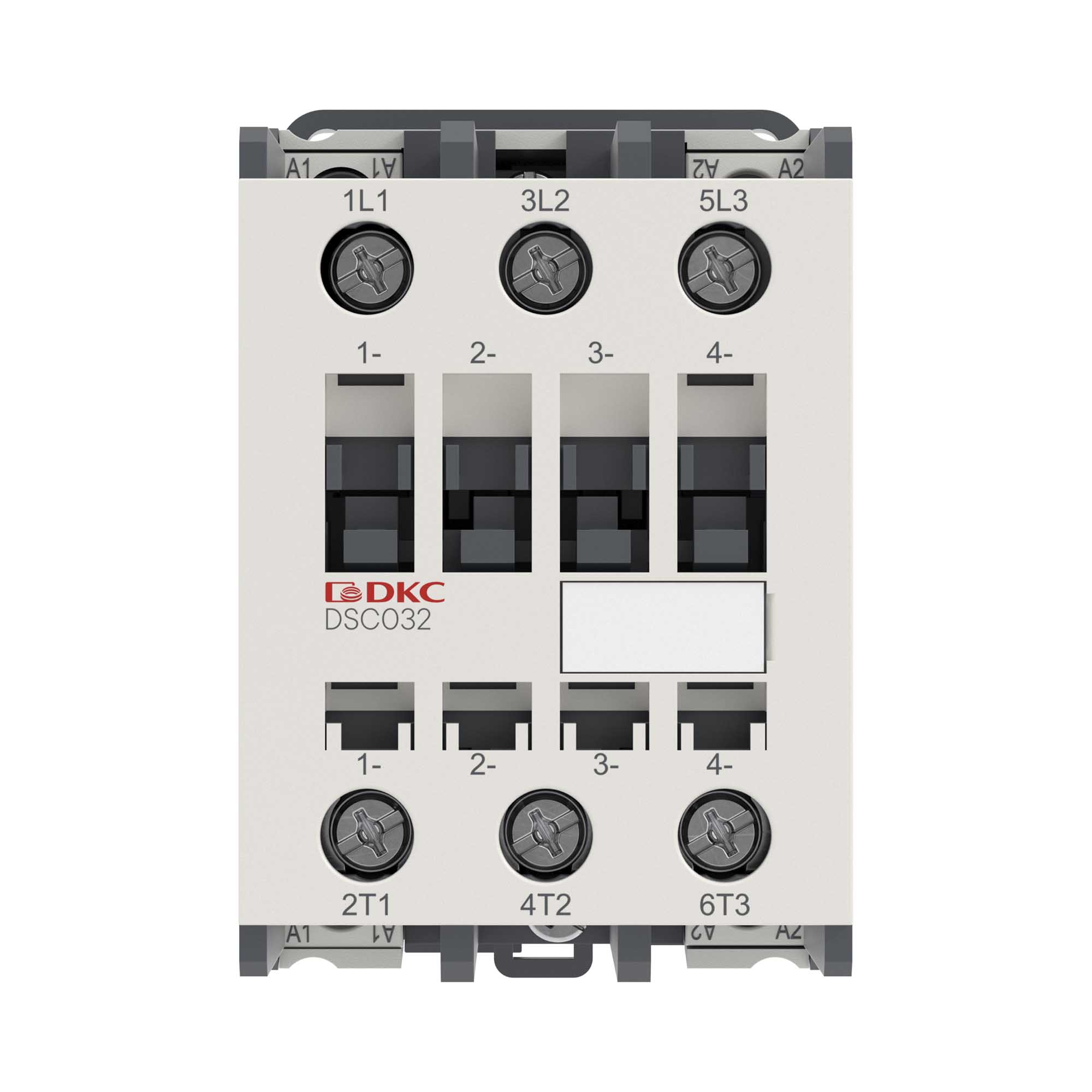

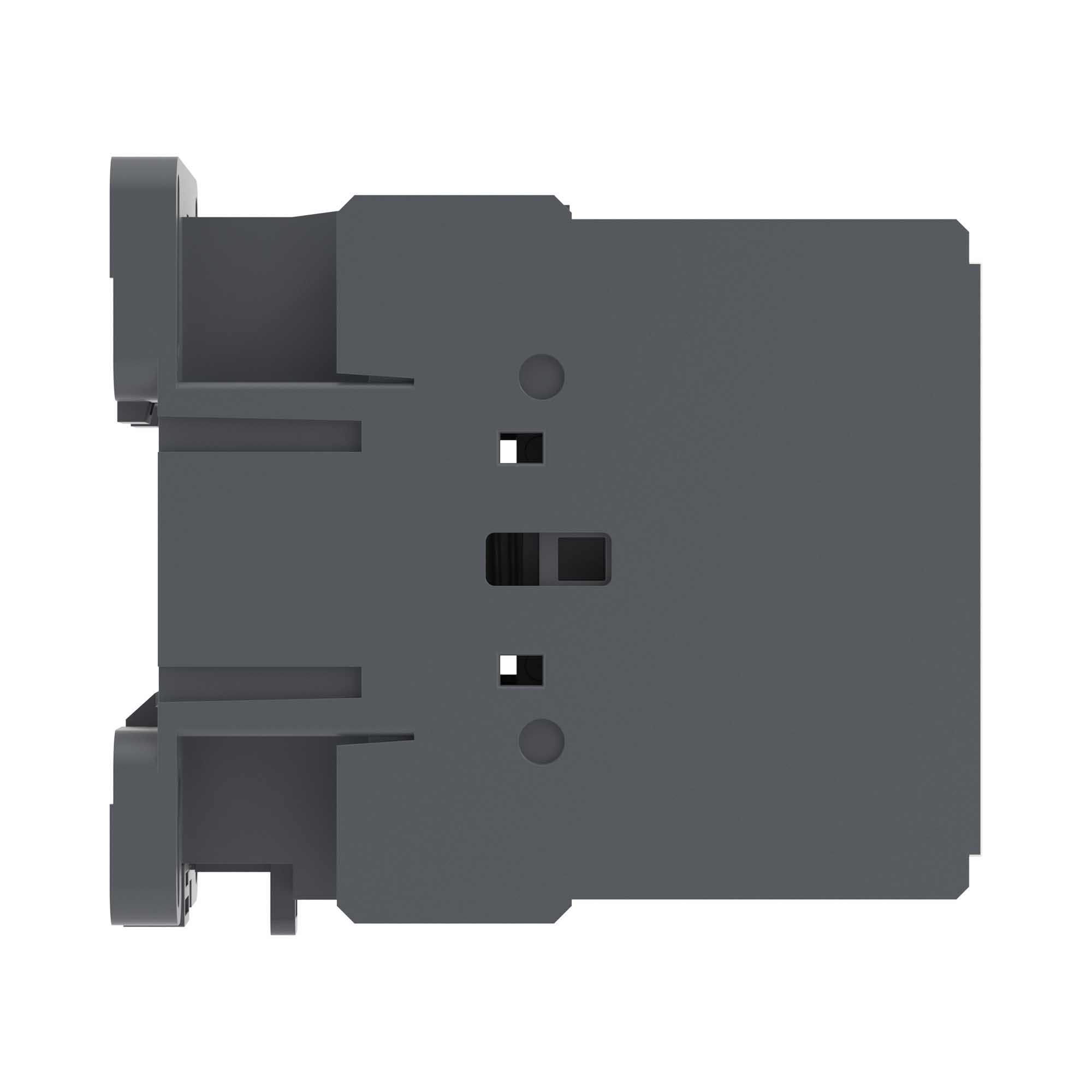

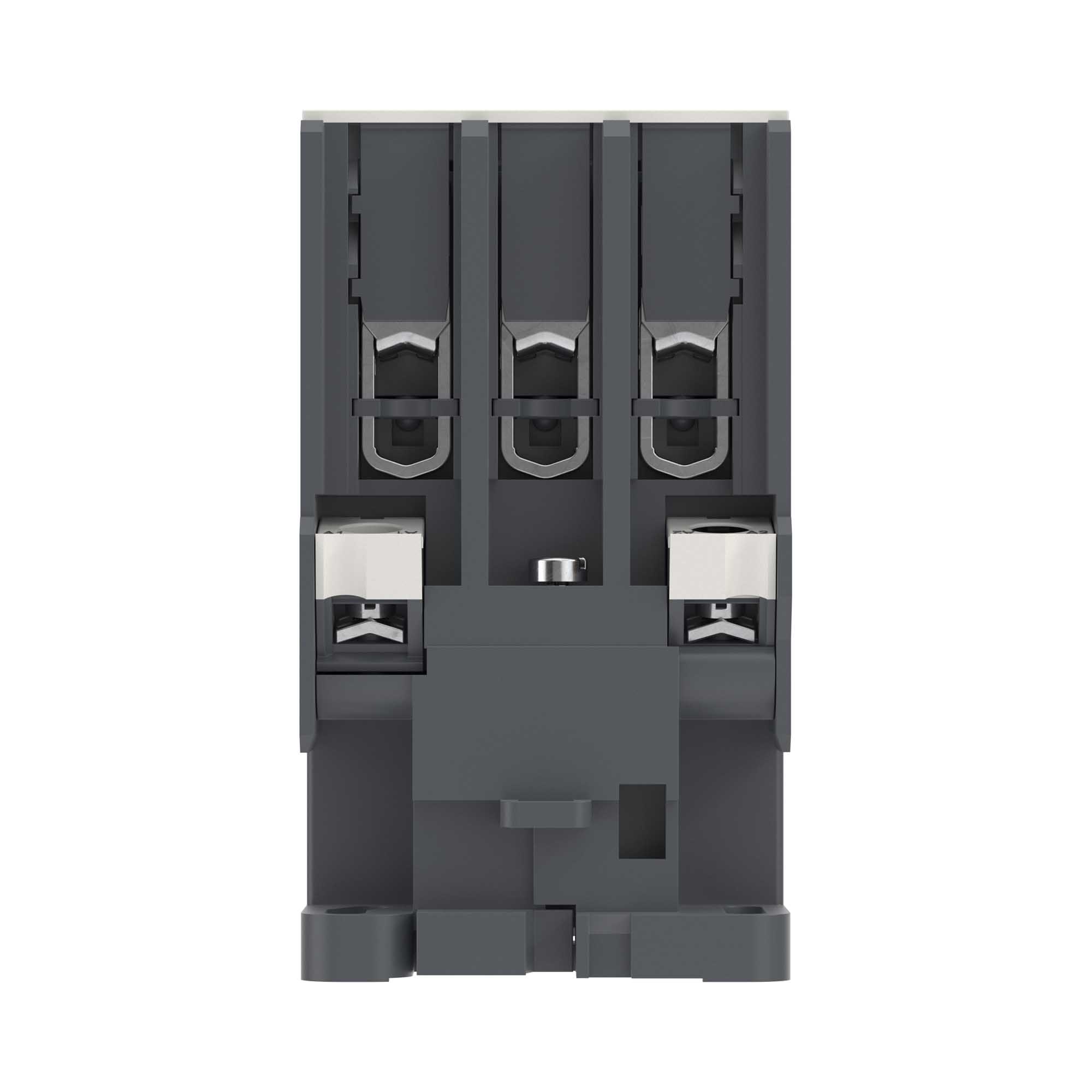

Standard Contactors YON DSC032 32A 15kW AC3 3P coil 110В AC

Code: DSC032-3C00A110
Standard Contactors YON DSC032 32A 15kW AC3 3P coil 110В AC
Standard Contactors YON DSC032 32A 15kW AC3 3P coil 110В AC
Code: DSC032-3C00A110
  • To ask a question
  • Characteristics
  • Accessories
  • Promo
  • Viewed items
  • News
Modular version No
Rated operation power at AC-3, 400 V, kW 15
Number of main contacts as normally open contact 3
Rated operation current Ie at AC-3, 400 V, A 32
Rated operation current Ie at AC-1, 400 V, A 60
Rated control supply voltage Us at AC 50HZ, V 110...110
Type of electrical connection of main circuit Cable clamp
Voltage type for actuating AC
Rated operation current Ie at AC-4, 400 V, A 26.7
Rated operation power at AC-4, 400 V, kW 11
Type of product Contactor
