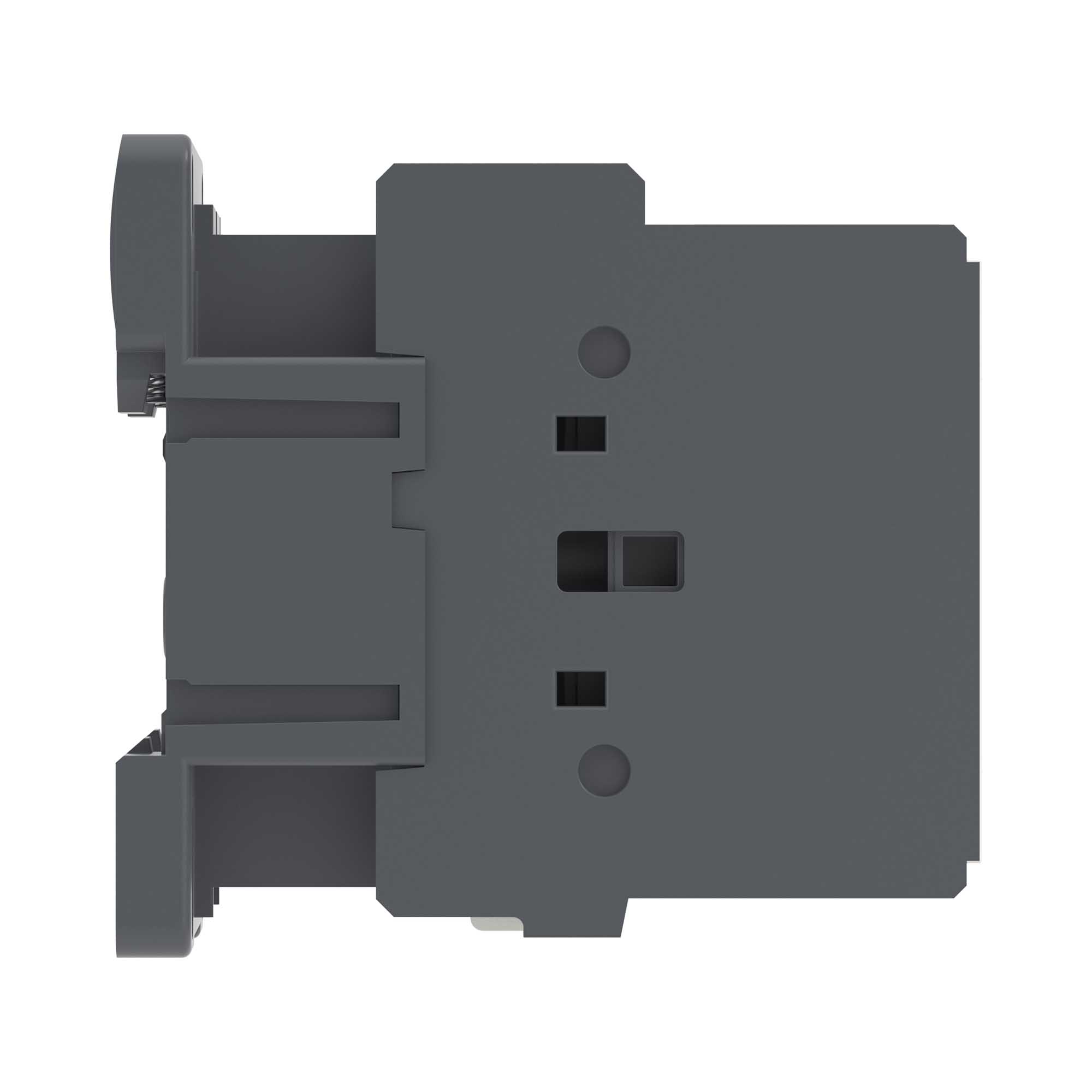

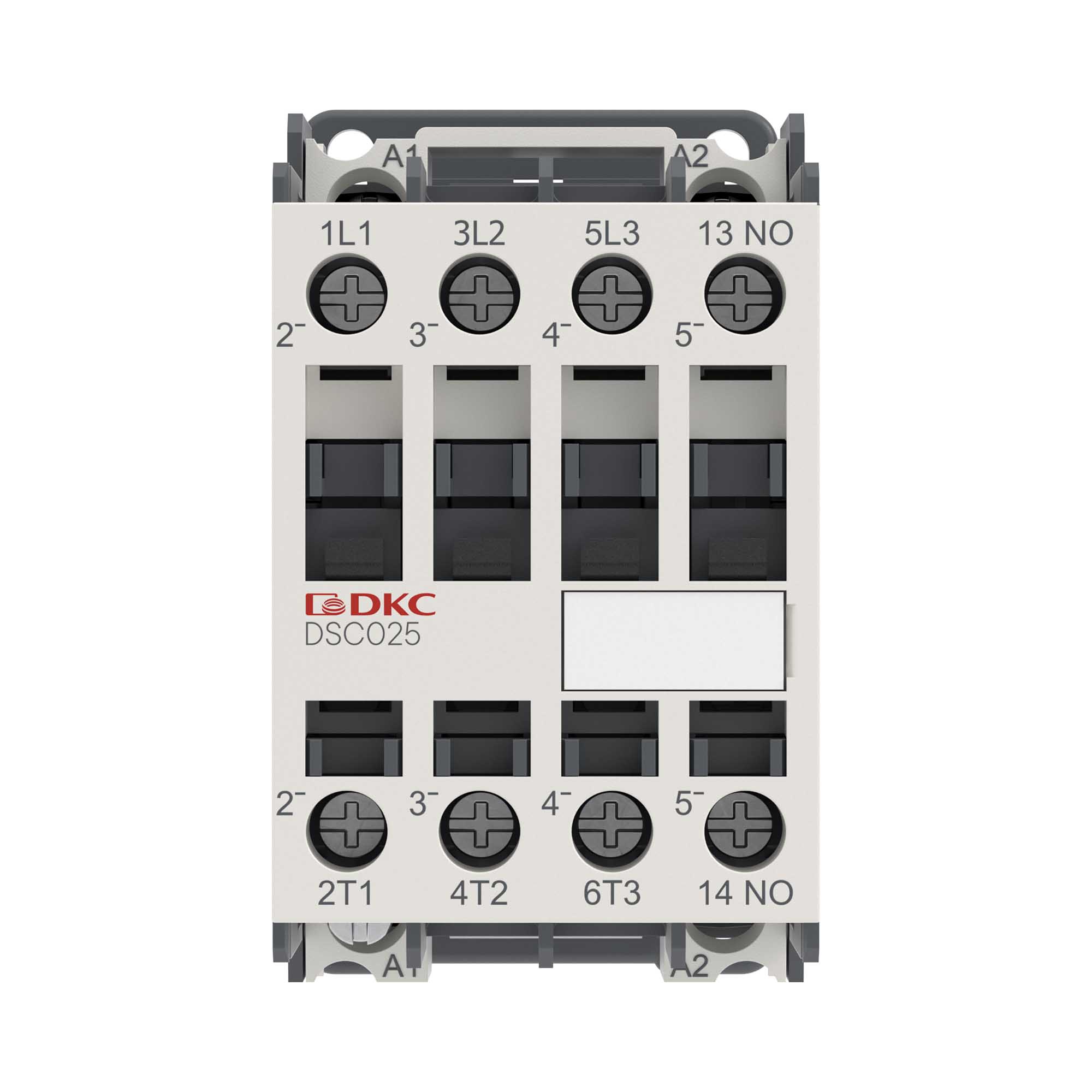

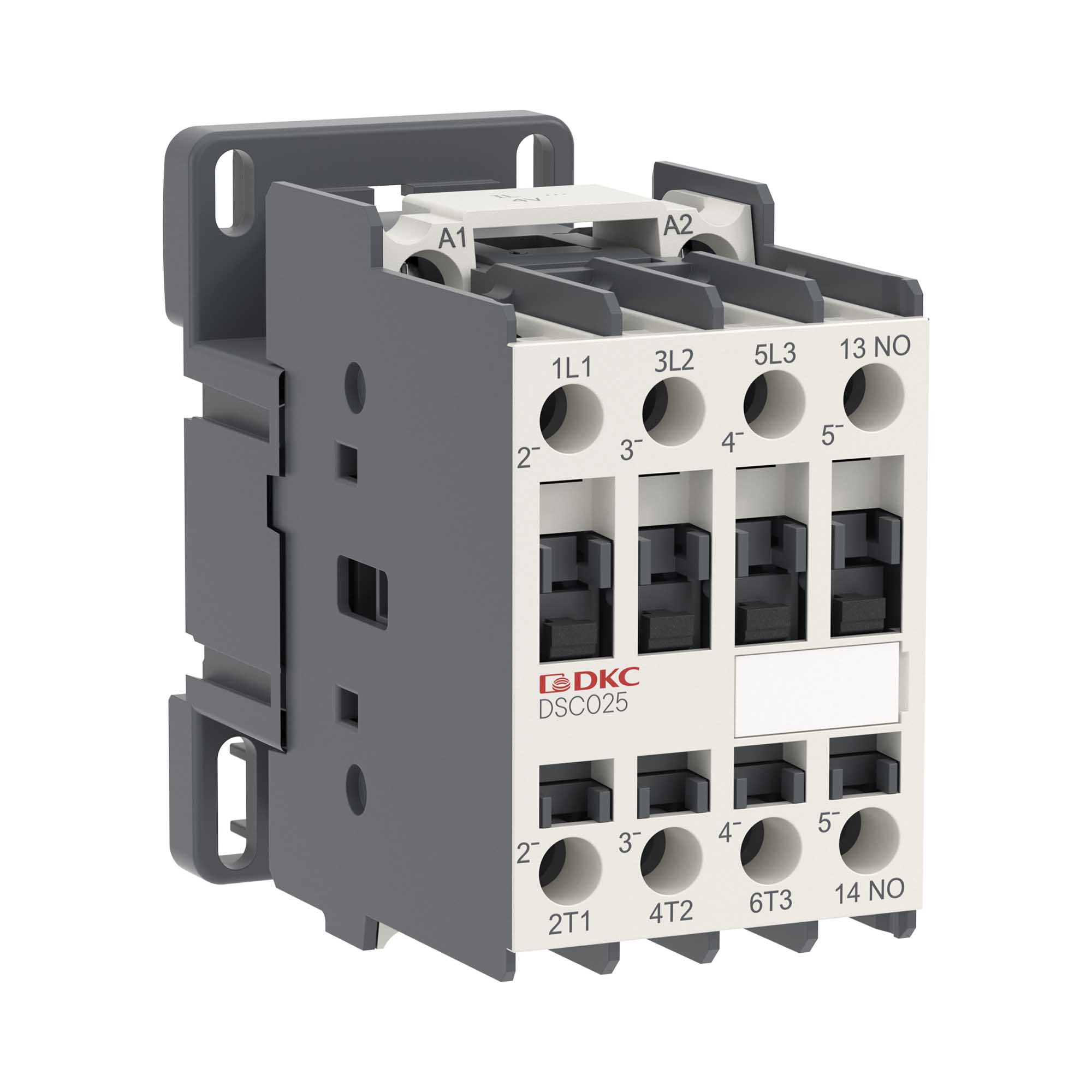

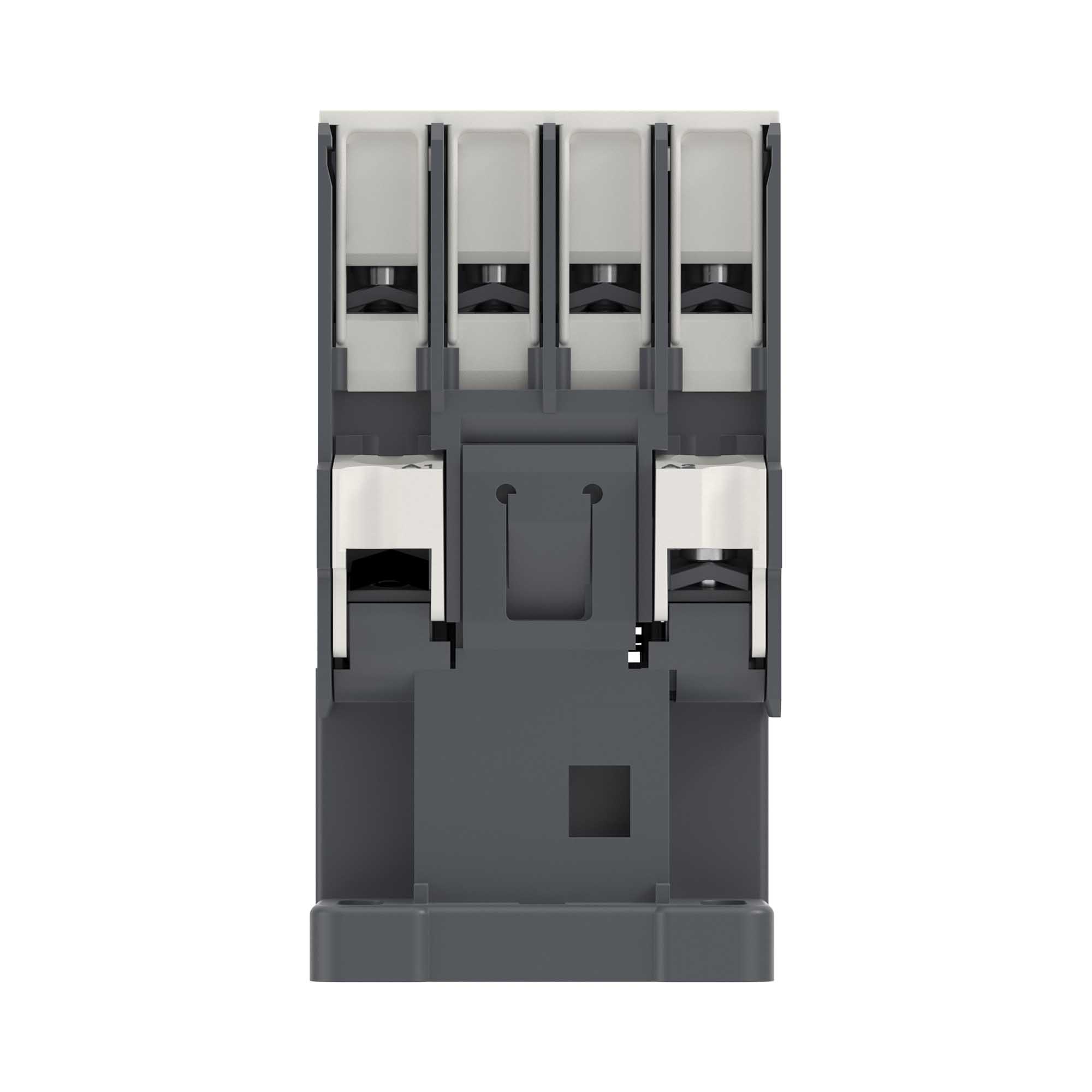

Standard Contactors YON DSC025 25A 12,5kW AC3 3P coil 220В AC 1НО
Code:
DSC025-3C10A230
Code:
DSC025-3C10A230
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 12.5 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 25 |
| Rated operation current Ie at AC-1, 400 V, A | 32 |
| Rated control supply voltage Us at AC 50HZ, V | 230...230 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V, A | 20.8 |
| Rated operation power at AC-4, 400 V, kW | 7.5 |
| Type of product | Contactor |
