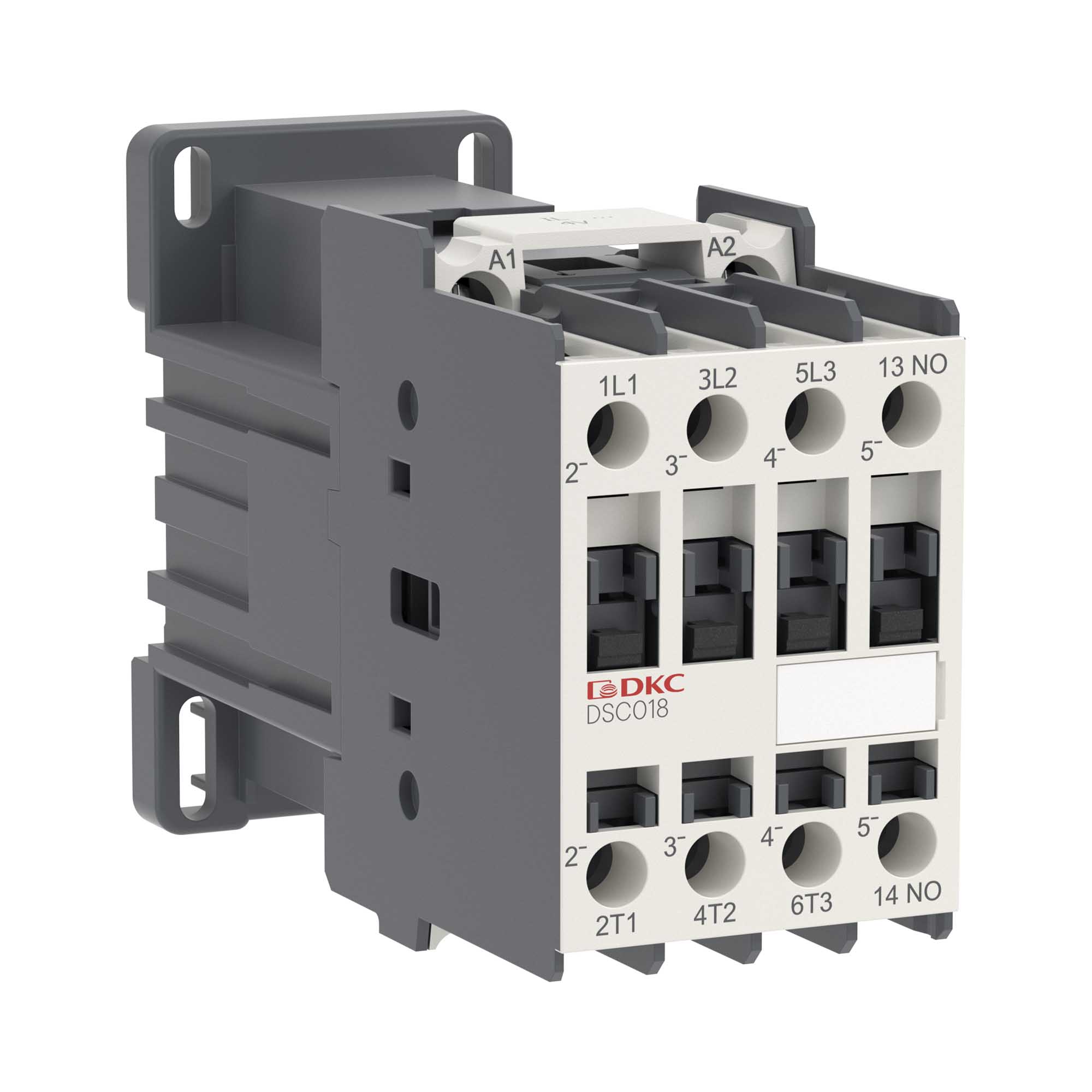

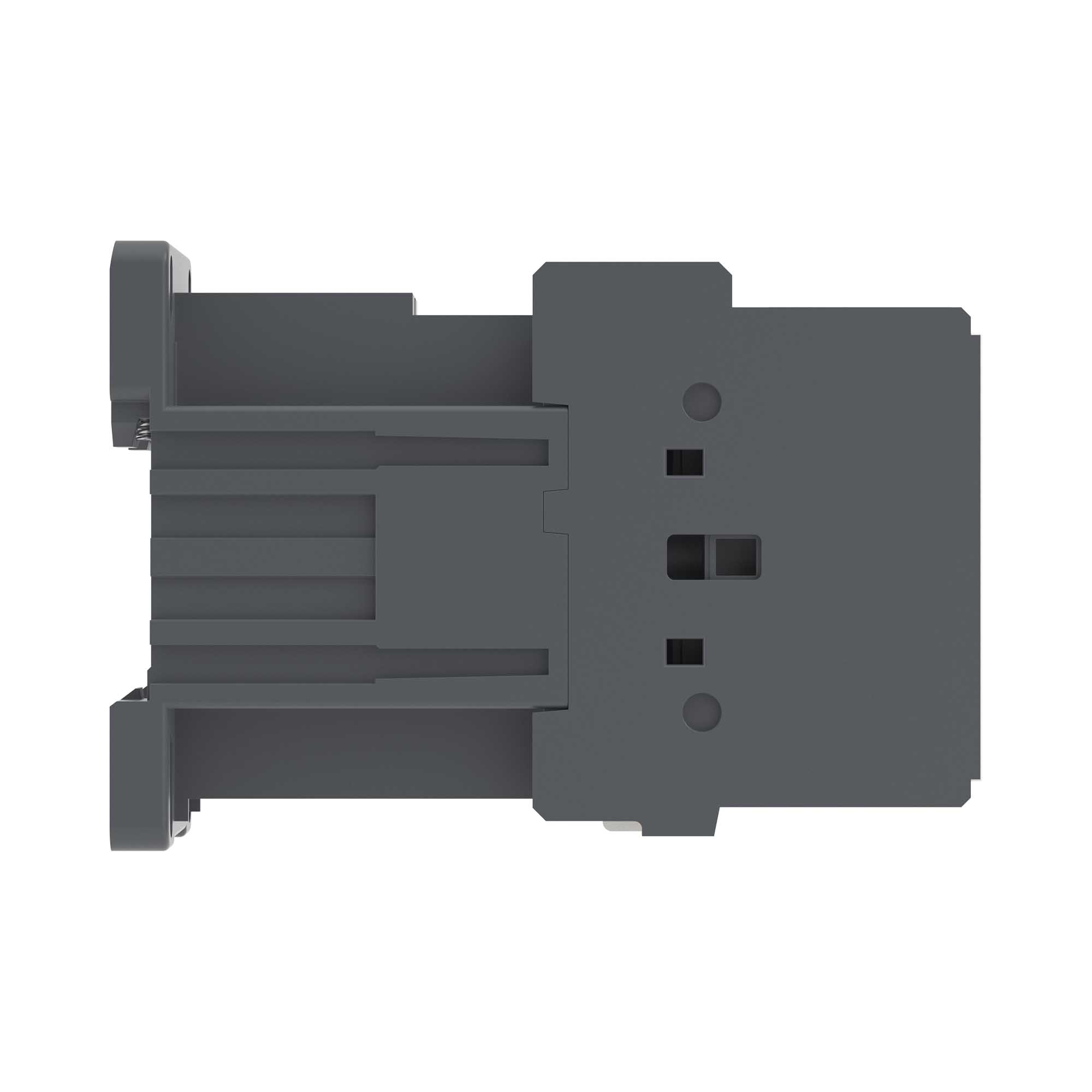

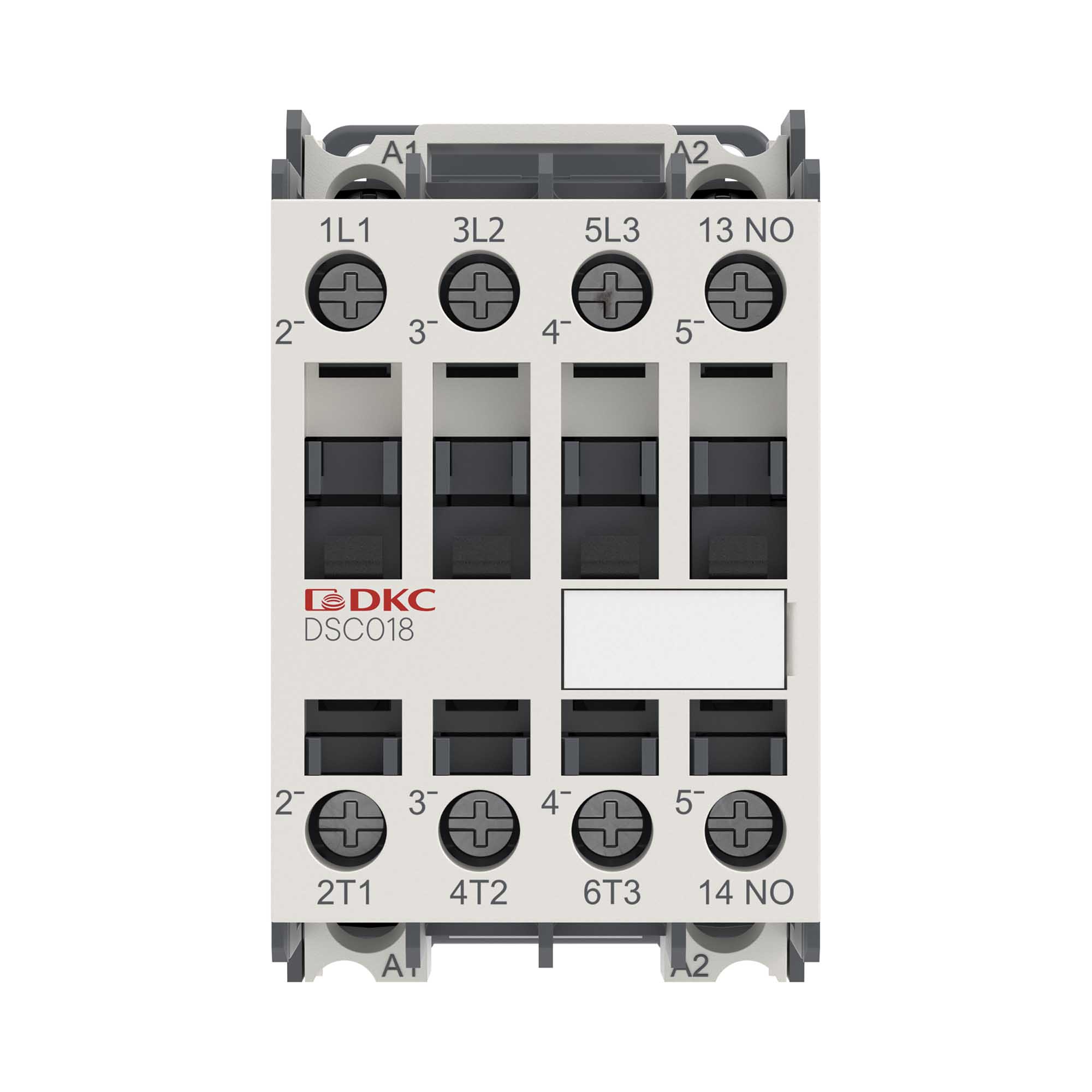

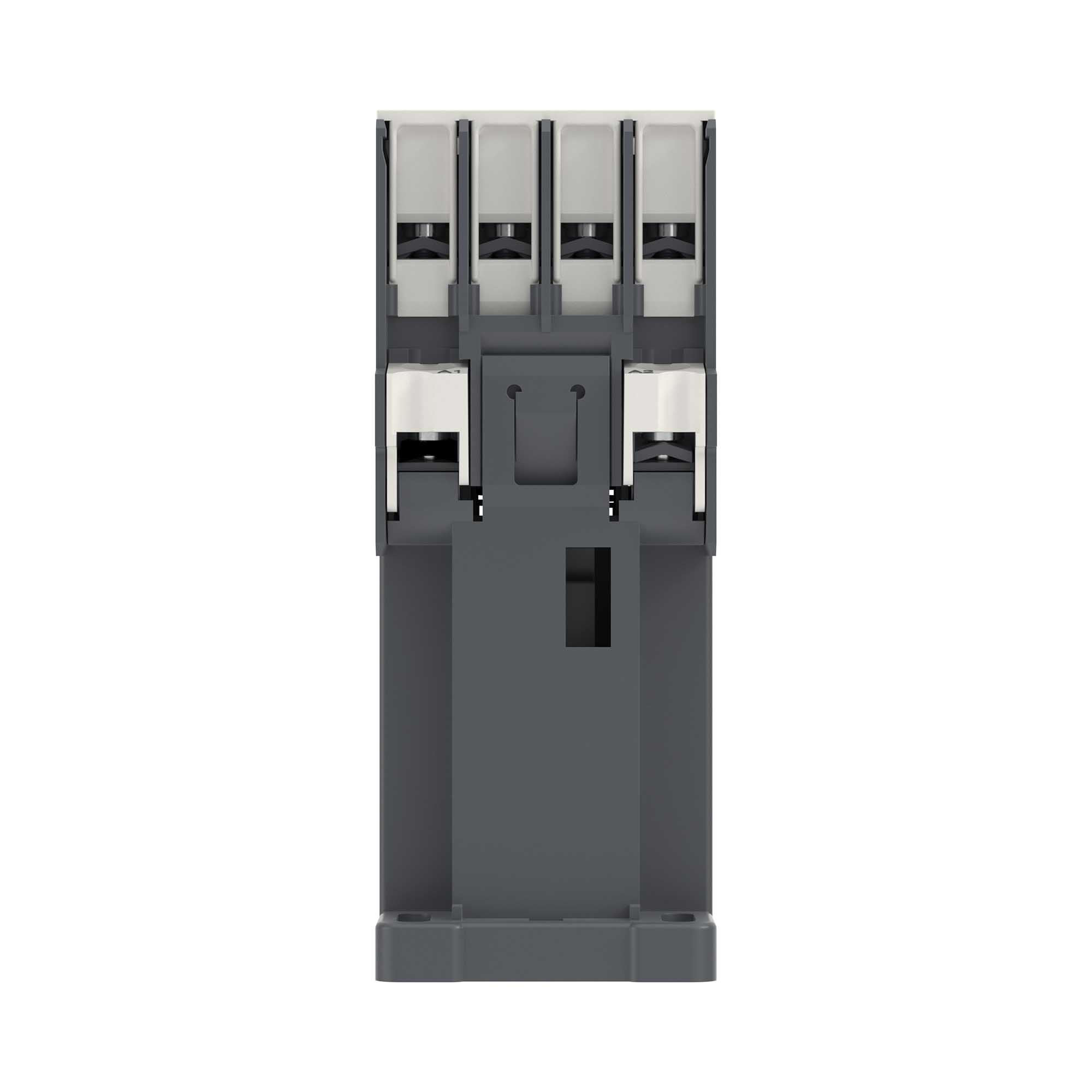

Standard Contactors YON DSC018 18A 7,5kW AC3 3P coil 24В DC 1НО
Code: DSC018-3C10D024
Standard Contactors YON DSC018 18A 7,5kW AC3 3P coil 24В DC 1НО
Code: DSC018-3C10D024
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 7.5 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 18 |
| Rated operation current Ie at AC-1, 400 V, A | 32 |
| Rated control supply voltage Us at DC, V | 24...24 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-4, 400 V, A | 15 |
| Rated operation power at AC-4, 400 V, kW | 5.5 |
