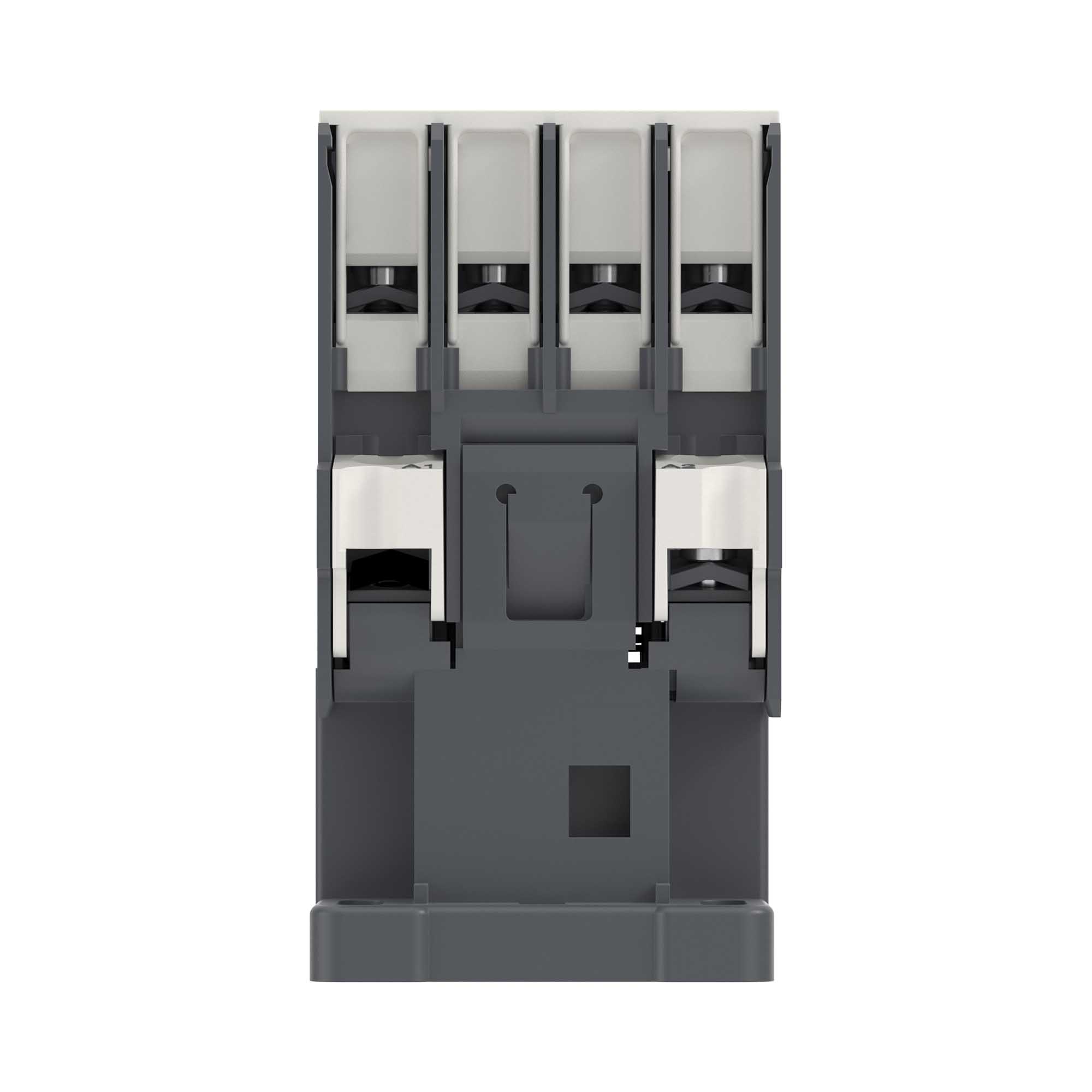

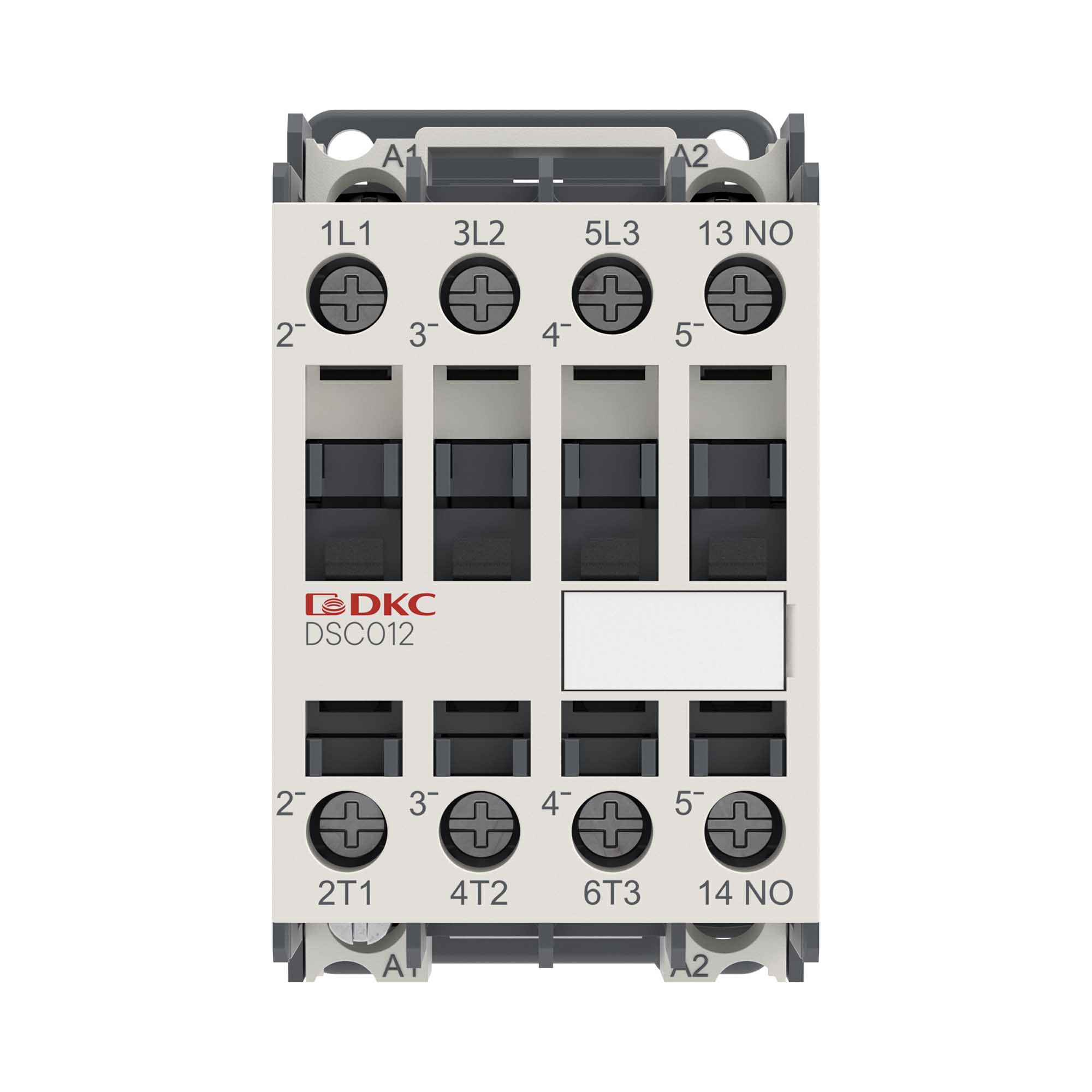

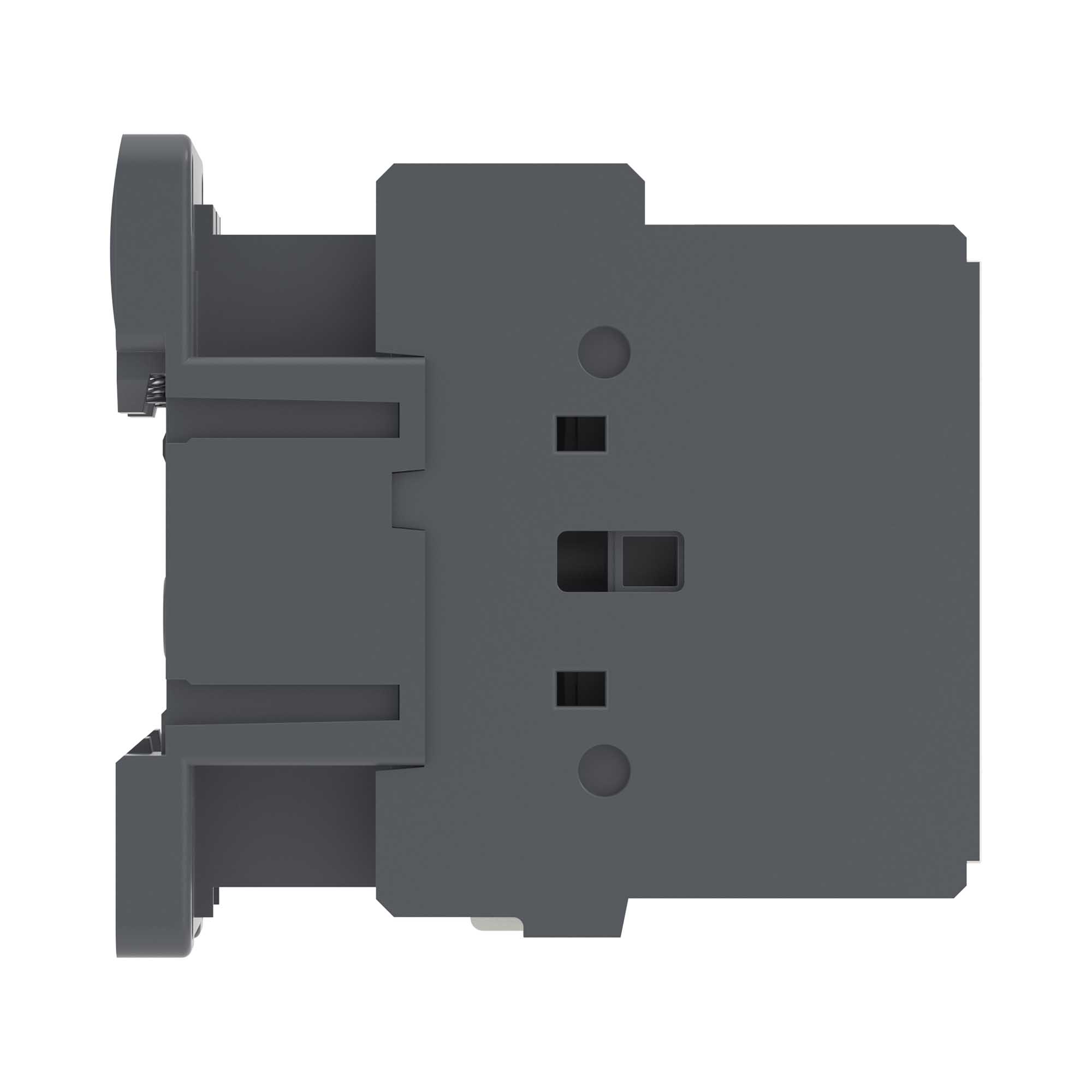

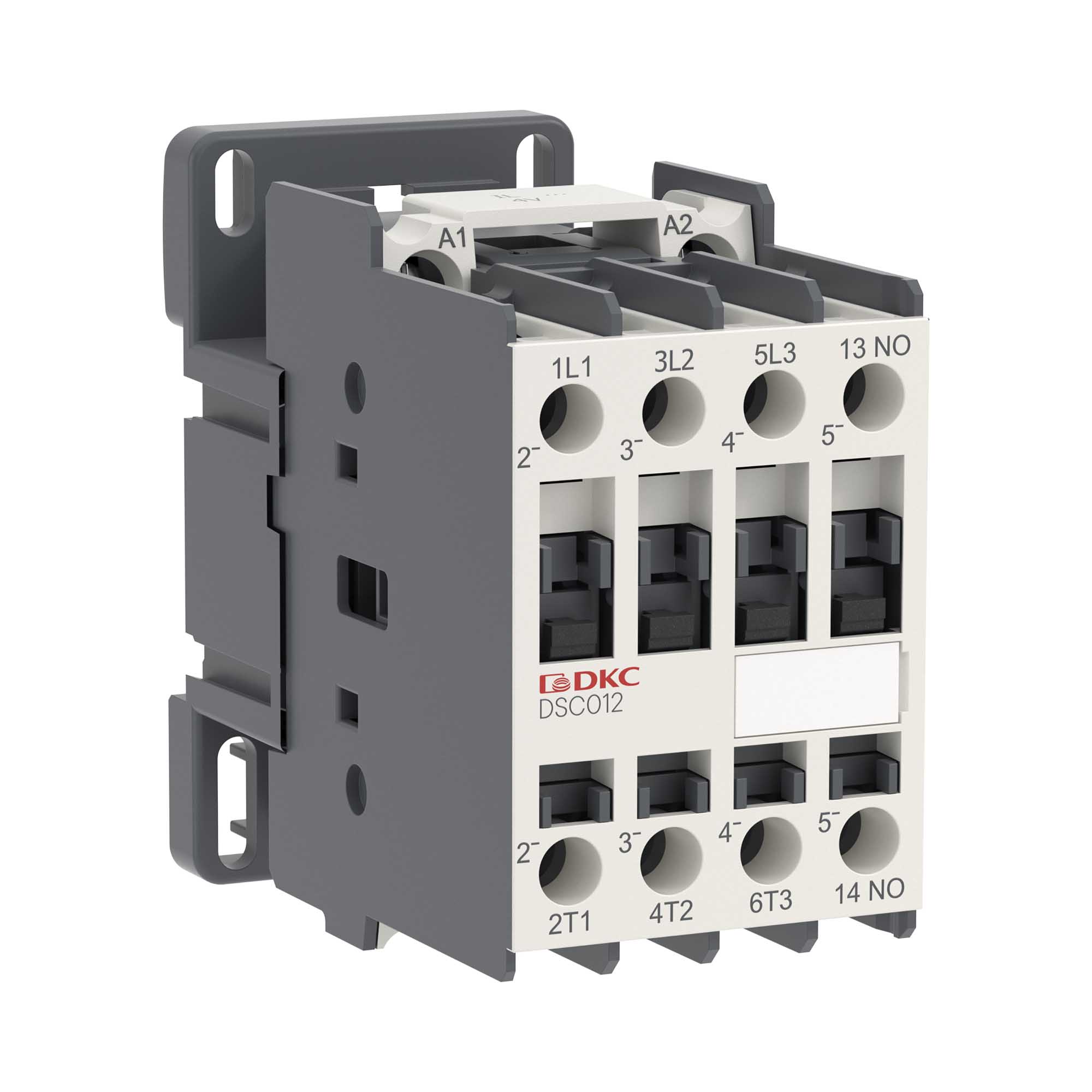

Standard Contactors YON DSC012 12A 5,5kW AC3 3P coil 380В AC 1НО
Code:
DSC012-3C10A380
Code:
DSC012-3C10A380
| Modular version | No |
| Rated operation power at AC-3, 400 V, kW | 5.5 |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Rated operation current Ie at AC-3, 400 V, A | 12 |
| Rated operation current Ie at AC-1, 400 V, A | 25 |
| Rated control supply voltage Us at AC 50HZ, V | 380...380 |
| Type of electrical connection of main circuit | Cable clamp |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V, A | 10 |
| Rated operation power at AC-4, 400 V, kW | 4 |
| Type of product | Contactor |
