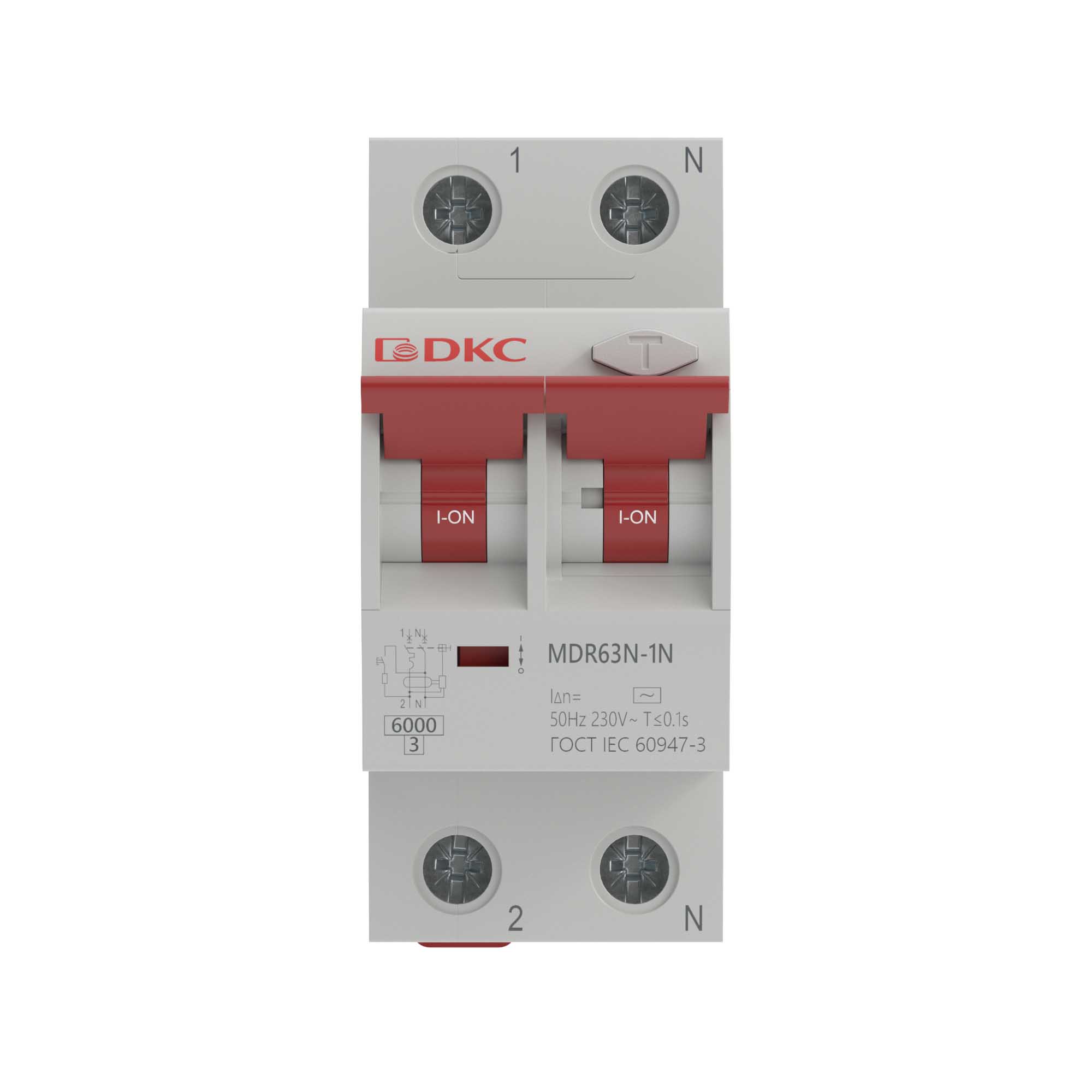

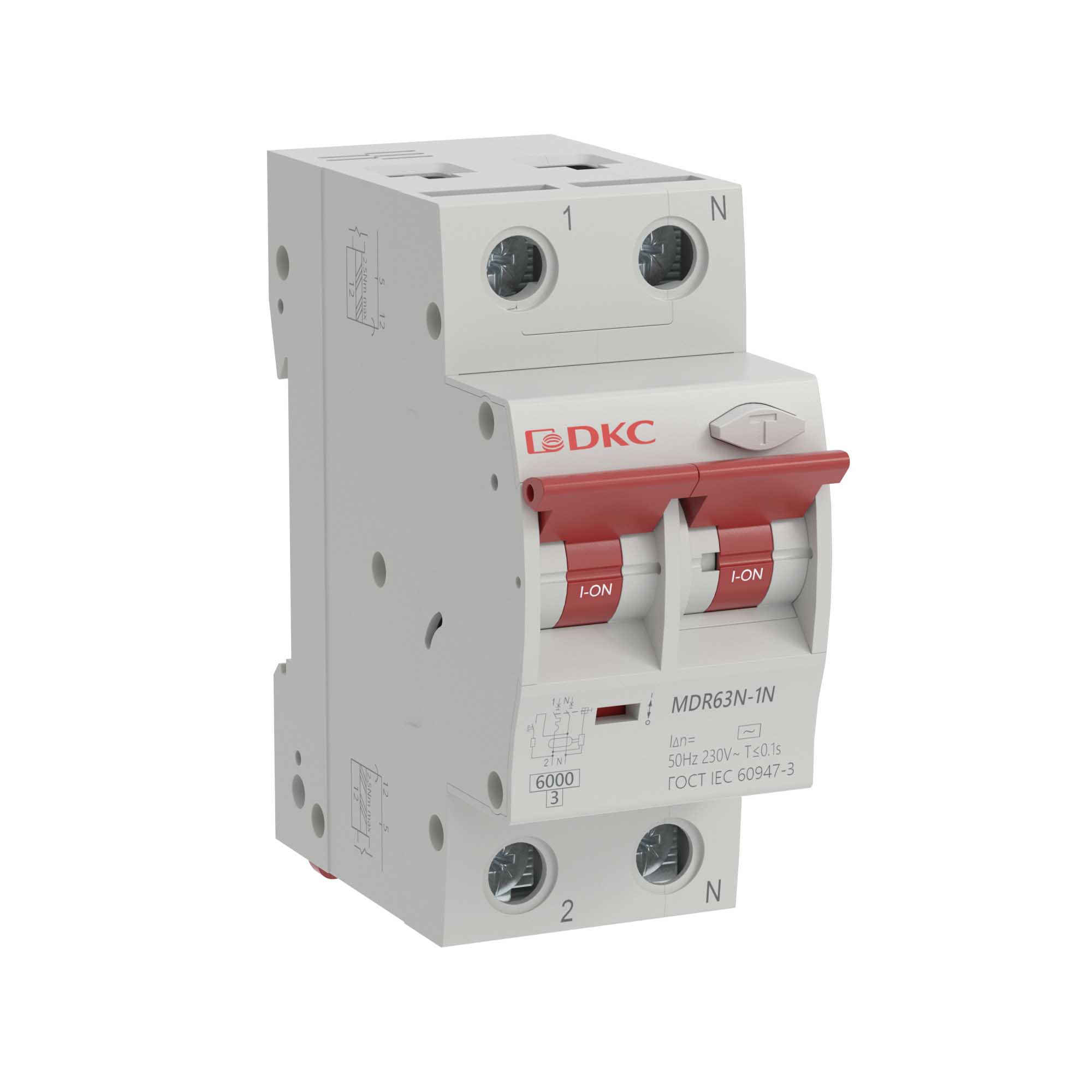

RCBO YON MDR63N 1P+N 20A C 30mA 6kA type A
Code:
MDR63N-1N2C20-A
RCBO YON MDR63N 1P+N 20A C 30mA 6kA type A
Code:
MDR63N-1N2C20-A
Voltage type | AC |
Rated voltage, V | 240 |
Release characteristic | C |
Leakage current type | A |
Frequency | 50 Hz |
Degree of protection (IP) | IP20 |
Number of protected poles | 1 |
Concurrently switching N-neutral | Yes |
Rated short-circuit breaking capacity IEC 60947-2, kA | 6 |
Ambient temperature during operating, °C | -25...40 |
Number of poles (total) | 2 |
Rated impulse withstand voltage Uimp, kV | 4 |
Rated current, A | 20 |
Rated fault current, A | 0.03 |
Width in number of modular spacings | 2 |
Rated short-circuit breaking capacity according to EN 61009, kA | 6 |
