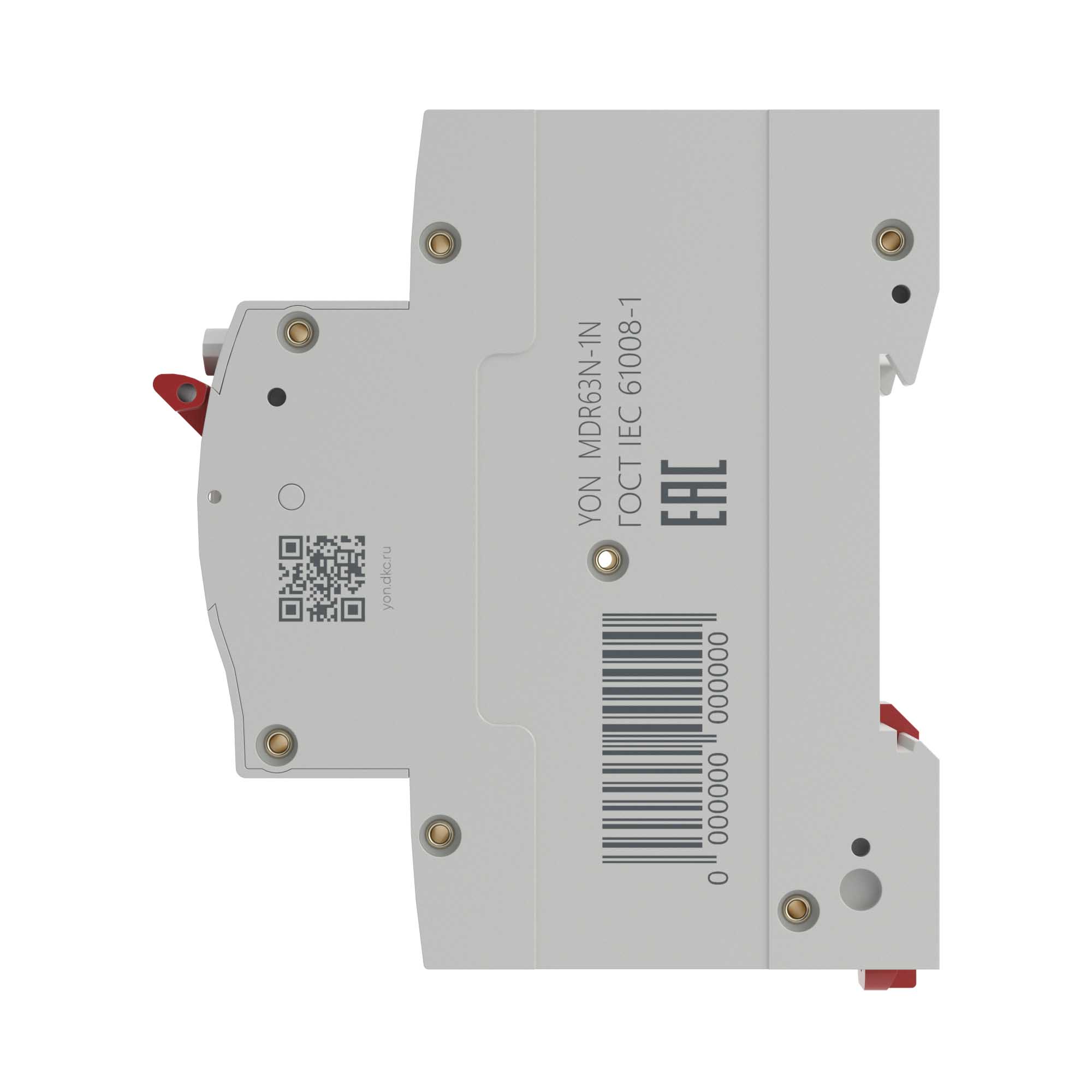

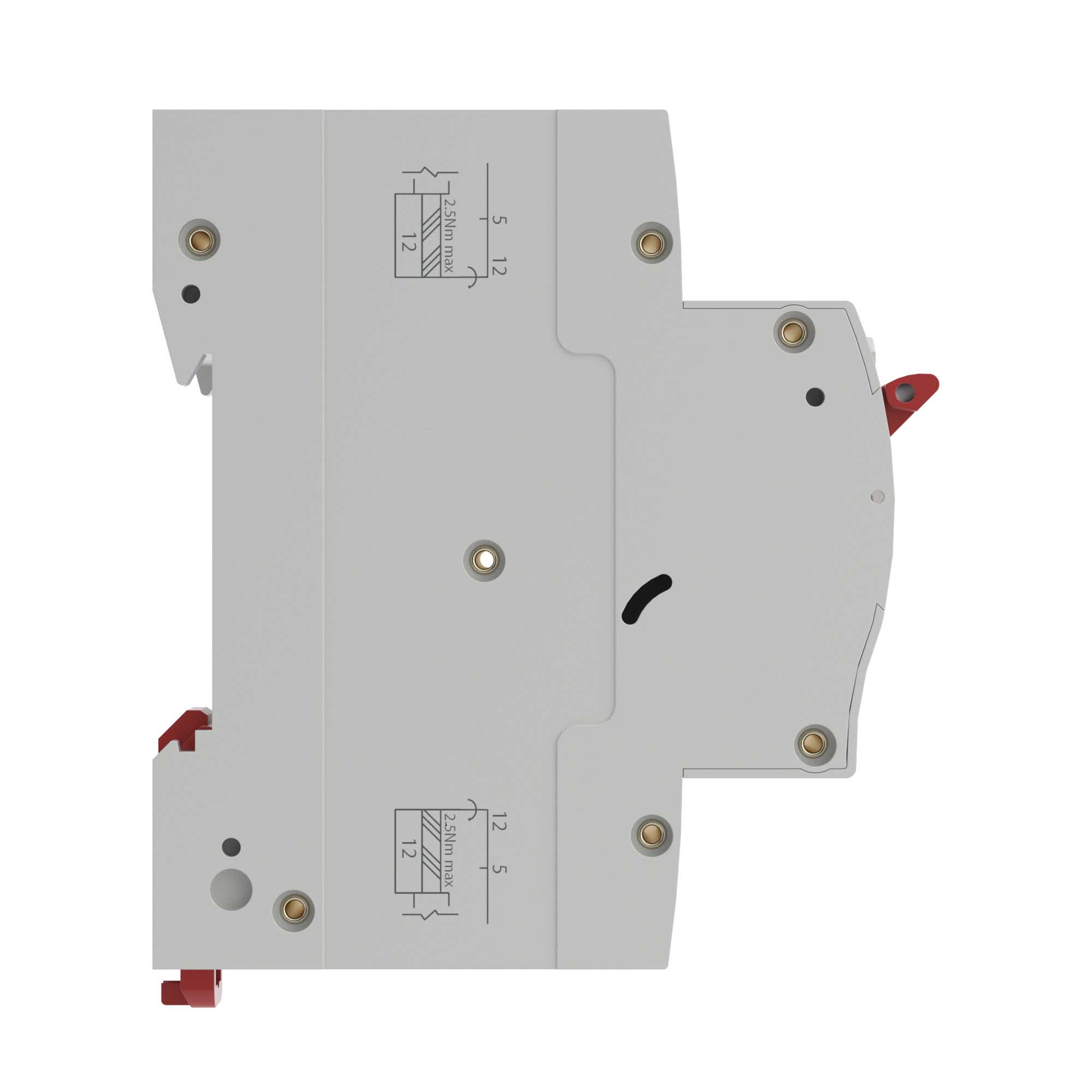

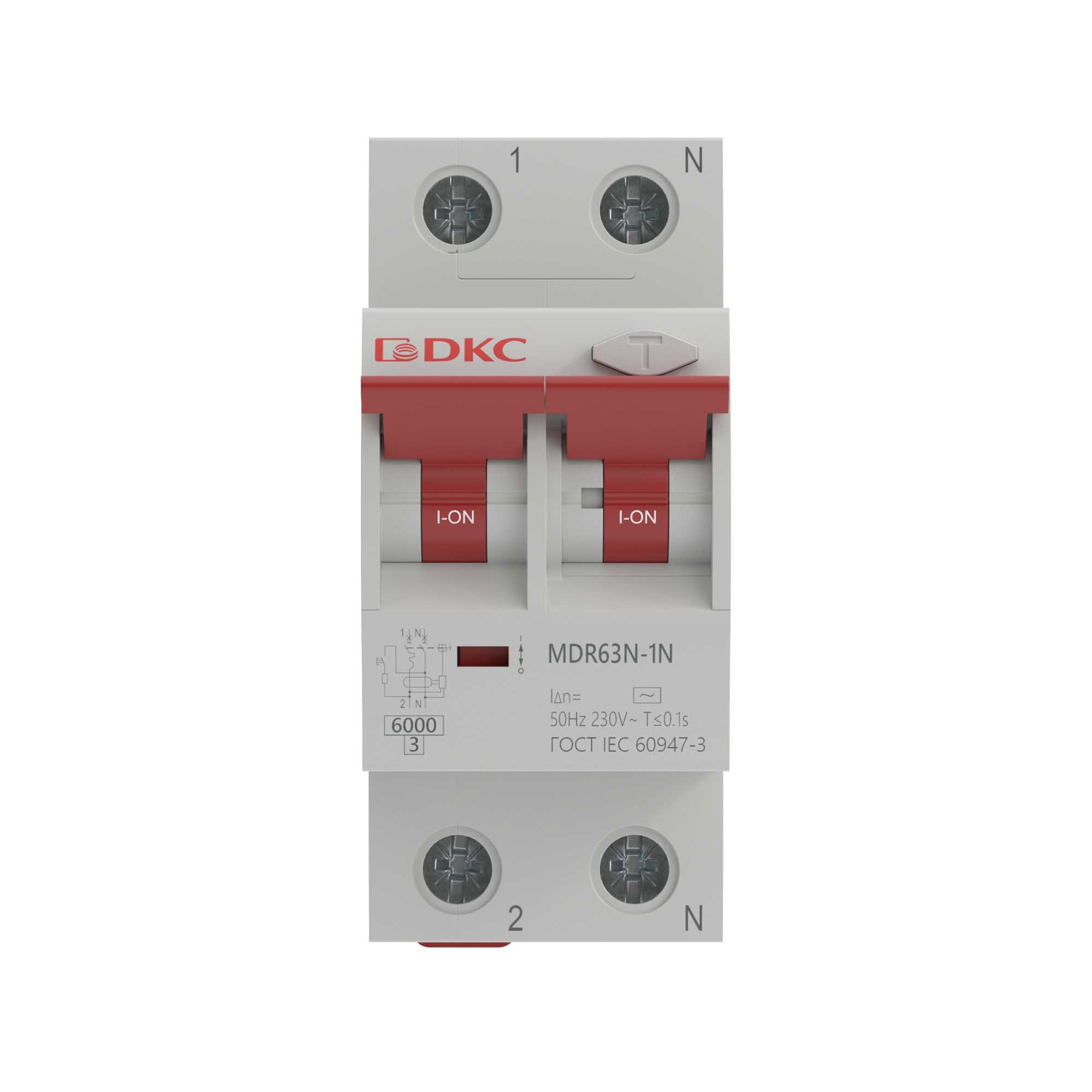

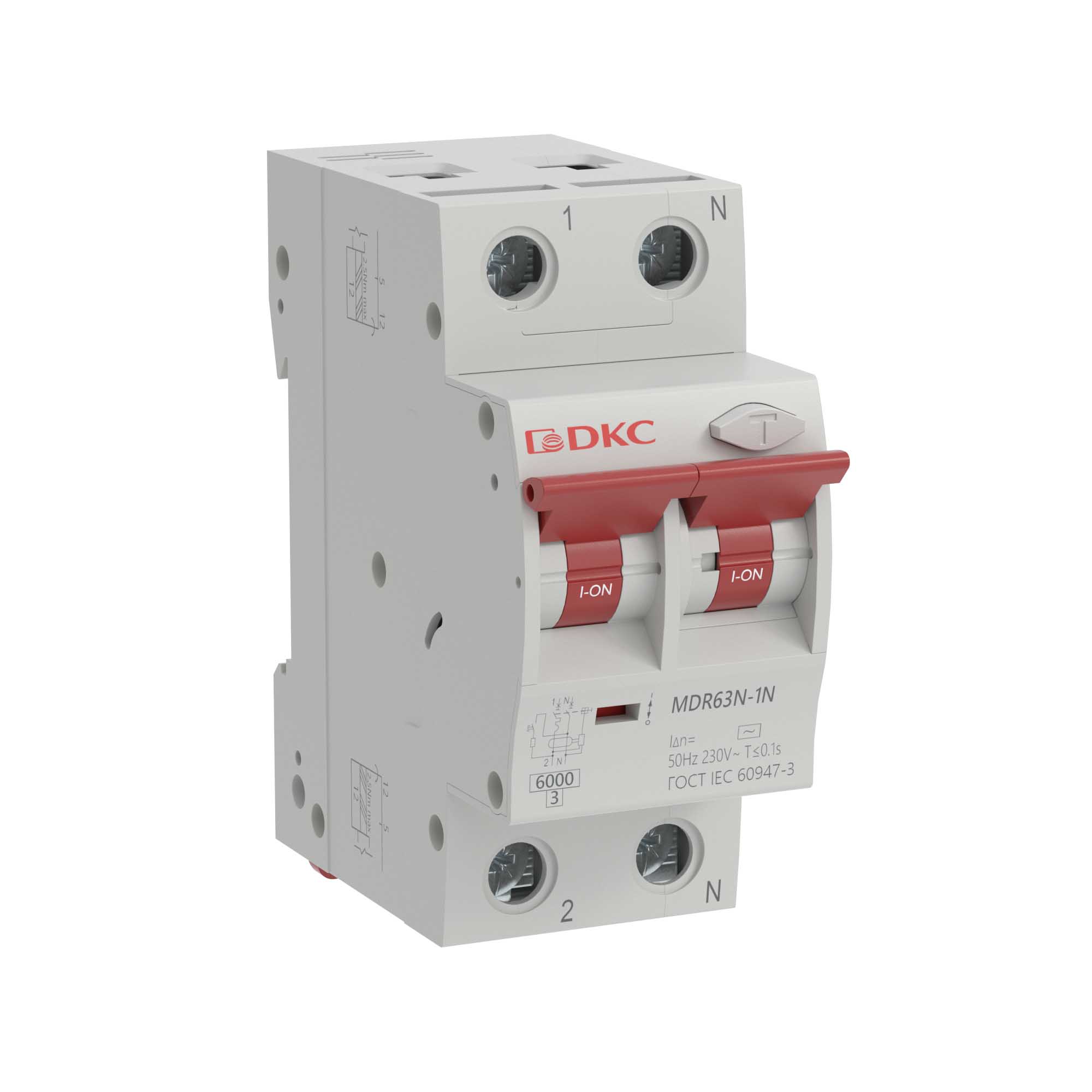

RCBO YON MDR63N 1P+N 16A C 30mA 6kA type A
Code:
MDR63N-1N2C16-A
RCBO YON MDR63N 1P+N 16A C 30mA 6kA type A
Code:
MDR63N-1N2C16-A
| Voltage type | AC |
| Rated voltage, V | 240 |
| Release characteristic | C |
| Leakage current type | A |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching N-neutral | Yes |
| Rated short-circuit breaking capacity IEC 60947-2, kA | 6 |
| Ambient temperature during operating, °C | -25...40 |
| Number of poles (total) | 2 |
| Rated impulse withstand voltage Uimp, kV | 4 |
| Rated current, A | 16 |
| Rated fault current, A | 0.03 |
| Width in number of modular spacings | 2 |
| Rated short-circuit breaking capacity according to EN 61009, kA | 6 |
