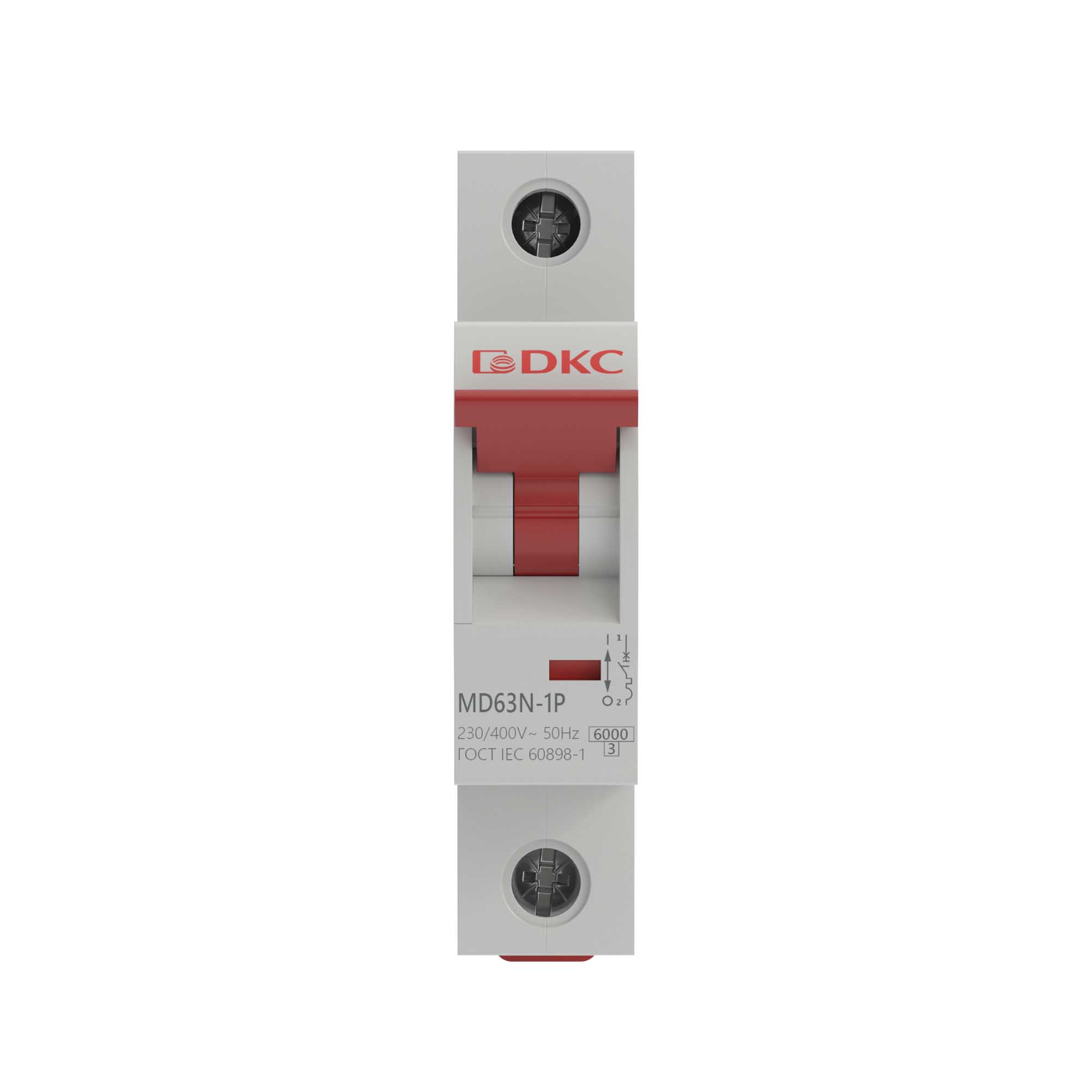

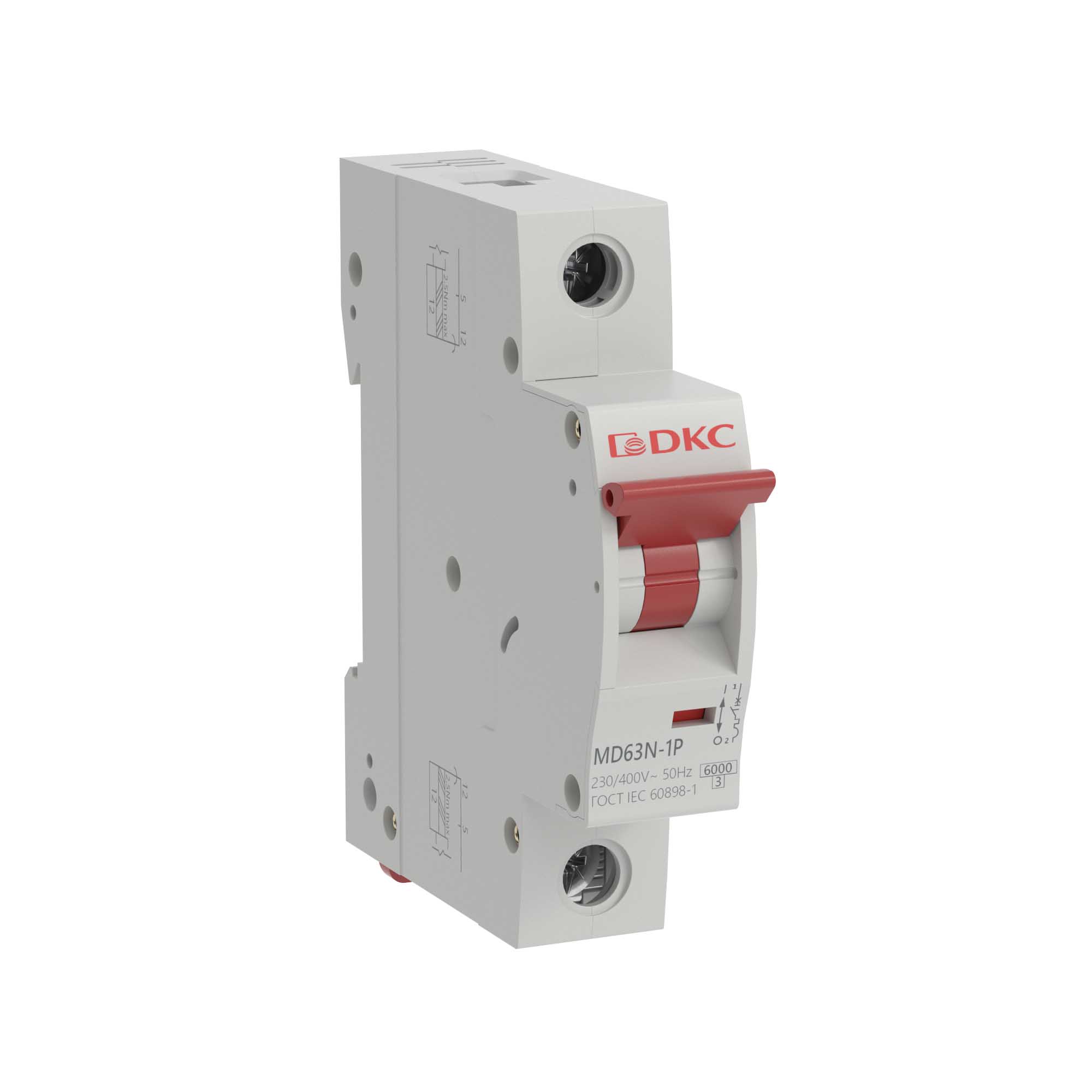

Miniature circuit breaker YON MD63N 1P 40A C 6kA
Code:
MD63N-1PC40
Miniature circuit breaker YON MD63N 1P 40A C 6kA
Code:
MD63N-1PC40
| Voltage type | AC |
| Rated voltage, V | 400 |
| Frequency, Hz | 50...50 |
| Rated insulation voltage Ui, V | 500 |
| Current limiting class | 3 |
| Over voltage category | 4 |
| Pollution degree | 3 |
| Degree of protection (IP) | IP20 |
| Concurrently switching N-neutral | Yes |
| Ambient temperature during operating, °C | -25...40 |
| Additional equipment possible | Yes |
| Rated impulse withstand voltage Uimp, kV | 4 |
| Rated current, A | 40 |
| Release characteristic | C |
| Width in number of modular spacings | 1 |
| Number of protected poles | 1 |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA | 6 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA | 6 |
