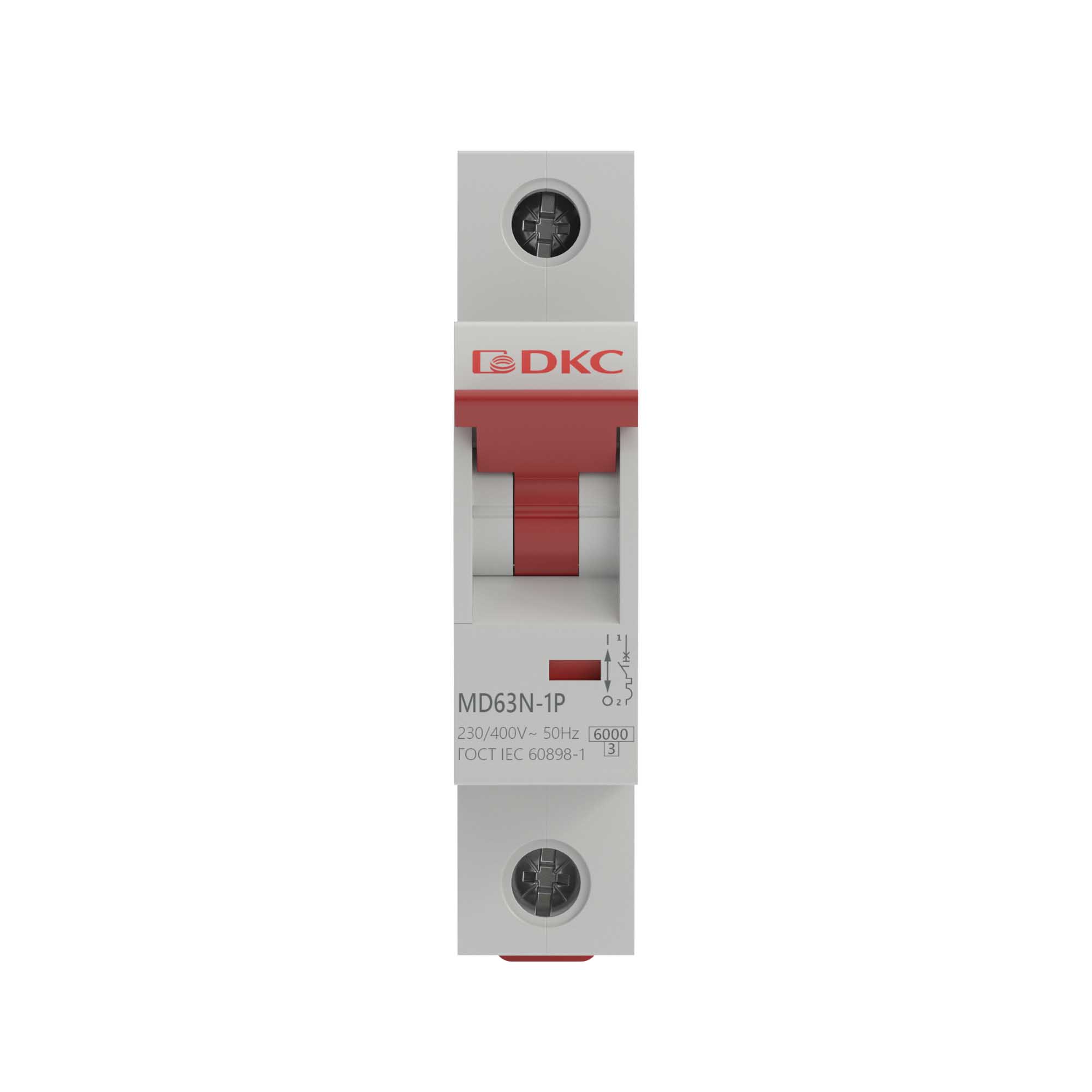

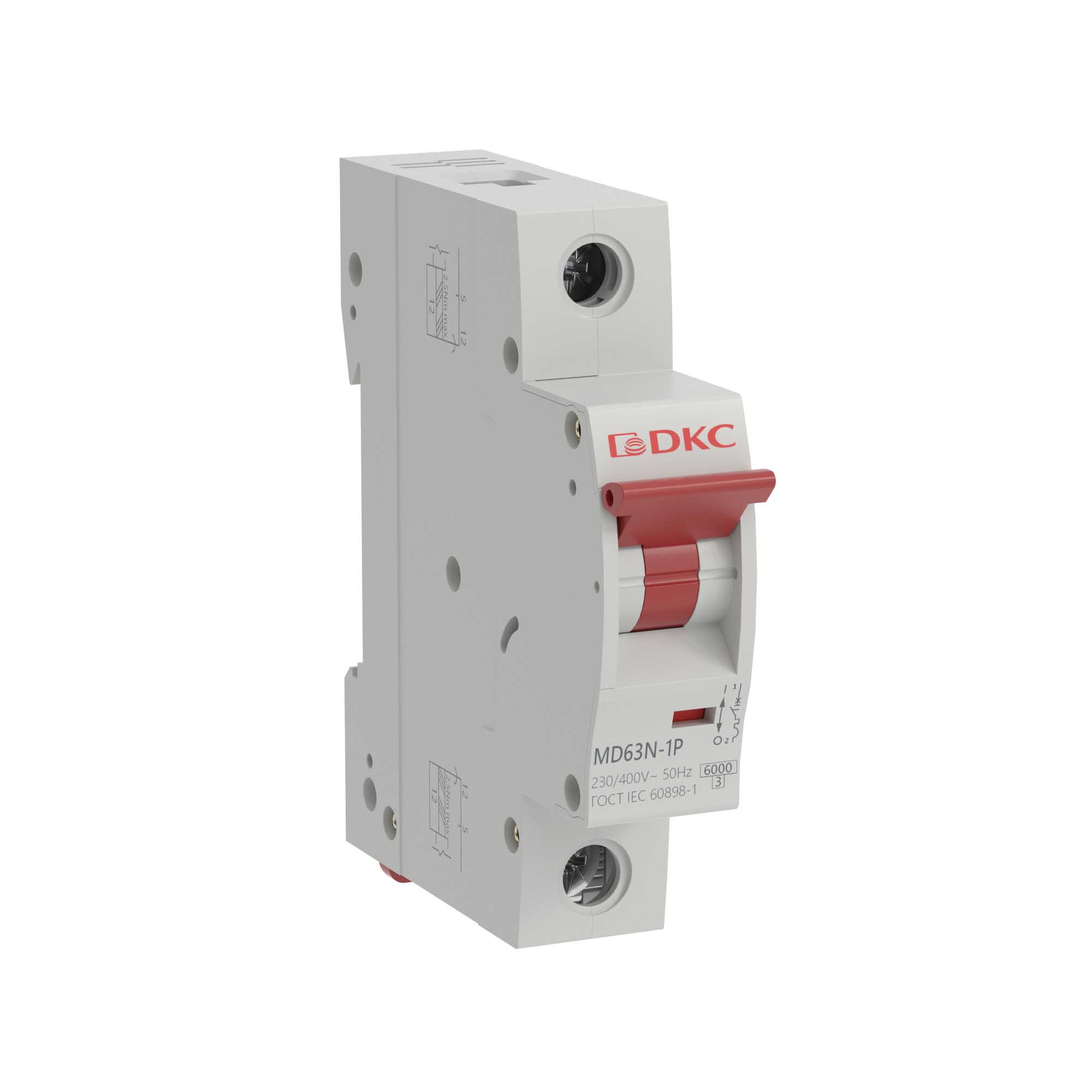

Miniature circuit breaker YON MD63N 1P 10A C 6kA

Code: MD63N-1PC10

Miniature circuit breaker YON MD63N 1P 10A C 6kA

Code: MD63N-1PC10
Voltage type AC
Rated voltage, V 400
Frequency, Hz 50...50
Rated insulation voltage Ui, V 500
Current limiting class 3
Over voltage category 4
Pollution degree 3
Degree of protection (IP) IP20
Concurrently switching N-neutral Yes
Ambient temperature during operating, °C -25...40
Additional equipment possible Yes
Rated impulse withstand voltage Uimp, kV 4
Rated current, A 10
Release characteristic C
Width in number of modular spacings 1
Number of protected poles 1
Number of poles (total) 1
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA 6
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA 6
