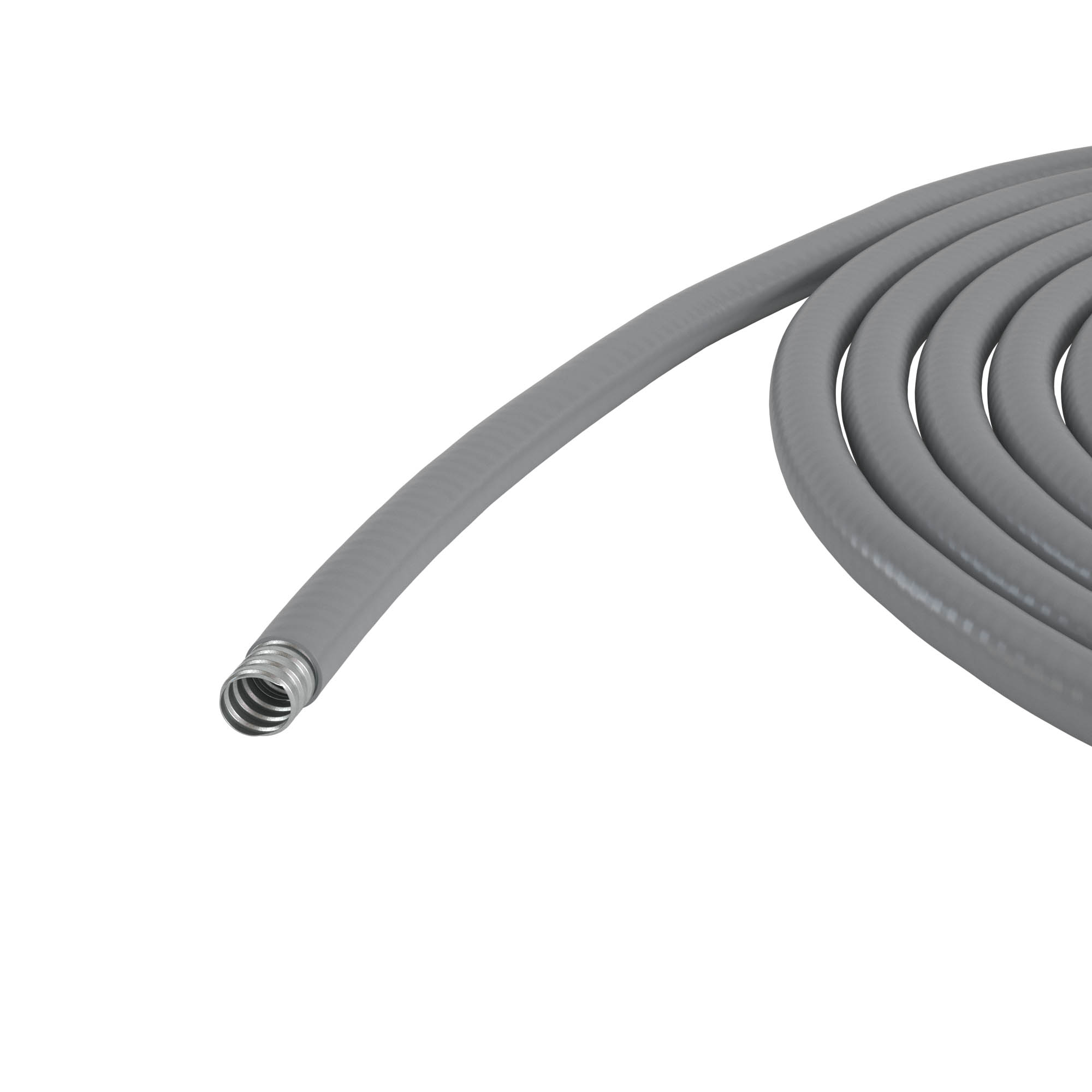

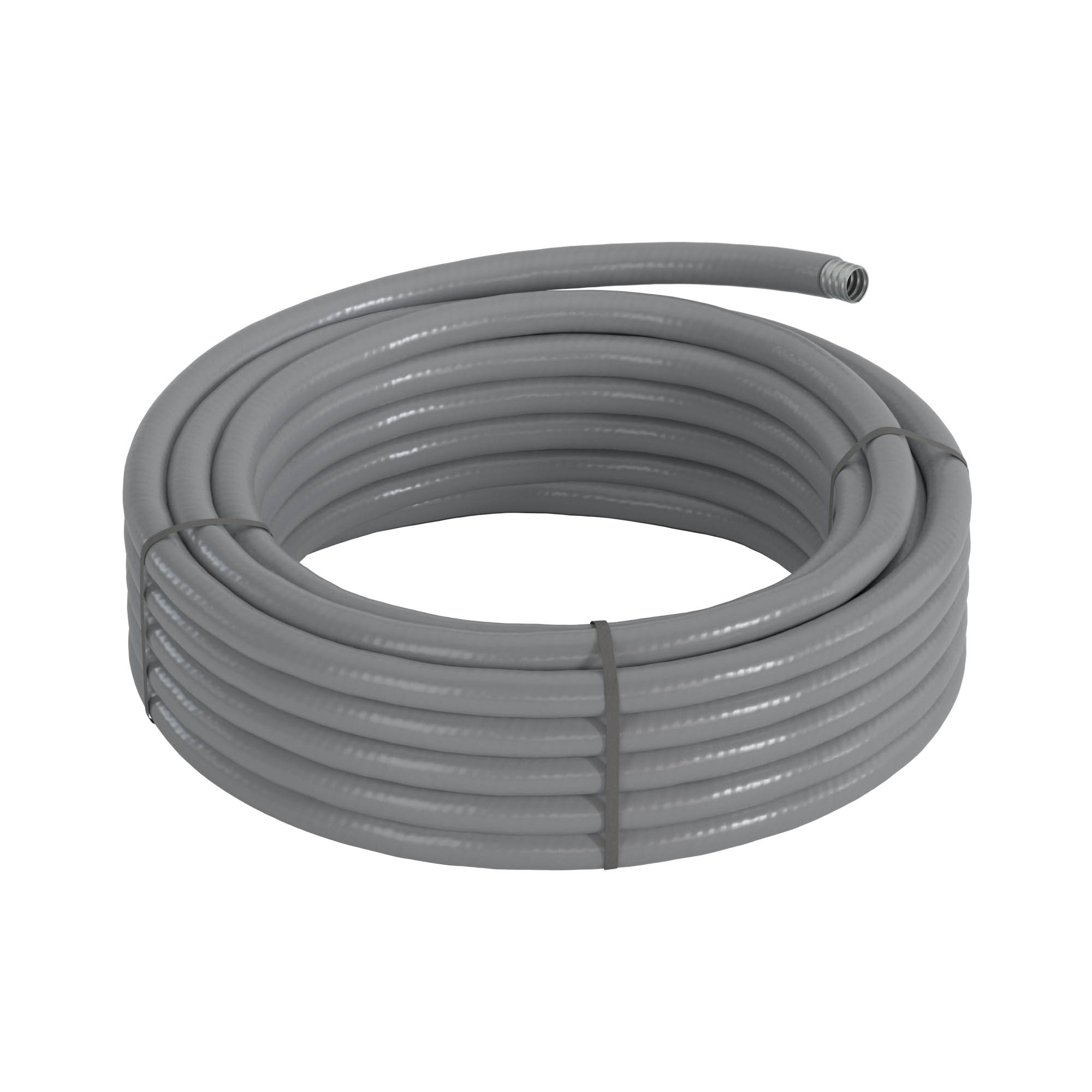

Metal jacket DN 26mm in smooth SUBS insulation, DN 26.5 mm, DN 34.0, 25m, color gray
Code:
607S032
Code:
607S032
| Colour | Grey |
| Outer diameter, mm | 34 |
| Inner diameter, mm | 26.5 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -60...70 |
| Sealing | No sealing |
| Suited for EX-applications | No |
| Material | Steel |
| Tensile strength, N | 1000 |
| Nominal diameter, mm | 26 |
| Degree of protection (IP) | IP66 |
| Bending strength | Flexible |
| Sheathing material 2nd coating (exterior) | SEBS |
| With draw wire | No |
| Product type | Flexible galvanized steel metal conduit in smooth SEBS insulation |
| Material | Galvanized steel |
| Shell material | SEBS |
| Color | gray |
| Length | 25m |
| -5°С ... +60°С | -60 ... +70 °С |
| от -25°С до +60°С | -60 ... +70 °С |
| Degree of protection | IP66/IP67 |
| Impact strength | >6 J at -60°С |
| Fire protection | IEC 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
