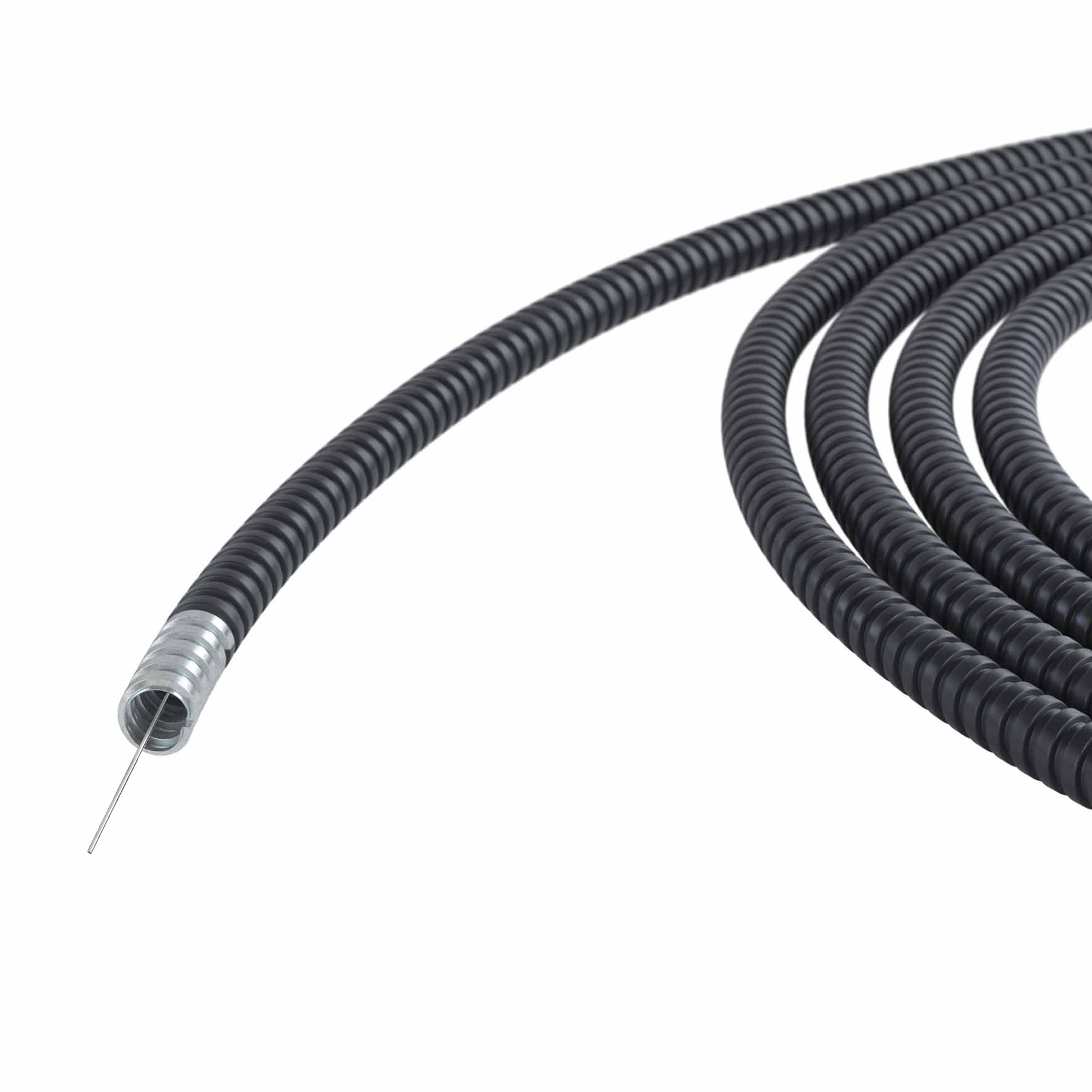

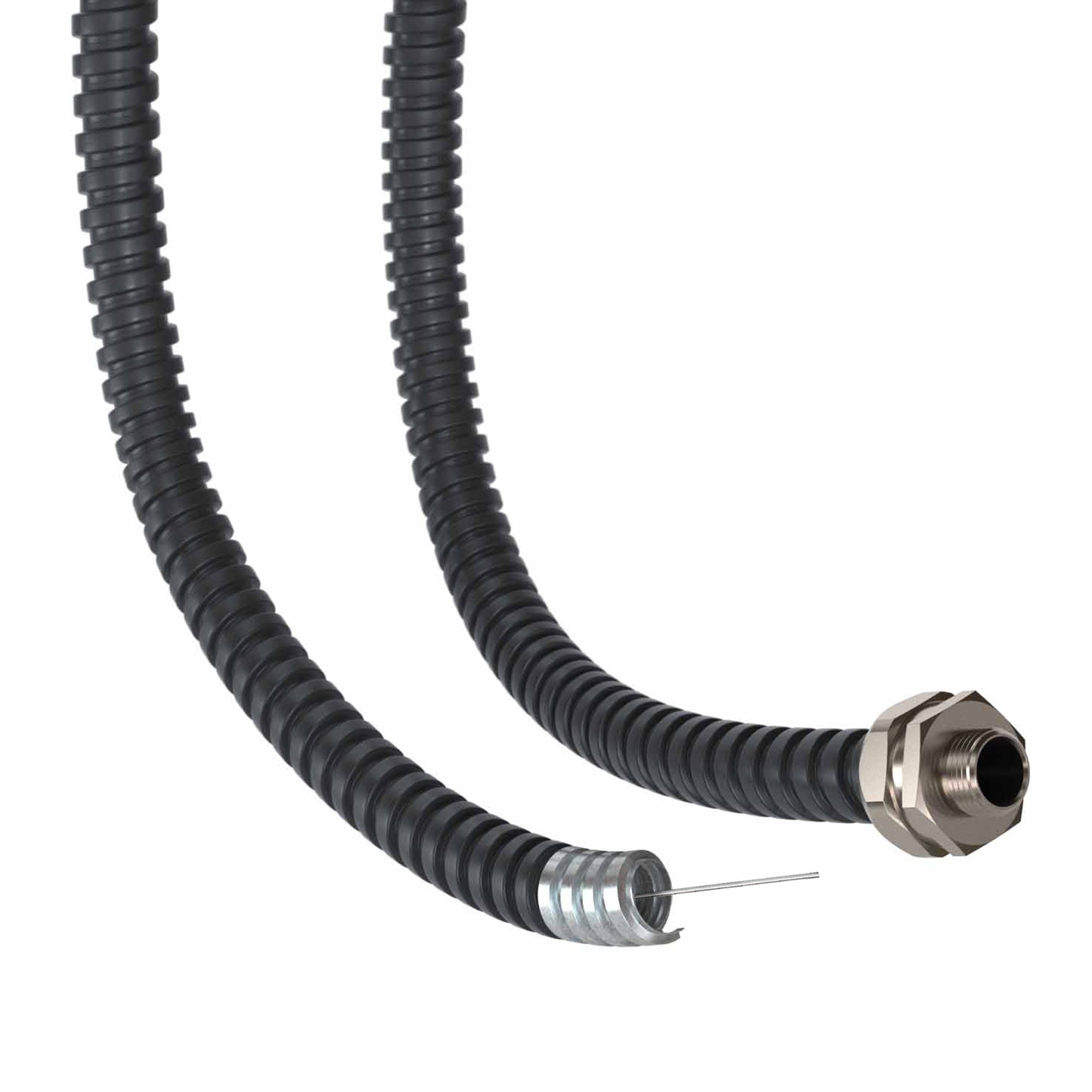

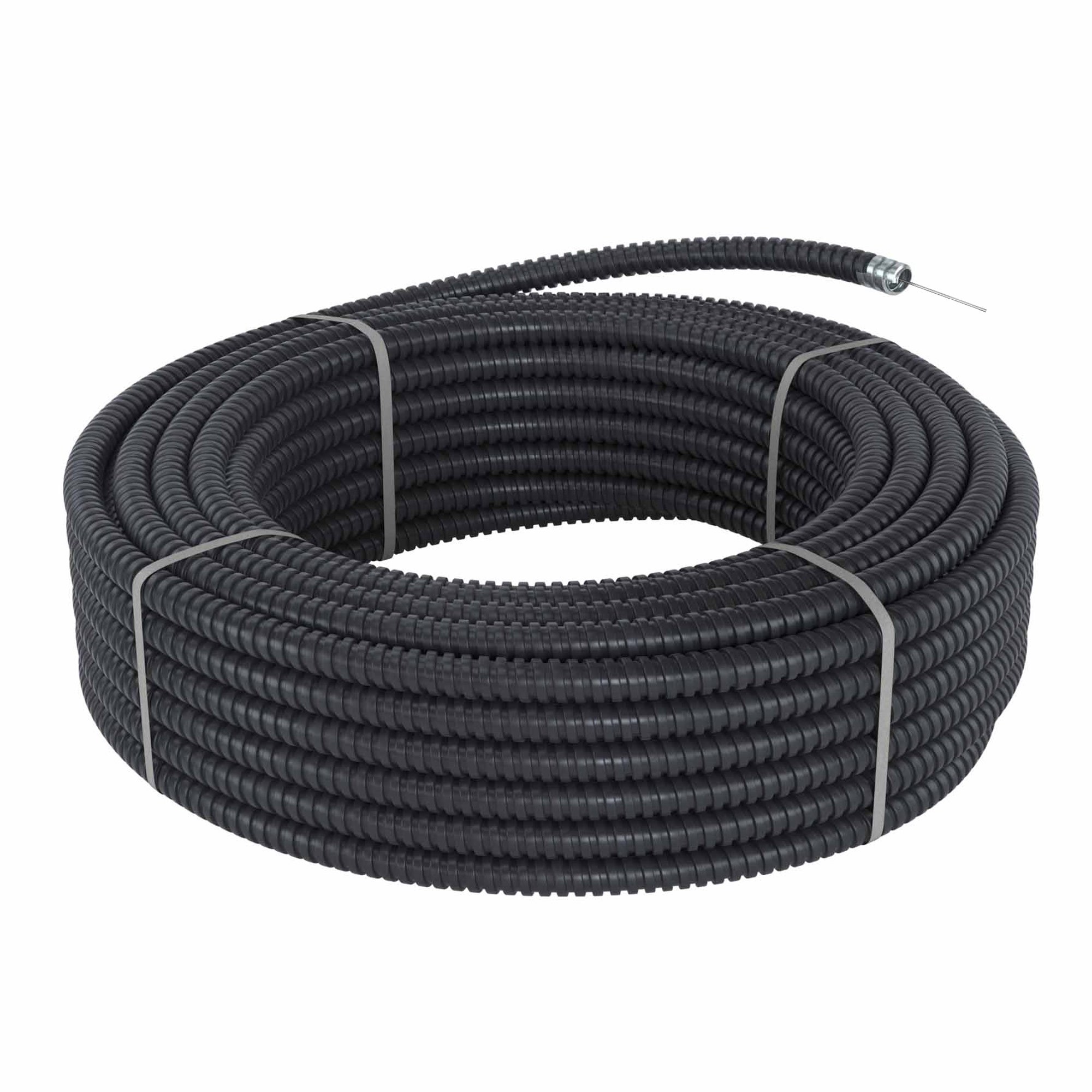

Flexible metal conduit in PVC coating DN 20 mm, Øin 20,5 mm, Øex 25,5mm, low temperature, with pull, 100m, black color
Code:
6071R-020N100PCR
Code:
6071R-020N100PCR
| Colour | Black |
| Outer diameter, mm | 25.5 |
| Inner diameter, mm | 20.5 |
| Compressive strength, N | 1250 |
| Operational temperature, °C | -60...70 |
| Material | Steel |
| Tensile strength, N | 1000 |
| Sheathing material 2nd coating (exterior) | Polyvinyl chloride (PVC) |
| Nominal diameter, mm | 20 |
| Degree of protection (IP) | IP66 |
| Bending strength | Flexible |
| With draw wire | Yes |
| Degree of protection | IP66 |
| -5°С ... +60°С | -60...70 |
| от -25°С до +60°С | -60...70 |
| Product type | Flexible galvanized steel metal conduit in sealed PVC insulation low temperature |
| Material | Galvanized steel |
| Shell material | PVC |
| Color | Black |
| Length | 100 m |
| Impact strength | >6 J at -15 °С |
| Fire protection | IEC 53313 |
| ТУ 2248-012-47022248-2009 | Technical specifications 4833-051-47022248-2016 |
| 3 года | 3 years |
| 15 лет | 3 years |
