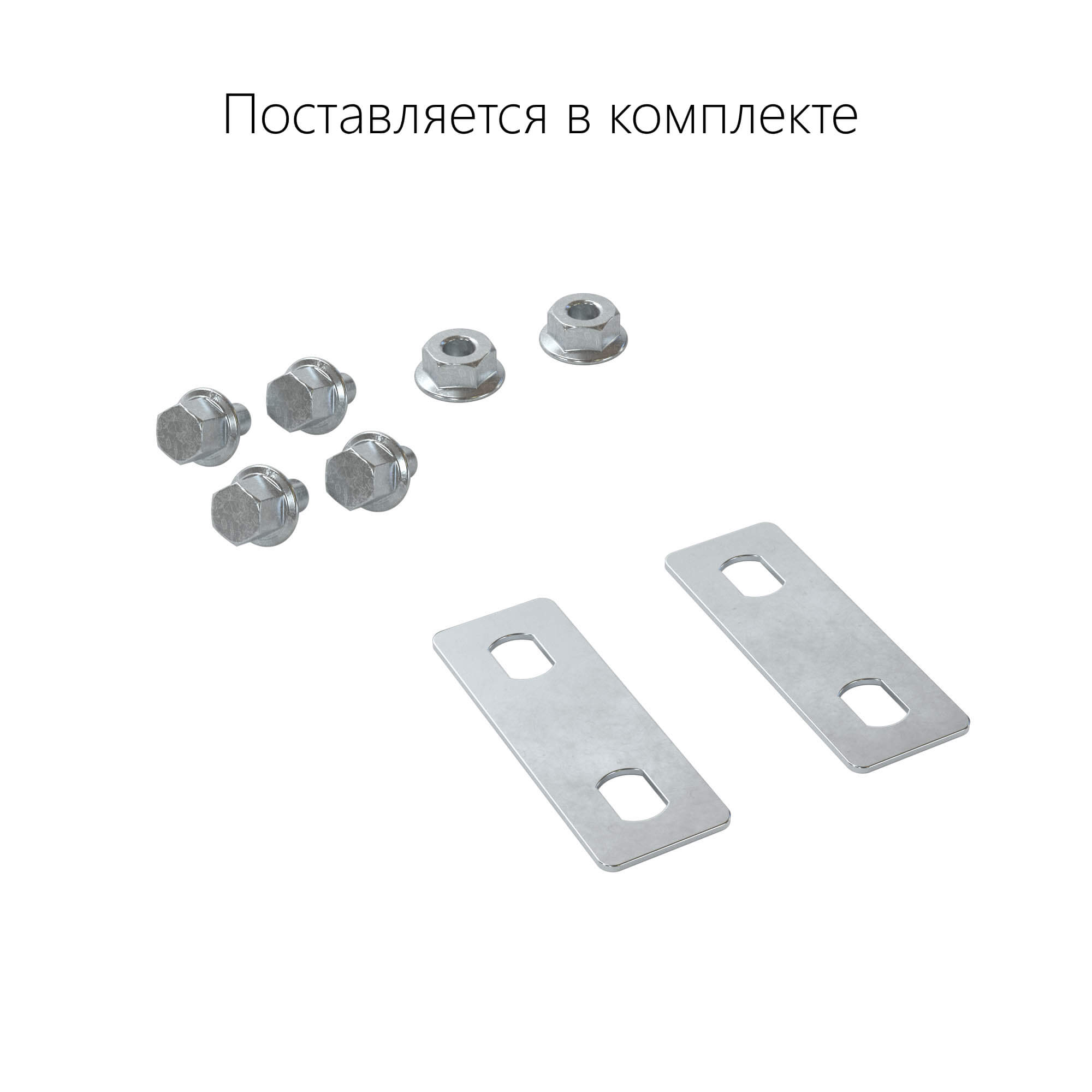

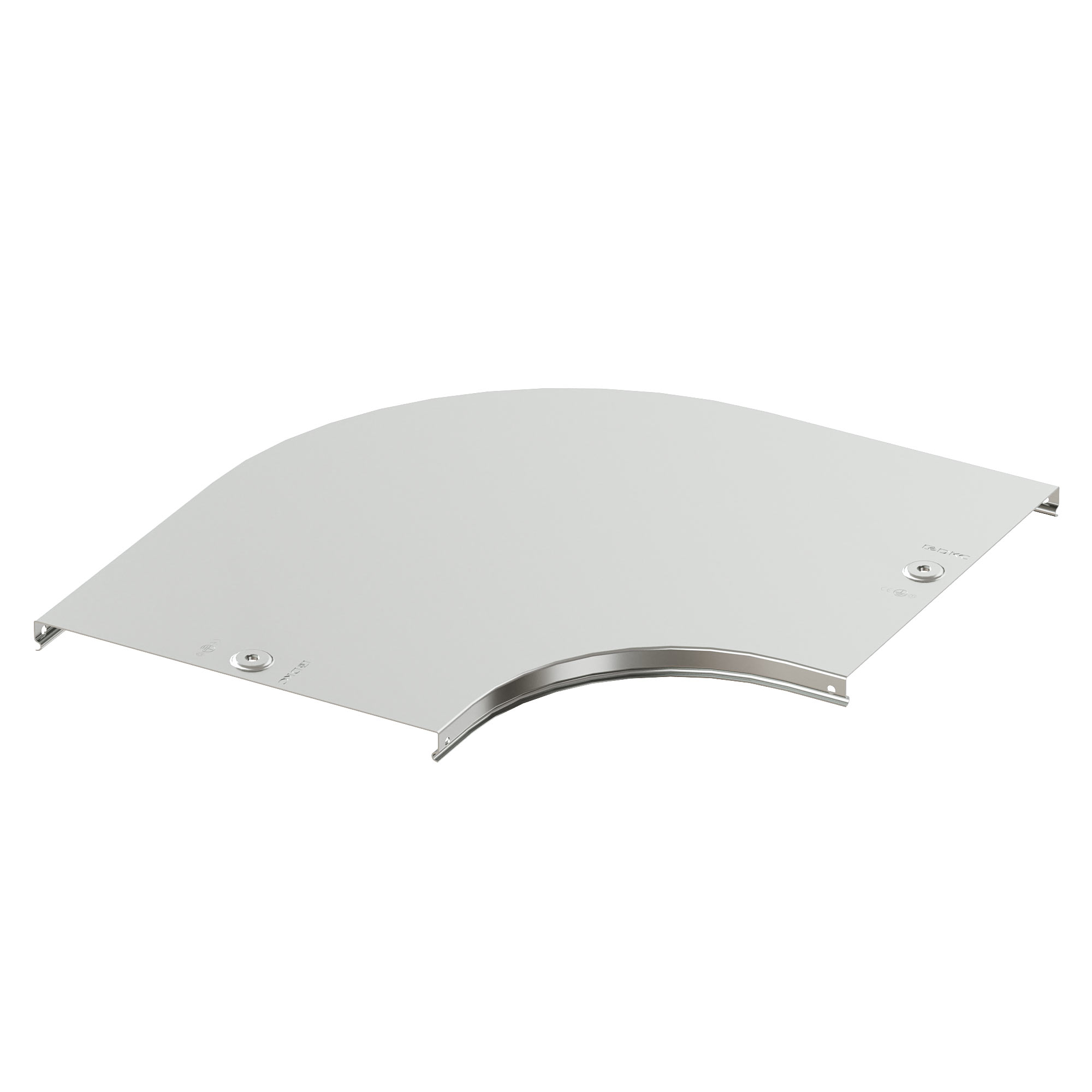

Cover for CPO 90 horizontal angle, b. 400 included with fasteners (joint plates PTCE, screws, nuts), zinc lamellar coating
Code:
38006KZL
Code:
38006KZL
| Colour | Light grey |
| Width, mm | 400 |
| Surface protection | Zinc lamellar coating |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Type of fastening | Snapped on |
| Change of direction | Horizontal |
| Hinging | Yes |
| Length, mm | 530 |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Covers for system accessories |
| Type of accessories | Cover for 90º Horizontal bend |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 400 mm |
