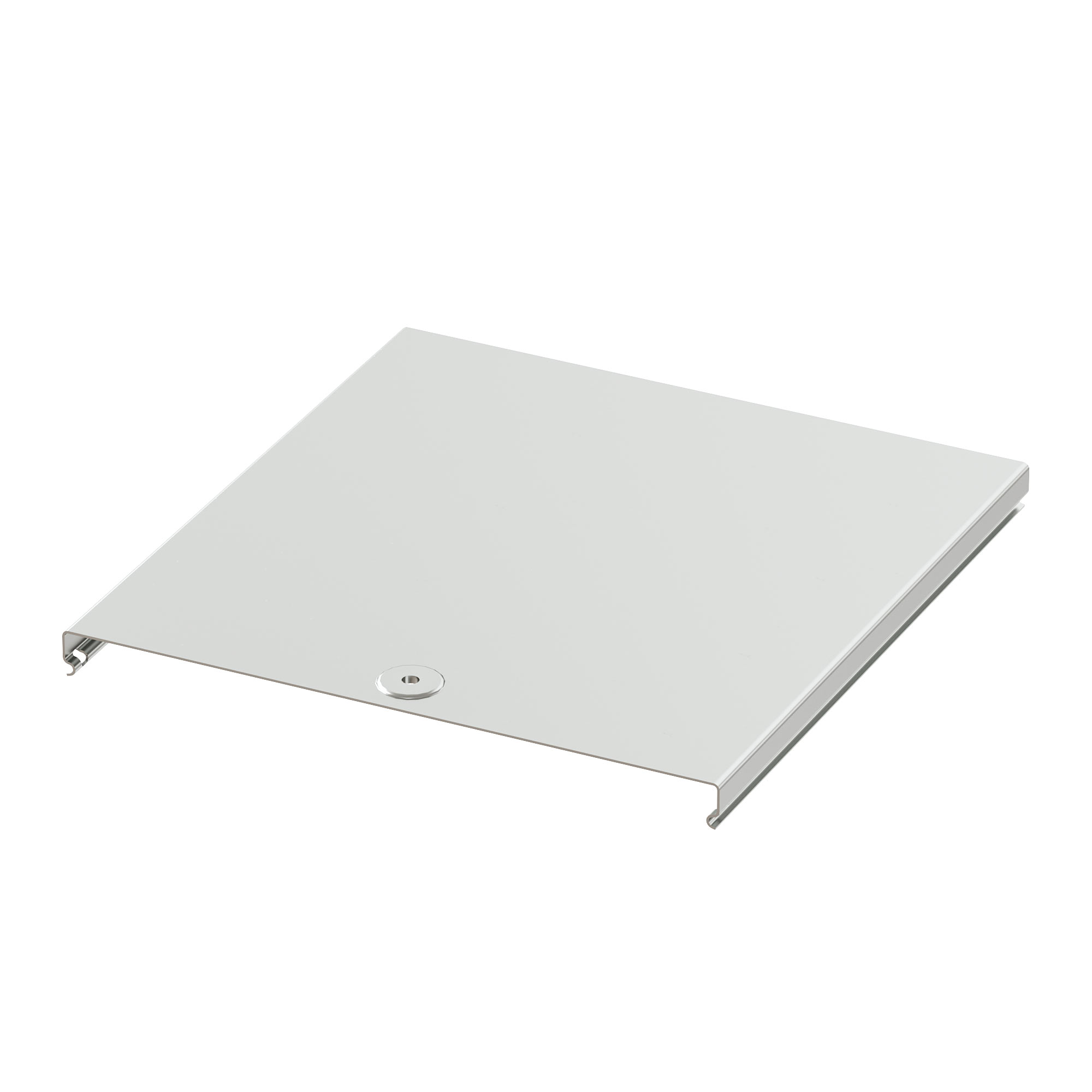

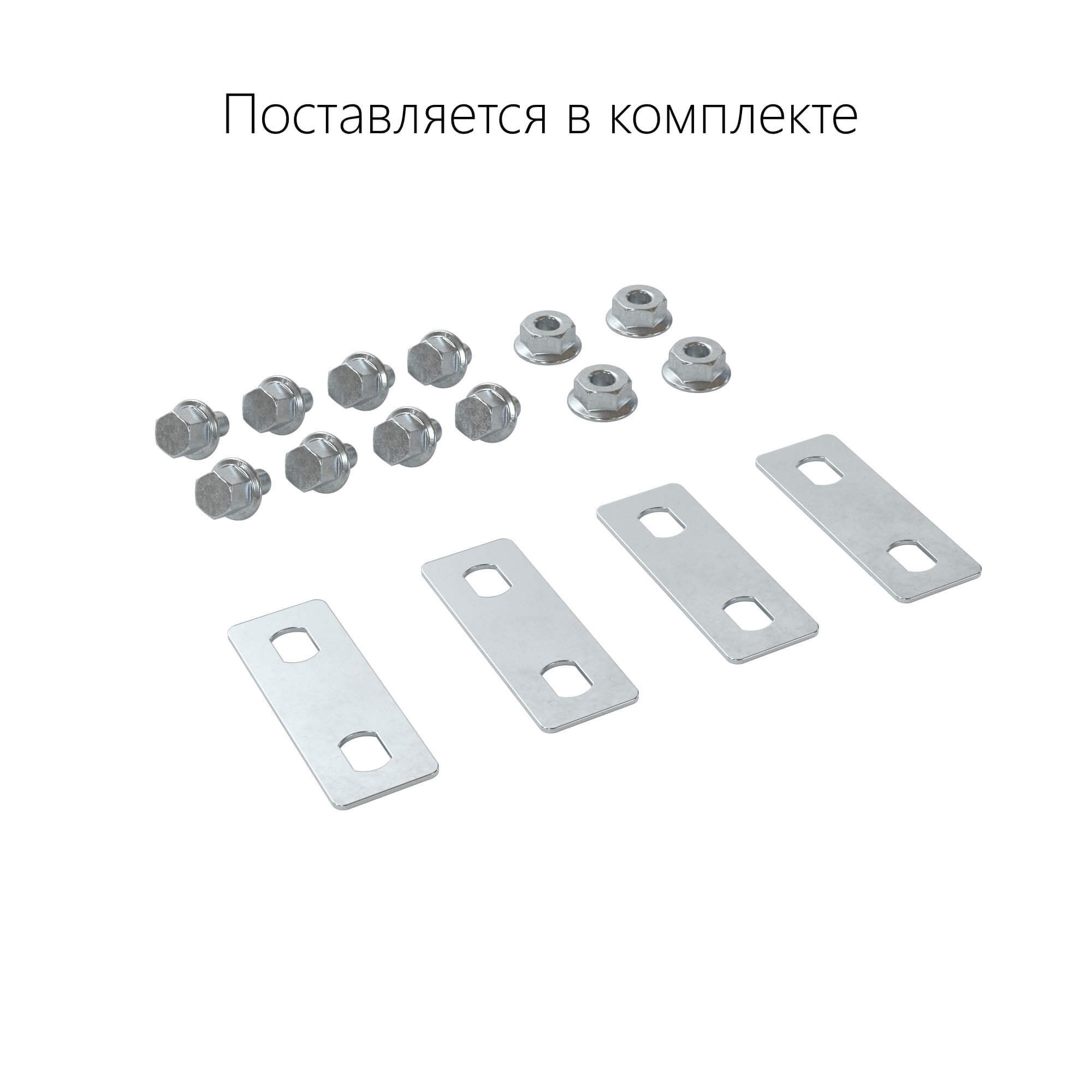

Cover for CDV 90 external vertical angle, 200 included with fasteners (joint plates PTCE, screws, nuts), hot galvanizing method
Code:
38343KHDZ
Code:
38343KHDZ
| Colour | Light grey |
| Width, mm | 200 |
| Surface protection | Hot-dip galvanized |
| Deflection (angle) | 90° |
| Material quality | Steel |
| Material | Steel |
| Type of fastening | Snapped on |
| Change of direction | Vertically declining |
| Hinging | Yes |
| Length, mm | 210 |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Cover for system accessories |
| Type of accessories | Cover for CDV 90 external vertical angle |
| Thickness | 0.8 mm |
| Material | Hot-dip galvanized |
| Width | 200 mm |
