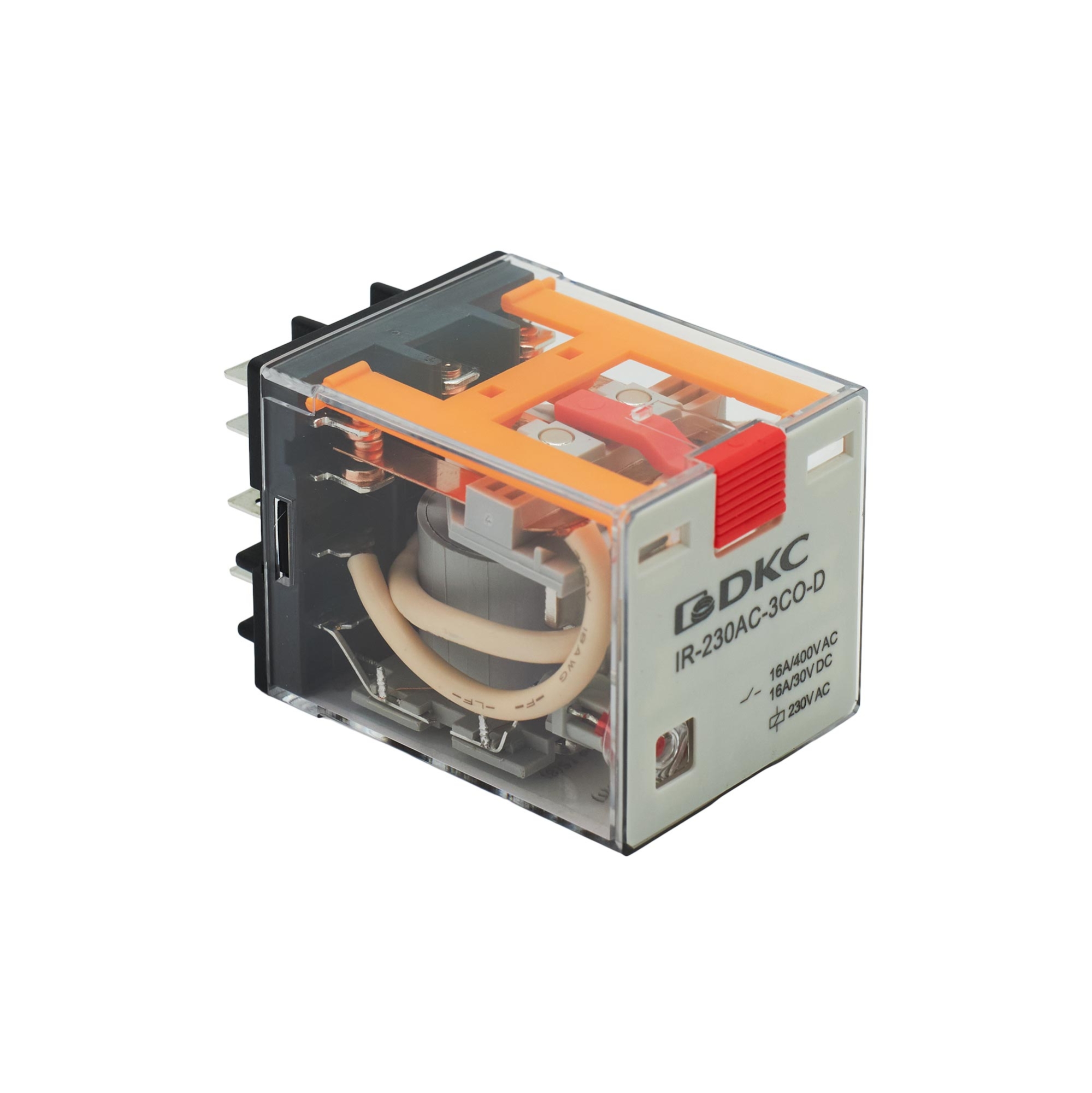

Miniature power relay, 3CO, 16A rated current, AgSnO₂, 230V AC voltage,option: LED+Test button

Code: IR-230AC-3CO-D
Miniature power relay, 3CO, 16A rated current, AgSnO₂, 230V AC voltage,option: LED+Test button
Miniature power relay, 3CO, 16A rated current, AgSnO₂, 230V AC voltage,option: LED+Test button
Code: IR-230AC-3CO-D
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Nominal current, A 16

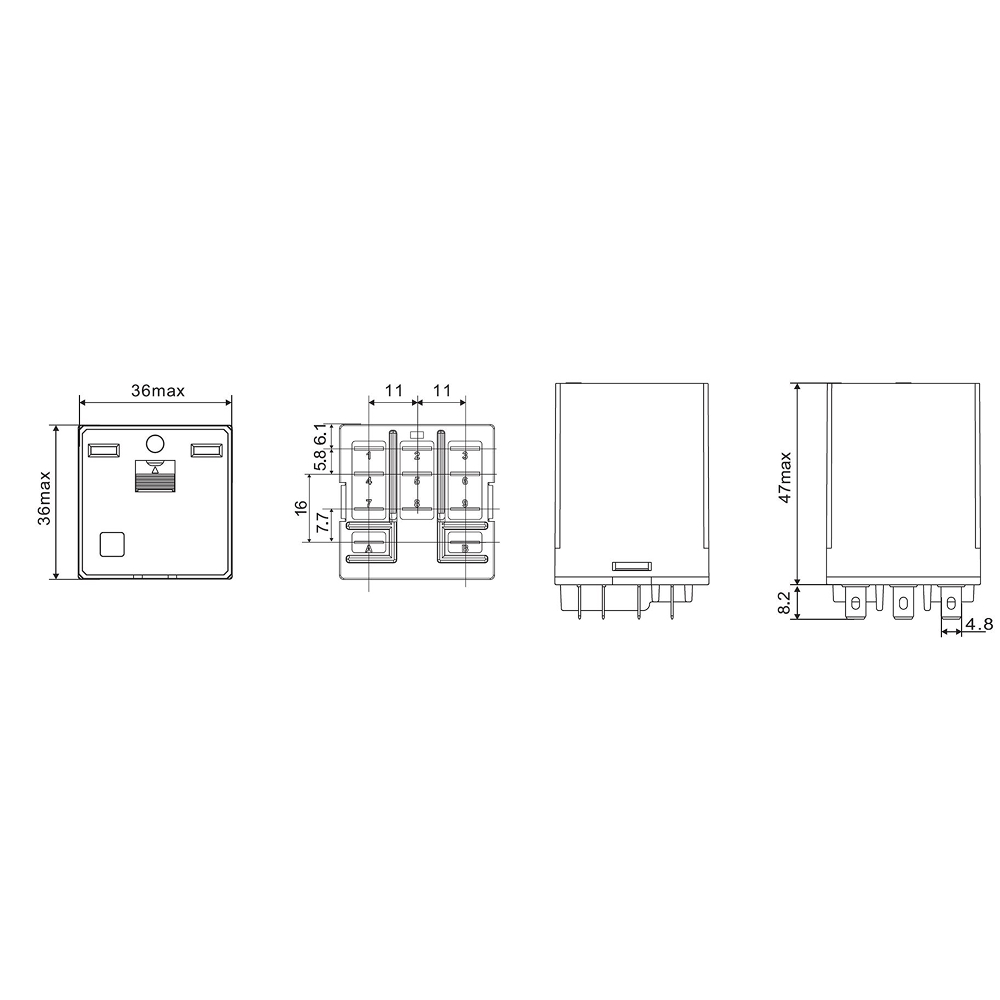

Width, mm 36
Height, mm 47
Depth, mm 36
With detachable clamps No
Drive, polarization Polarized
Drive, switching attitude Mono stable
With forced-guided contacts No
Type of switch contact Double contact
Complete with socket No
Type of electric connection Flat plug-in connection
Rated control supply voltage Us at AC 50HZ, V 230...230
Rated control supply voltage Us at AC 60HZ, V 230...230
Degree of protection (IP) IP50
With LED indication Yes
Voltage type for actuating AC
Number of contacts as change-over contact 3
