| Nominal current, A | 8 |

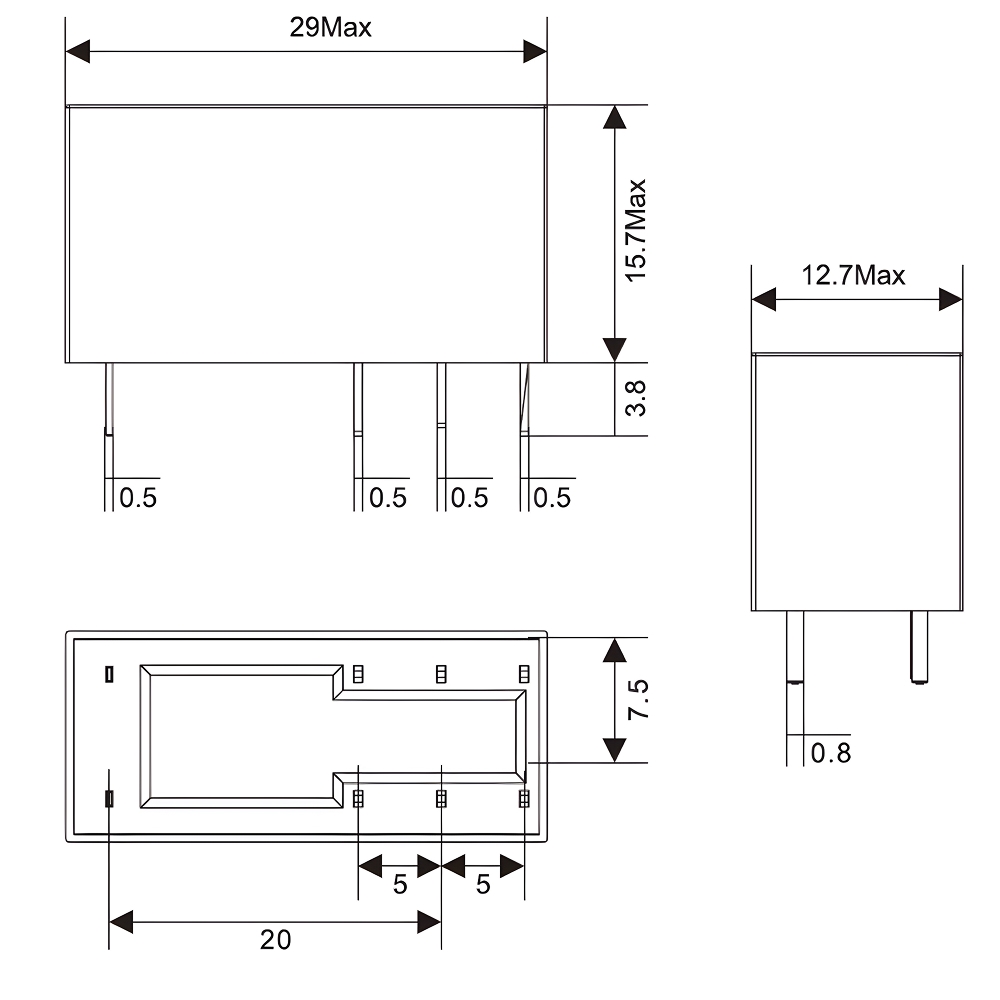

| Width, mm | 29 |
| Height, mm | 15.7 |
| Depth, mm | 12.7 |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Type of switch contact | Double contact |
| Complete with socket | No |
| Type of electric connection | Flat plug-in connection |
| Rated control supply voltage Us at AC 50HZ, V | 230...230 |
| Degree of protection (IP) | IP50 |
| Voltage type for actuating | AC |
| Number of contacts as change-over contact | 2 |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Rated control supply voltage Us at AC 60HZ, V | 230...230 |
| With LED indication | No |
