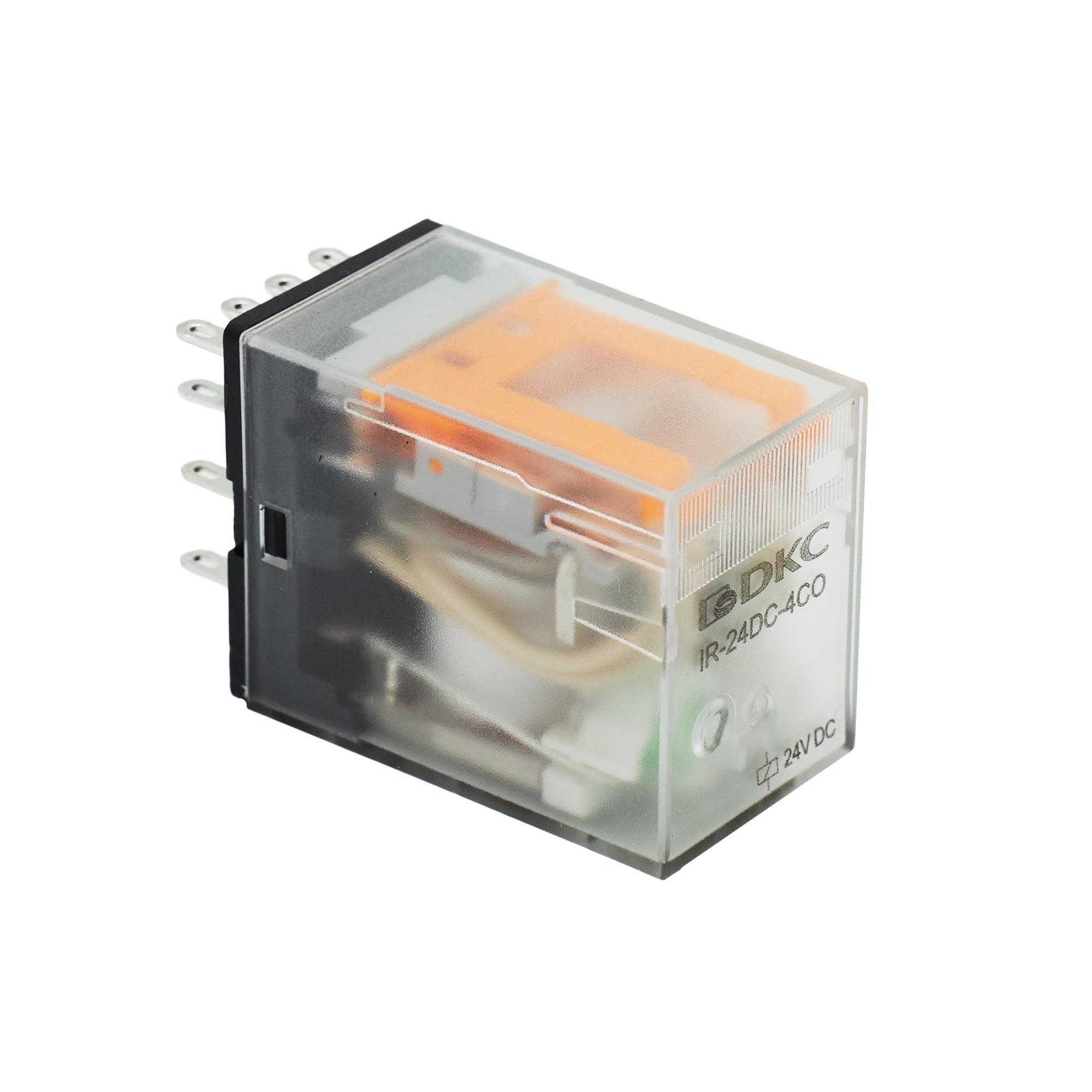

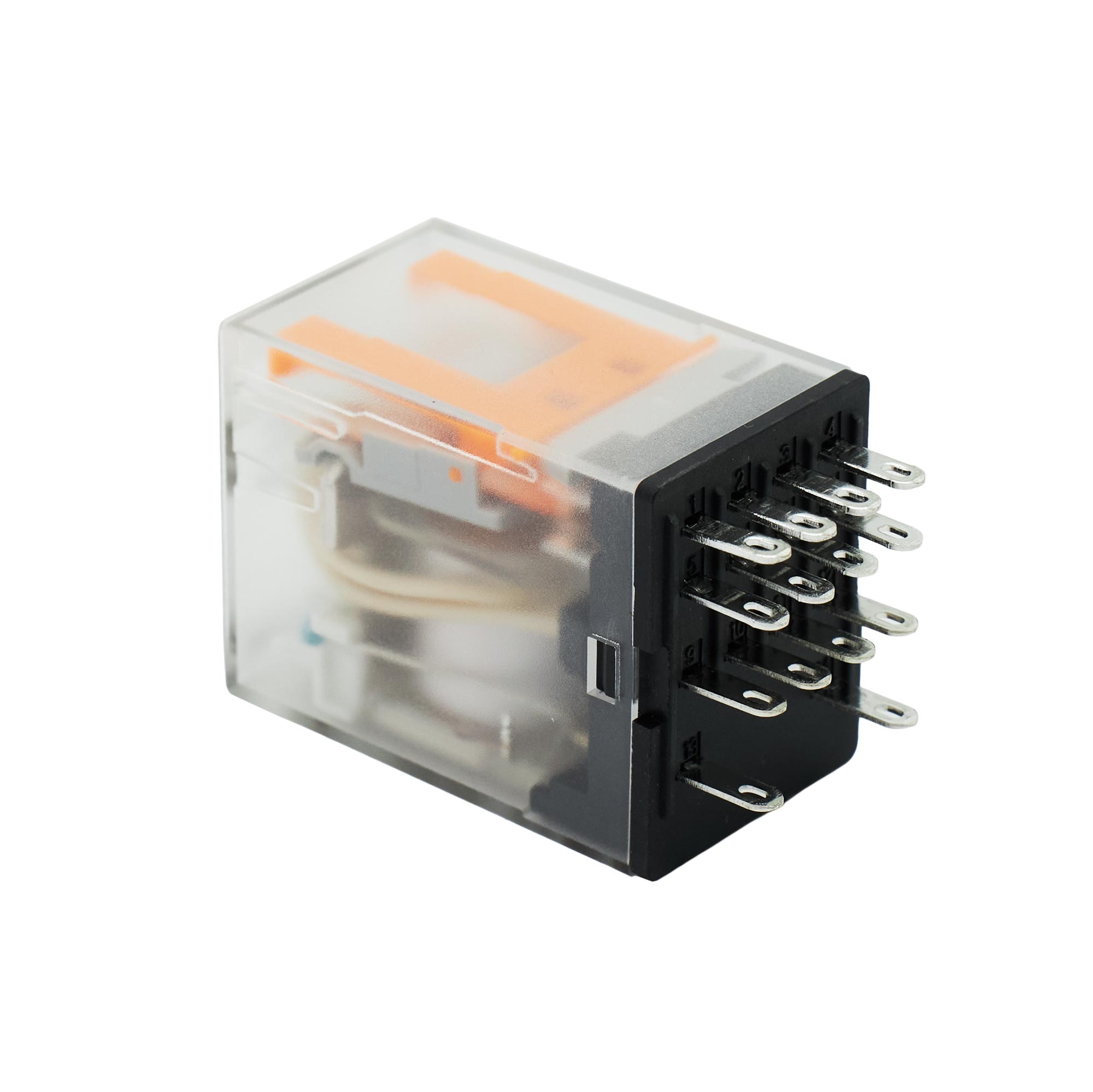

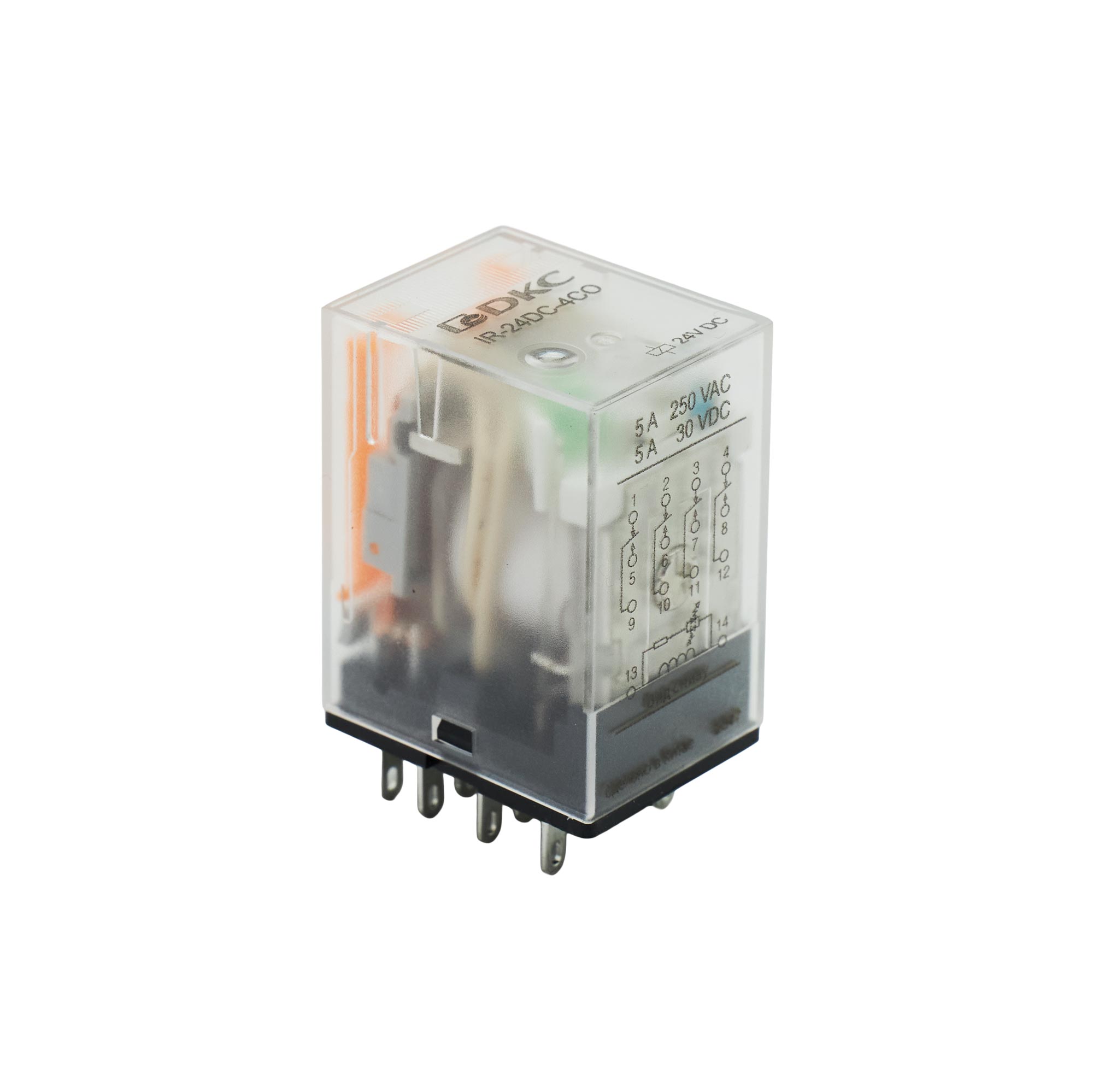

General purpose relay, 4CO, 5A rated current, AgSnO₂, 24V DC voltage,option: LED

Code: IR-24DC-4CO
General purpose relay, 4CO, 5A rated current, AgSnO₂, 24V DC voltage,option: LED
General purpose relay, 4CO, 5A rated current, AgSnO₂, 24V DC voltage,option: LED
Code: IR-24DC-4CO
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Nominal current, A 5

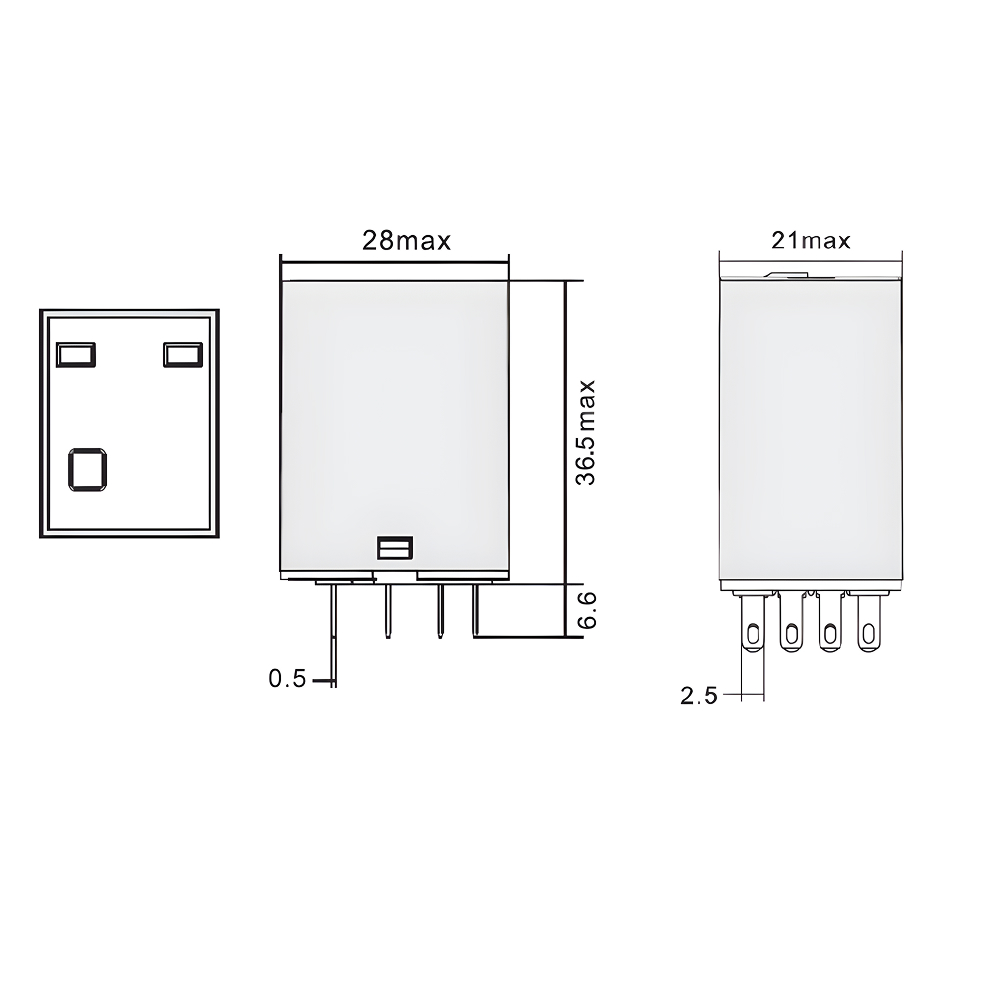

Width, mm 21.5
Height, mm 36.5
Depth, mm 28
With detachable clamps No
Drive, polarization Polarized
Drive, switching attitude Mono stable
With forced-guided contacts No
Type of switch contact Double contact
Complete with socket No
Type of electric connection Flat plug-in connection
Rated control supply voltage Us at DC, V 24...24
Degree of protection (IP) IP52
With LED indication Yes
Voltage type for actuating DC
Number of contacts as change-over contact 4
