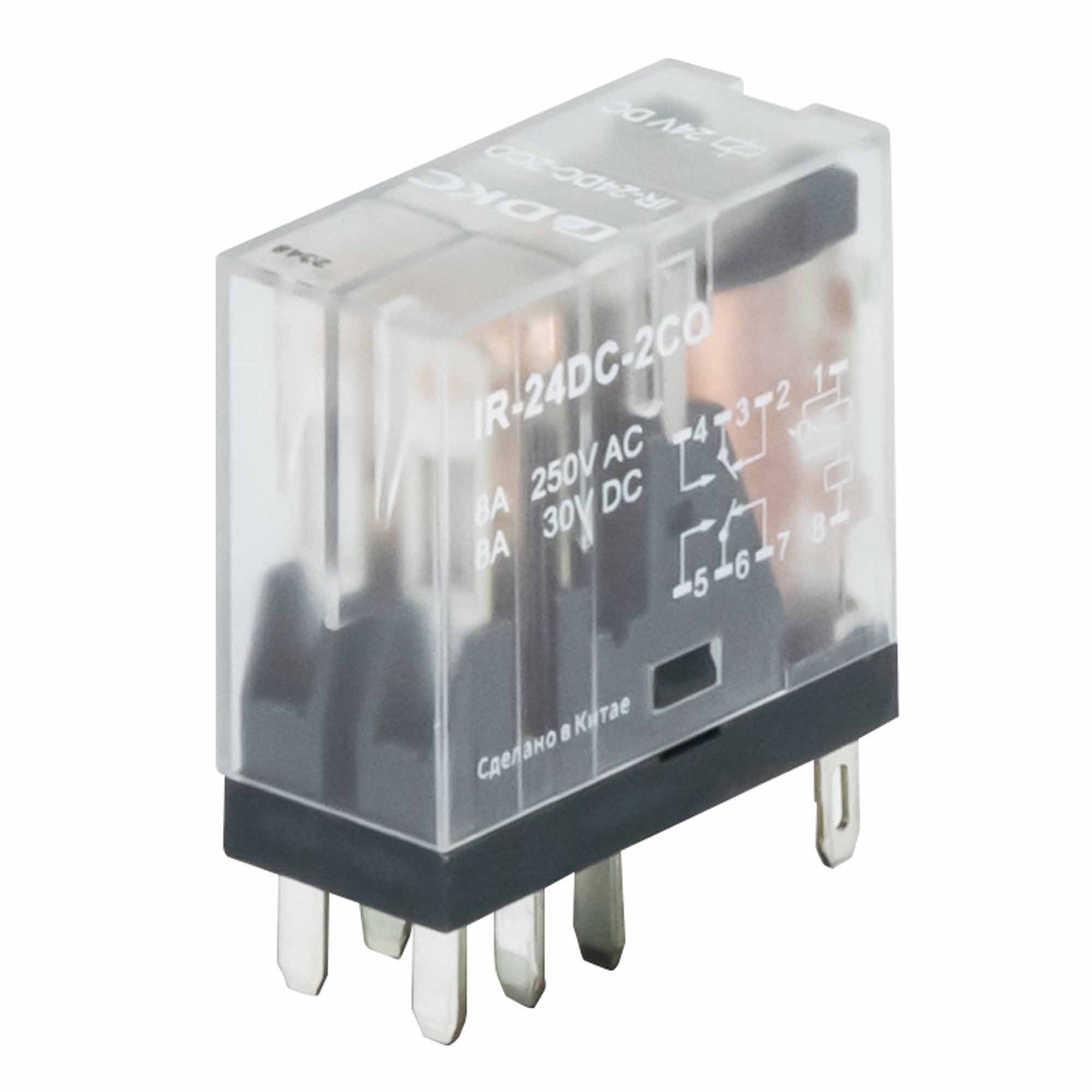

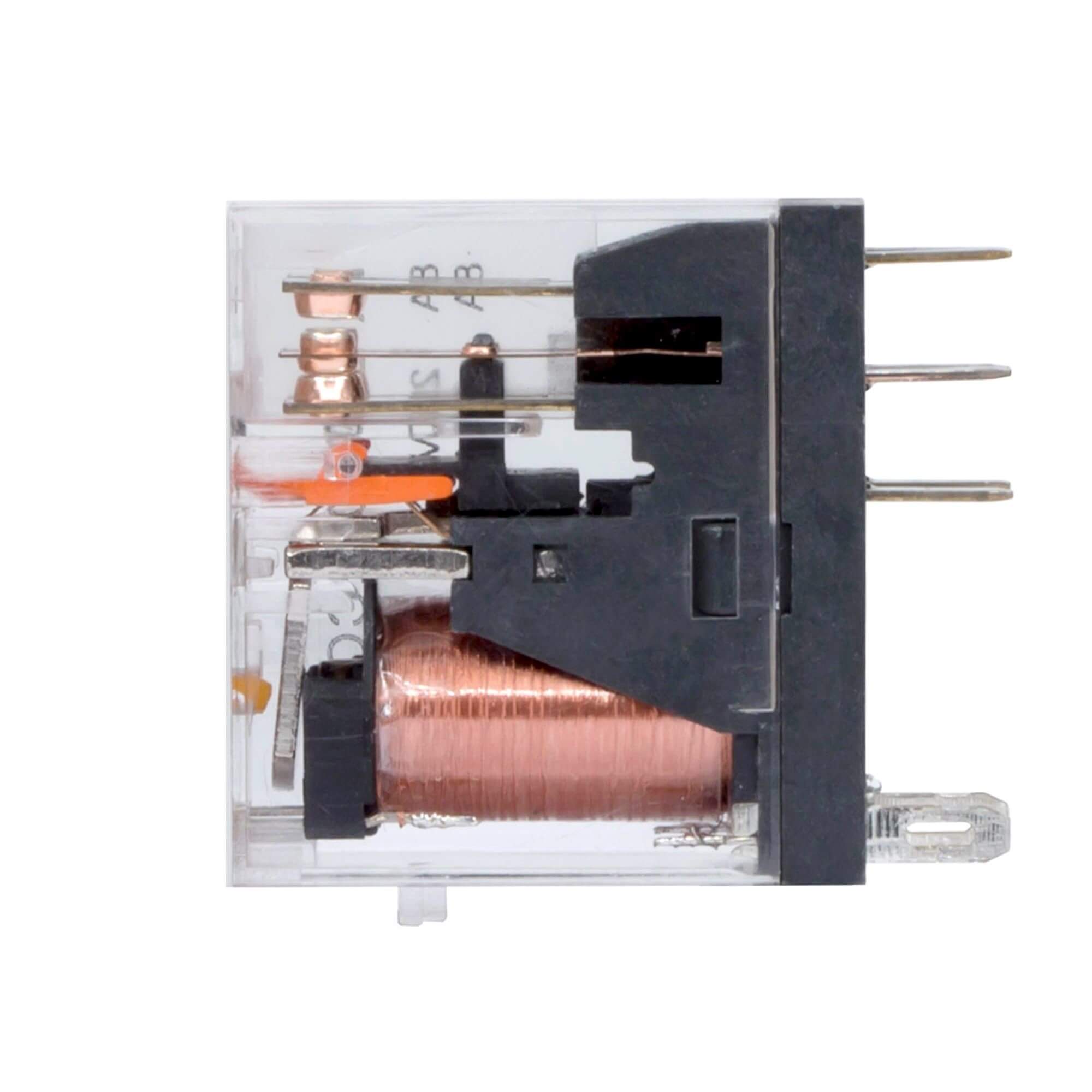

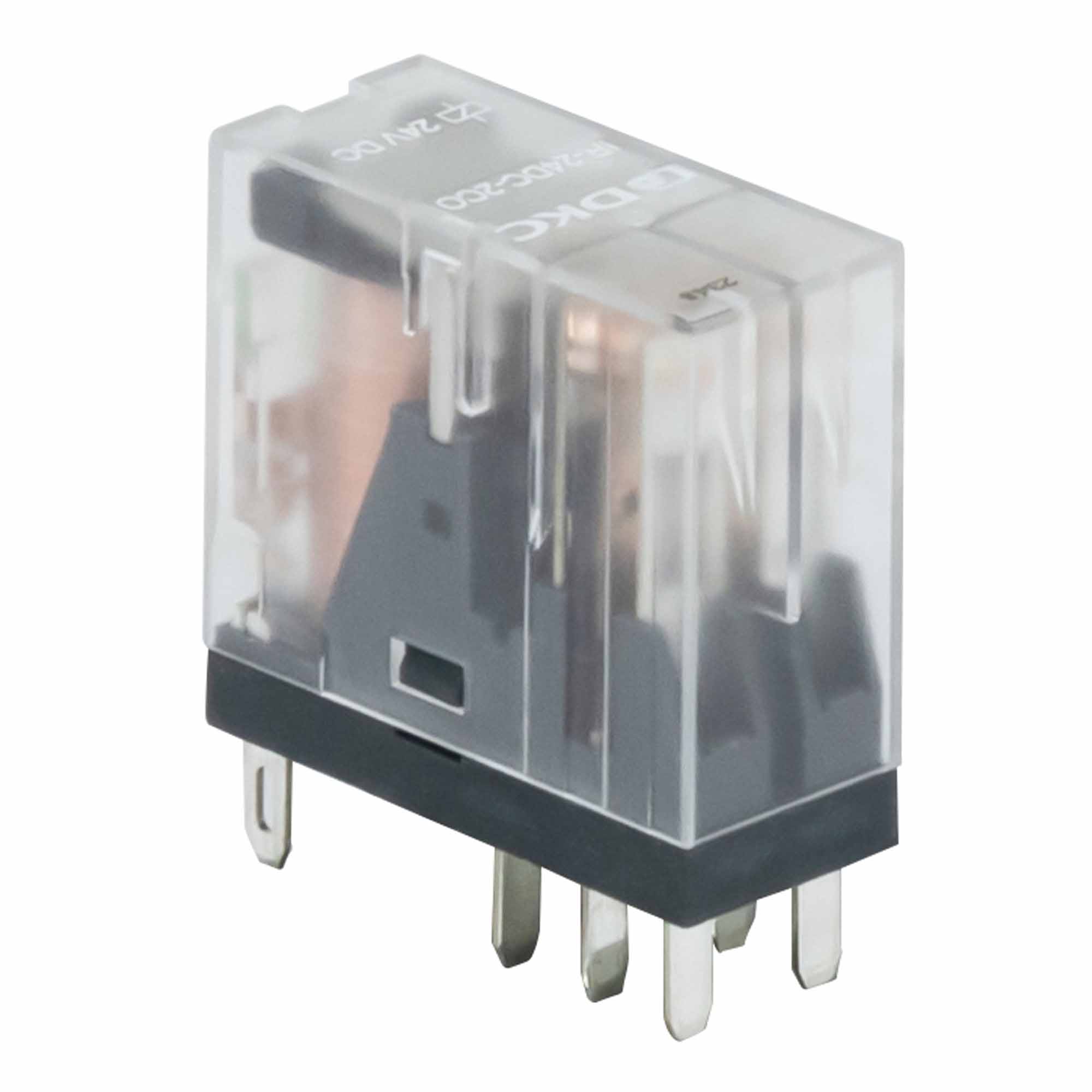

Miniature industrial relay, 2CO, 8A rated current, AgSnO₂, 24V DCvoltage, option: LED
Code:
IR-24DC-2CO
Miniature industrial relay, 2CO, 8A rated current, AgSnO₂, 24V DCvoltage, option: LED
Code:
IR-24DC-2CO
Nominal current, A | 8 |

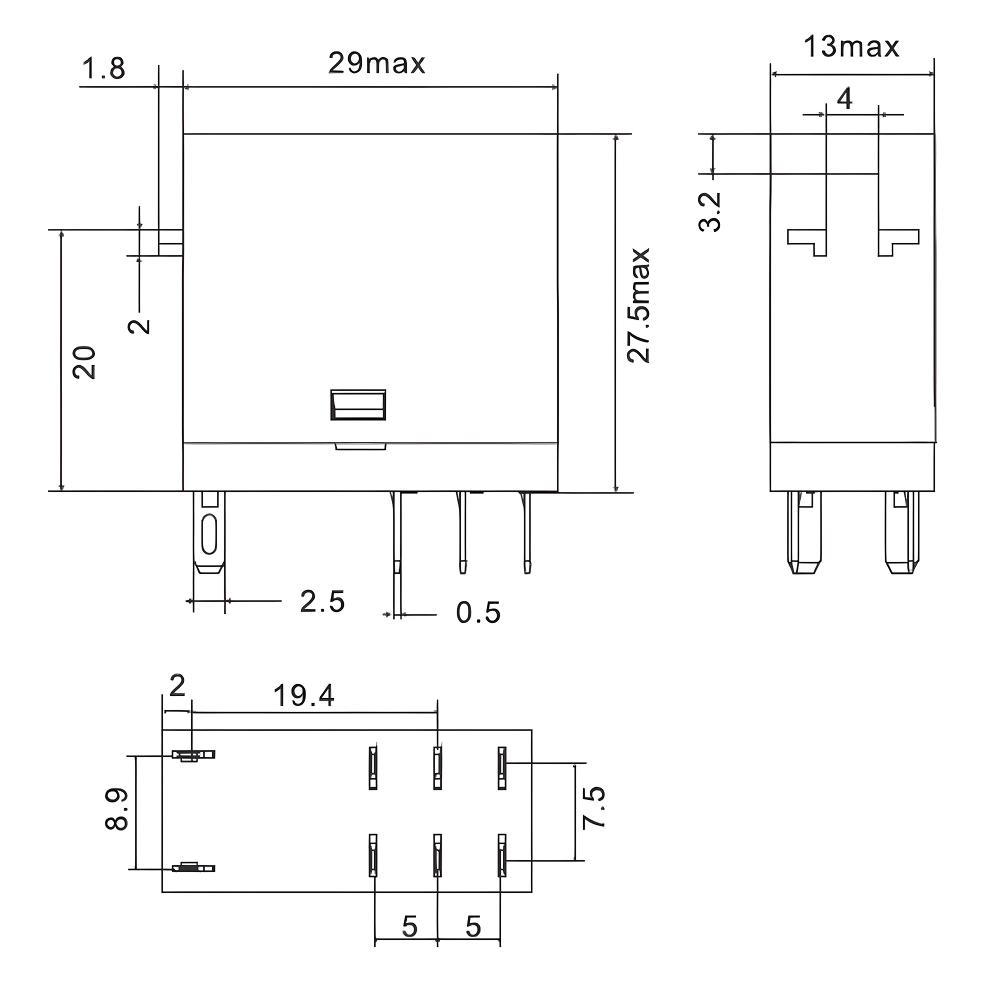

Width, mm | 13 |
Height, mm | 27.5 |
Depth, mm | 29 |
With detachable clamps | No |
Drive, polarization | Polarized |
Drive, switching attitude | Mono stable |
With forced-guided contacts | No |
Type of switch contact | Single contact |
Complete with socket | No |
Type of electric connection | Plug-in connection |
Rated control supply voltage Us at DC, V | 24...24 |
Degree of protection (IP) | IP50 |
With LED indication | Yes |
Voltage type for actuating | DC |
Number of contacts as change-over contact | 2 |
