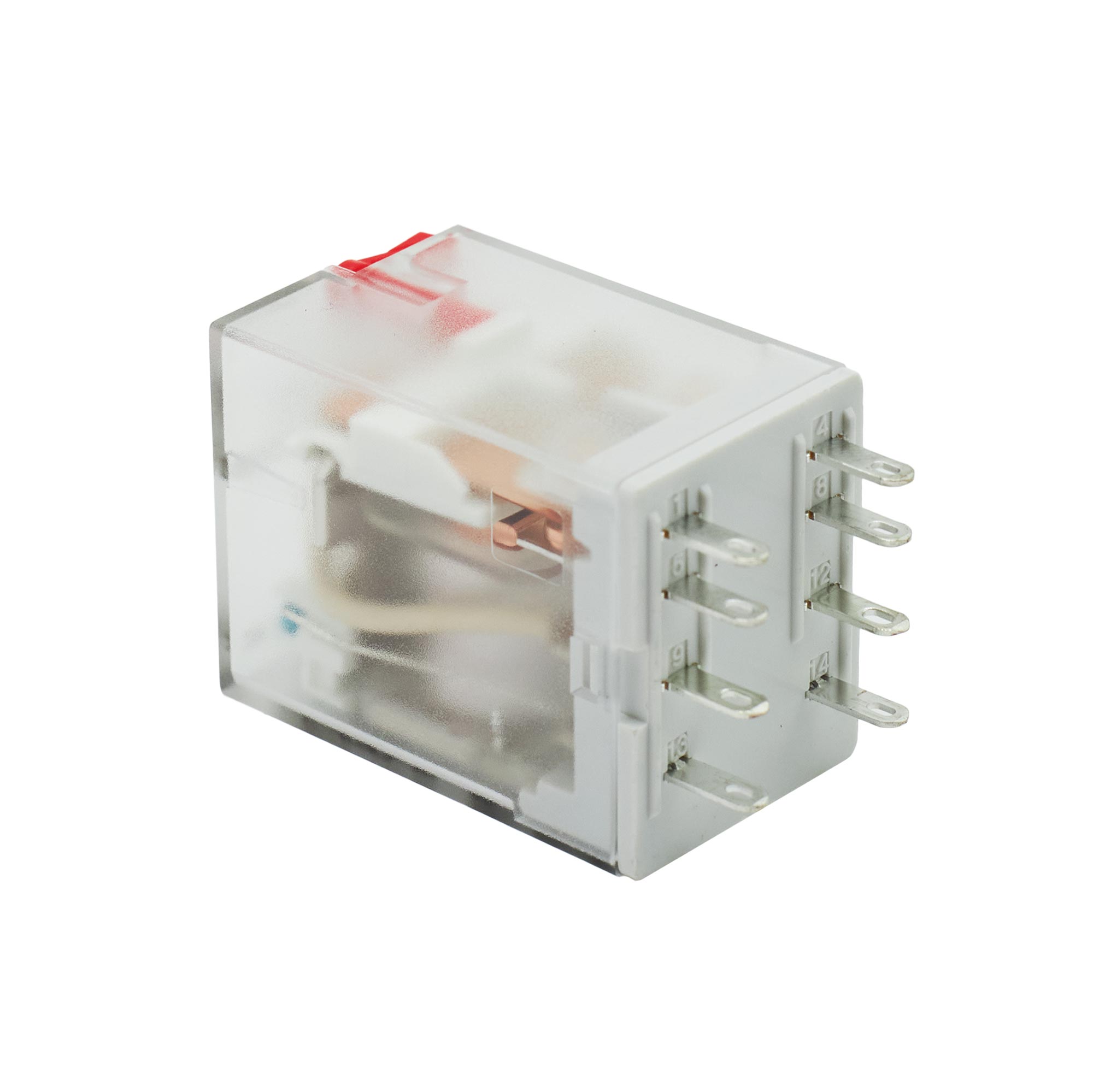

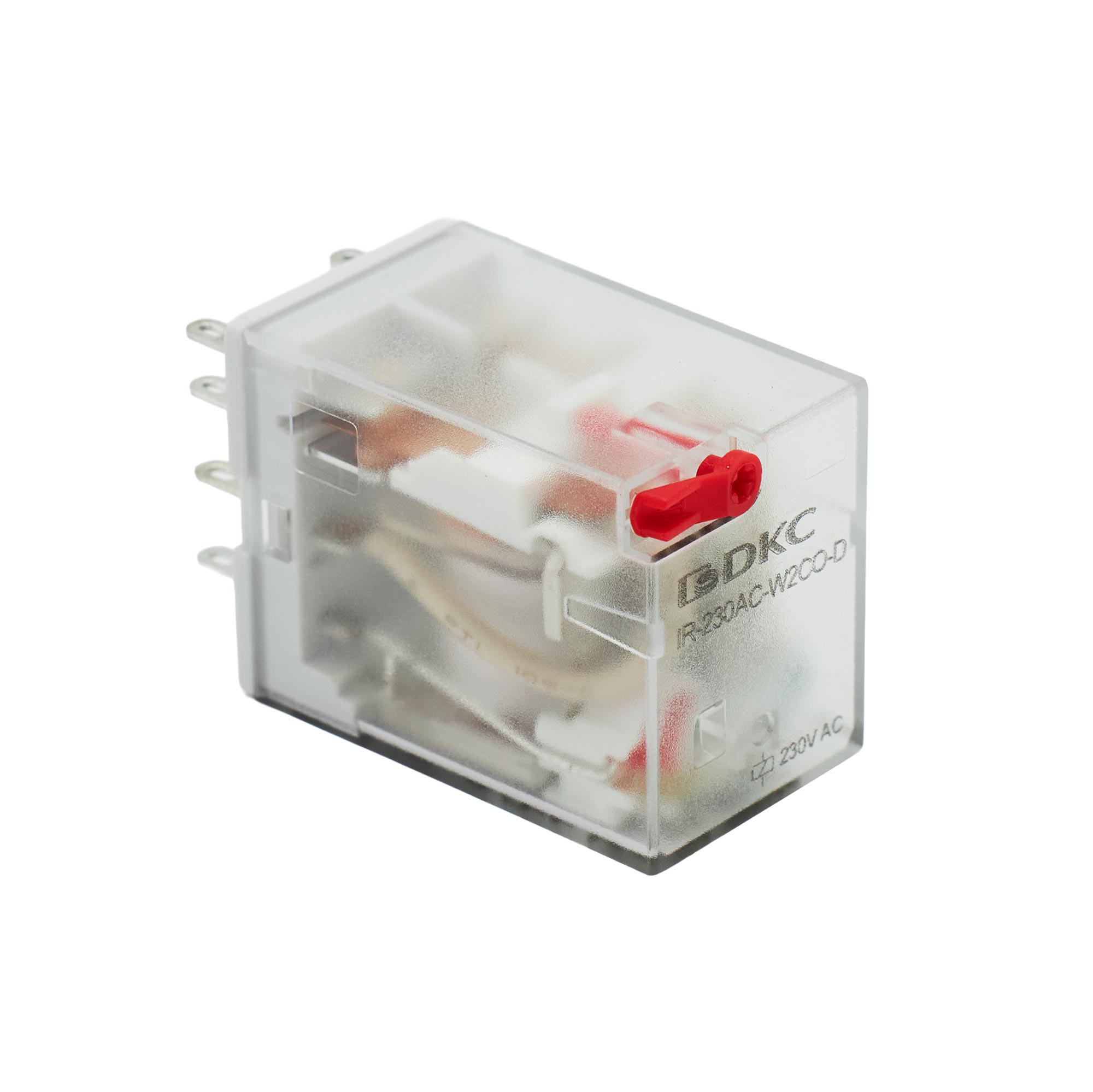

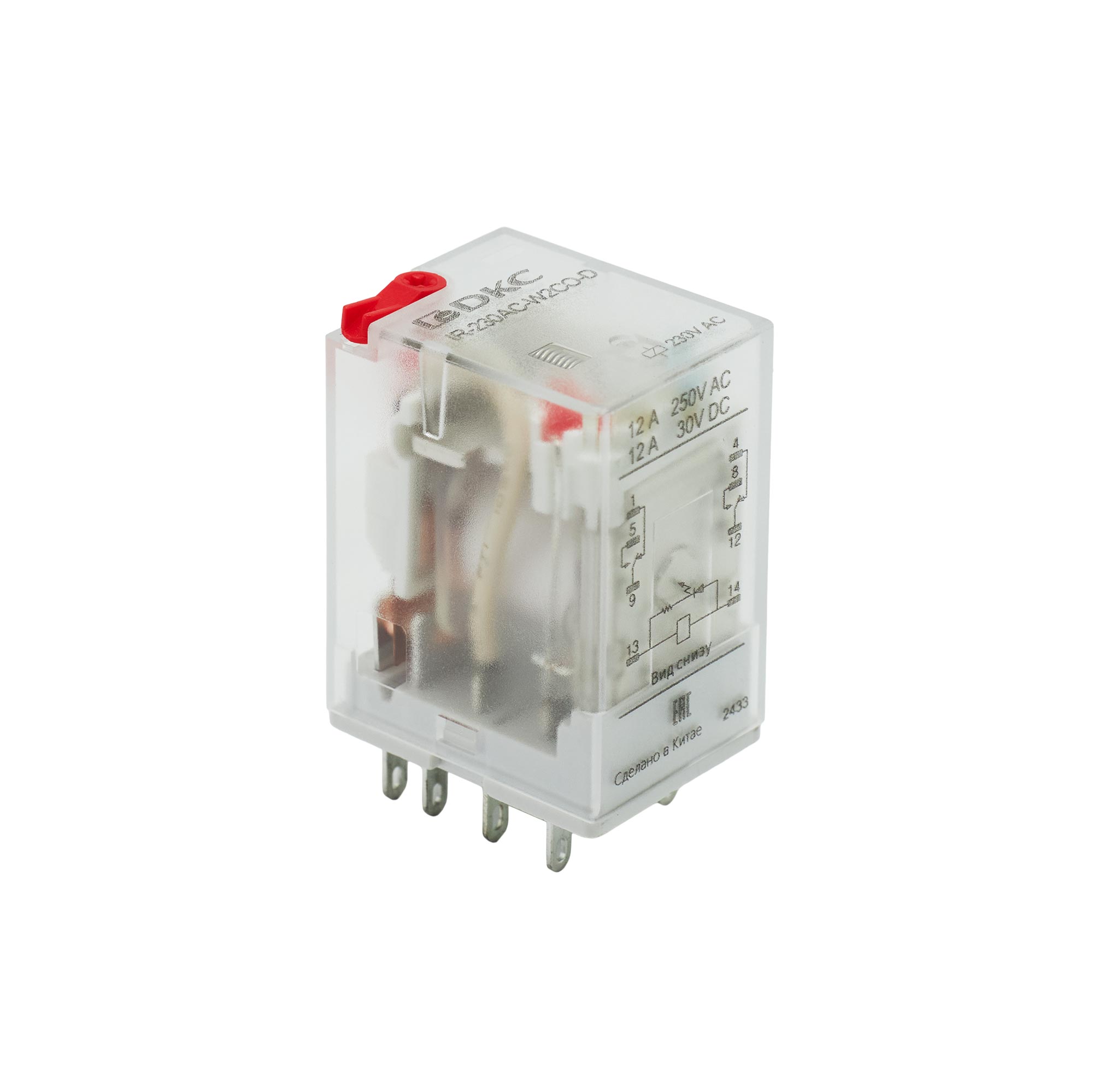

Industrial single relay, 2CO, 12A, LED+Test button, 230V AC
Code:
IR-230AC-W2CO-D
Code:
IR-230AC-W2CO-D
| Nominal current, A | 12 |

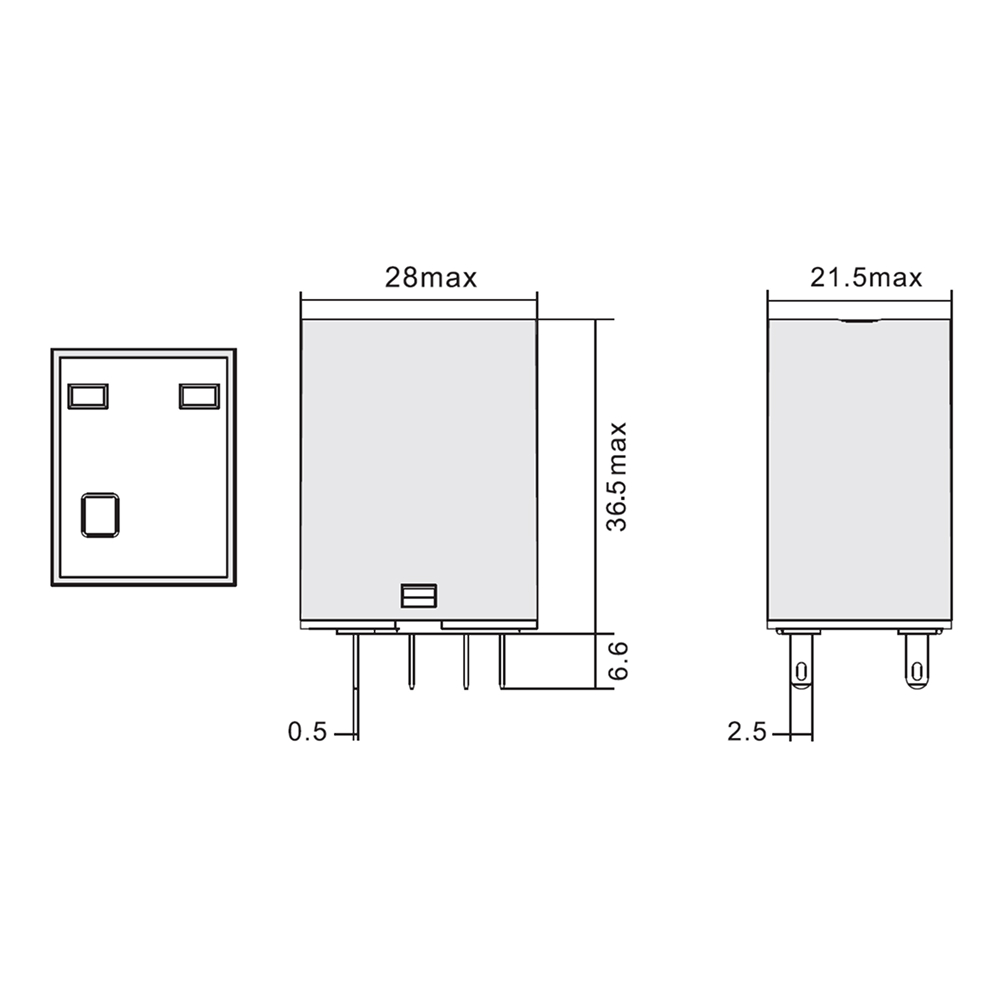

| Width, mm | 27.5 |
| Height, mm | 36.5 |
| Depth, mm | 21 |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Complete with socket | No |
| Type of electric connection | Flat plug-in connection |
| Rated control supply voltage Us at AC 50HZ, V | 230...230 |
| Degree of protection (IP) | IP50 |
| With LED indication | Yes |
| Voltage type for actuating | AC |
| Number of contacts as change-over contact | 2 |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Type of switch contact | Double contact |
| Rated control supply voltage Us at AC 60HZ, V | 230...230 |
