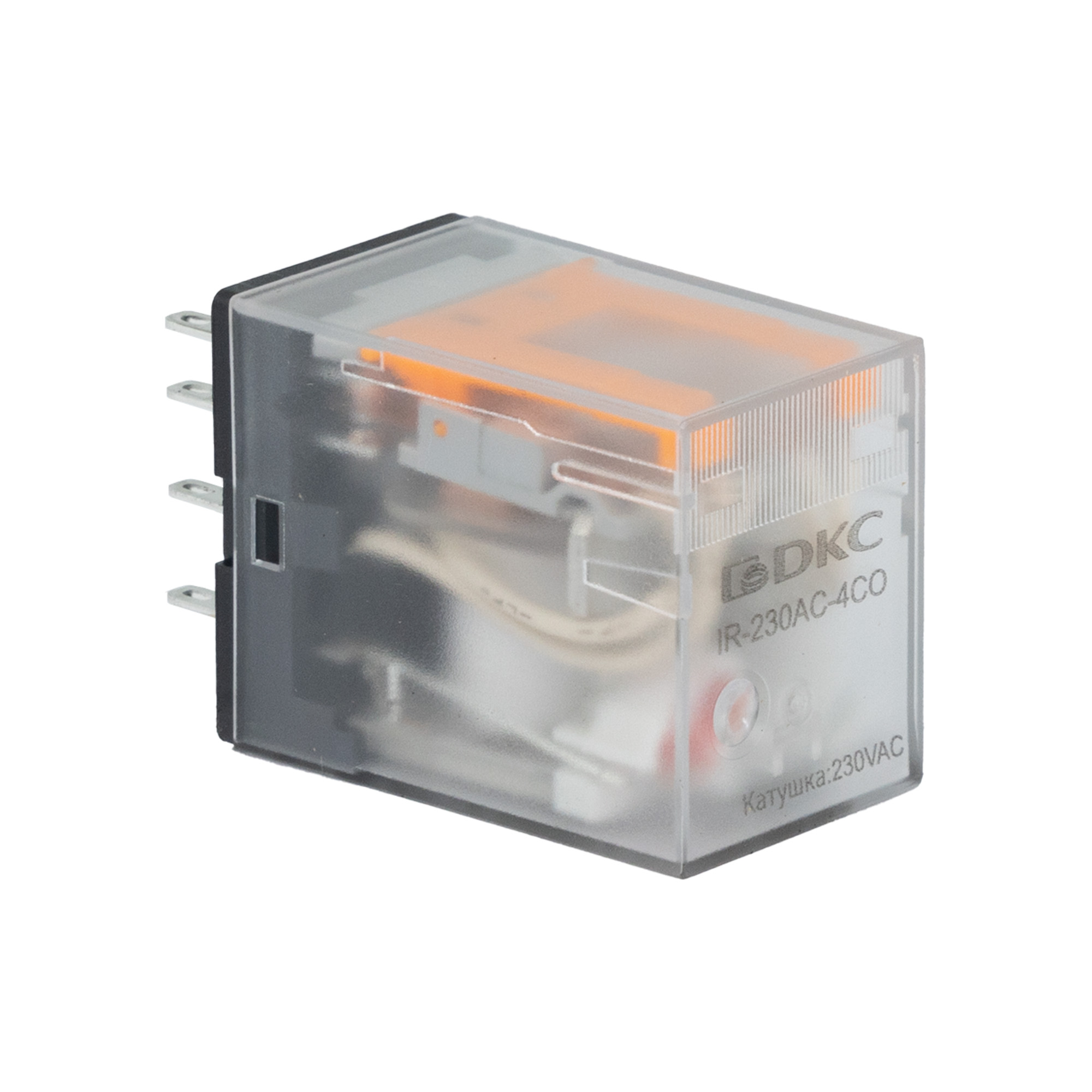

General purpose relay, 4CO, 5A rated current, AgSnO₂, 230V AC voltage,option: LED
Code:
IR-230AC-4CO
General purpose relay, 4CO, 5A rated current, AgSnO₂, 230V AC voltage,option: LED
Code:
IR-230AC-4CO
Nominal current, A | 5 |

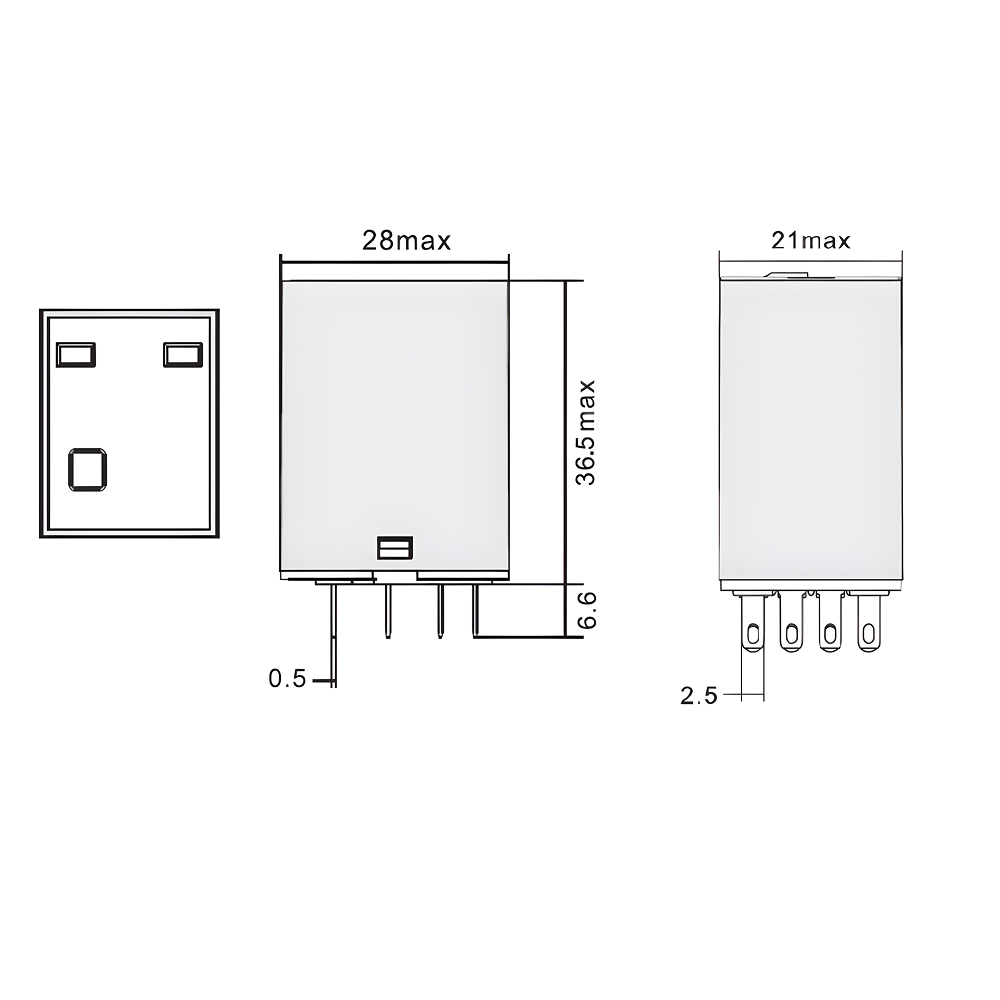

Width, mm | 21.5 |
Height, mm | 36.5 |
Depth, mm | 28 |
With detachable clamps | No |
Drive, polarization | Polarized |
Drive, switching attitude | Mono stable |
With forced-guided contacts | No |
Type of switch contact | Single contact |
Complete with socket | No |
Type of electric connection | Plug-in connection |
Rated control supply voltage Us at AC 50HZ, V | 230...230 |
Rated control supply voltage Us at AC 60HZ, V | 230...230 |
Degree of protection (IP) | IP52 |
With LED indication | Yes |
Voltage type for actuating | AC |
Number of contacts as change-over contact | 4 |
