Base element, 2CO, screw terminals, low profile for relay version IR-W2CO

Code: IR-B2W-SC-1
Base element, 2CO, screw terminals, low profile for relay version IR-W2CO
Base element, 2CO, screw terminals, low profile for relay version IR-W2CO
Code: IR-B2W-SC-1
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items

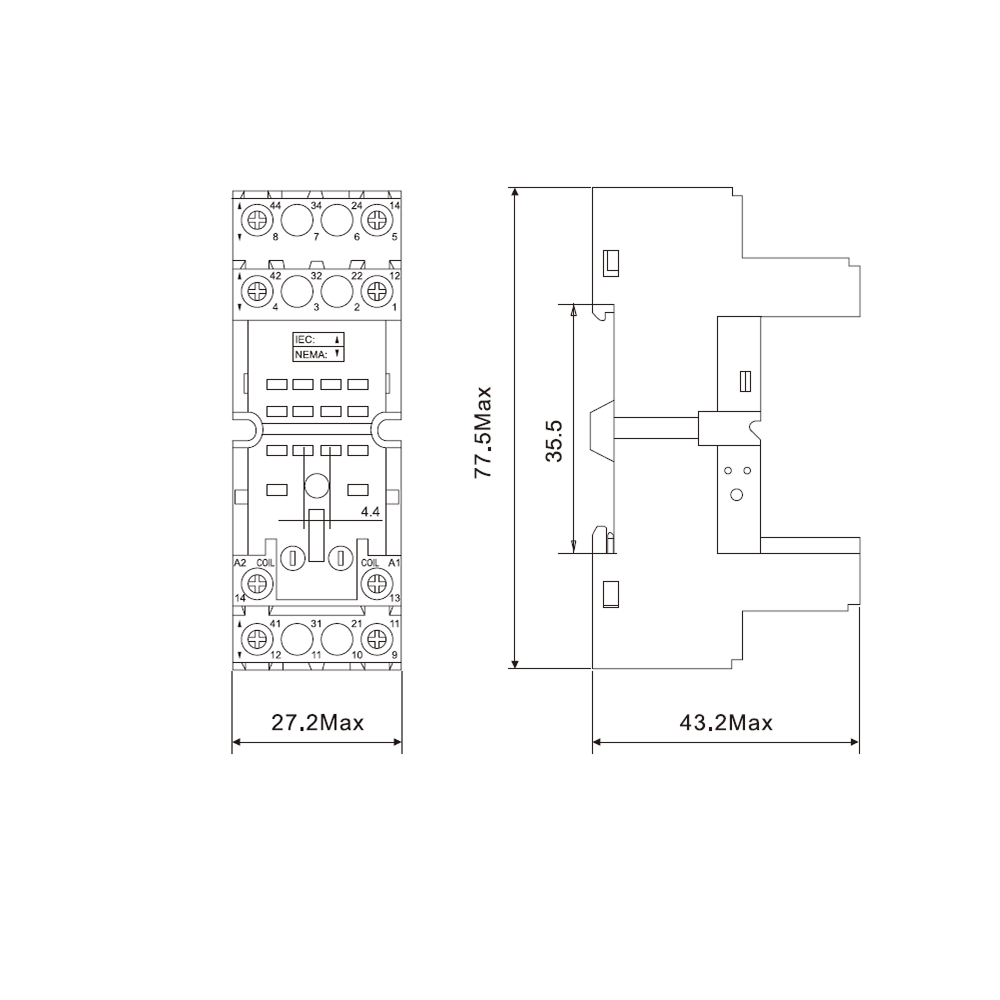

Mounting method DIN rail (top hat rail) 35 mm
Width, mm 77.5
Height, mm 43.2
Depth, mm 27.2
With detachable clamps No
Function extension possible No
Type of electric connection Screw connection
Operating voltage, V 300...300
Number of pins 8
Rated operation current Ie at AC-1, A 12
Modular version No
