| Mounting method | DIN rail (top hat rail) 35 mm |
| Width, mm | 16 |
| Height, mm | 43 |
| Depth, mm | 120 |
| With detachable clamps | No |
| Type of electric connection | Spring clamp connection |
| Function extension possible | No |
| Modular version | No |
| Operating voltage, V | 300...300 |

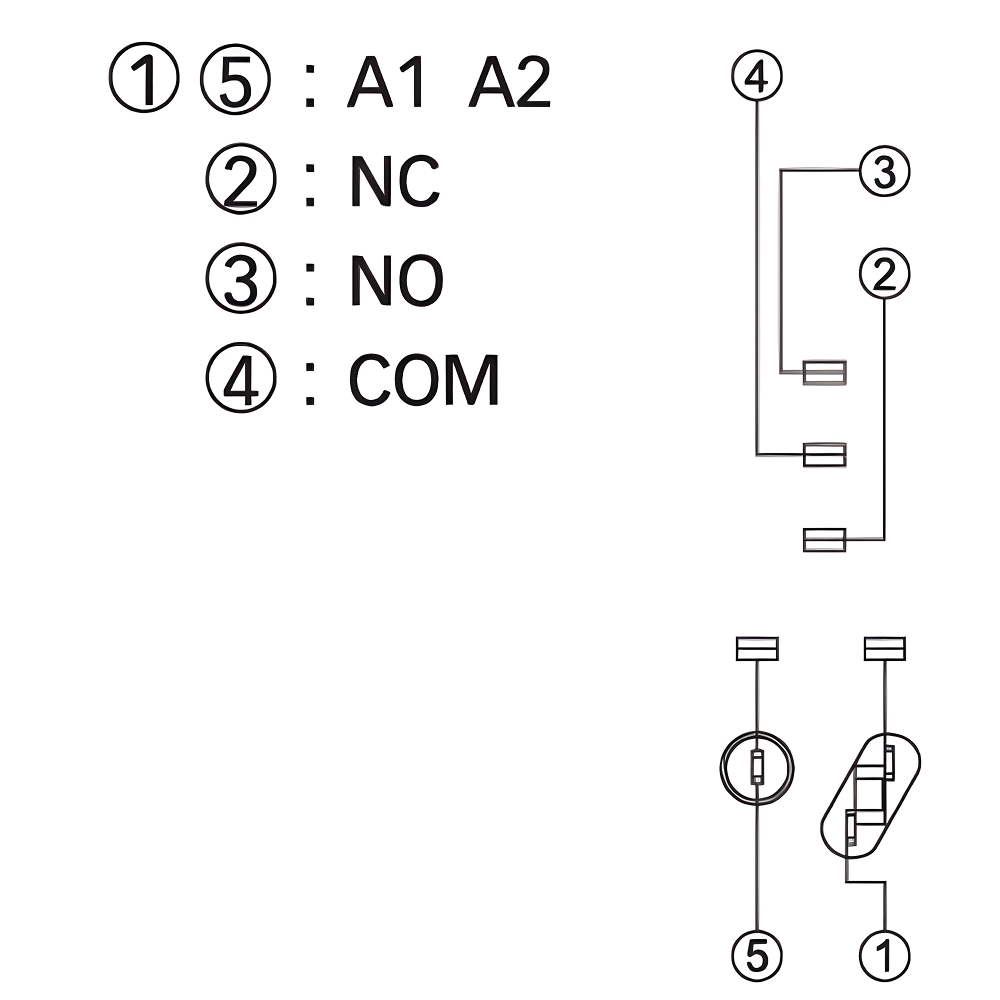

| Number of pins | 5 |
| Rated operation current Ie at AC-1, A | 16 |
