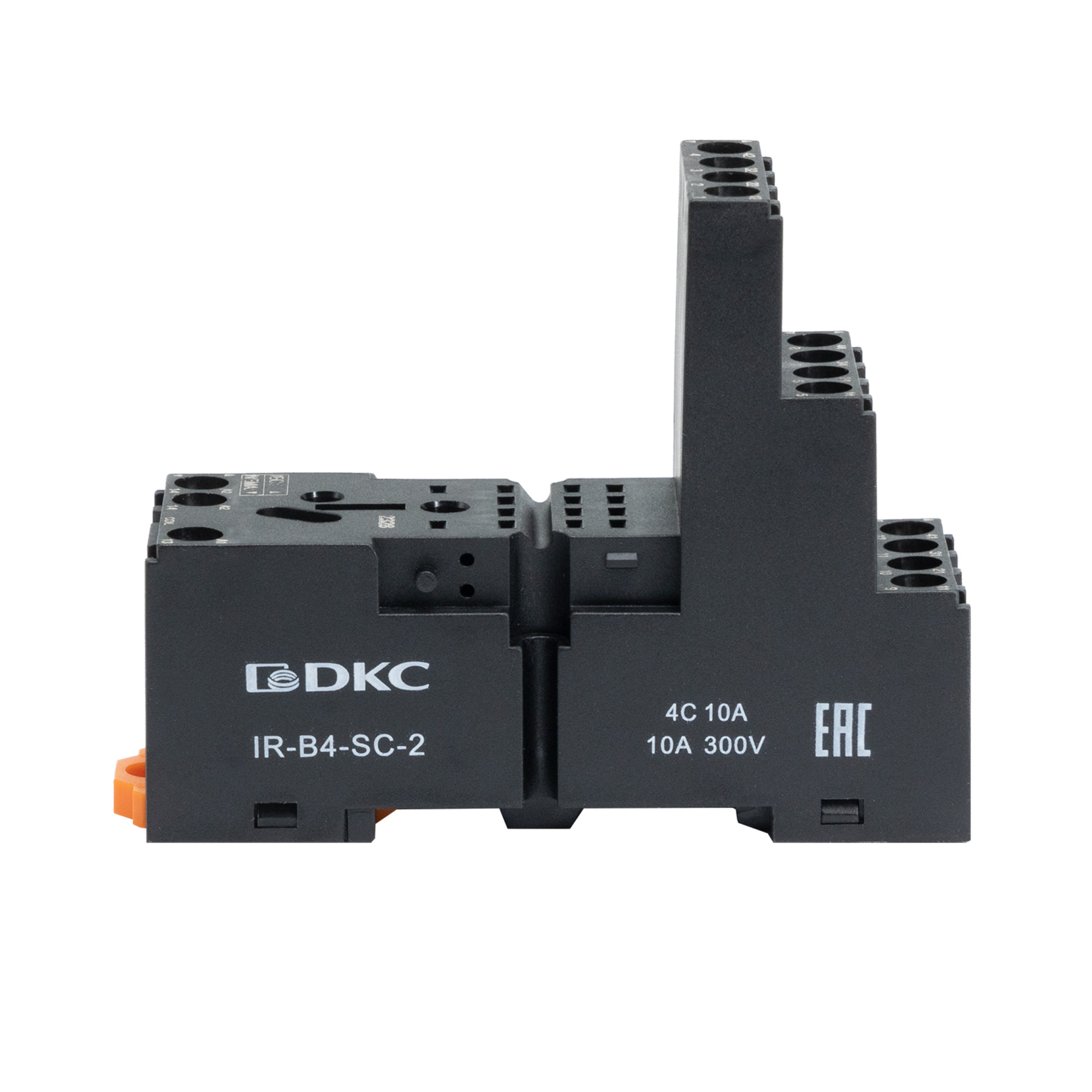

3-level socket with screw terminals for relay for 4 group of contacts

Code: IR-B4-SC-2
3-level socket with screw terminals for relay for 4 group of contacts
3-level socket with screw terminals for relay for 4 group of contacts
Code: IR-B4-SC-2
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method DIN rail (top hat rail) 35 mm

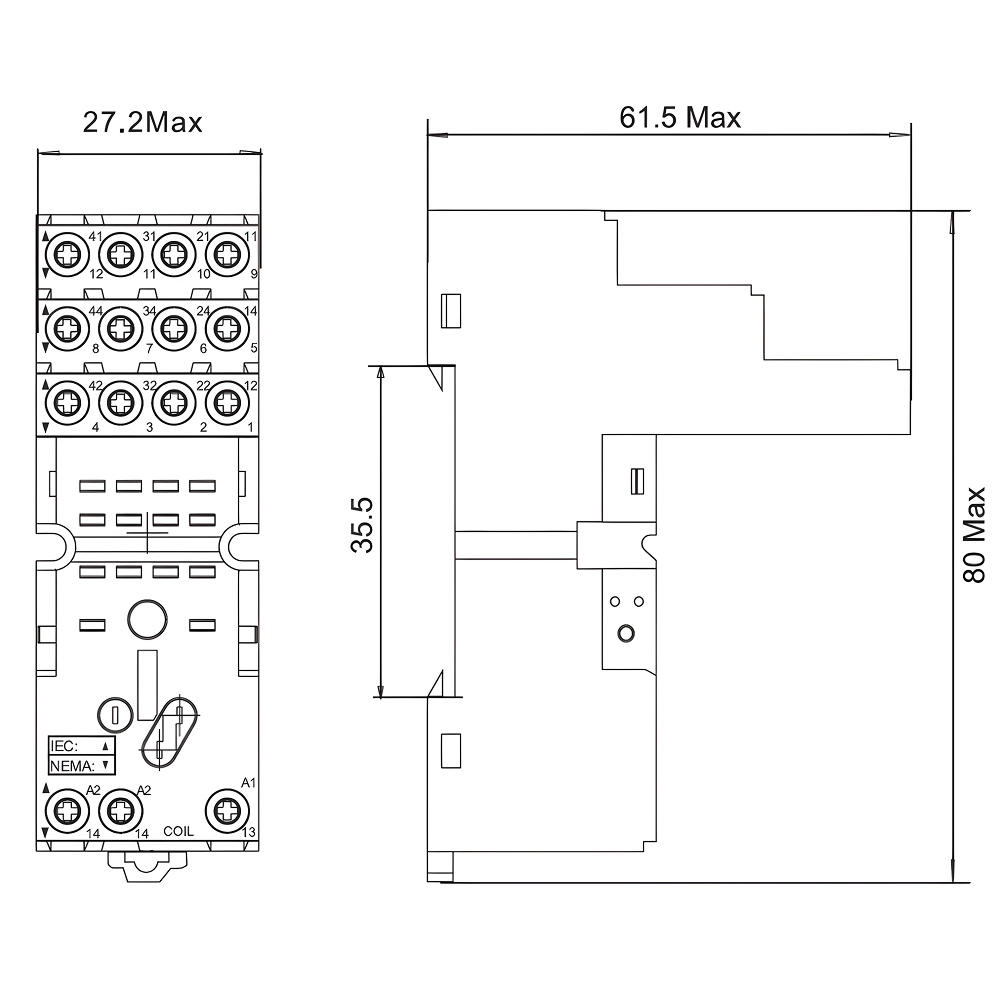

Width, mm 27.2
Height, mm 61.5
Depth, mm 80
With detachable clamps No
Type of electric connection Screw connection
Function extension possible No
Modular version No
Operating voltage, V 300...300

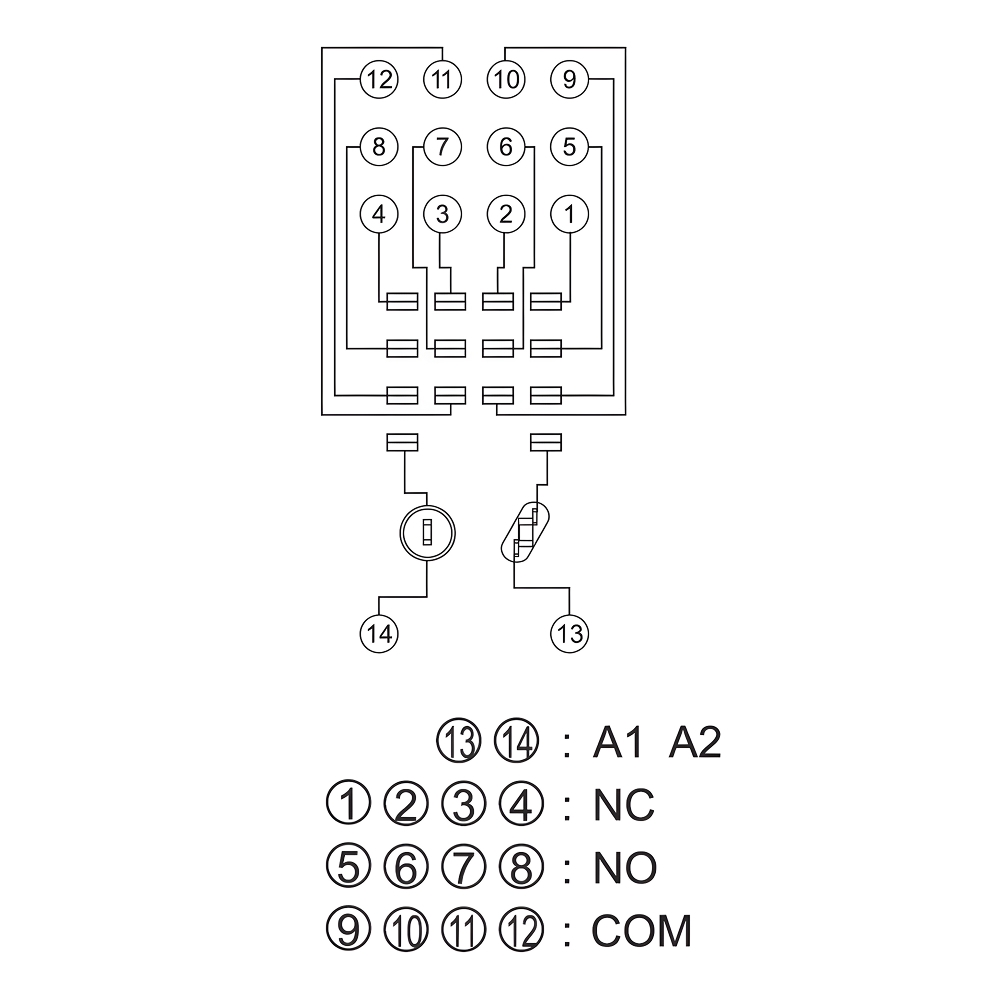

Number of pins 14
Rated operation current Ie at AC-1, A 10
