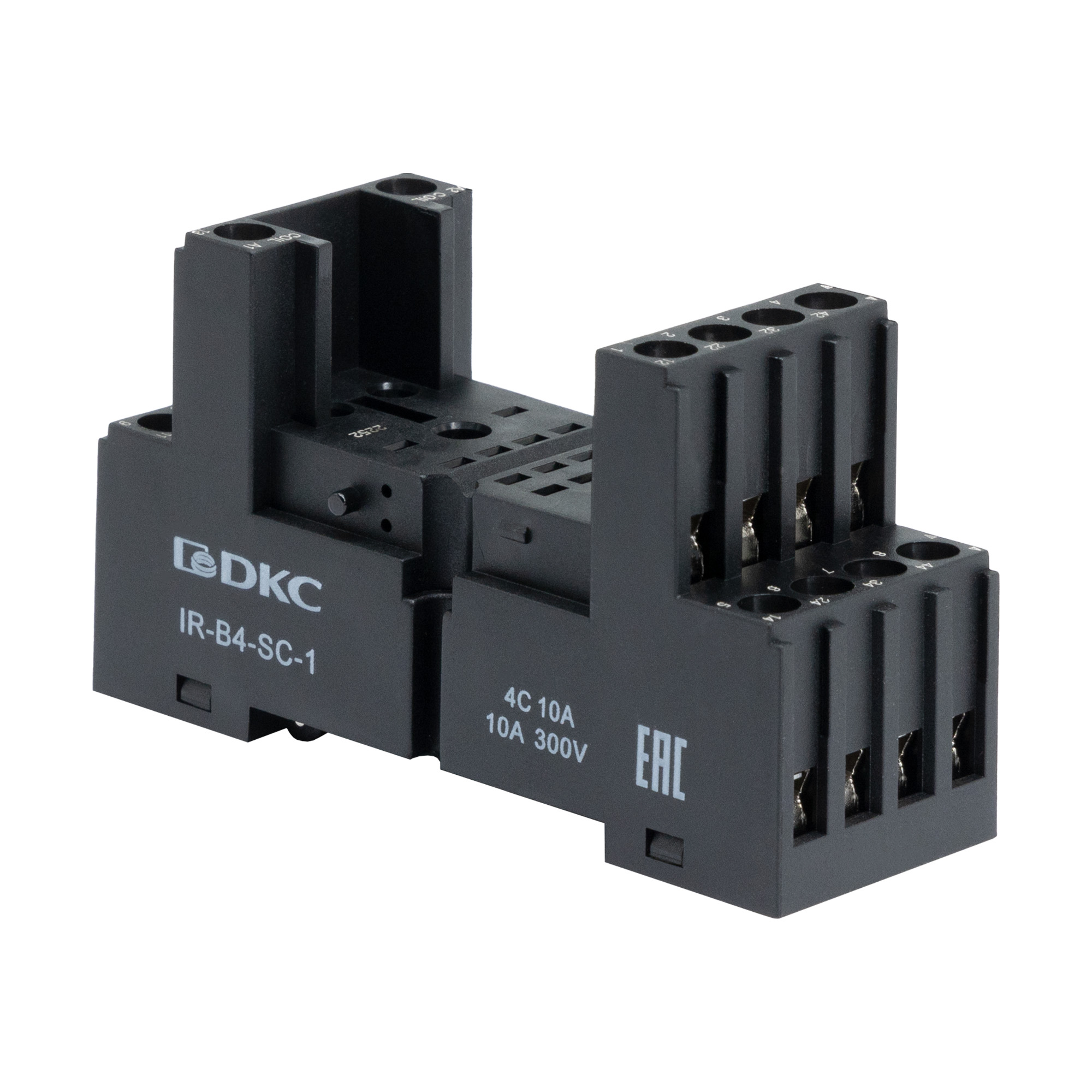

Low profile 2-level socket with screw terminals for relay for 4 groupof contacts

Code: IR-B4-SC-1
Low profile 2-level socket with screw terminals for relay for 4 groupof contacts
Low profile 2-level socket with screw terminals for relay for 4 groupof contacts
Code: IR-B4-SC-1
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items

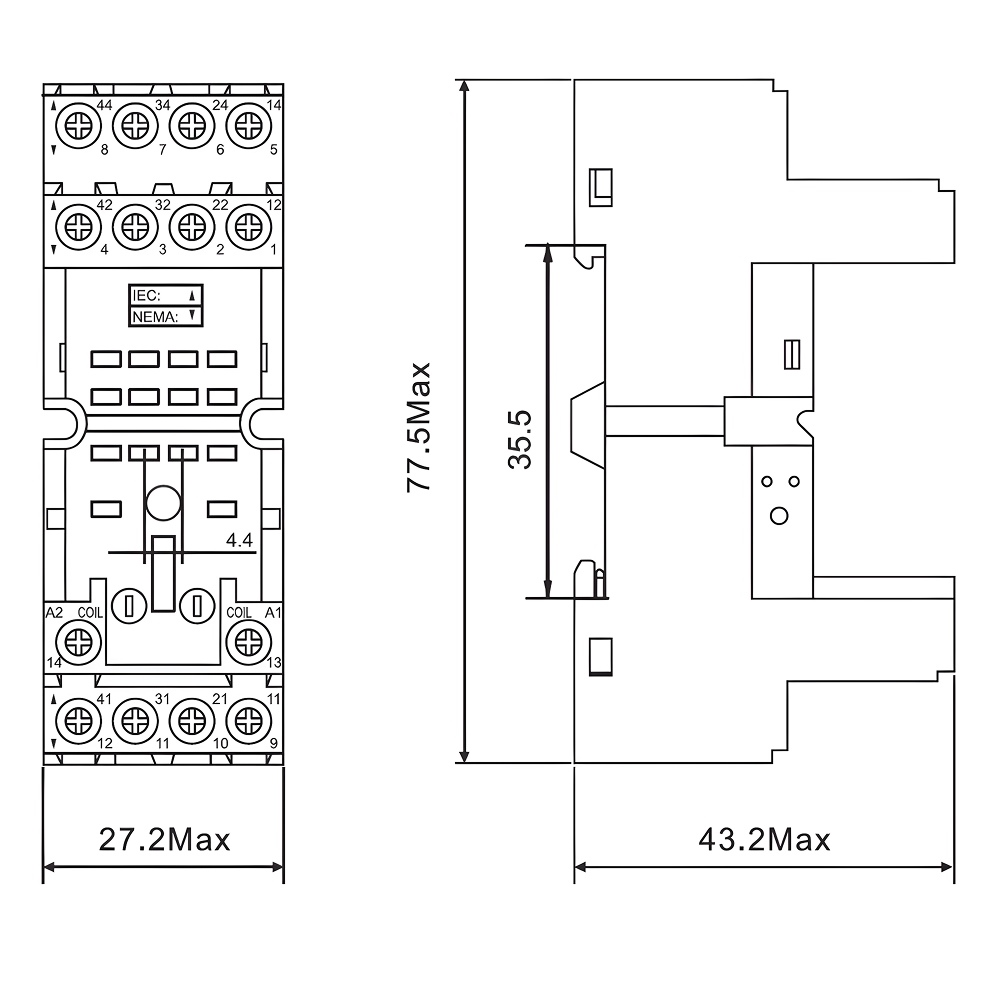

Mounting method DIN rail (top hat rail) 35 mm
Width, mm 27
Height, mm 43
Depth, mm 77
With detachable clamps No
Type of electric connection Screw connection
Function extension possible No
Modular version No
Operating voltage, V 300...300

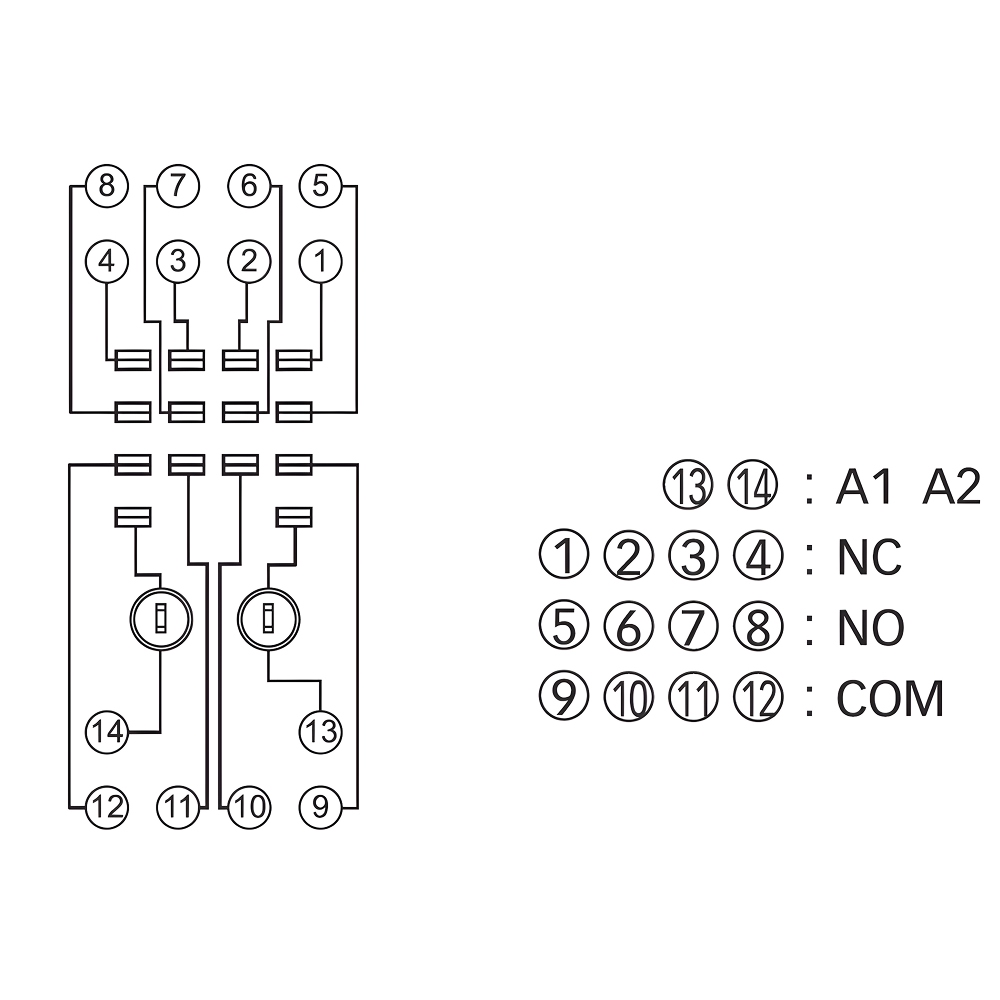

Number of pins 14
Rated operation current Ie at AC-1, A 10
