| Mounting method | DIN rail (top hat rail) 35 mm |

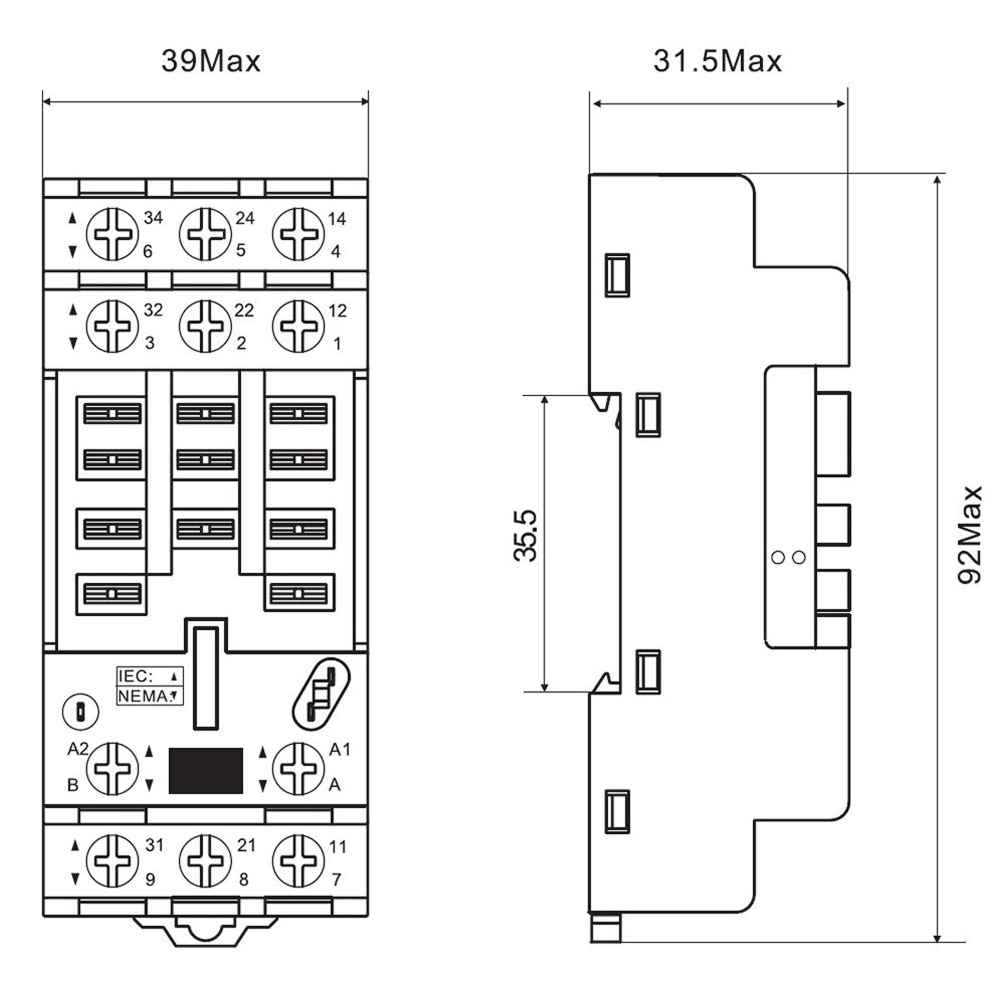

| Width, mm | 39 |
| Height, mm | 31.3 |
| Depth, mm | 92 |
| With detachable clamps | No |
| Type of electric connection | Screw connection |
| Function extension possible | No |
| Modular version | No |
| Operating voltage, V | 300...300 |

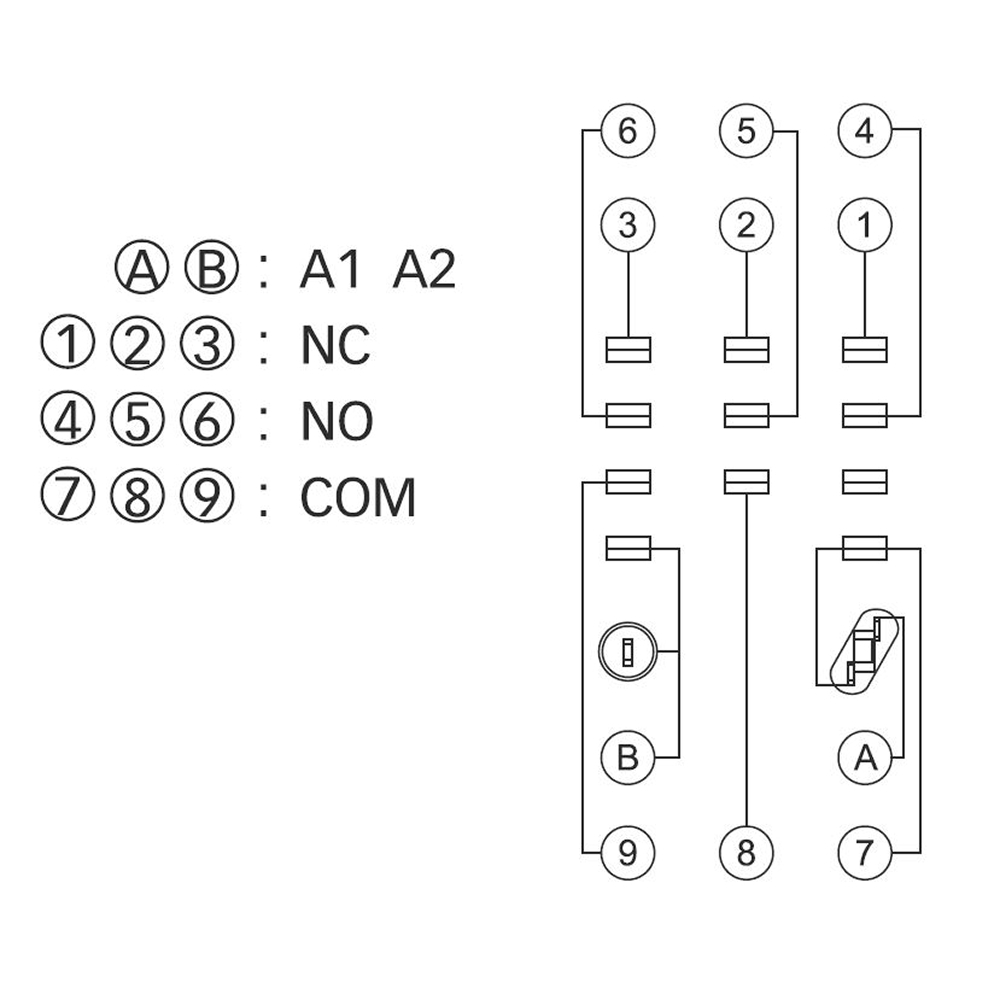

| Number of pins | 11 |
| Rated operation current Ie at AC-1, A | 25 |
