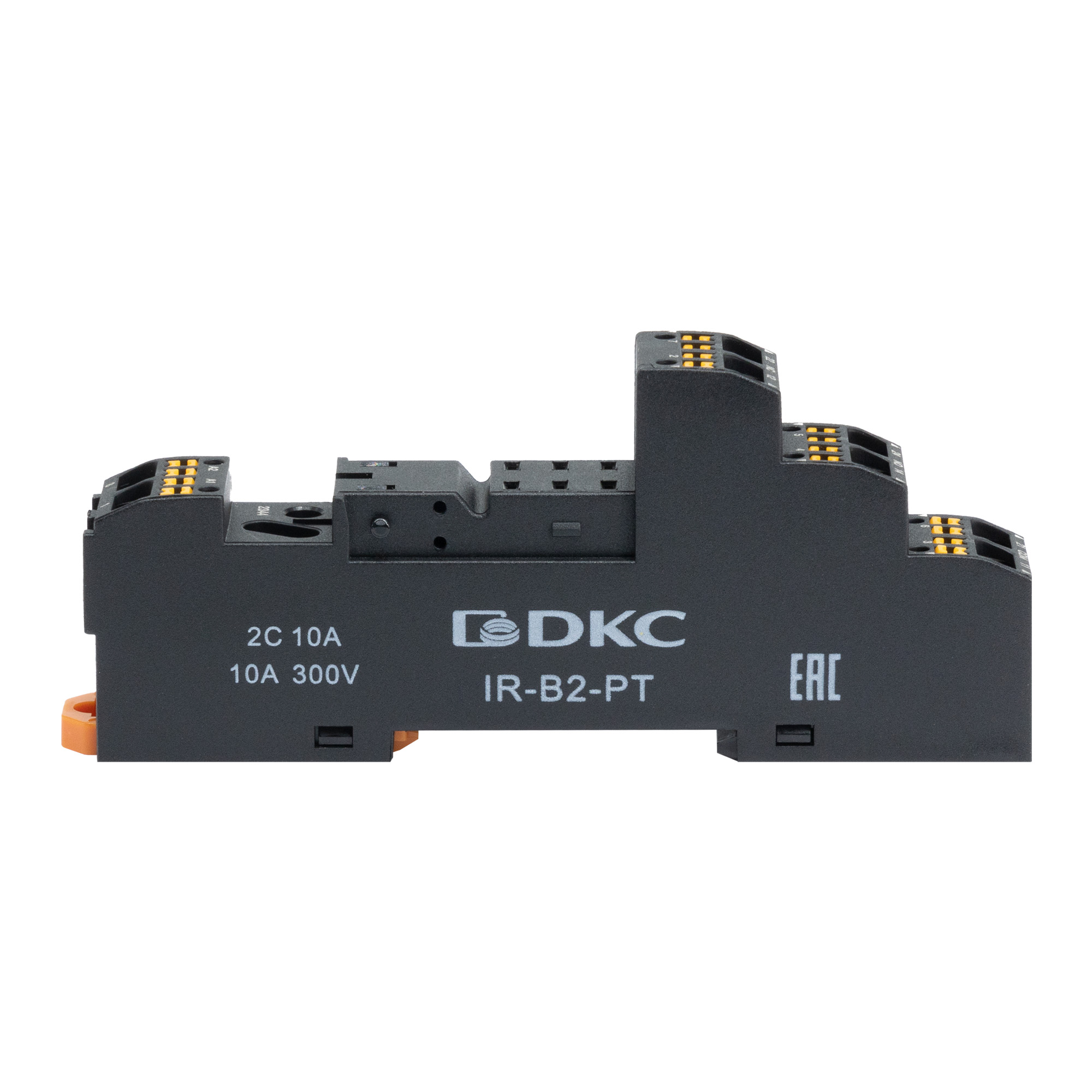

Socket with push-in terminals for relay for 2 group of contacts

Code: IR-B2-PT
Socket with push-in terminals for relay for 2 group of contacts
Socket with push-in terminals for relay for 2 group of contacts
Code: IR-B2-PT
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method DIN rail (top hat rail) 35 mm
Width, mm 16
Height, mm 43
Depth, mm 120
With detachable clamps No
Type of electric connection Spring clamp connection
Function extension possible No
Modular version No
Operating voltage, V 300...300

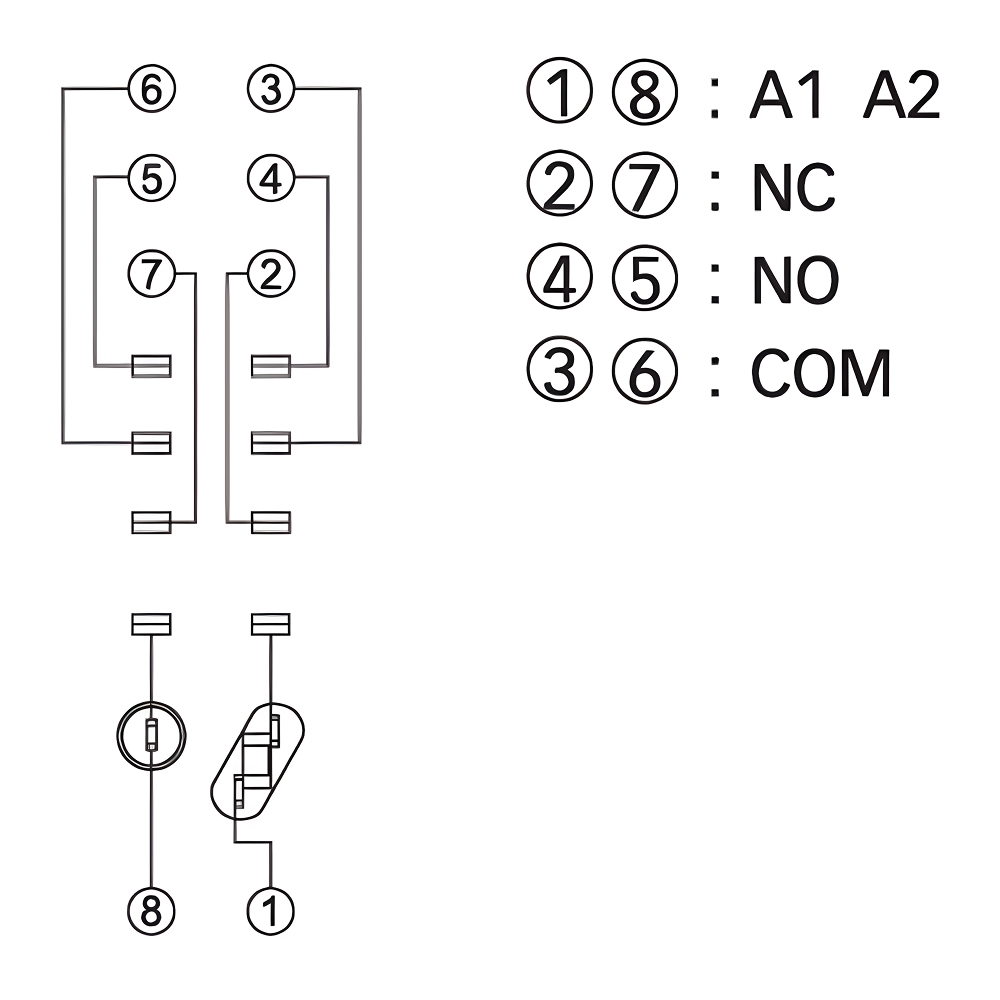

Number of pins 8
Rated operation current Ie at AC-1, A 10
