| Nominal current, A | 6 |

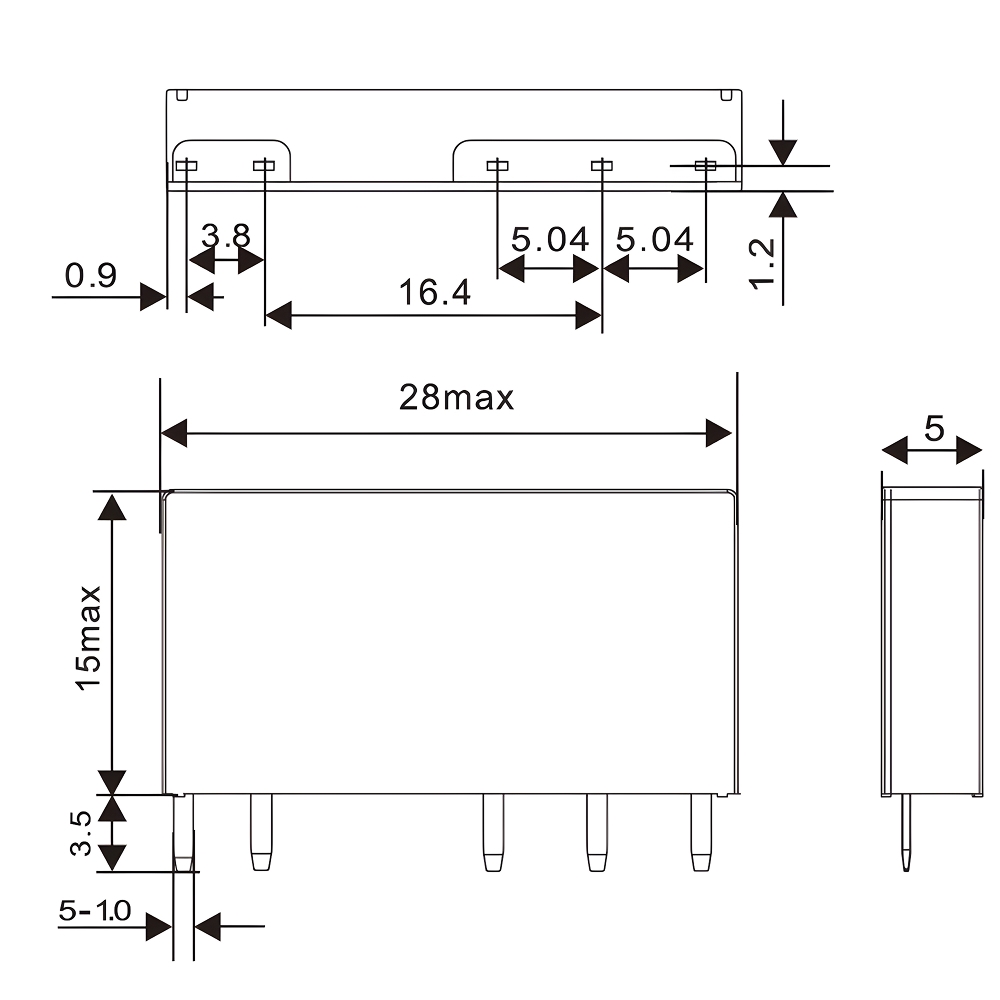

| Width, mm | 28 |
| Height, mm | 15 |
| Depth, mm | 5 |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Complete with socket | No |
| Type of electric connection | Flat plug-in connection |
| Rated control supply voltage Us at DC, V | 48...48 |
| Degree of protection (IP) | IP50 |
| With LED indication | No |
| Voltage type for actuating | DC |
| Number of contacts as change-over contact | 1 |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Type of switch contact | Single contact |
